◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#131552) — 29 parça

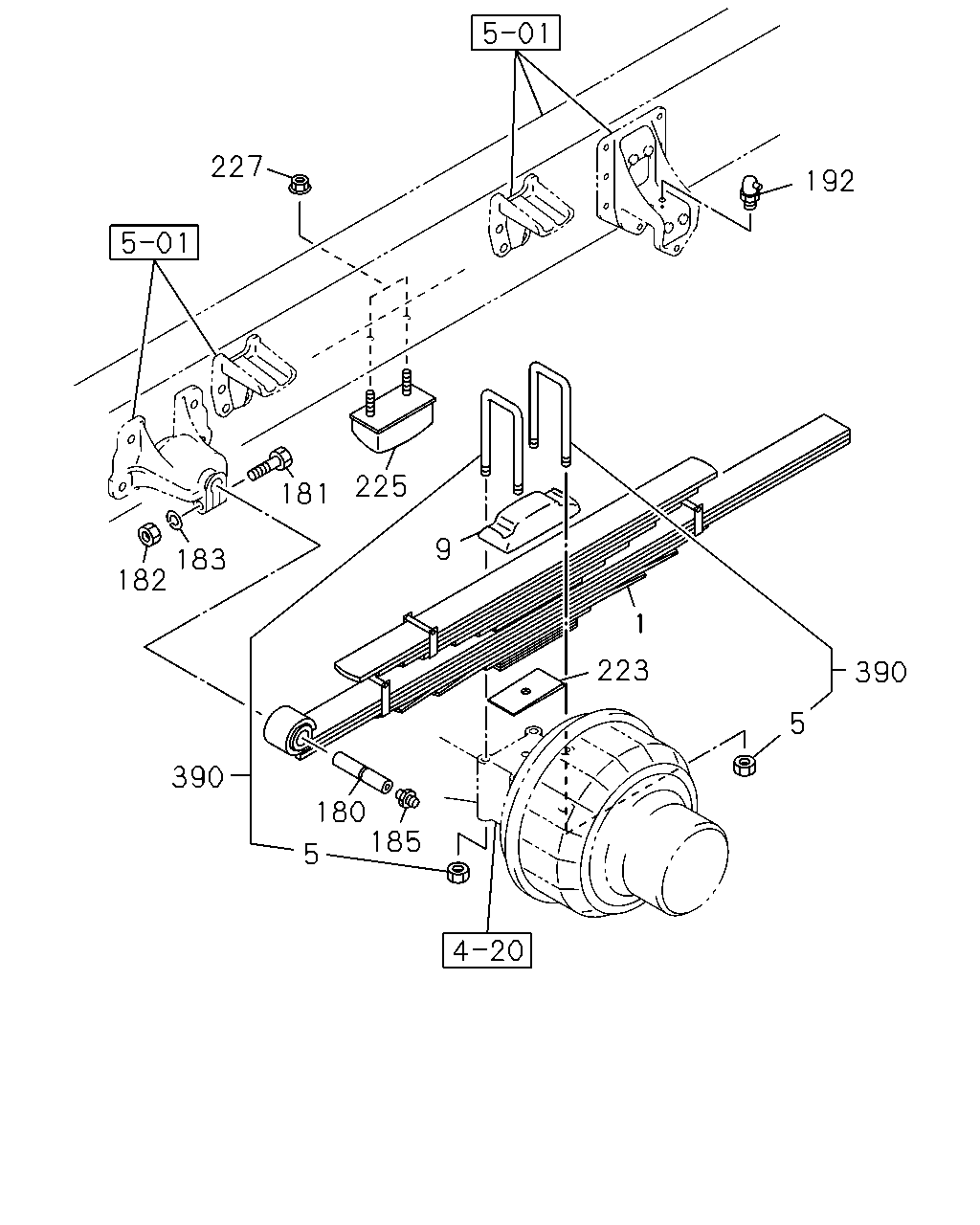

çizim 388603
227 192 225 9 181 183 182 390 180 5 185 223 5 390 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
IDN 		8-98208-787-0 02 1 1312-1402 ●
1 SPRING ASM; LEAF,RR
IDN 		8-98208-787-0 02 1 1403- ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 1312-1402 ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 1403- ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 1312-1402 ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 1403- ● ●
180 PIN; RR SPR 1-51361-020-0 02 1 1312-1402 ●
180 PIN; RR SPR 1-51361-020-0 02 1 1403- ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 1312-1402 ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 1403- ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 1312-1402 ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 1403- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 1312-1402 ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 1403- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1312-1402 ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1403- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1402 ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1403- ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		8-98091-873-0 02 1 1312-1405 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		8-98091-873-0 02 1 1406- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		1-51377-371-1 02 1 1312-1402 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		1-51377-371-1 02 1 1403- ●
223 SPACER; U BOLT,RR SPR 1-51377-371-1 02 1 1403- ●
225 RUBBER; CUSHION,RR SPR 1-53366-045-1 02 1 1312-1402 ●
225 RUBBER; CUSHION,RR SPR 1-53366-045-1 02 1 1403- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 1312-1402 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 1403- ● ●
390 U-BOLT SET; RR SPRING
L=530 		1-87870-501-0 04 1 1312-1402 ●
390 U-BOLT SET; RR SPRING
L=530 		1-87870-501-0 04 1 1403- ● ●
