◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#131550) — 66 parça

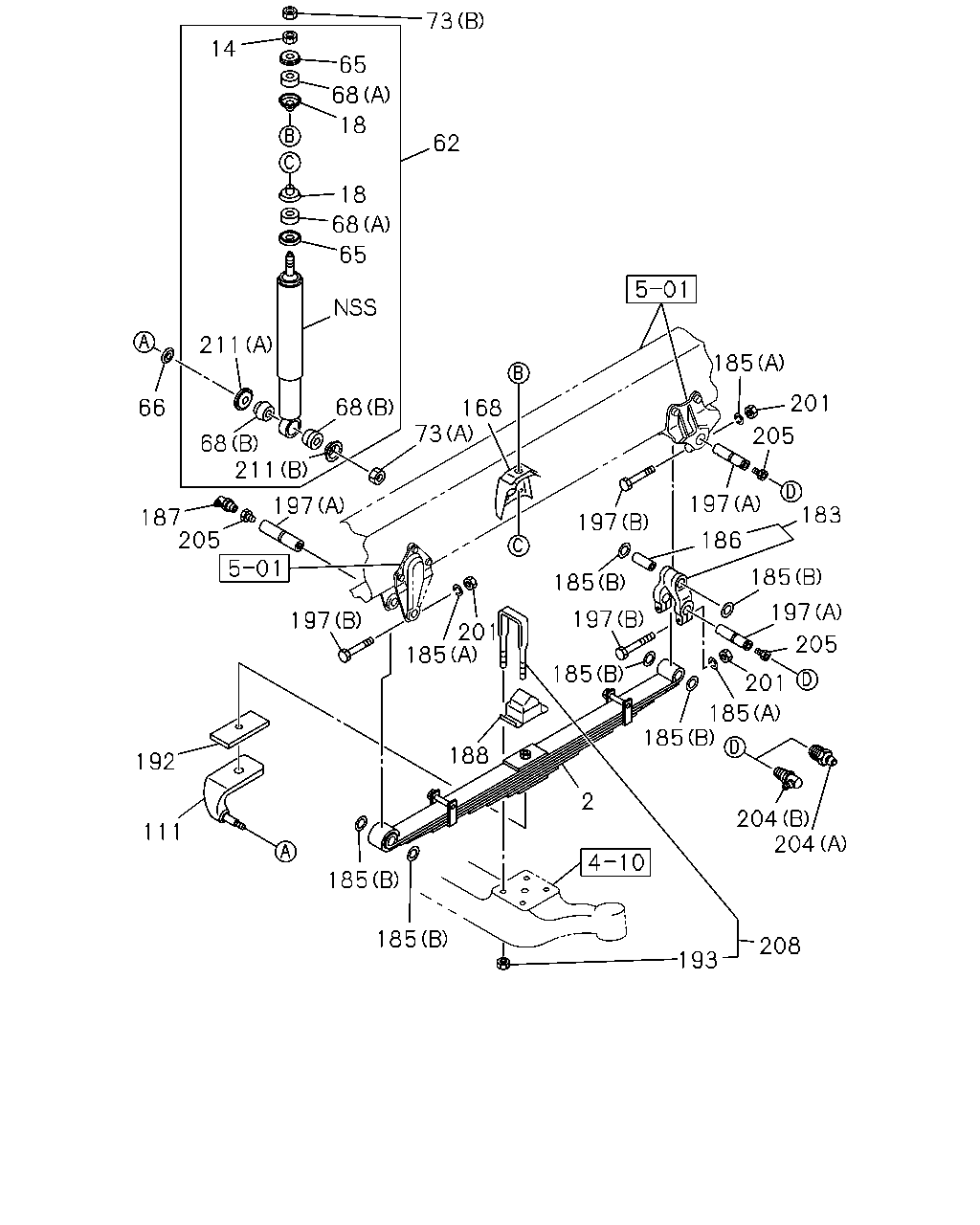

çizim 389232
14 65 73 68 18 62 18 68 65 211 66 187 205 68 211 197 68 197 73 168 197 185 197 185 185 185 201 205 197 185 186 197 183 205 201 185 204 204 208 2 188 185 201 192 111 185 185 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. IDN 		8-98029-096-0 02 1 1312-1402 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. IDN 		8-98029-096-0 02 1 1403- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1312-1402 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1403- ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 IDN 		9-51631-041-0 04 1 1312-1402 ●
18 WASHER; CENTERING,S/ABS
ID=20.8 IDN 		9-51631-041-0 04 1 1403- ● ●
62 ABSORBER ASM; SHOCK,FRT
IDN 		1-51630-579-0 02 1 1312-1402 ●
62 ABSORBER ASM; SHOCK,FRT
IDN 		1-51630-579-0 02 1 1403- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 1312-1402 ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 1403- ● ●
65 WASHER; S/ABS
ID=16.5 IDN 		9-51631-040-0 04 1 1312-1402 ●
65 WASHER; S/ABS
ID=16.5 IDN 		9-51631-040-0 04 1 1403- ● ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1312-1402 ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1403- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1312-1402 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1403- ● ●
68 BUSHING; S/ABS
(A) IDN 		9-51631-039-0 04 1 1312-1402 ●
68 BUSHING; S/ABS
(A) IDN 		9-51631-039-0 04 1 1403- ● ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1312-1402 ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1403- ● ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1312-1402 ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1403- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1312-1402 ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1403- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1312-1402 ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1403- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1403-1405 ●
168 BRACKET; S/ABS,FRT SUSP
P90 PROP SHAFT<C5T> 		1-51681-616-0 02 1 1406- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1406- ●
168 BRACKET; S/ABS,FRT SUSP
IDN 		8-97695-128-0 02 1 1312-1405 ●
168 BRACKET; S/ABS,FRT SUSP
P46 PROP SHAFT<C4Z> IDN 		8-97695-128-0 02 1 1406- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1312-1402 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1403- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1312-1402 ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1403- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		8-98179-315-0 12 1 1312-1402 ●
185 WASHER; LK,PIN
(A) ID=12.2 		8-98179-315-0 12 1 1403- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1312-1402 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1403- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1312-1402 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1403- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
IDN 		1-51172-125-1 02 1 1312-1402 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
IDN 		1-51172-125-1 02 1 1403- ● ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 1312-1402 ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 1403- ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1312-1402 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1403- ● ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1312-1402 ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1403- ● ●
197 PIN; FRT SPR,FRT
(A) IDN 		8-97948-141-0 06 1 1312-1402 ●
197 PIN; FRT SPR,FRT
(A) IDN 		8-97948-141-0 06 1 1403- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1312-1402 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1403- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1312-1402 ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1403- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1402 ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1403- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1312-1402 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1403- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1312-1401 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1402-1402 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1403- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1312-1402 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1403- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1312-1402 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1403- ● ●
