1 |

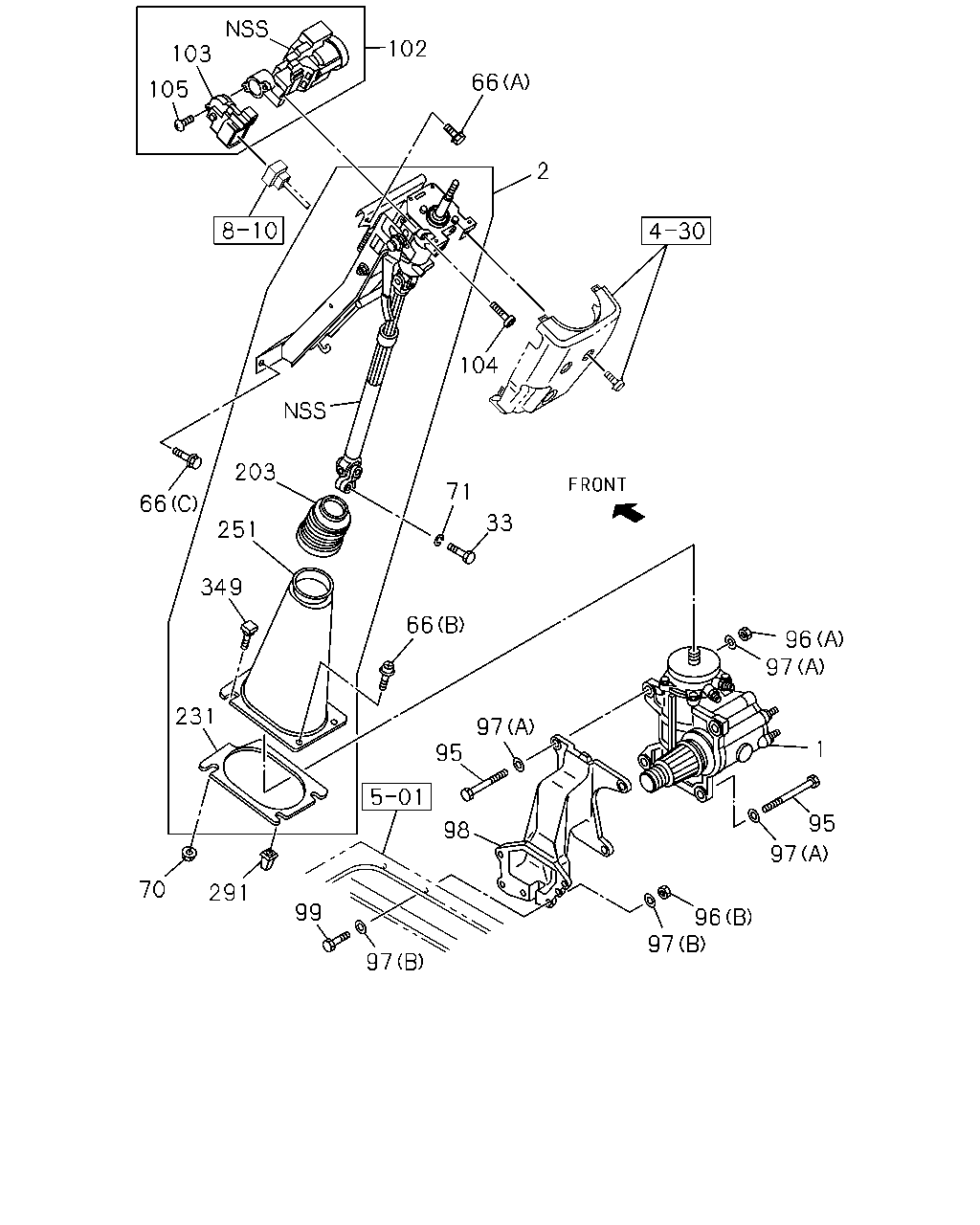

STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
IDN
|
1-44000-953-1 |
01 |
1 |
1312-1402 |
● |
|
| |
1 |
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
IDN
|
1-44000-953-1 |
01 |
1 |
1403- |
● |
● |
| |
2 |
SHAFT ASM; STRG
BLACK
IDN
|
8-97415-618-2 |
01 |
1 |
1312-1402 |
● |
|
| |
2 |
SHAFT ASM; STRG
BLACK
IDN
|
8-97415-618-2 |
01 |
1 |
1403- |
● |
● |
| |
33 |
BOLT; STRG SHAFT TO UNIT
M10X35
|
1-09009-126-1 |
01 |
1 |
1312-1402 |
● |
|
| |
33 |
BOLT; STRG SHAFT TO UNIT
M10X35
|
1-09009-126-1 |
01 |
1 |
1403- |
● |
● |
| |
66 |
BOLT; STRG COLUMN
(A)
M8X20 FLANGE
IDN
|
0-28650-820-0 |
02 |
1 |
1312-1402 |
● |
|
| |
66 |
BOLT; STRG COLUMN
(A)
M8X20 FLANGE
IDN
|
0-28650-820-0 |
02 |
1 |
1403- |
● |
● |
| |
66 |
BOLT; STRG COLUMN
(B)
M5X18 TAPPING
|
0-72180-518-0 |
02 |
1 |
1312-1402 |
● |
|
| |
66 |
BOLT; STRG COLUMN
(B)
M5X18 TAPPING
|
0-72180-518-0 |
02 |
1 |
1403- |
● |
● |
| |
66 |
BOLT; STRG COLUMN
(C)
M8X25 W/LK&PL WASHER
|
8-98018-439-0 |
02 |
1 |
1312-1402 |
● |
|
| |
66 |
BOLT; STRG COLUMN
(C)
M8X25 W/LK&PL WASHER
|
8-98018-439-0 |
02 |
1 |
1403- |
● |
● |
| |
70 |
NUT; STRG COLUMN
M6 FLANGE W/RUBBER
|
1-09984-180-0 |
02 |
1 |
1312-1402 |
● |
|
| |
70 |
NUT; STRG COLUMN
M6 FLANGE W/RUBBER
|
1-09984-180-0 |
02 |
1 |
1403- |
● |
● |
| |
71 |
WASHER; LK,SHAFT TO UNIT
ID=10.2
IDN
|
0-91510-810-0 |
01 |
1 |
1312-1402 |
● |
|
| |
71 |
WASHER; LK,SHAFT TO UNIT
ID=10.2
IDN
|
0-91510-810-0 |
01 |
1 |
1403- |
● |
● |
| |
95 |
BOLT; STRG UNIT
M16X66
|
1-09000-305-0 |
04 |
1 |
1312-1402 |
● |
|
| |
95 |
BOLT; STRG UNIT
M16X66
|
1-09000-305-0 |
04 |
1 |
1403- |
● |
● |
| |
96 |
NUT; STRG UNIT
(A)
M16
IDN
|
0-91110-516-0 |
02 |
1 |
1312-1402 |
● |
|
| |
96 |
NUT; STRG UNIT
(A)
M16
IDN
|
0-91110-516-0 |
02 |
1 |
1403- |
● |
● |
| |
96 |
NUT; STRG UNIT
(B)
M14
|
1-09440-097-0 |
06 |
1 |
1312-1402 |
● |
|
| |
96 |
NUT; STRG UNIT
(B)
M14
|
1-09440-097-0 |
06 |
1 |
1403- |
● |
● |
| |
97 |
WASHER; PL,STRG UNIT
(A)
ID=16.2
|
1-09503-316-0 |
06 |
1 |
1312-1402 |
● |
|
| |
97 |
WASHER; PL,STRG UNIT
(A)
ID=16.2
|
1-09503-316-0 |
06 |
1 |
1403- |
● |
● |
| |
97 |
WASHER; PL,STRG UNIT
(B)
ID=15
|
8-98010-627-1 |
12 |
1 |
1312-1402 |
● |
|
| |
97 |
WASHER; PL,STRG UNIT
(B)
ID=15
|
8-98010-627-1 |
12 |
1 |
1403- |
● |
● |
| |
98 |
BRACKET; STRG GEAR BOX
|
1-44226-136-1 |
01 |
1 |
1312-1402 |
● |
|
| |
98 |
BRACKET; STRG GEAR BOX
|
1-44226-136-1 |
01 |
1 |
1403- |
● |
● |
| |
99 |
BOLT; BRKT TO FRAME
M14X50
|
1-09000-787-1 |
06 |
1 |
1312-1402 |
● |
|
| |
99 |
BOLT; BRKT TO FRAME
M14X50
|
1-09000-787-1 |
06 |
1 |
1403- |
● |
● |
| |
102 |
LOCK ASM; STRG
IDN
|
8-97948-271-0 |
01 |
1 |
1312-1402 |
● |
|
| |
102 |
LOCK ASM; STRG
IDN
|
8-97948-271-0 |
01 |
1 |
1403- |
● |
● |
| |
103 |
SWITCH; IGNITION
|
8-98045-349-0 |
01 |
1 |
1312-1402 |
● |
|
| |
103 |
SWITCH; IGNITION
|
8-98045-349-0 |
01 |
1 |
1403- |
● |
● |
| |
104 |
BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
|
8-97321-385-0 |
02 |
1 |
1312-1402 |
● |
|
| |
104 |
BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
|
8-97321-385-0 |
02 |
1 |
1403- |
● |
● |
| |
105 |
SCREW; IGN SW
|
8-98045-346-0 |
02 |
1 |
1312-1402 |
● |
|
| |
105 |
SCREW; IGN SW
|
8-98045-346-0 |
02 |
1 |
1403- |
● |
● |
| |
203 |
BOOT; STRG COLUMN LWR
IDN
|
8-98137-333-0 |
01 |
1 |
1312-1402 |
● |
|
| |
203 |
BOOT; STRG COLUMN LWR
IDN
|
8-98137-333-0 |
01 |
1 |
1403- |
● |
● |
| |
231 |
SEAL; RUBBER,STRG COLUMN
IDN
|
8-98137-330-0 |
01 |
1 |
1312-1402 |
● |
|
| |
231 |
SEAL; RUBBER,STRG COLUMN
IDN
|
8-98137-330-0 |
01 |
1 |
1403- |
● |
● |
| |
251 |
COVER; LWR
BLACK
IDN
|
8-97417-050-0 |
01 |
1 |
1312-1402 |
● |
|
| |
251 |
COVER; LWR
BLACK
IDN
|
8-97417-050-0 |
01 |
1 |
1403- |
● |
● |
| |
291 |
GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL
IDN
|
8-94279-043-0 |
02 |
1 |
1312-1402 |
● |
|
| |
291 |
GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL
IDN
|
8-94279-043-0 |
02 |
1 |
1403- |
● |
● |
| |
349 |
BOLT; COVER
IDN
|
8-98137-334-0 |
02 |
1 |
1312-1402 |
● |
|
| |
349 |
BOLT; COVER
IDN
|
8-98137-334-0 |
02 |
1 |
1403- |
● |
● |
