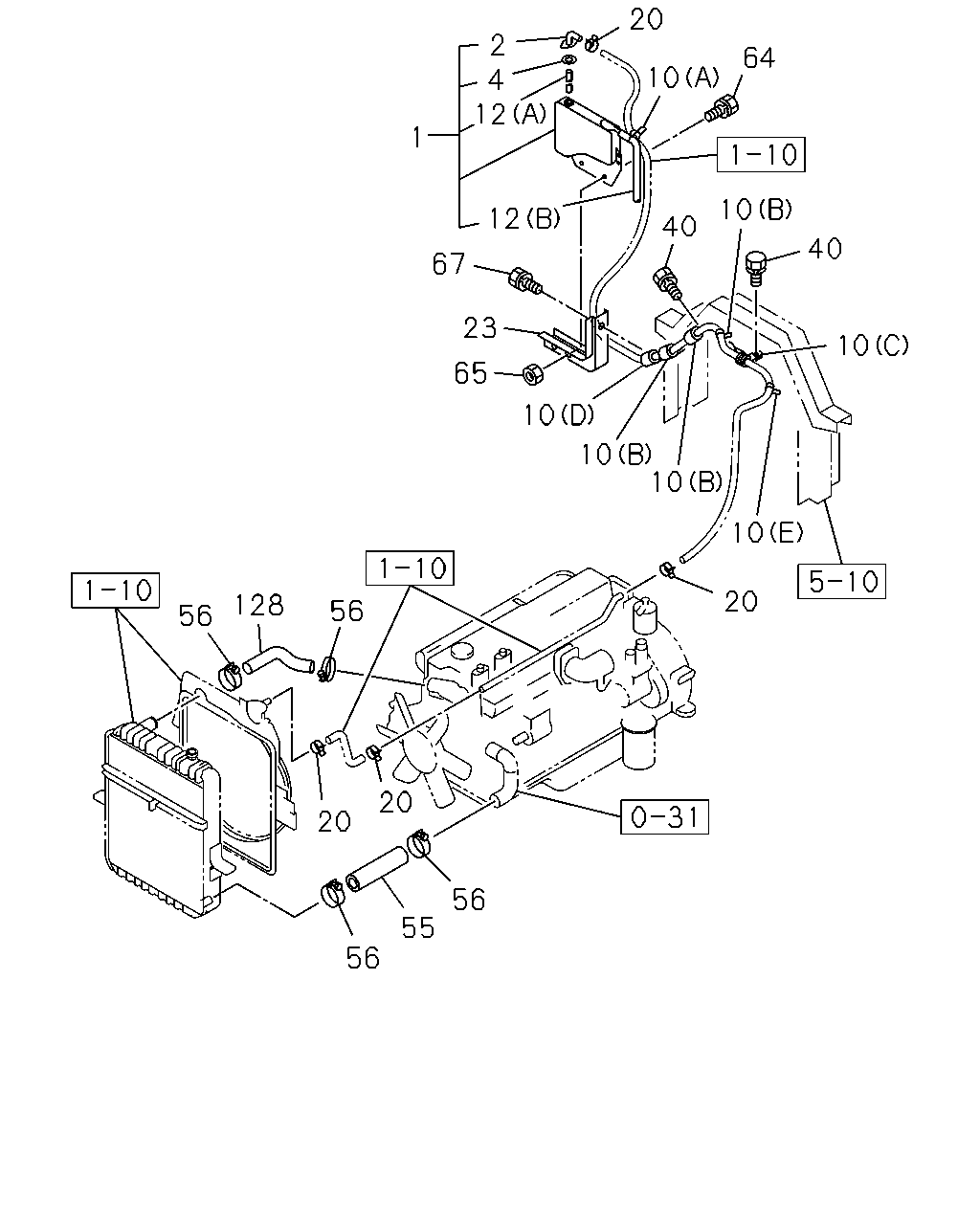

1-11 — RADIATOR HOSE AND SUB TANK
(#13154) — 20 parça
20
2
4
12
64
10
1
10
12
40
40
67
23
10
65
10
10
10
10
20
128
56
56
20
20
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
1-21480-104-1
01
1
0612-
2
CAP; SURGE TANK
1-21483-008-0
01
1
0612-
4
GASKET; SURGE TANK
5-21489-006-0
01
1
0612-
10
CLIP; RUBBER HOSE
(D) ID=13 L=20
0-95235-235-0
01
1
0612-
10
CLIP; RUBBER HOSE
(C) ID=14.5 L=40
1-09701-014-0
01
1
0612-
10
CLIP; RUBBER HOSE
(A) L=140
5-09707-031-1
01
1
0612-
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
03
1
0612-
10
CLIP; RUBBER HOSE
(E) ID=20 L=50
9-09917-430-0
01
1
0612-
12
HOSE; SURGE TANK
(B) L=300
1-09366-199-0
01
1
0612-
12
HOSE; SURGE TANK
(A)
1-21489-203-0
01
1
0612-
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
0612-
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
0612-
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0612-
55
HOSE; WATER,RAD OUTLET
8-98010-577-1
01
1
0612-
56
CLIP; WATER HOSE,RAD
ID=63
1-09704-067-0
04
1
0612-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
0612-0707
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
0708-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
04
1
0612-
67
BOLT; BRKT
M10X20 FLANGE
0-28651-020-0
02
1
0612-
128
HOSE; WATER,RAD INL
8-98050-924-1
01
1
0612-
