4-01 — PROPELLER SHAFT (#131538) — 716 parça

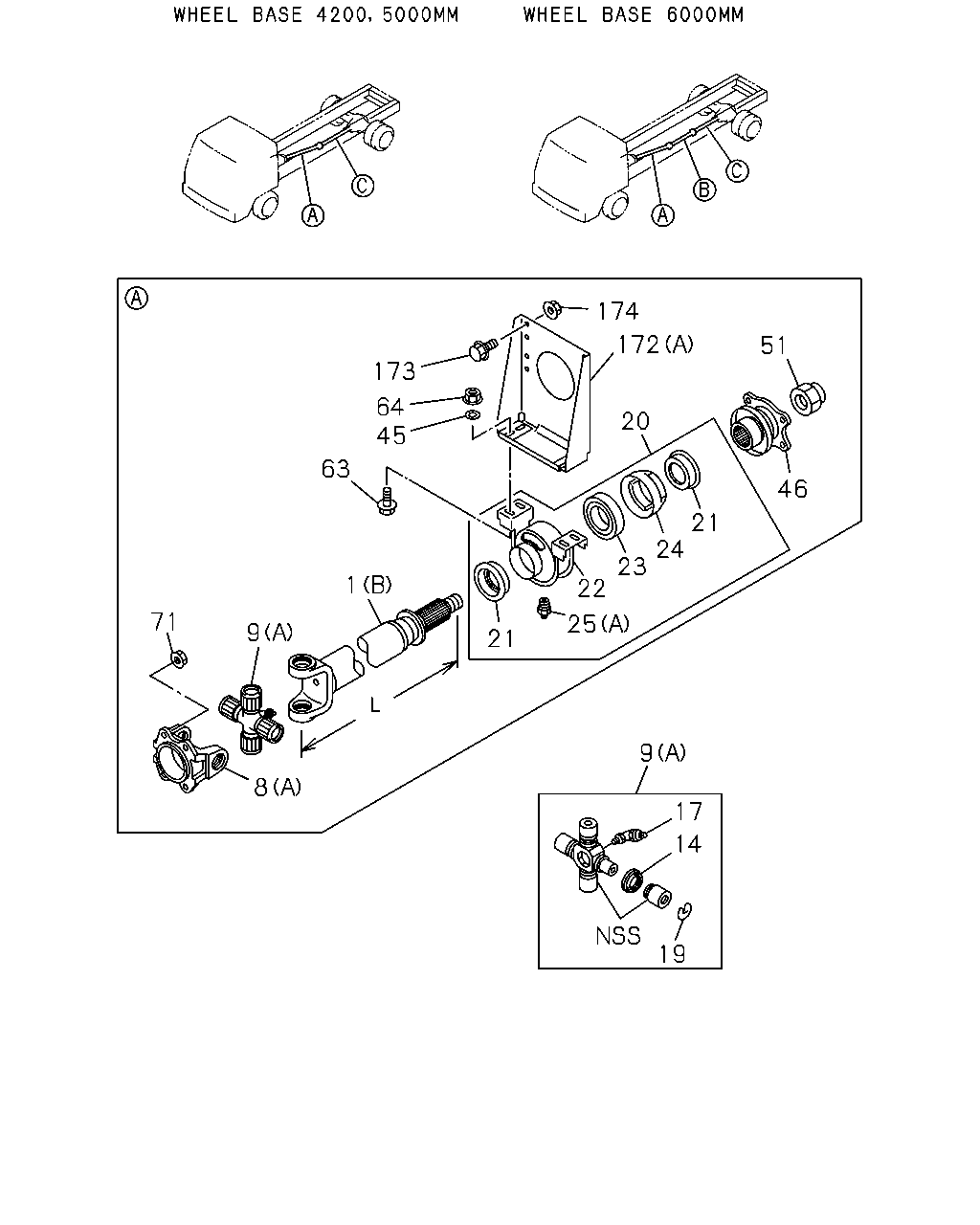

çizim 388577
174 173 172 64 45 20 51 46 21 24 23 22 25 21 1 63 71 9 8 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (G) 		1-37123-851-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) 		8-98269-383-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (G) L=1227 		1-37124-101-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) 		8-98269-384-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (F) 		8-98269-385-0 01 1 1406- ●
1 SHAFT; PROP
(D) L=1117 		1-37124-081-0 01 1 1403- ●
1 SHAFT; PROP
(A) L=1176 		1-37124-342-1 01 1 1312- ●
1 SHAFT; PROP
(B) L=849 		8-98069-584-0 01 1 1312- ●
1 SHAFT; PROP
(B) L=1504 		8-98090-933-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (B) L=1504 		8-98090-933-0 01 1 1406- ●
1 SHAFT; PROP
(A) L=1281 		1-37124-249-1 01 1 1312-1405 ● ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (A) L=1281 		1-37124-249-1 01 1 1406- ● ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (C) L=1234 		8-98069-590-0 01 1 1406- ●
1 SHAFT; PROP
(B) L=1219 		8-98090-948-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (B) L=1219 		8-98090-948-0 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 03 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 04 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-066-1 02 1 1403- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 02 1 1312- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1312-1405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1312-1405 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (B) 		1-37211-056-3 01 1 1406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (B) 		1-37211-056-3 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98178-052-0 01 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98178-052-0 01 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-091-1 AR 1 1403-1405 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1312-1405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1312-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 AR 1 1406- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 01 1 1312-1405 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 01 1 1406- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-131-0 16 1 1406- ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1403- ●
14 COVER; DUST,SPIDER 8-98020-800-0 12 1 1312- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 08 1 1406- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 04 1 1406- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 04 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1403- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1312- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1312- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1312- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1312- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1312-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1312-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1312-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 02 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1312-1405 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1312-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT<C4Z> 		8-98020-881-0 01 1 1406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT<C4Z> 		8-98020-881-0 01 1 1406- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 04 1 1406- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1312-1405 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1312-1405 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT<C4Z> ID=54 		1-09625-161-0 02 1 1406- ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT<C4Z> ID=54 		1-09625-161-0 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1312-1405 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1312-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		1-37516-059-0 01 1 1406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		1-37516-059-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 02 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1312-1405 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1312-1405 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT<C4Z> 		9-00090-071-0 01 1 1406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT<C4Z> 		9-00090-071-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 02 1 1406- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1312-1405 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1312-1405 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		8-98020-882-0 01 1 1406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		8-98020-882-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> (A) MT6 STRAIGHT IDN 		1-09380-006-0 02 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1312-1405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT<C4Z> (A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1406- ● ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(B) 		8-98020-889-0 01 1 1312-1405 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT<C4Z> (B) 		8-98020-889-0 01 1 1406- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1405 ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT<C4Z> ID=10.5 OD=22 		0-91614-610-0 04 1 1406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 02 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1312-1405 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1312-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> 		8-98020-815-0 01 1 1406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> 		8-98020-815-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 02 1 1406- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1312-1405 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1312-1405 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT<C4Z> M30 		8-97160-857-0 01 1 1406- ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT<C4Z> M30 		8-97160-857-0 01 1 1406- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1312-1405 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1312-1405 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> M10X35 FLANGE IDN 		0-28651-035-0 04 1 1406- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> M10X35 FLANGE IDN 		0-28651-035-0 04 1 1406- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1312-1405 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1312-1405 ●
64 NUT; RET TO BRKT
P46 PROP SHAFT<C4Z> M10 FLANGE 		0-91180-210-0 04 1 1406- ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT<C4Z> M10 FLANGE 		0-91180-210-0 04 1 1406- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1312- ● ● ●
172 BRACKET; CENTER BRG
(A) 		8-98084-679-0 01 1 1312- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-136-0 01 1 1312-1405 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT<C4Z> (A) 		1-37515-136-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1312-1405 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT<C4Z> (A) 		1-37515-102-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-127-0 01 1 1312-1405 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT<C4Z> (B) 		1-37515-127-0 01 1 1406- ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1312- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1312- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1312- ● ● ●

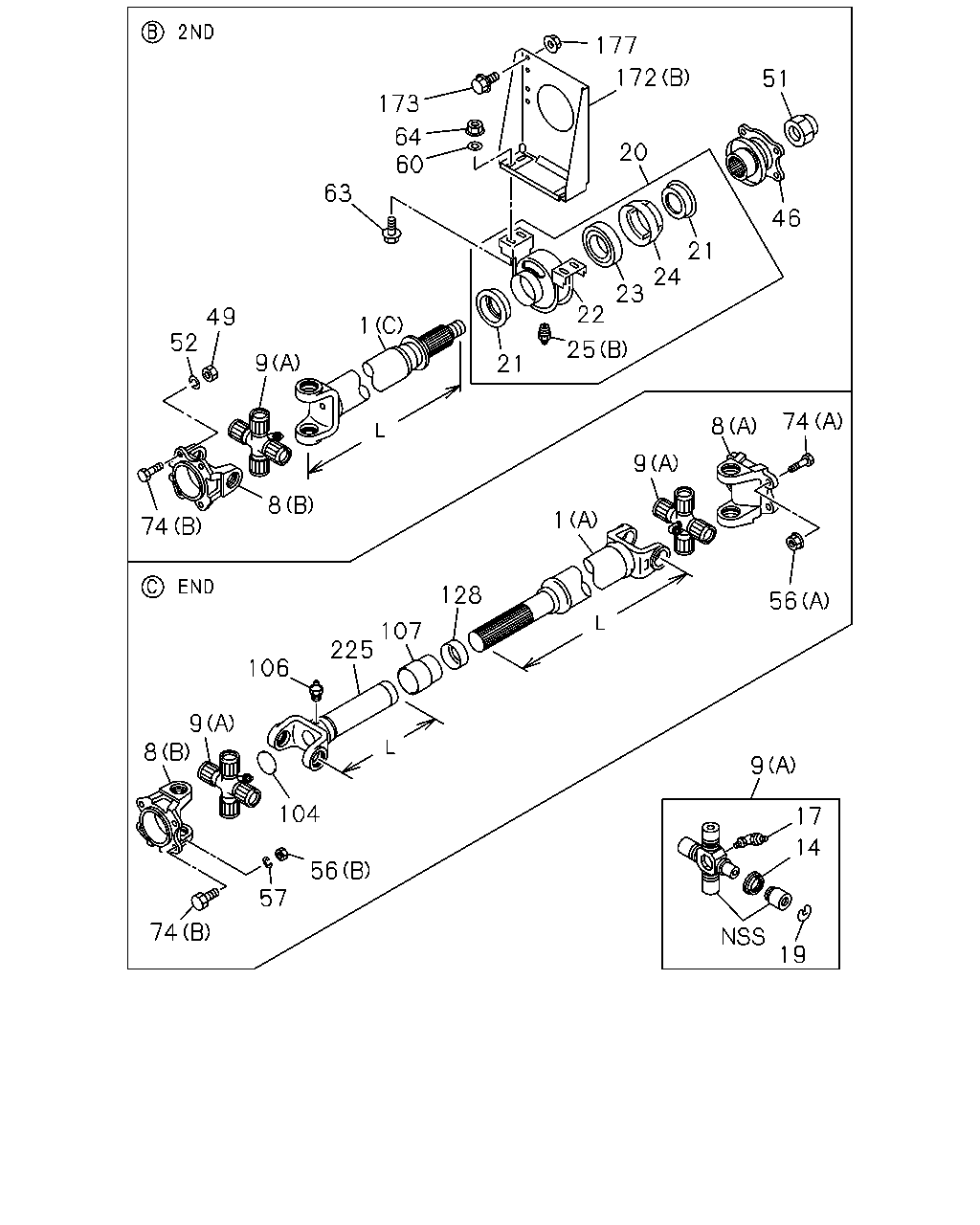

çizim 389121
173 177 64 60 63 172 20 51 46 21 24 23 22 25 21 1 9 49 52 8 74 8 9 106 225 107 128 1 9 8 74 56 104 56 57 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (G) 		1-37123-851-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) 		8-98269-383-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (G) L=1227 		1-37124-101-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) 		8-98269-384-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (F) 		8-98269-385-0 01 1 1406- ●
1 SHAFT; PROP
(D) L=1117 		1-37124-081-0 01 1 1403- ●
1 SHAFT; PROP
(A) L=1176 		1-37124-342-1 01 1 1312- ●
1 SHAFT; PROP
(B) L=849 		8-98069-584-0 01 1 1312- ●
1 SHAFT; PROP
(B) L=1504 		8-98090-933-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (B) L=1504 		8-98090-933-0 01 1 1406- ●
1 SHAFT; PROP
(A) L=1281 		1-37124-249-1 01 1 1312-1405 ● ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (A) L=1281 		1-37124-249-1 01 1 1406- ● ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (C) L=1234 		8-98069-590-0 01 1 1406- ●
1 SHAFT; PROP
(B) L=1219 		8-98090-948-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (B) L=1219 		8-98090-948-0 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 03 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 04 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-066-1 02 1 1403- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 02 1 1312- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1312-1405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1312-1405 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (B) 		1-37211-056-3 01 1 1406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (B) 		1-37211-056-3 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98178-052-0 01 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98178-052-0 01 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-091-1 AR 1 1403-1405 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1312-1405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1312-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 AR 1 1406- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 01 1 1312-1405 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 01 1 1406- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-131-0 16 1 1406- ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1403- ●
14 COVER; DUST,SPIDER 8-98020-800-0 12 1 1312- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 08 1 1406- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 04 1 1406- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 04 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1403- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1312- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1312- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1312- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1312- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1312-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1312-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1312-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1312-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 02 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1312-1405 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1312-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT<C4Z> 		8-98020-881-0 01 1 1406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT<C4Z> 		8-98020-881-0 01 1 1406- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 04 1 1406- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1312-1405 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1312-1405 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT<C4Z> ID=54 		1-09625-161-0 02 1 1406- ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT<C4Z> ID=54 		1-09625-161-0 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1312-1405 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1312-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		1-37516-059-0 01 1 1406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		1-37516-059-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 02 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1312-1405 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1312-1405 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT<C4Z> 		9-00090-071-0 01 1 1406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT<C4Z> 		9-00090-071-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 02 1 1406- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1312-1405 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1312-1405 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		8-98020-882-0 01 1 1406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		8-98020-882-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> (A) MT6 STRAIGHT IDN 		1-09380-006-0 02 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1312-1405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT<C4Z> (A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1406- ● ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(B) 		8-98020-889-0 01 1 1312-1405 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT<C4Z> (B) 		8-98020-889-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 02 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1312-1405 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1312-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> 		8-98020-815-0 01 1 1406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> 		8-98020-815-0 01 1 1406- ●
49 NUT; YOKE
P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 1406- ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1312-1405 ●
49 NUT; YOKE
P46 PROP SHAFT<C4Z> M14 		0-91110-514-0 04 1 1406- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 02 1 1406- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1312-1405 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1312-1405 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT<C4Z> M30 		8-97160-857-0 01 1 1406- ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT<C4Z> M30 		8-97160-857-0 01 1 1406- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1312-1405 ●
52 WASHER; LK,YOKE
P46 PROP SHAFT<C4Z> ID=14.2 		0-91510-614-0 04 1 1406- ●
56 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1312-1405 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT<C4Z> (B) M14 		0-91110-514-0 04 1 1406- ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1312-1402 ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1403-1405 ● ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1403-1405 ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1406- ● ● ● ●
56 NUT; YOKE
P90 PROP SHAFT<C5T> (A) M16 FLANGE 		1-09449-065-0 04 1 1406- ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1406- ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1312-1405 ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT<C4Z> ID=14.2 		0-91510-614-0 04 1 1406- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1312-1405 ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT<C4Z> ID=10.5 OD=22 		0-91614-610-0 04 1 1406- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1312-1405 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1312-1405 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> M10X35 FLANGE IDN 		0-28651-035-0 04 1 1406- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> M10X35 FLANGE IDN 		0-28651-035-0 04 1 1406- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1312-1405 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1312-1405 ●
64 NUT; RET TO BRKT
P46 PROP SHAFT<C4Z> M10 FLANGE 		0-91180-210-0 04 1 1406- ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT<C4Z> M10 FLANGE 		0-91180-210-0 04 1 1406- ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 1312-1405 ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 1312-1405 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT<C4Z> (B) M14X37 		1-09000-121-0 04 1 1406- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT<C4Z> (B) M14X37 		1-09000-121-0 04 1 1406- ●
74 BOLT; YOKE,TRANS
(A) M16X48 		1-09000-383-0 04 1 1312-1402 ● ● ●
74 BOLT; YOKE,TRANS
(A) M16X48 		1-09000-383-0 04 1 1403-1405 ● ● ● ●
74 BOLT; YOKE,TRANS
(A) M16X48 		1-09000-383-0 04 1 1406- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (A) M16X48 		1-09000-383-0 04 1 1406- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1403-1405 ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> 		1-09600-067-0 01 1 1406- ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1406- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1312-1405 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT<C4Z> 		1-09600-064-0 01 1 1406- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1312-1402 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1403- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 1312-1405 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT<C4Z> 		1-37249-060-1 01 1 1406- ● ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 1403-1405 ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> 		1-37247-019-0 01 1 1406- ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 1406- ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1312-1405 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT<C4Z> 		1-37247-024-0 01 1 1406- ● ● ●
172 BRACKET; CENTER BRG
(A) 		8-98084-679-0 01 1 1312- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-136-0 01 1 1312-1405 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT<C4Z> (A) 		1-37515-136-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1312-1405 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT<C4Z> (A) 		1-37515-102-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-127-0 01 1 1312-1405 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT<C4Z> (B) 		1-37515-127-0 01 1 1406- ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1312- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1312- ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1312-1405 ● ● ●
177 NUT
P46 PROP SHAFT<C4Z> M10 FLANGE 		0-91180-210-0 04 1 1406- ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1403-1405 ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=332 		1-37241-103-1 01 1 1406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1406- ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 1312-1405 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT<C4Z> L=271 		1-37241-099-2 01 1 1406- ● ● ●

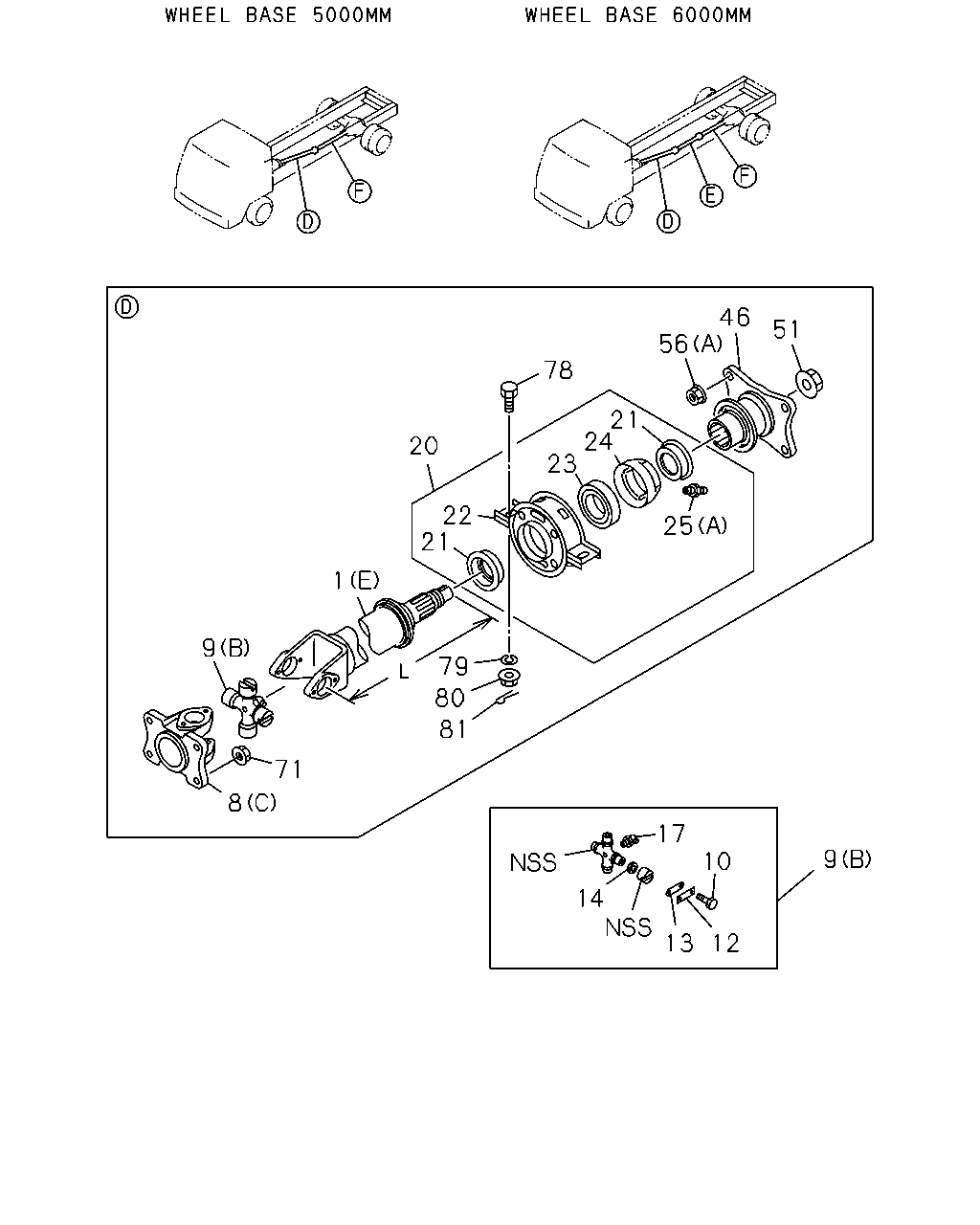

çizim 413518
78 56 46 51 21 24 23 25 22 20 21 79 80 81 1 71 9 8 17 10 14 13 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (G) 		1-37123-851-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) 		8-98269-383-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (G) L=1227 		1-37124-101-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) 		8-98269-384-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (F) 		8-98269-385-0 01 1 1406- ●
1 SHAFT; PROP
(D) L=1117 		1-37124-081-0 01 1 1403- ●
1 SHAFT; PROP
(A) L=1176 		1-37124-342-1 01 1 1312- ●
1 SHAFT; PROP
(B) L=849 		8-98069-584-0 01 1 1312- ●
1 SHAFT; PROP
(B) L=1504 		8-98090-933-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (B) L=1504 		8-98090-933-0 01 1 1406- ●
1 SHAFT; PROP
(A) L=1281 		1-37124-249-1 01 1 1312-1405 ● ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (A) L=1281 		1-37124-249-1 01 1 1406- ● ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (C) L=1234 		8-98069-590-0 01 1 1406- ●
1 SHAFT; PROP
(B) L=1219 		8-98090-948-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (B) L=1219 		8-98090-948-0 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 03 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 04 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-066-1 02 1 1403- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 02 1 1312- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1312-1405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1312-1405 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (B) 		1-37211-056-3 01 1 1406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (B) 		1-37211-056-3 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98178-052-0 01 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98178-052-0 01 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-091-1 AR 1 1403-1405 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1312-1405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1312-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 AR 1 1406- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 01 1 1312-1405 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 01 1 1406- ●
10 BOLT; UJT
P90 PROP SHAFT<C5T> M10X20 		0-20951-020-0 24 1 1406- ●
10 BOLT; UJT
P90 PROP SHAFT<C5T> M10X20 		0-20951-020-0 32 1 1406- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1403- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 08 1 1406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 12 1 1406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1403- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 08 1 1406- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 12 1 1406- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1403- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-131-0 16 1 1406- ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1403- ●
14 COVER; DUST,SPIDER 8-98020-800-0 12 1 1312- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 08 1 1406- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 04 1 1406- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 04 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1403- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1312- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 02 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1312-1405 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1312-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT<C4Z> 		8-98020-881-0 01 1 1406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT<C4Z> 		8-98020-881-0 01 1 1406- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 04 1 1406- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1312-1405 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1312-1405 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT<C4Z> ID=54 		1-09625-161-0 02 1 1406- ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT<C4Z> ID=54 		1-09625-161-0 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1312-1405 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1312-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		1-37516-059-0 01 1 1406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		1-37516-059-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 02 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1312-1405 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1312-1405 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT<C4Z> 		9-00090-071-0 01 1 1406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT<C4Z> 		9-00090-071-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 02 1 1406- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1312-1405 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1312-1405 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		8-98020-882-0 01 1 1406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		8-98020-882-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> (A) MT6 STRAIGHT IDN 		1-09380-006-0 02 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1312-1405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT<C4Z> (A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1406- ● ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(B) 		8-98020-889-0 01 1 1312-1405 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT<C4Z> (B) 		8-98020-889-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 02 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1312-1405 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1312-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> 		8-98020-815-0 01 1 1406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> 		8-98020-815-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 02 1 1406- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1312-1405 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1312-1405 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT<C4Z> M30 		8-97160-857-0 01 1 1406- ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT<C4Z> M30 		8-97160-857-0 01 1 1406- ●
56 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1312-1405 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT<C4Z> (B) M14 		0-91110-514-0 04 1 1406- ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1312-1402 ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1403-1405 ● ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1403-1405 ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1406- ● ● ● ●
56 NUT; YOKE
P90 PROP SHAFT<C5T> (A) M16 FLANGE 		1-09449-065-0 04 1 1406- ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1406- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1312- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT<C5T> M16X45 		1-09042-030-0 02 1 1406- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT<C5T> ID=17 		1-09503-241-1 02 1 1406- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT<C5T> M16 SLOTTED 		8-98049-689-0 02 1 1406- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT<C5T> OD=3.7 L=25 		0-81124-025-0 02 1 1406- ● ●
çizim 426294
104 9 8 56 225 106 128 1 9 56 8 74 9 10 12 13 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (G) 		1-37123-851-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) 		8-98269-383-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (G) L=1227 		1-37124-101-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) 		8-98269-384-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (F) 		8-98269-385-0 01 1 1406- ●
1 SHAFT; PROP
(D) L=1117 		1-37124-081-0 01 1 1403- ●
1 SHAFT; PROP
(A) L=1176 		1-37124-342-1 01 1 1312- ●
1 SHAFT; PROP
(B) L=849 		8-98069-584-0 01 1 1312- ●
1 SHAFT; PROP
(B) L=1504 		8-98090-933-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (B) L=1504 		8-98090-933-0 01 1 1406- ●
1 SHAFT; PROP
(A) L=1281 		1-37124-249-1 01 1 1312-1405 ● ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (A) L=1281 		1-37124-249-1 01 1 1406- ● ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (C) L=1234 		8-98069-590-0 01 1 1406- ●
1 SHAFT; PROP
(B) L=1219 		8-98090-948-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (B) L=1219 		8-98090-948-0 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 03 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 04 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-066-1 02 1 1403- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 02 1 1312- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1312-1405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1312-1405 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (B) 		1-37211-056-3 01 1 1406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (B) 		1-37211-056-3 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98178-052-0 01 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98178-052-0 01 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-091-1 AR 1 1403-1405 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1312-1405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1312-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 AR 1 1406- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 01 1 1312-1405 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 01 1 1406- ●
10 BOLT; UJT
P90 PROP SHAFT<C5T> M10X20 		0-20951-020-0 24 1 1406- ●
10 BOLT; UJT
P90 PROP SHAFT<C5T> M10X20 		0-20951-020-0 32 1 1406- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1403- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 08 1 1406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 12 1 1406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1403- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 08 1 1406- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 12 1 1406- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1403- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-131-0 16 1 1406- ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1403- ●
14 COVER; DUST,SPIDER 8-98020-800-0 12 1 1312- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 08 1 1406- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 04 1 1406- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 04 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1403- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1312- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
56 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1312-1405 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT<C4Z> (B) M14 		0-91110-514-0 04 1 1406- ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1312-1402 ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1403-1405 ● ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1403-1405 ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1406- ● ● ● ●
56 NUT; YOKE
P90 PROP SHAFT<C5T> (A) M16 FLANGE 		1-09449-065-0 04 1 1406- ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1406- ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 1312-1405 ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 1312-1405 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT<C4Z> (B) M14X37 		1-09000-121-0 04 1 1406- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT<C4Z> (B) M14X37 		1-09000-121-0 04 1 1406- ●
74 BOLT; YOKE,TRANS
(A) M16X48 		1-09000-383-0 04 1 1312-1402 ● ● ●
74 BOLT; YOKE,TRANS
(A) M16X48 		1-09000-383-0 04 1 1403-1405 ● ● ● ●
74 BOLT; YOKE,TRANS
(A) M16X48 		1-09000-383-0 04 1 1406- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (A) M16X48 		1-09000-383-0 04 1 1406- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1403-1405 ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> 		1-09600-067-0 01 1 1406- ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1406- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1312-1405 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT<C4Z> 		1-09600-064-0 01 1 1406- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1312-1402 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1403- ● ● ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 1403-1405 ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> 		1-37247-019-0 01 1 1406- ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 1406- ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1312-1405 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT<C4Z> 		1-37247-024-0 01 1 1406- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1403-1405 ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=332 		1-37241-103-1 01 1 1406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1406- ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 1312-1405 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT<C4Z> L=271 		1-37241-099-2 01 1 1406- ● ● ●

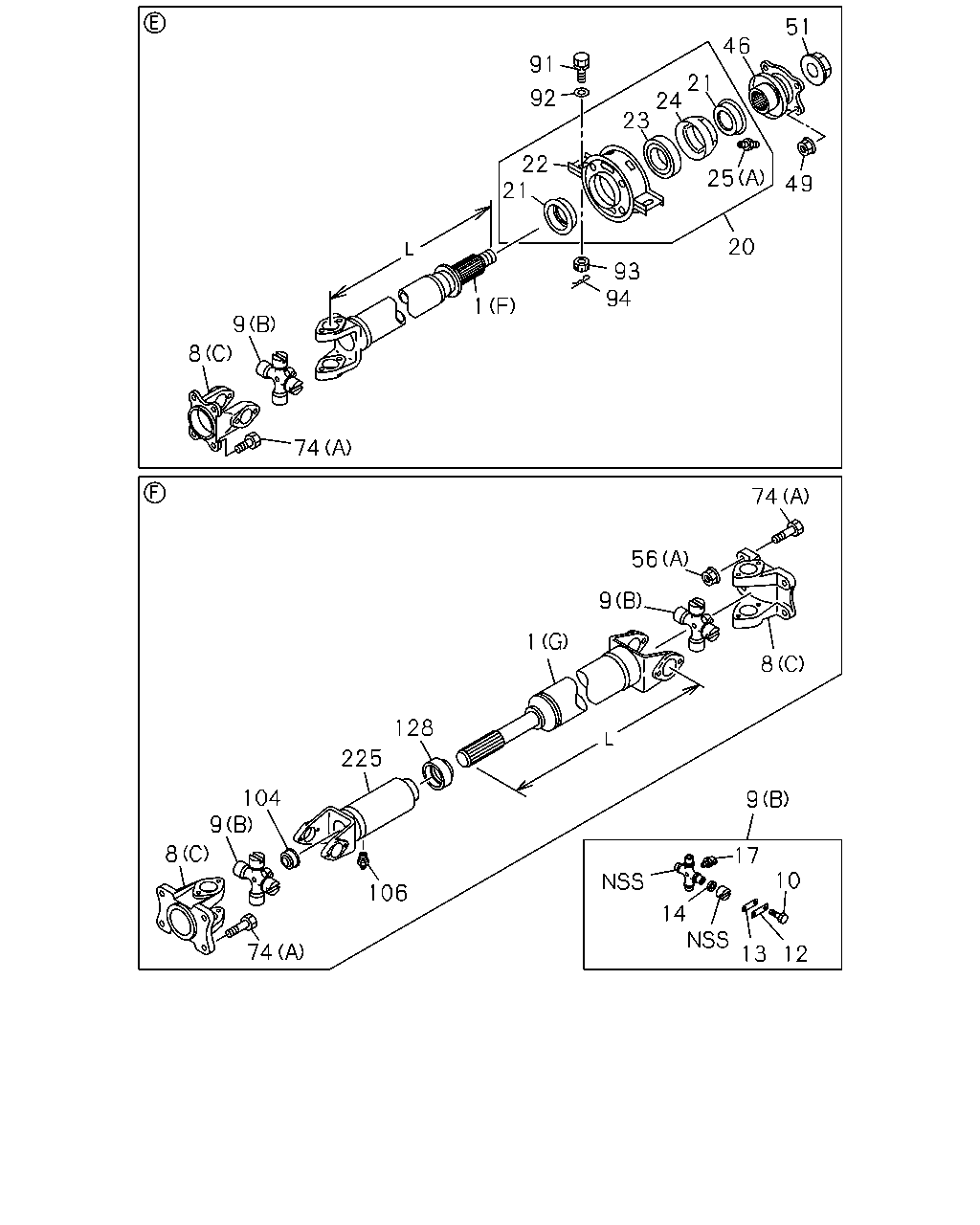

çizim 426391
51 46 21 24 23 91 92 22 1 1 9 8 74 94 93 25 20 49 74 56 9 1 8 128 225 104 9 8 74 106 9 17 10 14 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (G) 		1-37123-851-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) 		8-98269-383-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (G) L=1227 		1-37124-101-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) 		8-98269-384-0 01 1 1406- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (F) 		8-98269-385-0 01 1 1406- ●
1 SHAFT; PROP
(D) L=1117 		1-37124-081-0 01 1 1403- ●
1 SHAFT; PROP
(A) L=1176 		1-37124-342-1 01 1 1312- ●
1 SHAFT; PROP
(B) L=849 		8-98069-584-0 01 1 1312- ●
1 SHAFT; PROP
(B) L=1504 		8-98090-933-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (B) L=1504 		8-98090-933-0 01 1 1406- ●
1 SHAFT; PROP
(A) L=1281 		1-37124-249-1 01 1 1312-1405 ● ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (A) L=1281 		1-37124-249-1 01 1 1406- ● ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (C) L=1234 		8-98069-590-0 01 1 1406- ●
1 SHAFT; PROP
(B) L=1219 		8-98090-948-0 01 1 1312-1405 ●
1 SHAFT; PROP
P46 PROP SHAFT<C4Z> (B) L=1219 		8-98090-948-0 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 03 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 04 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-066-1 02 1 1403- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 02 1 1312- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1312-1405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1312-1405 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (B) 		1-37211-056-3 01 1 1406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (B) 		1-37211-056-3 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98178-052-0 01 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98178-052-0 01 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-091-1 AR 1 1403-1405 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1312-1405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1312-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 AR 1 1406- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 01 1 1312-1405 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT<C4Z> (A) 		8-98048-925-1 01 1 1406- ●
10 BOLT; UJT
P90 PROP SHAFT<C5T> M10X20 		0-20951-020-0 24 1 1406- ●
10 BOLT; UJT
P90 PROP SHAFT<C5T> M10X20 		0-20951-020-0 32 1 1406- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1403- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 08 1 1406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 12 1 1406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1403- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 08 1 1406- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 12 1 1406- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1403- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-131-0 16 1 1406- ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1403- ●
14 COVER; DUST,SPIDER 8-98020-800-0 12 1 1312- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 08 1 1406- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 04 1 1406- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT<C4Z> 		8-98020-800-0 04 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1403- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1312- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT<C4Z> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 02 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1312-1405 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1312-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT<C4Z> 		8-98020-881-0 01 1 1406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT<C4Z> 		8-98020-881-0 01 1 1406- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 04 1 1406- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1312-1405 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1312-1405 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT<C4Z> ID=54 		1-09625-161-0 02 1 1406- ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT<C4Z> ID=54 		1-09625-161-0 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1312-1405 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1312-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		1-37516-059-0 01 1 1406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		1-37516-059-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 02 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1312-1405 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1312-1405 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT<C4Z> 		9-00090-071-0 01 1 1406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT<C4Z> 		9-00090-071-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 02 1 1406- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1312-1405 ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1312-1405 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		8-98020-882-0 01 1 1406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT<C4Z> 		8-98020-882-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> (A) MT6 STRAIGHT IDN 		1-09380-006-0 02 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1312-1405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT<C4Z> (A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1406- ● ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(B) 		8-98020-889-0 01 1 1312-1405 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT<C4Z> (B) 		8-98020-889-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 02 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1312-1405 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1312-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> 		8-98020-815-0 01 1 1406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT<C4Z> 		8-98020-815-0 01 1 1406- ●
49 NUT; YOKE
P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 1406- ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1312-1405 ●
49 NUT; YOKE
P46 PROP SHAFT<C4Z> M14 		0-91110-514-0 04 1 1406- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 02 1 1406- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1312-1405 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1312-1405 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT<C4Z> M30 		8-97160-857-0 01 1 1406- ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT<C4Z> M30 		8-97160-857-0 01 1 1406- ●
56 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1312-1405 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT<C4Z> (B) M14 		0-91110-514-0 04 1 1406- ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1312-1402 ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1403-1405 ● ● ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1403-1405 ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1406- ● ● ● ●
56 NUT; YOKE
P90 PROP SHAFT<C5T> (A) M16 FLANGE 		1-09449-065-0 04 1 1406- ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1406- ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 1312-1405 ● ● ●
74 BOLT; YOKE,TRANS
(B) M14X37 		1-09000-121-0 04 1 1312-1405 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT<C4Z> (B) M14X37 		1-09000-121-0 04 1 1406- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT<C4Z> (B) M14X37 		1-09000-121-0 04 1 1406- ●
74 BOLT; YOKE,TRANS
(A) M16X48 		1-09000-383-0 04 1 1312-1402 ● ● ●
74 BOLT; YOKE,TRANS
(A) M16X48 		1-09000-383-0 04 1 1403-1405 ● ● ● ●
74 BOLT; YOKE,TRANS
(A) M16X48 		1-09000-383-0 04 1 1406- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (A) M16X48 		1-09000-383-0 04 1 1406- ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16X45 		1-09042-030-0 02 1 1406- ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> ID=17 		1-09503-241-1 02 1 1406- ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16 SLOTTED 		8-98049-689-0 02 1 1406- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT<C5T> OD=3.7 L=25 		0-81124-025-0 02 1 1406- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1403-1405 ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> 		1-09600-067-0 01 1 1406- ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1406- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1312-1405 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT<C4Z> 		1-09600-064-0 01 1 1406- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1312-1402 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1403- ● ● ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 1403-1405 ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> 		1-37247-019-0 01 1 1406- ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 1406- ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1312-1405 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT<C4Z> 		1-37247-024-0 01 1 1406- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1403-1405 ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=332 		1-37241-103-1 01 1 1406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1406- ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 1312-1405 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT<C4Z> L=271 		1-37241-099-2 01 1 1406- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
