Isuzu WW
▶
TRUCKS
▶
FVR
▶
11566 - FVR/GVR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#131537) — 69 parça
Tümü
A - GGR5MV
B - FGR5MV
◀

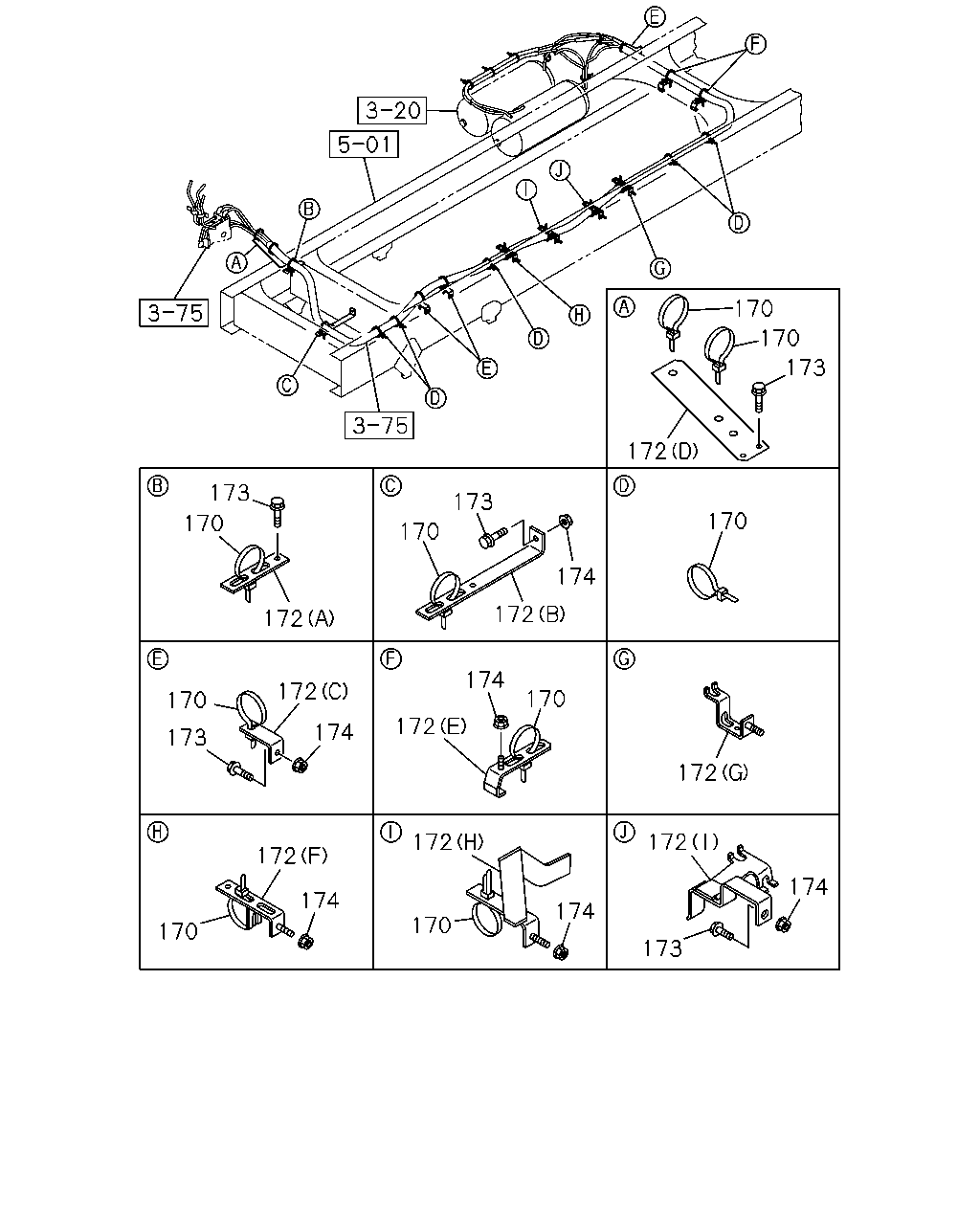

[378A] NO.2 (29 parça)
[378A] NO.3 (34 parça)
[378A] NO.1 (6 parça)
▶
170
173
170
172
170
172
172
173
174
174
172
170
174
172
170
173
172
174
170
172
170
174
172
173
174
170
173
170
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
170
CLIP; NYLON TUBE
L=350
1-09707-183-0
27
1
1403-
●
170
CLIP; NYLON TUBE
L=350
1-09707-183-0
26
1
1312-
●
172
BRACKET; TUBE CLIP
(F)
8-98177-873-0
04
1
1403-1405
●
172
BRACKET; TUBE CLIP
6HK1-TCS ENG(80L) (F)
8-98177-873-0
04
1
1406-
●
172
BRACKET; TUBE CLIP
(F)
8-98177-873-0
04
1
1406-
●
172
BRACKET; TUBE CLIP
(A)
1-47477-514-3
01
1
1312-1402
●
172
BRACKET; TUBE CLIP
(A)
1-47477-514-3
01
1
1403-
●
●
172
BRACKET; TUBE CLIP
(B) L=225
1-47477-646-3
01
1
1312-1402
●
172
BRACKET; TUBE CLIP
(B) L=225
1-47477-646-3
01
1
1403-
●
●
172
BRACKET; TUBE CLIP
(C) L=60 H=30
1-47477-716-1
03
1
1312-1402
●
172
BRACKET; TUBE CLIP
(C) L=60 H=30
1-47477-716-1
03
1
1403-
●
●
172
BRACKET; TUBE CLIP
(D)
8-98031-420-2
01
1
1312-1402
●
172
BRACKET; TUBE CLIP
(D)
8-98031-420-2
01
1
1403-
●
●
172
BRACKET; TUBE CLIP
(E)
8-98047-730-0
02
1
1312-1402
●
172
BRACKET; TUBE CLIP
(E)
8-98047-730-0
02
1
1403-
●
●
172
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (G)
8-98169-222-0
01
1
1312-
●
172
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (F)
8-98177-873-0
01
1
1312-
●
172
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (H)
8-98182-331-0
01
1
1312-
●
172
BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (I)
8-98182-760-0
01
1
1312-
●
173
BOLT; CLIP BRKT
M8X30 FLANGE
0-28650-830-0
03
1
1403-1405
●
173
BOLT; CLIP BRKT
6HK1-TCS ENG(80L) M8X30 FLANGE
0-28650-830-0
03
1
1406-
●
173
BOLT; CLIP BRKT
M8X30 FLANGE
0-28650-830-0
03
1
1406-
●
173
BOLT; CLIP BRKT
M8X20 FLANGE IDN
0-28650-820-0
02
1
1312-1402
●
173
BOLT; CLIP BRKT
M8X20 FLANGE IDN
0-28650-820-0
02
1
1403-
●
●
173
BOLT; CLIP BRKT
M8X25 FLANGE IDN
0-28650-825-0
02
1
1312-1402
●
173
BOLT; CLIP BRKT
M8X25 FLANGE IDN
0-28650-825-0
02
1
1403-
●
●
173
BOLT; CLIP BRKT
6HK1-TCN ENG(82L) M8X30 FLANGE
0-28650-830-0
04
1
1312-
●
174
NUT; CLIP BRKT
M8 FLANGE IDN
0-91180-108-0
10
1
1312-1402
●
174
NUT; CLIP BRKT
M8 FLANGE IDN
0-91180-108-0
10
1
1403-
●
●
288
290
13
13
24
389
34
133
341
341
170
134
320
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
01
1
1403-1405
●
13
CLIP; AIR PIPE
ZF9S1110 DD M/T(Y5P) (B) ID=6.35 & 10.0
1-09709-274-1
01
1
1406-
●
13
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
01
1
1406-
●
13
CLIP; AIR PIPE
(B) ID=6.35 & 15
1-09709-276-1
01
1
1403-
●
13
CLIP; AIR PIPE
(A) ID=6 H=20 L=20
1-09700-603-0
01
1
1312-1402
●
13
CLIP; AIR PIPE
(A) ID=6 H=20 L=20
1-09700-603-0
01
1
1403-
●
●
13
CLIP; AIR PIPE
(B) ID=6.35
1-09701-247-1
01
1
1312-1402
●
13
CLIP; AIR PIPE
(B) ID=6.35
1-09701-247-1
01
1
1403-
●
●
24
CLIP; PIPE
ID=6.35 & 12
1-09709-275-1
01
1
1312-1402
●
24
CLIP; PIPE
ID=6.35 & 12
1-09709-275-1
01
1
1403-
●
●
24
CLIP; PIPE
ID=6.35 & 15
1-09709-276-1
03
1
1312-1402
●
24
CLIP; PIPE
ID=6.35 & 15
1-09709-276-1
03
1
1403-
●
●
34
NUT; BRKT
(A) M6 FLANGE IDN
0-91180-106-0
02
1
1312-1402
●
34
NUT; BRKT
(A) M6 FLANGE IDN
0-91180-106-0
02
1
1403-
●
●
34
NUT; BRKT
(B) M8 FLANGE IDN
0-91180-108-0
02
1
1312-1402
●
34
NUT; BRKT
(B) M8 FLANGE IDN
0-91180-108-0
02
1
1403-
●
●
133
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
02
1
1312-1402
●
133
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
02
1
1403-
●
●
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1312-1402
●
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1403-
●
●
170
CLIP; NYLON TUBE
L=350
1-09707-183-0
27
1
1403-
●
170
CLIP; NYLON TUBE
L=350
1-09707-183-0
26
1
1312-
●
288
BOLT; CLIP,AIR PIPE
M8X20 FLANGE IDN
0-28650-820-0
01
1
1312-1402
●
288
BOLT; CLIP,AIR PIPE
M8X20 FLANGE IDN
0-28650-820-0
01
1
1403-
●
●
290
NUT; CLIP,AIR PIPE
M8 FLANGE IDN
0-91180-108-0
01
1
1312-1402
●
290
NUT; CLIP,AIR PIPE
M8 FLANGE IDN
0-91180-108-0
01
1
1403-
●
●
320
CLIP; BAND,FLEX FIX
L=250 IDN
5-09707-030-1
01
1
1312-1402
●
320
CLIP; BAND,FLEX FIX
L=250 IDN
5-09707-030-1
01
1
1403-
●
●
341
CLIP; HARNESS
(B) L=250 IDN
5-09707-030-1
03
1
1403-
●
341
CLIP; HARNESS
(A) OD=9 H=6
1-09709-178-0
01
1
1312-1402
●
341
CLIP; HARNESS
(A) OD=9 H=6
1-09709-178-0
01
1
1403-
●
●
341
CLIP; HARNESS
(B) L=250 IDN
5-09707-030-1
02
1
1312-
●
389
BRACKET; UNION
1-47471-363-0
01
1
1312-1402
●
389
BRACKET; UNION
1-47471-363-0
01
1
1403-
●
●
379
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
NUT; BRKT
(A) M6 FLANGE IDN
0-91180-106-0
02
1
1312-1402
●
34
NUT; BRKT
(A) M6 FLANGE IDN
0-91180-106-0
02
1
1403-
●
●
34
NUT; BRKT
(B) M8 FLANGE IDN
0-91180-108-0
02
1
1312-1402
●
34
NUT; BRKT
(B) M8 FLANGE IDN
0-91180-108-0
02
1
1403-
●
●
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1312-1402
●
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1403-
●
●
