Isuzu WW
▶
TRUCKS
▶
FVR
▶
11566 - FVR/GVR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶

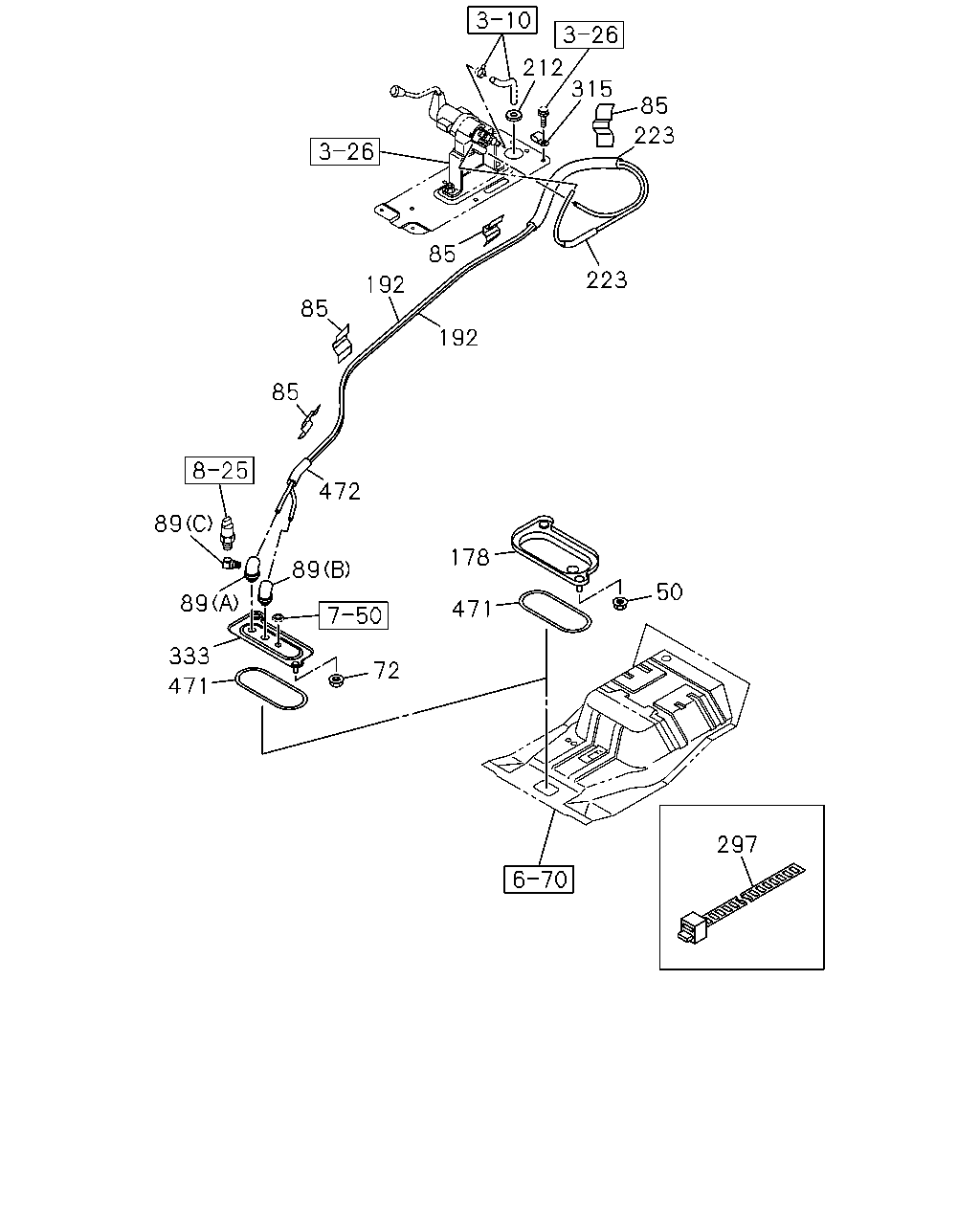

3-77 — BRAKE PIPING; AIR,REAR
(#131536) — 19 parça
Tümü
A - FGR5MV
B - GGR5MV
212
315
85
223
223
50
297
471
178
72
471
333
89
89
85
85
192
85
192
472
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
50
NUT; UNION BRKT
M8 FLANGE IDN
0-91180-108-0
02
1
1312-
●
72
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
02
1
1403-
●
85
GASKET; NYLON TUBE
180X40
1-72498-019-1
03
1
1403-
●
85
GASKET; NYLON TUBE
100X40
1-72498-022-1
02
1
1403-
●
89
CONNECTOR; NYLON TUBE
(C) PT1/4 2WAY
1-09660-693-0
01
1
1403-
●
89
CONNECTOR; NYLON TUBE
(B) DIN13 & M18 ELBOW
8-97611-963-1
01
1
1403-
●
89
CONNECTOR; NYLON TUBE
(A)
8-97611-979-1
01
1
1403-
●
178
BRACKET; UNION
8-98017-052-1
01
1
1312-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
02
1
1403-
●
212
GROMMET; AIR PIPE
OD=24
9-61166-007-0
01
1
1403-
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
01
1
1403-
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
01
1
1403-
●
297
CLIP; BAND
L=350
1-09707-183-0
03
1
1312-1402
●
297
CLIP; BAND
L=350
1-09707-183-0
03
1
1403-
●
●
315
CLIP
ID=9X2 L=16
0-95324-825-0
01
1
1403-
●
333
BRACKET; CONNECTOR
8-98017-054-1
01
1
1403-
●
471
SEAL; BRKT
1-79738-832-0
01
1
1312-1402
●
471
SEAL; BRKT
1-79738-832-0
01
1
1403-
●
●
472
TUBE; SPUTTER
8-98067-708-0
01
1
1403-
●
