3-75 — BRAKE PIPING; AIR,FRONT (#131535) — 54 parça

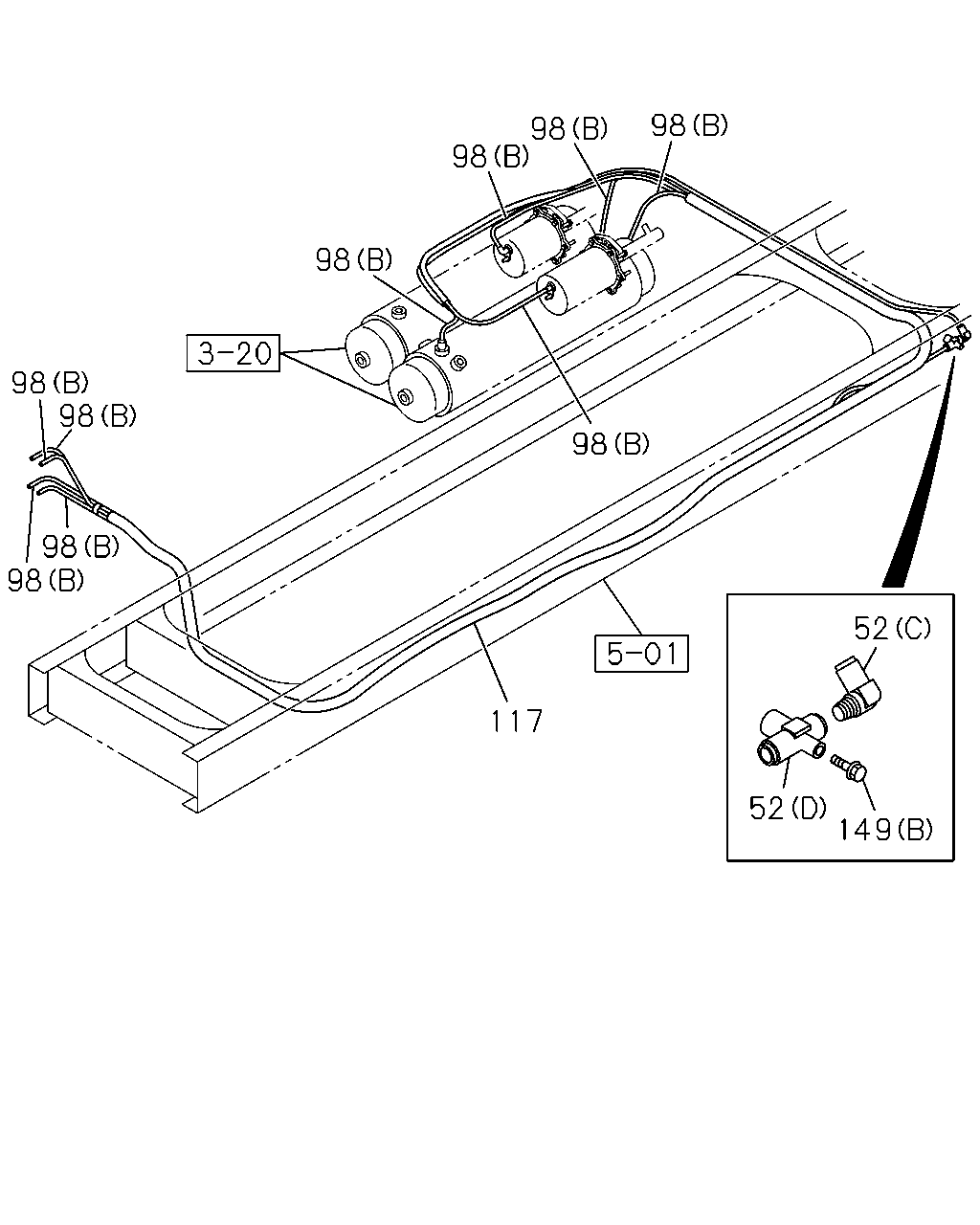

çizim 388507
98 98 98 98 98 98 98 98 98 117 52 52 149
BalonParca AdiParca NoAdetTipApplied Date A B
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ●
52 CONNECTOR; NYLON TUBE
(D) 		8-98142-232-0 01 1 1403- ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 04 1 1312-1402 ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 04 1 1403- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1312-1402 ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1403- ● ●
98 TUBE; NYLON
(A) IDN 		8-98139-141-0 01 1 1312-1402 ●
98 TUBE; NYLON
(A) IDN 		8-98139-141-0 01 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1312- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1312- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1312- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1312- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1312- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1312- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1312- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1312- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1312- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 1312- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 1312- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=32 		1-87411-036-0 AR 1 1312- ● ●
149 BOLT; UNION
(B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1403- ●
149 BOLT; UNION
(A) M8X100 FLANGE 		0-28050-800-0 01 1 1312-1402 ●
149 BOLT; UNION
(A) M8X100 FLANGE 		0-28050-800-0 01 1 1403- ● ●

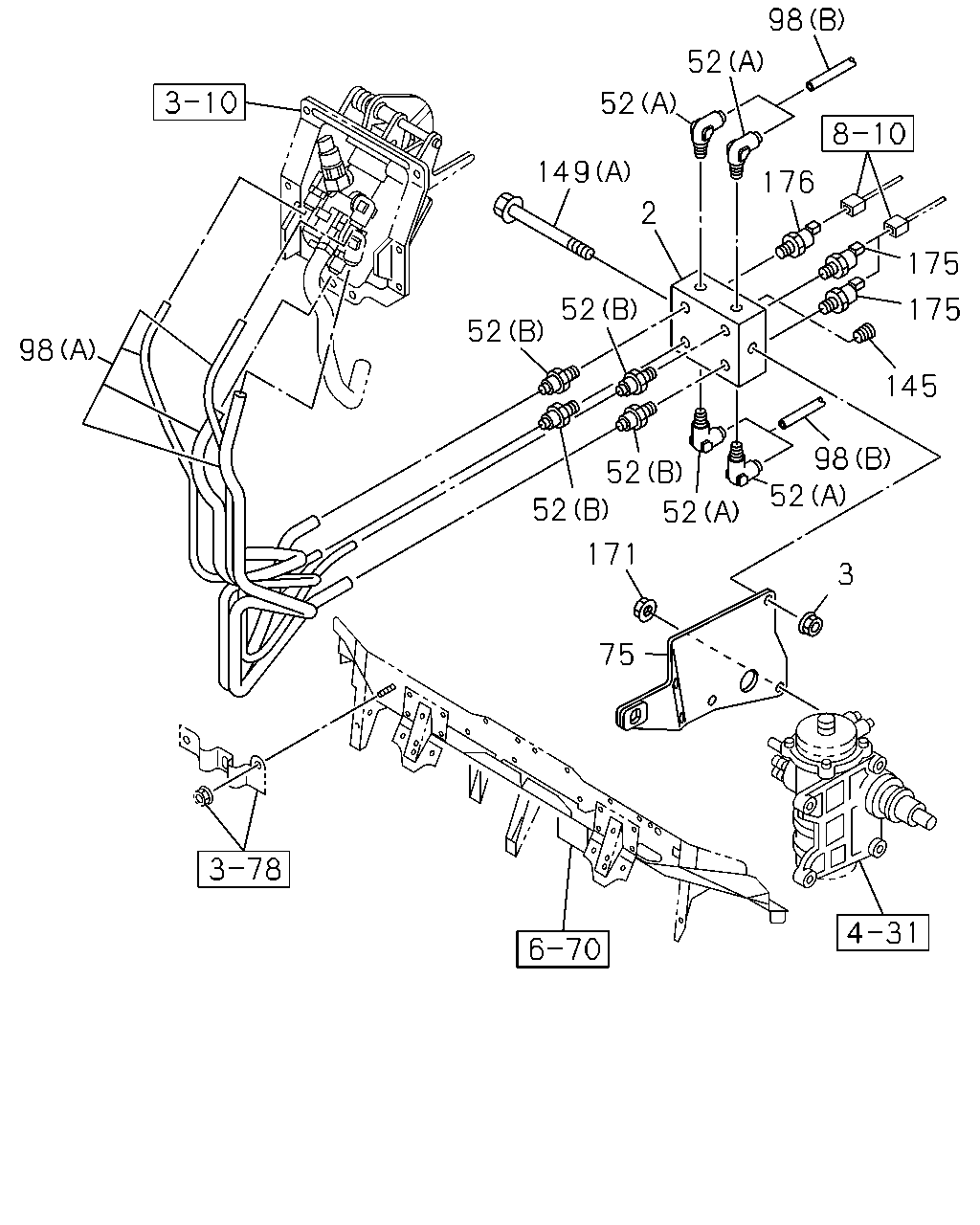

çizim 388520
98 149 52 52 98 176 175 175 145 98 2 52 52 52 52 52 52 3 171 75
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE 8-98057-394-1 01 1 1312-1402 ●
2 UNION; AIR PIPE 8-98057-394-1 01 1 1403- ● ●
3 NUT; PIPE UNION
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
3 NUT; PIPE UNION
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ●
52 CONNECTOR; NYLON TUBE
(D) 		8-98142-232-0 01 1 1403- ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 04 1 1312-1402 ●
52 CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 04 1 1403- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1312-1402 ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1403- ● ●
75 BRACKET; UNION 8-98099-485-1 01 1 1312-1402 ●
75 BRACKET; UNION 8-98099-485-1 01 1 1403- ● ●
98 TUBE; NYLON
(A) IDN 		8-98139-141-0 01 1 1312-1402 ●
98 TUBE; NYLON
(A) IDN 		8-98139-141-0 01 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1312- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1312- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1312- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1312- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1312- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1312- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1312-1402 ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1403- ● ●
149 BOLT; UNION
(B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1403- ●
149 BOLT; UNION
(A) M8X100 FLANGE 		0-28050-800-0 01 1 1312-1402 ●
149 BOLT; UNION
(A) M8X100 FLANGE 		0-28050-800-0 01 1 1403- ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 1312-1402 ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 1403- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1312-1402 ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1403- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1312-1402 ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1403- ● ●
