3-70 — BRAKE PIPING; AIR,AIR MASTER (#131534) — 136 parça

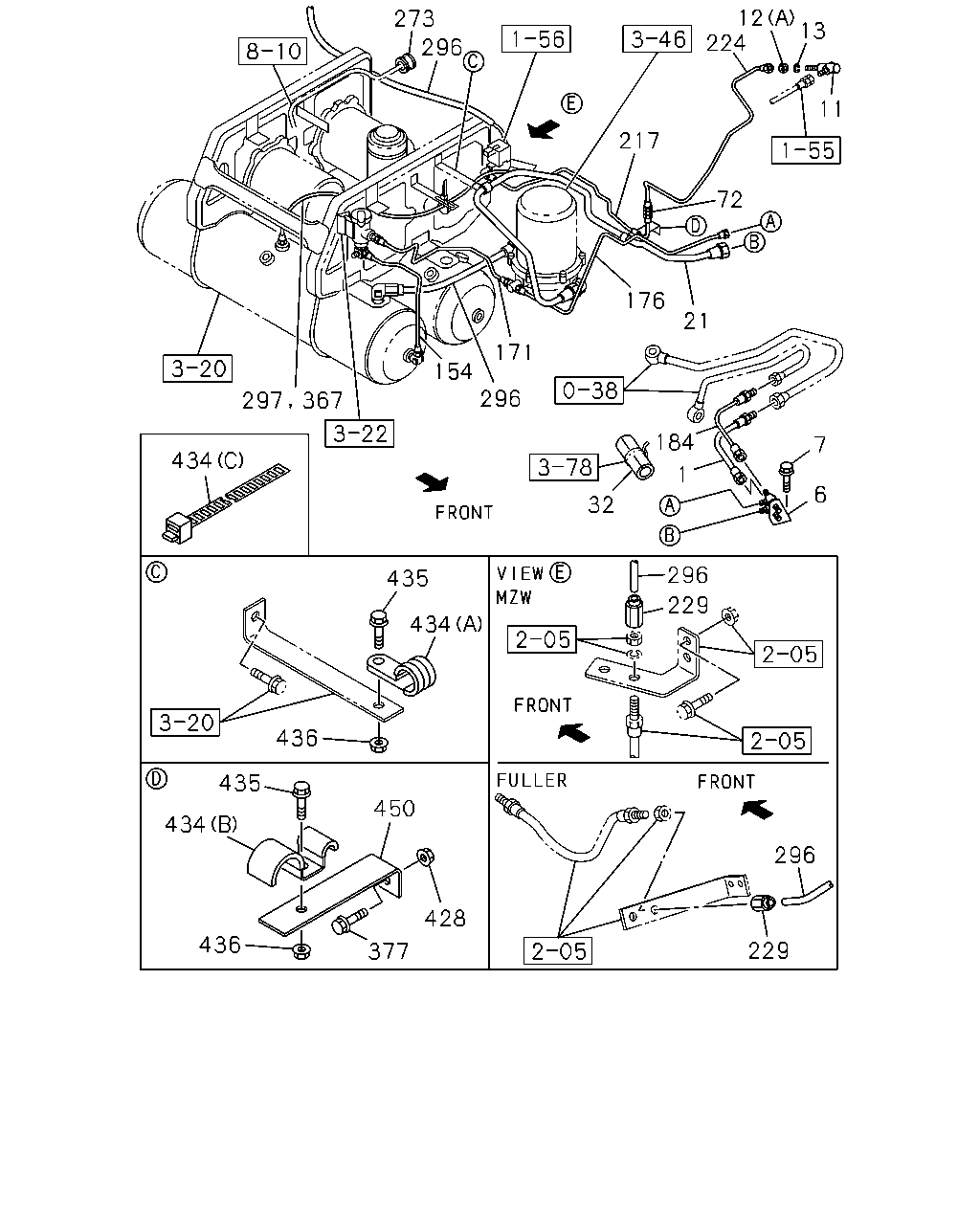

çizim 388477
273 296 224 12 13 11 217 72 176 21 171 154 296 367 297 434 435 434 436 435 450 428 377 436 434 184 7 6 1 32 296 229 296 229
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1312-1402 ●
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1403-1405 ● ●
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1406- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1312-1402 ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1403- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1312-1402 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1403- ● ●
11 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1312-1402 ●
11 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1403- ● ●
12 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1312-1402 ●
12 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1403- ● ●
12 NUT; UNION
EXC. PTO CONTROL<SV6> (B) M12 		0-91111-512-0 01 1 1312-1402 ●
12 NUT; UNION
EXC. PTO CONTROL<SV6> (B) M12 		0-91111-512-0 01 1 1403-1405 ●
12 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1403-1405 ●
12 NUT; UNION
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (B) M12 		0-91111-512-0 01 1 1406- ●
12 NUT; UNION
ZF9S1110 DD M/T(Y5P) (B) M12 		0-91111-512-0 01 1 1406- ●
12 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1406- ●
13 WASHER; LK,UNION
ID=12.2 		0-91510-812-0 01 1 1312-1402 ●
13 WASHER; LK,UNION
ID=12.2 		0-91510-812-0 01 1 1403- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1368 		8-98247-240-0 01 1 1403- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1338 IDN 		8-98185-672-0 01 1 1312- ●
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1312-1402 ●
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1403- ● ●
72 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1312-1402 ●
72 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1403- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
L=370 IDN 		8-98178-053-0 01 1 1312-1402 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
L=370 IDN 		8-98178-053-0 01 1 1403- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
L=566 SERVICED BY L=600 		1-47428-809-0 01 1 1403- ●
171 PIPE; AIR,GOV TO AIR DRYER
L=571 SERVICED BY L=600 		1-47428-809-0 01 1 1312- ●
176 PIPE; AIR,AIR DRYER TO UNION
L=795 SERVICED BY L=800 		1-47428-812-0 01 1 1403- ●
176 PIPE; AIR,AIR DRYER TO UNION
L=978 SERVICED BY L=1000 		1-47428-814-0 01 1 1312- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1312-1402 ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1403-1405 ● ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1406- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L=812 SERVICED BY L=900 		1-47428-813-0 01 1 1403- ●
217 PIPE; VAC,UNION TO MAG VLV
L=651 SERVICED BY L=700 		1-47428-811-0 01 1 1312- ●
224 PIPE; AIR,UNION TO FLEX HOSE
L=720 SERVICED BY L=800 		1-47428-812-0 01 1 1312-1402 ●
224 PIPE; AIR,UNION TO FLEX HOSE
L=720 SERVICED BY L=800 		1-47428-812-0 01 1 1403- ● ●
229 ADAPTER; NYLON TUBE
MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1312-1402 ●
229 ADAPTER; NYLON TUBE
MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1403- ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1403- ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1403- ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1312- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1312-1402 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1403-1405 ● ●
296 TUBE; NYLON
6HK1-TCN ENG(82L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1406- ●
296 TUBE; NYLON
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1406- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1406- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1312-1402 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1403- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1312-1402 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1403- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1312-1402 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1312-1402 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1403-1405 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1403-1405 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1406- ● ●
367 TUBE; CORRUGATE
6HK1-TCN ENG(82L) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1406- ●
367 TUBE; CORRUGATE
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1406- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1406- ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1312-1402 ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1403- ● ●
428 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
428 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
434 CLIP
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (C) L=350 		1-09707-183-0 03 1 1406- ●
434 CLIP
(A) ID=16 L=28 		0-95235-556-0 01 1 1312-1402 ●
434 CLIP
(A) ID=16 L=28 		0-95235-556-0 01 1 1403- ● ●
434 CLIP
(B) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1312-1402 ●
434 CLIP
(B) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1403- ● ●
435 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1402 ●
435 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1403- ● ●
436 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
436 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ● ●
450 BRACKET; CLIP
L=115 B=25 		1-47476-758-0 01 1 1312-1402 ●
450 BRACKET; CLIP
L=115 B=25 		1-47476-758-0 01 1 1403- ● ●

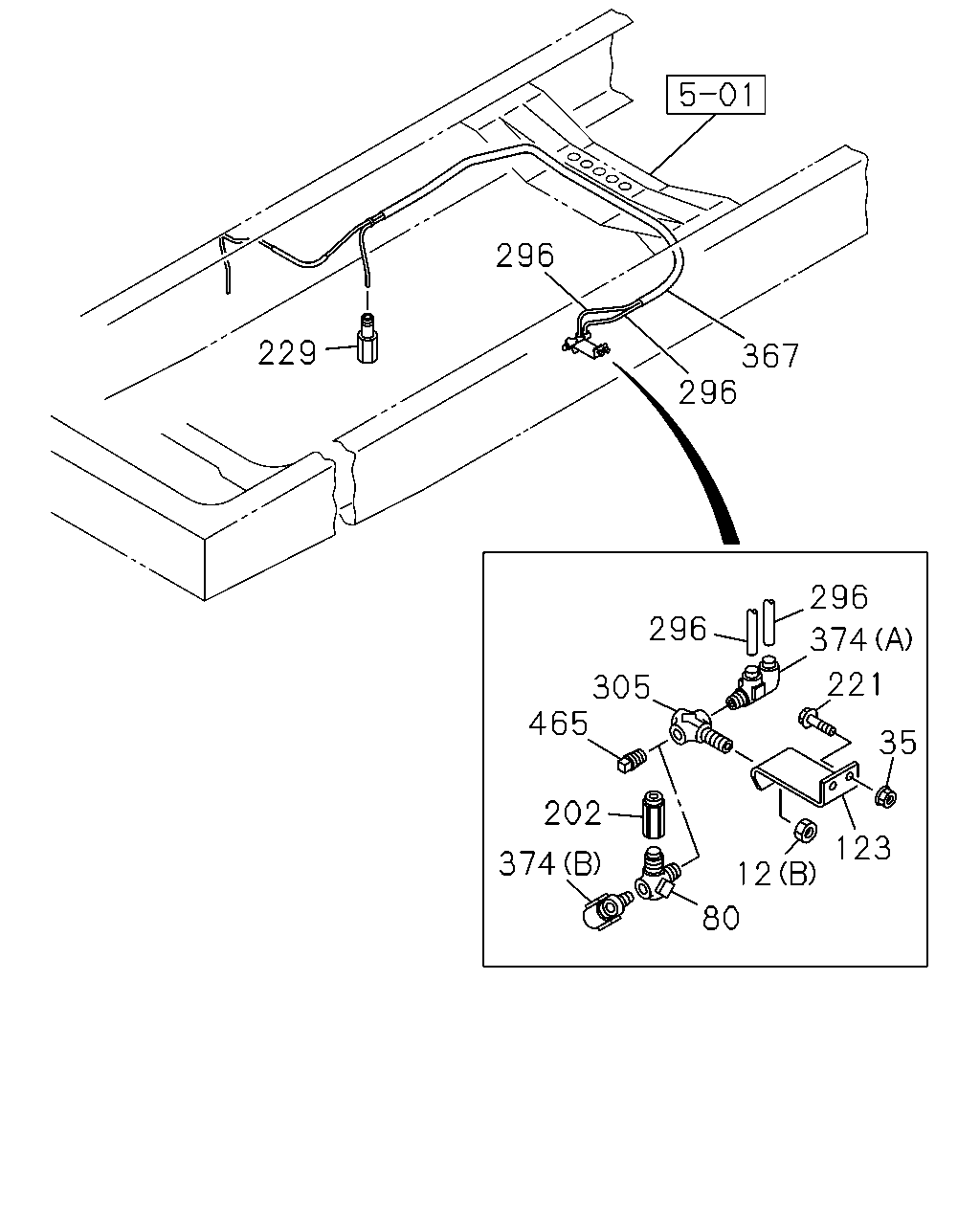

çizim 388558
229 296 296 367 296 296 305 465 202 374 80 12 123 35 221 374
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1312-1402 ●
12 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1403- ● ●
12 NUT; UNION
EXC. PTO CONTROL<SV6> (B) M12 		0-91111-512-0 01 1 1312-1402 ●
12 NUT; UNION
EXC. PTO CONTROL<SV6> (B) M12 		0-91111-512-0 01 1 1403-1405 ●
12 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1403-1405 ●
12 NUT; UNION
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (B) M12 		0-91111-512-0 01 1 1406- ●
12 NUT; UNION
ZF9S1110 DD M/T(Y5P) (B) M12 		0-91111-512-0 01 1 1406- ●
12 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1406- ●
35 NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
35 NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE IDN 		0-91180-108-0 02 1 1403-1405 ●
35 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 02 1 1403-1405 ●
35 NUT; BRKT
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> M8 FLANGE IDN 		0-91180-108-0 02 1 1406- ●
35 NUT; BRKT
ZF9S1110 DD M/T(Y5P) M8 FLANGE IDN 		0-91180-108-0 02 1 1406- ●
35 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 02 1 1406- ●
80 UNION; 3 WAY
M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1403- ●
123 BRACKET; UNION
EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1312-1402 ●
123 BRACKET; UNION
EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1403-1405 ●
123 BRACKET; UNION 8-98118-545-0 01 1 1403-1405 ●
123 BRACKET; UNION
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1406- ●
123 BRACKET; UNION
ZF9S1110 DD M/T(Y5P) 		8-98118-545-0 01 1 1406- ●
123 BRACKET; UNION 8-98118-545-0 01 1 1406- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1403- ●
221 BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1312-1402 ●
221 BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1403-1405 ●
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1403-1405 ●
221 BOLT; BRKT
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1406- ●
221 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) M8X35 FLANGE 		0-28650-835-0 02 1 1406- ●
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1406- ●
229 ADAPTER; NYLON TUBE
MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1312-1402 ●
229 ADAPTER; NYLON TUBE
MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1403- ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1403- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1312-1402 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1403-1405 ● ●
296 TUBE; NYLON
6HK1-TCN ENG(82L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1406- ●
296 TUBE; NYLON
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1406- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1406- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1312-1402 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1403- ● ●
305 UNION ASM; NYLON TUBE
EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1312-1402 ●
305 UNION ASM; NYLON TUBE
EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1403-1405 ●
305 UNION ASM; NYLON TUBE
M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1403-1405 ●
305 UNION ASM; NYLON TUBE
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1406- ●
305 UNION ASM; NYLON TUBE
ZF9S1110 DD M/T(Y5P) M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1406- ●
305 UNION ASM; NYLON TUBE
M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1406- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1312-1402 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1312-1402 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1403-1405 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1403-1405 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1406- ● ●
367 TUBE; CORRUGATE
6HK1-TCN ENG(82L) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1406- ●
367 TUBE; CORRUGATE
ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1406- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1406- ●
374 CONNECTOR
ZF9S1110 DD M/T(Y5P) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1406- ●
374 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1403- ●
374 CONNECTOR
EXC. PTO CONTROL<SV6> (A) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1312-1402 ●
374 CONNECTOR
EXC. PTO CONTROL<SV6> (A) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1403-1405 ●
374 CONNECTOR
(A) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1403-1405 ●
374 CONNECTOR
MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (A) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1406- ●
374 CONNECTOR
ZF9S1110 DD M/T(Y5P) (A) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1406- ●
374 CONNECTOR
(A) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1406- ●
465 PLUG
EXC. PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 1312- ●
