3-55 — BRAKE PIPING; OIL,REAR (#131532) — 32 parça

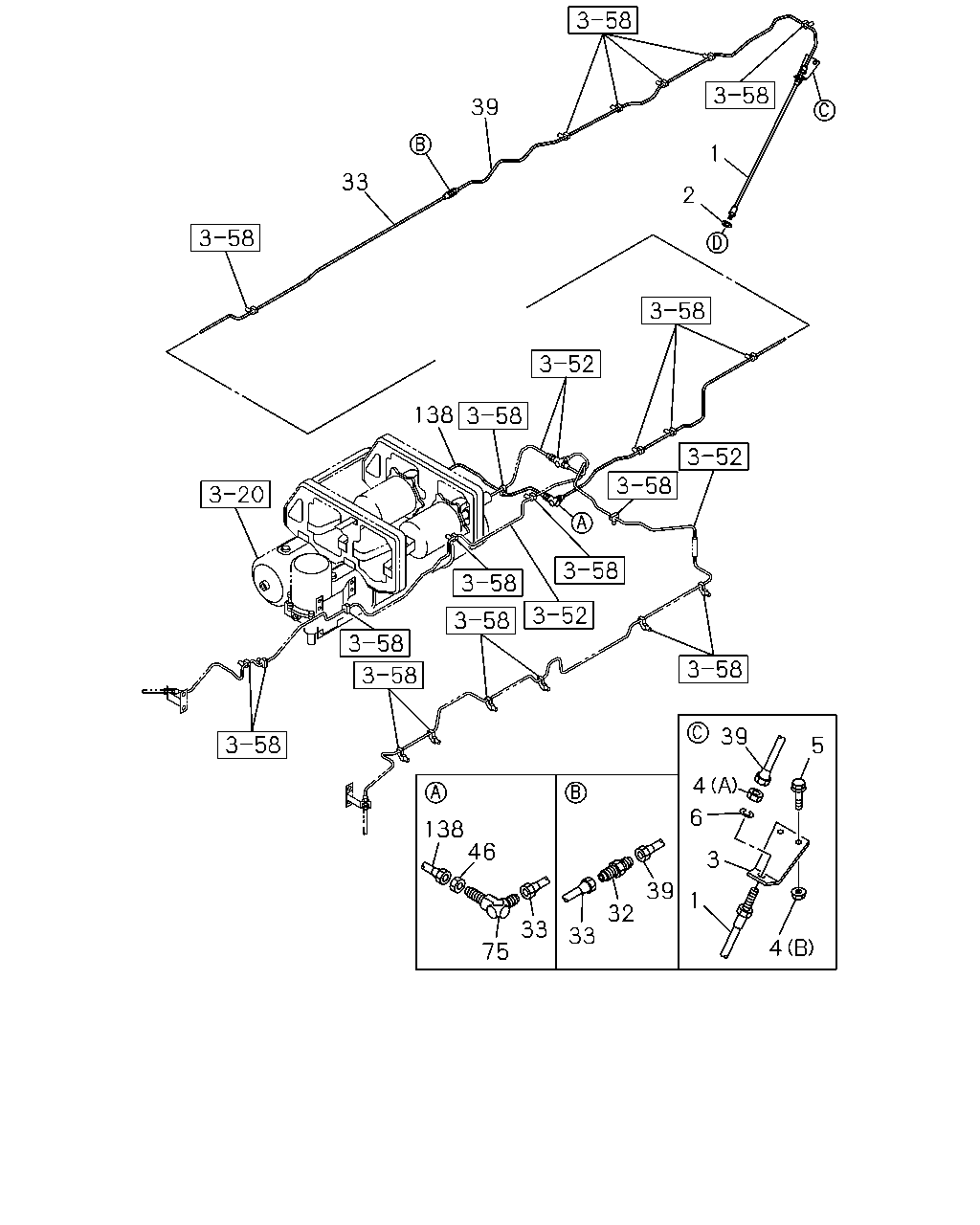

çizim 388543
39 33 1 2 138 138 46 75 33 39 32 33 39 4 6 3 1 4 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=700 		0-05212-700-0 01 1 1312-1402 ●
1 HOSE; FLEX,RR BRK
L=700 		0-05212-700-0 01 1 1403- ● ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 1312-1402 ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 1403- ● ●
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 1312-1402 ●
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 1403- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M12 		9-09840-280-0 01 1 1312-1402 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M12 		9-09840-280-0 01 1 1403- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1312-1402 ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1403- ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-812-0 01 1 1312-1402 ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-812-0 01 1 1403- ● ●
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 1312-1402 ●
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 1403- ● ●
33 PIPE; OIL,UNION TO UNION
L=1213 SERVICED BY L=1250 		1-47428-733-0 01 1 1403- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) L=1240 SERVICED BY L=1250 		1-47428-733-0 01 1 1312- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) L=2040 IDN 		8-98185-689-0 01 1 1312- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 6000MM(60W) L=3041 SERVICED BY L=3200 		1-47428-745-0 01 1 1312- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1536 SERVICED BY L=1620 		1-47428-736-0 01 1 1403- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2138 SERVICED BY L=2200 		1-47428-740-0 01 1 1312- ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1312-1402 ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1403- ● ●
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1312-1402 ●
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1403- ● ●
138 PIPE; HYDRAULIC UNIT
L=504 SERVICED BY L=550 		1-47428-724-0 01 1 1312-1402 ●
138 PIPE; HYDRAULIC UNIT
L=504 SERVICED BY L=550 		1-47428-724-0 01 1 1403- ● ●

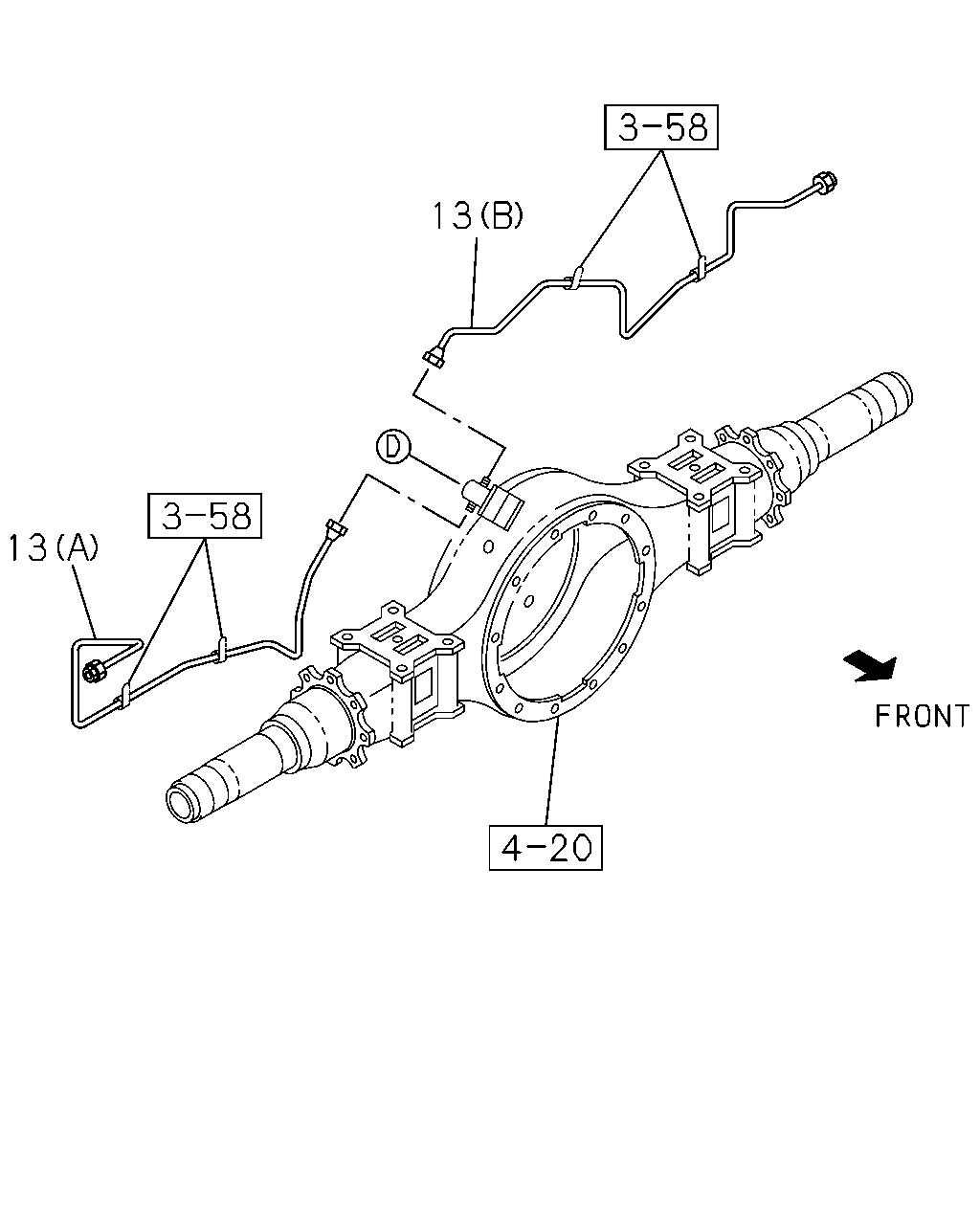

çizim 389153
13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; BRK,RR AXLE
(A) IDN 		8-98251-938-0 01 1 1403- ●
13 PIPE; BRK,RR AXLE
(B) IDN 		8-98251-939-0 01 1 1403- ●
13 PIPE; BRK,RR AXLE
(A) L=935 		8-98003-970-0 01 1 1312- ●
13 PIPE; BRK,RR AXLE
(B) L=1212 		8-98003-971-0 01 1 1312- ●
