3-46 — AIR DRYER (#131530) — 44 parça

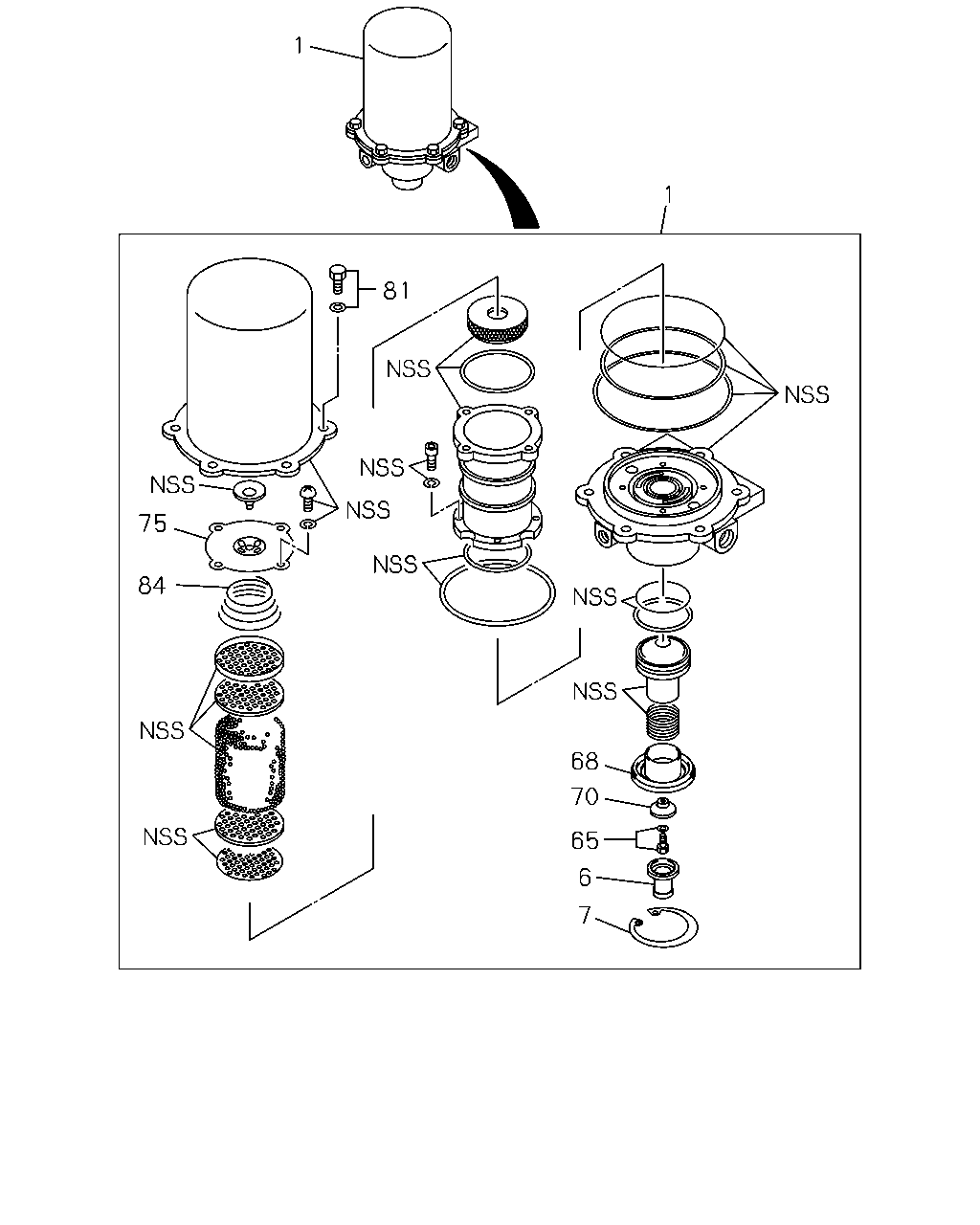

çizim 388527
1 1 81 68 70 65 6 7 84 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-299-1 01 1 1312-1402 ●
1 DRYER; AIR 1-48190-299-1 01 1 1403- ● ●
6 COVER; EXH,AIR DRYER 1-48199-404-0 01 1 1312-1402 ●
6 COVER; EXH,AIR DRYER 1-48199-404-0 01 1 1403- ● ●
7 RING; SNAP,AIR DRYER 1-48199-403-0 01 1 1312-1402 ●
7 RING; SNAP,AIR DRYER 1-48199-403-0 01 1 1403- ● ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1312-1402 ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1403- ● ●
68 BODY; VALVE 1-48199-408-0 01 1 1312-1402 ●
68 BODY; VALVE 1-48199-408-0 01 1 1403- ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1312-1402 ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1403- ● ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 1312-1402 ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 1403- ● ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 1312-1402 ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 1403- ● ●
84 SPRING; AIR DRYER 1-48199-425-0 01 1 1312-1402 ●
84 SPRING; AIR DRYER 1-48199-425-0 01 1 1403- ● ●

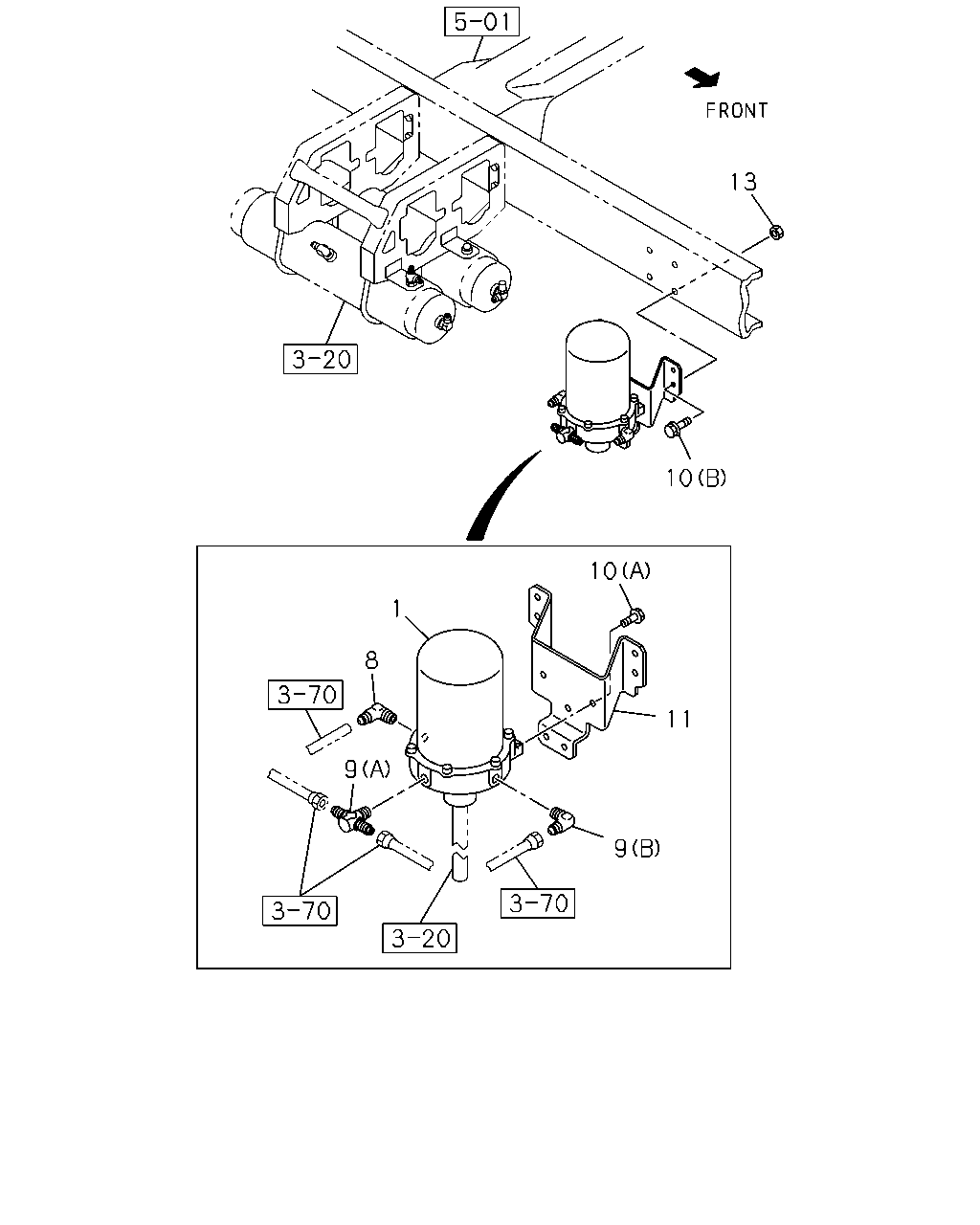

çizim 388571
13 10 10 11 9 9 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-299-1 01 1 1312-1402 ●
1 DRYER; AIR 1-48190-299-1 01 1 1403- ● ●
8 CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1312-1402 ●
8 CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1403- ● ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 1312-1402 ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 1403- ● ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1312-1402 ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1403- ● ●
10 BOLT; AIR DRYER
(A) M10X20 FLANGE IDN 		0-28051-020-0 03 1 1312-1402 ●
10 BOLT; AIR DRYER
(A) M10X20 FLANGE IDN 		0-28051-020-0 03 1 1403- ● ●
10 BOLT; AIR DRYER
(B) M10X35 FLANGE IDN 		0-28651-035-0 04 1 1312-1402 ●
10 BOLT; AIR DRYER
(B) M10X35 FLANGE IDN 		0-28651-035-0 04 1 1403- ● ●
11 BRACKET; AIR DRYER 8-98111-760-0 01 1 1312-1402 ●
11 BRACKET; AIR DRYER 8-98111-760-0 01 1 1403- ● ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 1312-1402 ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 1403- ● ●
çizim 389034
2 3 68 70 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER 1-85576-217-0 01 1 1312-1402 ●
2 REPAIR KIT; AIR DRYER 1-85576-217-0 01 1 1403- ● ●
3 PISTON KIT; AIR DRYER 1-85576-193-0 01 1 1312-1402 ●
3 PISTON KIT; AIR DRYER 1-85576-193-0 01 1 1403- ● ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1312-1402 ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1403- ● ●
68 BODY; VALVE 1-48199-408-0 01 1 1312-1402 ●
68 BODY; VALVE 1-48199-408-0 01 1 1403- ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1312-1402 ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1403- ● ●
