◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#131525) — 198 parça

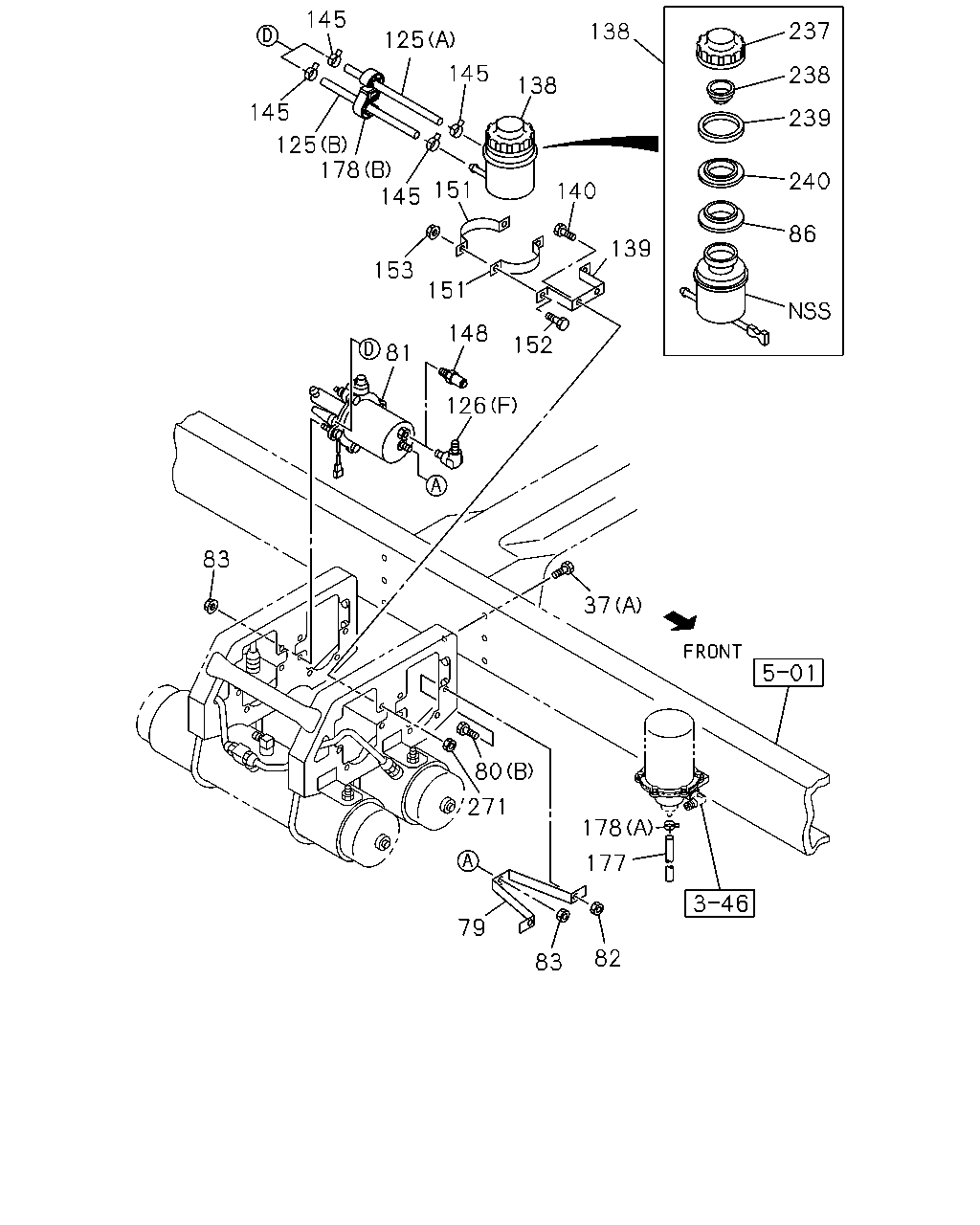

çizim 388446
145 125 145 138 138 237 238 239 240 86 140 139 151 145 178 125 145 153 151 148 81 152 126 37 80 271 83 79 178 177 83 82
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
(B) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1403- ●
37 BOLT; AIR TANK
(A) M12X40 FLANGE 		0-28651-240-0 06 1 1312-1402 ●
37 BOLT; AIR TANK
(A) M12X40 FLANGE 		0-28651-240-0 06 1 1403- ● ●
79 STAY; AIR MASTER TO BRKT 8-98120-254-0 02 1 1312-1402 ●
79 STAY; AIR MASTER TO BRKT 8-98120-254-0 02 1 1403- ● ●
80 BOLT; BRKT
(C) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1403- ●
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 05 1 1312-1402 ●
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 05 1 1403- ● ●
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 1312-1402 ●
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 1403- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-663-1 02 1 1312-1402 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-663-1 02 1 1403- ● ●
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91180-210-0 04 1 1312-1402 ●
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91180-210-0 04 1 1403- ● ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 10 1 1312-1402 ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 10 1 1403- ● ●
86 SEAL; DUST 1-47529-019-0 01 1 1312-1402 ●
86 SEAL; DUST 1-47529-019-0 01 1 1403- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98197-596-0 01 1 1403- ●
125 HOSE; OIL TANK TO AIR MASTER
(A) L=270 SERVICED BY L=1800 		1-09360-320-0 01 1 1312-1402 ●
125 HOSE; OIL TANK TO AIR MASTER
(A) L=270 SERVICED BY L=1800 		1-09360-320-0 01 1 1403- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(B) IDN 		8-98098-558-0 01 1 1312- ●
126 CONNECTOR; ELBOW
(H) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 1403- ●
126 CONNECTOR; ELBOW
(I) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1403- ●
126 CONNECTOR; ELBOW
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(B) M20X2 & PT3/8 3WAY 		1-09656-340-1 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(B) M20X2 & PT3/8 3WAY 		1-09656-340-1 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(D) DIN12 & M12 STRAIGHT IDN 		1-09660-878-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(D) DIN12 & M12 STRAIGHT IDN 		1-09660-878-0 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(G) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(G) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1403- ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1312-1402 ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1403- ● ●
139 BRACKET; OIL TANK 1-47537-081-2 01 1 1312-1402 ●
139 BRACKET; OIL TANK 1-47537-081-2 01 1 1403- ● ●
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE IDN 		0-28651-025-0 02 1 1312-1402 ●
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE IDN 		0-28651-025-0 02 1 1403- ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 IDN 		1-09704-102-0 04 1 1312-1402 ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 IDN 		1-09704-102-0 04 1 1403- ● ●
148 CONNECTOR; AIR MASTER
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1312-1402 ●
148 CONNECTOR; AIR MASTER
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1403- ● ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1312-1402 ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1403- ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1402 ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1403- ● ●
153 NUT; OIL TANK TO BAND
M8 IDN 		0-91110-508-0 02 1 1312-1402 ●
153 NUT; OIL TANK TO BAND
M8 IDN 		0-91110-508-0 02 1 1403- ● ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1312-1402 ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1403- ● ●
178 CLIP; HOSE
(B) ID=12 & 12 		1-09709-280-1 01 1 1312-1402 ●
178 CLIP; HOSE
(B) ID=12 & 12 		1-09709-280-1 01 1 1403- ● ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 01 1 1312-1402 ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 01 1 1403- ● ●
178 CLIP; HOSE
(C) 		9-09917-171-0 01 1 1312-1402 ●
178 CLIP; HOSE
(C) 		9-09917-171-0 01 1 1403- ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 1312-1402 ●
237 CAP; OIL TANK 1-47525-030-0 01 1 1403- ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 1312-1402 ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 1403- ● ●
239 FILTER; DUST 1-47529-017-0 01 1 1312-1402 ●
239 FILTER; DUST 1-47529-017-0 01 1 1403- ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 1312-1402 ●
240 HOLDER; FILTER 1-47529-018-0 01 1 1403- ● ●
271 NUT; BRKT,HOSE
M10 FLANGE 		0-91180-210-0 02 1 1312-1402 ●
271 NUT; BRKT,HOSE
M10 FLANGE 		0-91180-210-0 02 1 1403- ● ●

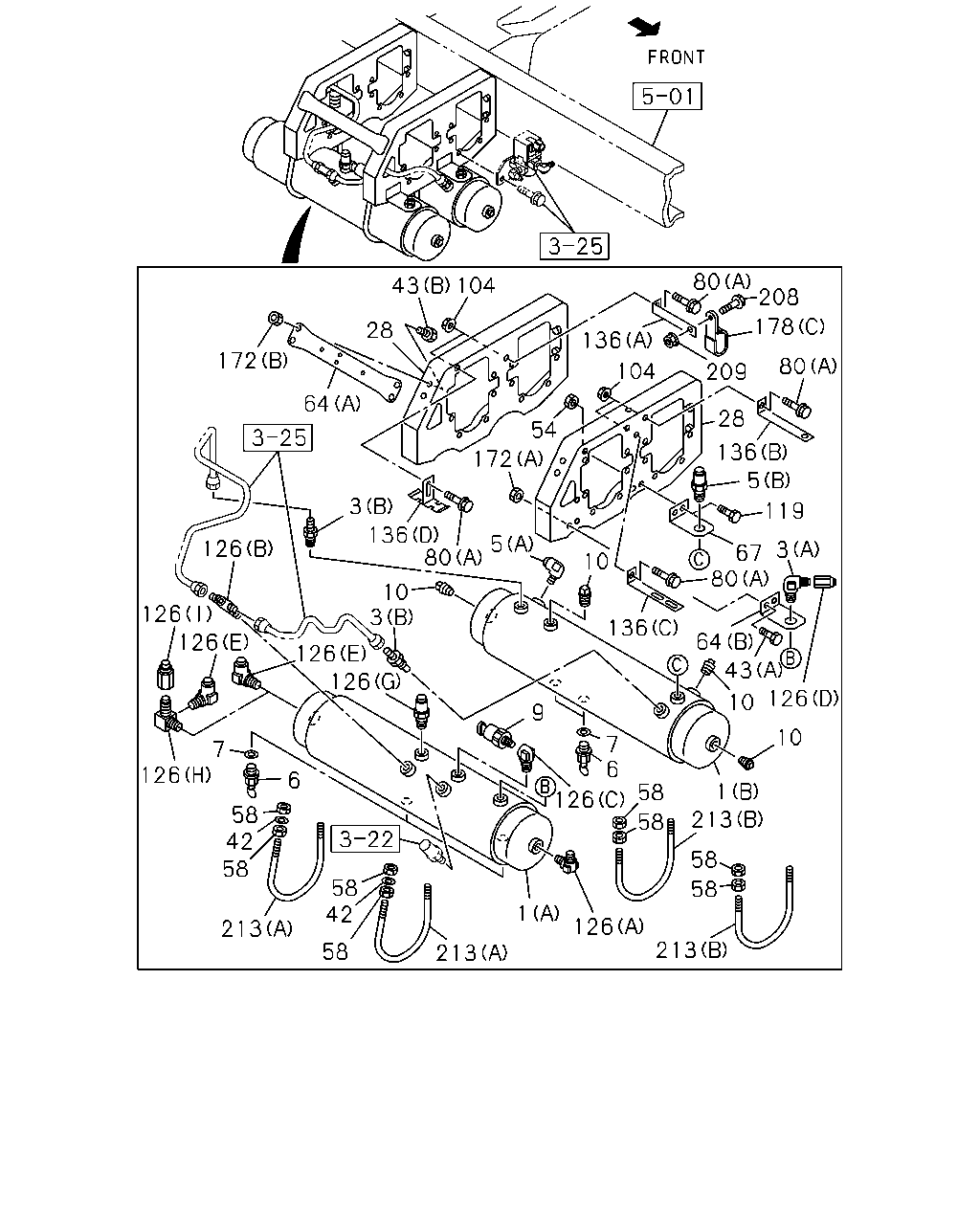

çizim 389146
43 104 28 172 64 3 126 126 126 126 126 3 10 136 80 126 7 6 58 42 58 213 58 42 58 213 1 126 126 213 58 58 213 58 58 1 10 126 10 6 7 9 136 43 64 10 5 172 54 80 67 3 119 5 136 28 209 80 178 208 80 136 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 1312-1402 ●
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 1403-1501 ● ●
1 TANK ASM; AIR
(A) 		8-98269-245-0 01 1 1502- ● ●
1 TANK ASM; AIR
(B) 		1-48370-541-0 01 1 1312-1402 ●
1 TANK ASM; AIR
(B) 		1-48370-541-0 01 1 1403- ● ●
3 VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 ELBOW 		1-48410-134-3 02 1 1403- ●
3 VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 ELBOW 		1-48410-134-3 01 1 1312- ●
3 VALVE; CHECK,AIR TANK
(B) 		1-48410-182-3 02 1 1312-1402 ●
3 VALVE; CHECK,AIR TANK
(B) 		1-48410-182-3 02 1 1403- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1312-1402 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1312-1402 ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1403- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1403-1501 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1502- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1312-1501 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1502- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1403-1501 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1502- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1312-1501 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1502- ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 		8-97609-249-0 01 1 1312-1402 ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 		8-97609-249-0 01 1 1403- ● ●
10 PLUG; AIR TANK
PT1/4 		9-99204-513-0 04 1 1312-1402 ●
10 PLUG; AIR TANK
PT1/4 		9-99204-513-0 04 1 1403- ● ●
28 BRACKET; AIR TANK 1-53318-338-6 02 1 1403- ●
28 BRACKET; AIR TANK
IDN 		8-97913-537-3 02 1 1312- ●
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 1312-1402 ●
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 1403- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1402 ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1403- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1312-1402 ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1403- ● ●
54 NUT; STAY
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
54 NUT; STAY
M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ● ●
58 NUT; BAND,AIR TANK
M8 IDN 		0-91110-508-0 16 1 1312-1402 ●
58 NUT; BAND,AIR TANK
M8 IDN 		0-91110-508-0 16 1 1403- ● ●
64 STAY; AIR TANK,MAIN
(A) 		1-53318-293-1 01 1 1312-1402 ●
64 STAY; AIR TANK,MAIN
(A) 		1-53318-293-1 01 1 1403- ● ●
64 STAY; AIR TANK,MAIN
(B) 		8-94301-490-0 01 1 1312-1402 ●
64 STAY; AIR TANK,MAIN
(B) 		8-94301-490-0 01 1 1403- ● ●
67 STAY; SUB TANK 1-48317-349-0 01 1 1312-1402 ●
67 STAY; SUB TANK 1-48317-349-0 01 1 1403- ● ●
80 BOLT; BRKT
(C) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1403- ●
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 05 1 1312-1402 ●
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 05 1 1403- ● ●
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 1312-1402 ●
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 1403- ● ●
104 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 05 1 1312-1402 ●
104 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 05 1 1403- ● ●
119 BOLT; STAY
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1402 ●
119 BOLT; STAY
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1403- ● ●
126 CONNECTOR; ELBOW
(H) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 1403- ●
126 CONNECTOR; ELBOW
(I) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1403- ●
126 CONNECTOR; ELBOW
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(B) M20X2 & PT3/8 3WAY 		1-09656-340-1 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(B) M20X2 & PT3/8 3WAY 		1-09656-340-1 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(D) DIN12 & M12 STRAIGHT IDN 		1-09660-878-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(D) DIN12 & M12 STRAIGHT IDN 		1-09660-878-0 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ● ●
126 CONNECTOR; ELBOW
(G) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1312-1402 ●
126 CONNECTOR; ELBOW
(G) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1403- ● ●
136 BRACKET; CLIP
(A) L=112 		1-47475-694-1 01 1 1312-1402 ●
136 BRACKET; CLIP
(A) L=112 		1-47475-694-1 01 1 1403- ● ●
136 BRACKET; CLIP
(B) 		1-47476-712-0 01 1 1312-1402 ●
136 BRACKET; CLIP
(B) 		1-47476-712-0 01 1 1403- ● ●
136 BRACKET; CLIP
(C) L=150 H=30 IDN 		1-47477-629-2 01 1 1312-1402 ●
136 BRACKET; CLIP
(C) L=150 H=30 IDN 		1-47477-629-2 01 1 1403- ● ●
136 BRACKET; CLIP
(D) 		1-47479-693-0 02 1 1312-1402 ●
136 BRACKET; CLIP
(D) 		1-47479-693-0 02 1 1403- ● ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 1312-1402 ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 1403- ● ●
178 CLIP; HOSE
(B) ID=12 & 12 		1-09709-280-1 01 1 1312-1402 ●
178 CLIP; HOSE
(B) ID=12 & 12 		1-09709-280-1 01 1 1403- ● ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 01 1 1312-1402 ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 01 1 1403- ● ●
178 CLIP; HOSE
(C) 		9-09917-171-0 01 1 1312-1402 ●
178 CLIP; HOSE
(C) 		9-09917-171-0 01 1 1403- ● ●
208 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1402 ●
208 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1403- ● ●
209 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
209 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
213 BOLT; U AIR TANK
(A) L=97.5 IDN 		1-48317-323-1 02 1 1312-1402 ●
213 BOLT; U AIR TANK
(A) L=97.5 IDN 		1-48317-323-1 02 1 1403- ● ●
213 BOLT; U AIR TANK
(B) L=195 IDN 		1-48317-367-2 02 1 1312-1402 ●
213 BOLT; U AIR TANK
(B) L=195 IDN 		1-48317-367-2 02 1 1403- ● ●

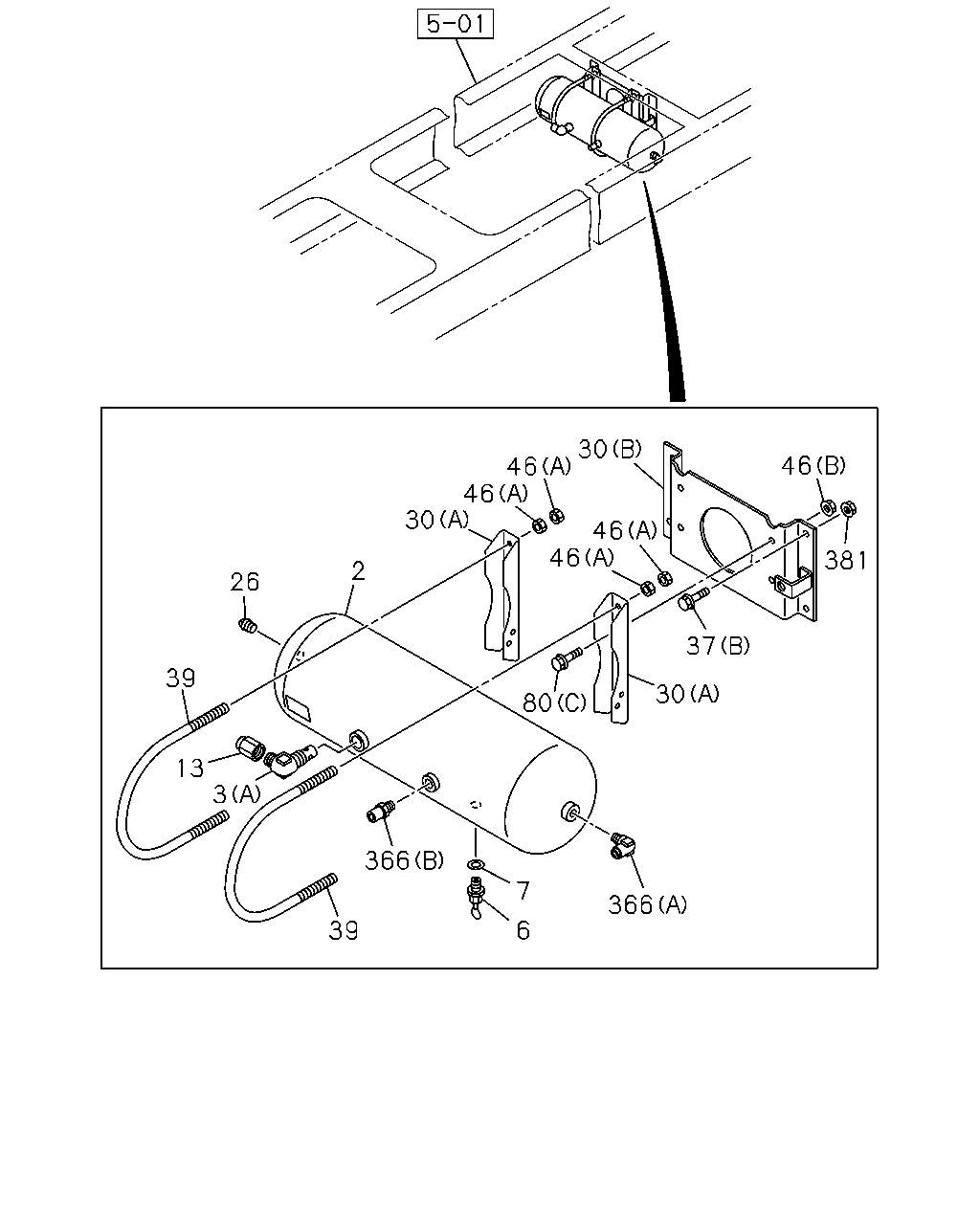

çizim 413395
30 46 46 30 2 26 39 13 3 39 366 7 6 366 30 80 46 46 37 381 46
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR 1-48370-464-0 01 1 1403- ●
3 VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 ELBOW 		1-48410-134-3 02 1 1403- ●
3 VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 ELBOW 		1-48410-134-3 01 1 1312- ●
3 VALVE; CHECK,AIR TANK
(B) 		1-48410-182-3 02 1 1312-1402 ●
3 VALVE; CHECK,AIR TANK
(B) 		1-48410-182-3 02 1 1403- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1403-1501 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1502- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1312-1501 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1502- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1403-1501 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1502- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1312-1501 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1502- ●
13 ADAPTER; NYLON TUBE
DIN12 & M12 STRAIGHT IDN 		1-09660-878-0 01 1 1403- ●
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 01 1 1403- ●
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-430-0 02 1 1403- ●
30 BRACKET; AIR TANK,SUB
(B) 		8-98250-267-0 01 1 1403- ●
37 BOLT; AIR TANK
(B) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1403- ●
37 BOLT; AIR TANK
(A) M12X40 FLANGE 		0-28651-240-0 06 1 1312-1402 ●
37 BOLT; AIR TANK
(A) M12X40 FLANGE 		0-28651-240-0 06 1 1403- ● ●
39 U-BOLT; AIR TANK
L=250 		1-48317-308-0 02 1 1403- ●
46 NUT; U-BOLT
(A) M8 IDN 		0-91110-508-0 08 1 1403- ●
46 NUT; U-BOLT
(B) M10 FLANGE 		0-91180-210-0 04 1 1403- ●
80 BOLT; BRKT
(C) M10X25 FLANGE IDN 		0-28651-025-0 04 1 1403- ●
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 05 1 1312-1402 ●
80 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 05 1 1403- ● ●
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 1312-1402 ●
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 1403- ● ●
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ●
366 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1403- ●
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 04 1 1403- ●
çizim 413880
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M10X20 FLANGE IDN 		0-28051-020-0 02 1 1403- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
