3-11 — PARKING BRAKE CONTROL (#131524) — 87 parça

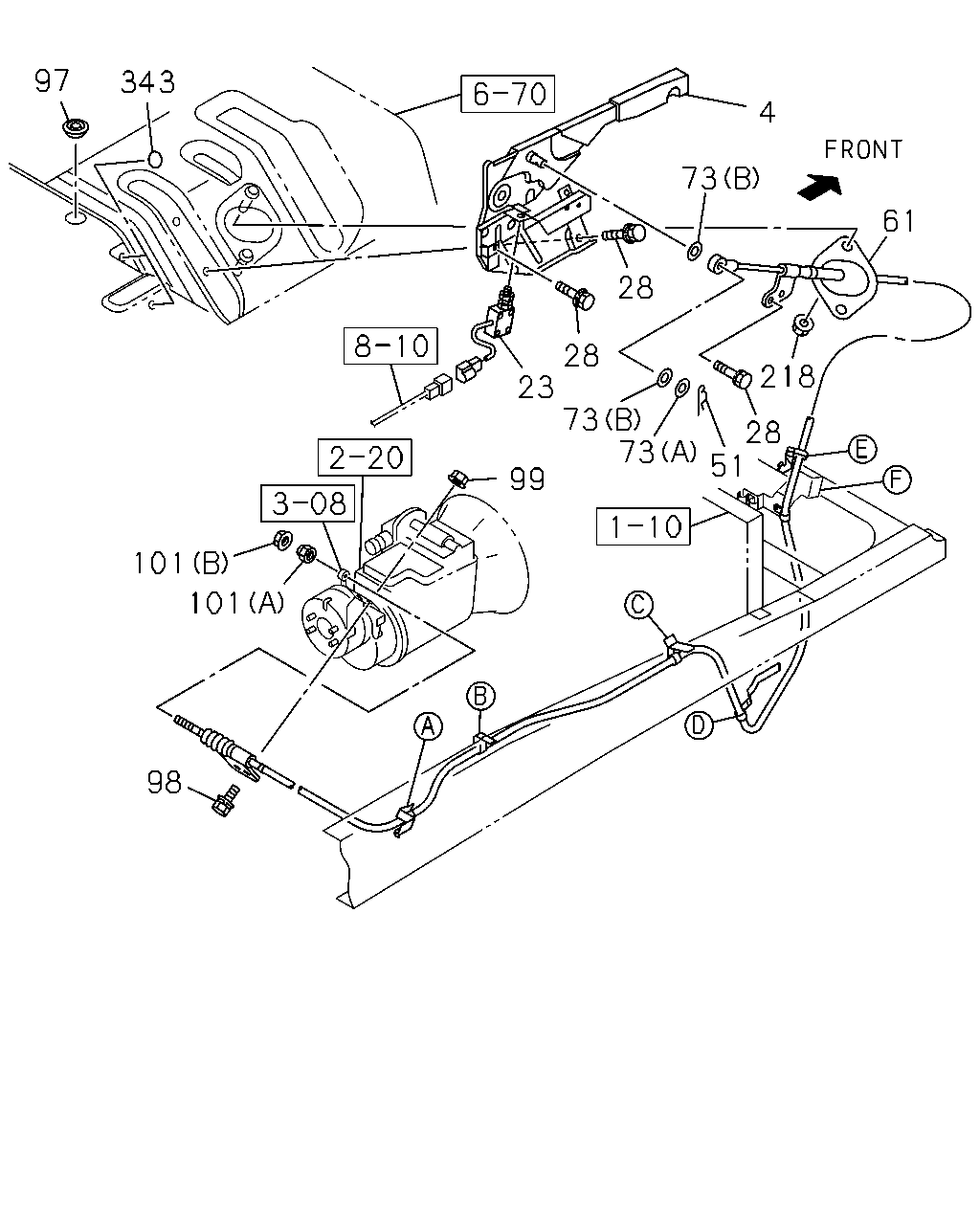

çizim 388395
4 73 97 343 101 101 98 99 23 73 28 28 73 51 28 218 61
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK 8-98173-353-0 01 1 1403- ●
4 STEM; PARKING BRK 1-79996-549-0 01 1 1312- ●
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 1312-1402 ●
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 1403- ● ●
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1312-1402 ●
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1403- ● ●
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 1312-1402 ●
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 1403- ● ●
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046 		8-98257-639-0 01 1 1406- ●
61 CABLE; PARKING BRK
L=4946 		8-98257-638-0 01 1 1403- ●
61 CABLE; PARKING BRK
L=4615 		8-98106-061-5 01 1 1312-1401 ●
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4615 		8-98257-637-0 01 1 1402- ●
73 WASHER; PL,CABLE
(A) ID=17 OD=30 		0-91610-516-0 01 1 1312-1402 ●
73 WASHER; PL,CABLE
(A) ID=17 OD=30 		0-91610-516-0 01 1 1403- ● ●
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 02 1 1312-1402 ●
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 02 1 1403- ● ●
97 GROMMET; PARKING BRK CABLE
OD=35 IDN 		8-94122-971-0 01 1 1312- ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28651-030-0 02 1 1312-1402 ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28651-030-0 02 1 1403- ● ●
99 NUT; CONT CABLE
M10 FLANGE 		0-91180-210-0 02 1 1312-1402 ●
99 NUT; CONT CABLE
M10 FLANGE 		0-91180-210-0 02 1 1403- ● ●
101 NUT; CABLE TO LEVER
(B) M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
101 NUT; CABLE TO LEVER
(B) M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
101 NUT; CABLE TO LEVER
(A) 		1-46259-007-0 01 1 1312-1402 ●
101 NUT; CABLE TO LEVER
(A) 		1-46259-007-0 01 1 1403- ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ● ●
343 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 1403- ●
343 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 1312- ●

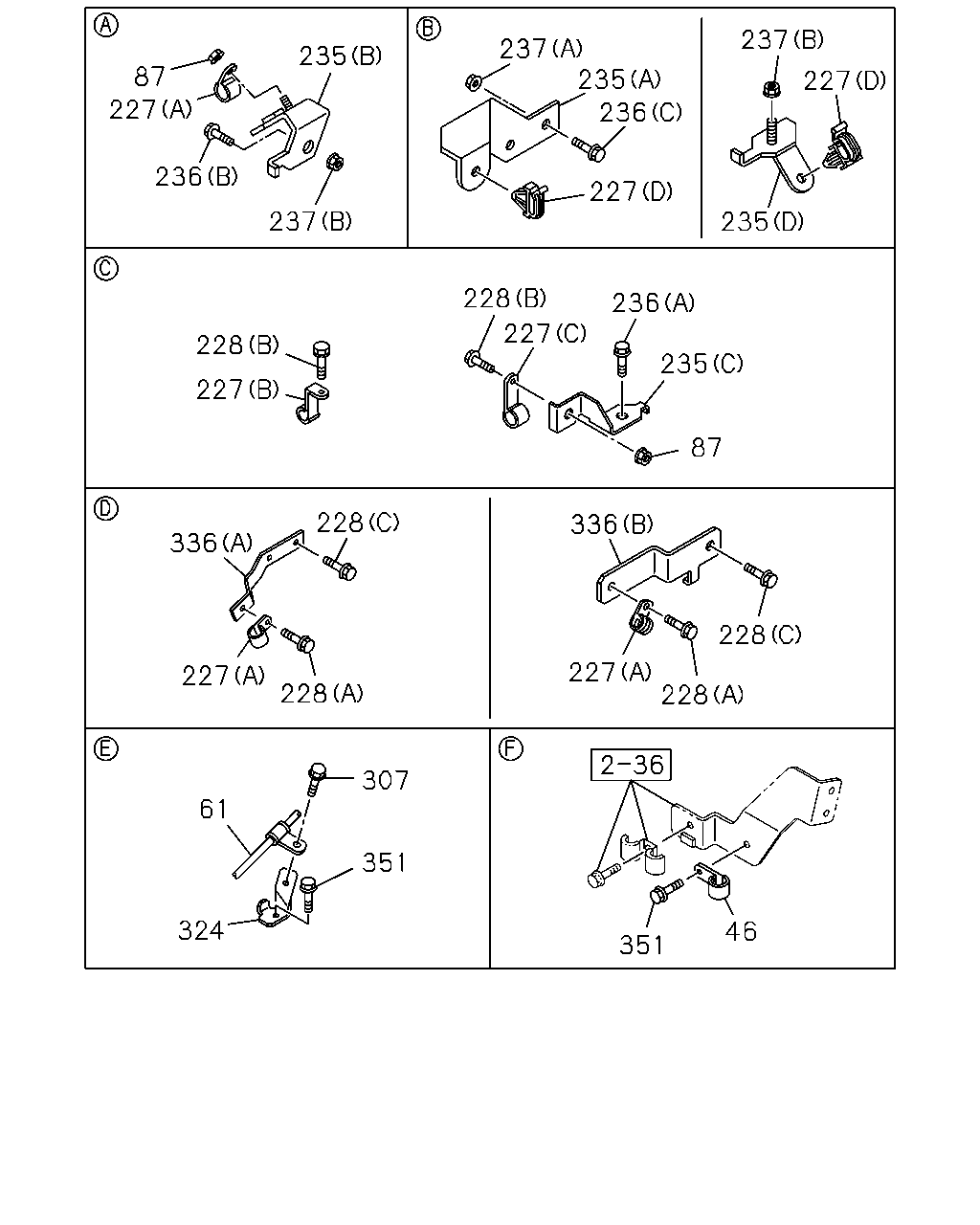

çizim 388461
87 227 236 235 237 237 235 236 227 237 227 235 228 227 228 227 236 235 87 336 228 336 227 228 227 228 228 351 46 307 351 61 324
BalonParca AdiParca NoAdetTipApplied Date A B
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		0-95235-535-0 01 1 1312-1401 ●
46 CLIP; FRT CABLE TO FLOOR
ID=13 L=20 		0-95235-235-0 01 1 1402-1402 ●
46 CLIP; FRT CABLE TO FLOOR
ID=13 L=20 		0-95235-235-0 01 1 1403- ● ●
61 CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046 		8-98257-639-0 01 1 1406- ●
61 CABLE; PARKING BRK
L=4946 		8-98257-638-0 01 1 1403- ●
61 CABLE; PARKING BRK
L=4615 		8-98106-061-5 01 1 1312-1401 ●
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4615 		8-98257-637-0 01 1 1402- ●
87 NUT
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
87 NUT
M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ● ●
227 CLIP; RAD
(A) ID=13 L=20 		0-95235-235-0 02 1 1312-1402 ●
227 CLIP; RAD
(A) ID=13 L=20 		0-95235-235-0 02 1 1403- ● ●
227 CLIP; RAD
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1312-1402 ●
227 CLIP; RAD
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1403- ● ●
227 CLIP; RAD
(C) ID=14.5 L=40 		1-09701-014-0 01 1 1312-1402 ●
227 CLIP; RAD
(C) ID=14.5 L=40 		1-09701-014-0 01 1 1403- ● ●
227 CLIP; RAD
(D) ID=9.5 		5-09709-020-0 02 1 1312-1402 ●
227 CLIP; RAD
(D) ID=9.5 		5-09709-020-0 02 1 1403- ● ●
228 BOLT; CLIP RAD MTG
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 1403-1405 ●
228 BOLT; CLIP RAD MTG
ZF9S1110 DD M/T(Y5P) (C) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 1406- ●
228 BOLT; CLIP RAD MTG
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 1406- ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1402 ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403- ● ●
228 BOLT; CLIP RAD MTG
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1312-1402 ●
228 BOLT; CLIP RAD MTG
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1403- ● ●
228 BOLT; CLIP RAD MTG
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1312- ●
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98111-492-0 01 1 1403-1405 ●
235 BRACKET; CONT CABLE TO FRAME
ZF9S1110 DD M/T(Y5P) (B) 		8-98111-492-0 01 1 1406- ●
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98111-492-0 01 1 1406- ●
235 BRACKET; CONT CABLE TO FRAME
(D) 		8-98126-934-0 01 1 1403-1405 ●
235 BRACKET; CONT CABLE TO FRAME
ZF9S1110 DD M/T(Y5P) (D) 		8-98126-934-0 01 1 1406- ●
235 BRACKET; CONT CABLE TO FRAME
(D) 		8-98126-934-0 01 1 1406- ●
235 BRACKET; CONT CABLE TO FRAME
MZW6P M/T(RSZ) (B) 		8-98077-903-2 01 1 1312- ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98100-152-0 01 1 1312-1402 ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98100-152-0 01 1 1403- ● ●
235 BRACKET; CONT CABLE TO FRAME
(C) 		8-98126-426-0 01 1 1312-1402 ●
235 BRACKET; CONT CABLE TO FRAME
(C) 		8-98126-426-0 01 1 1403- ● ●
236 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1312-1402 ●
236 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1403- ● ●
236 BOLT; BRKT TO FRAME
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1312-1402 ●
236 BOLT; BRKT TO FRAME
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1403- ● ●
236 BOLT; BRKT TO FRAME
(B) M10X35 FLANGE IDN 		0-28651-035-0 01 1 1312-1402 ●
236 BOLT; BRKT TO FRAME
(B) M10X35 FLANGE IDN 		0-28651-035-0 01 1 1403- ● ●
237 NUT; BRKT TO FRAME
(B) M10 FLANGE 		0-91180-210-0 02 1 1403-1405 ●
237 NUT; BRKT TO FRAME
ZF9S1110 DD M/T(Y5P) (B) M10 FLANGE 		0-91180-210-0 02 1 1406- ●
237 NUT; BRKT TO FRAME
(B) M10 FLANGE 		0-91180-210-0 02 1 1406- ●
237 NUT; BRKT TO FRAME
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1402 ●
237 NUT; BRKT TO FRAME
(A) M8 FLANGE IDN 		0-91180-108-0 02 1 1403- ● ●
237 NUT; BRKT TO FRAME
MZW6P M/T(RSZ) (B) M10 FLANGE 		0-91180-210-0 01 1 1312- ●
307 BOLT; BRKT,PARKING BRK CABLE
M8X25 W/WASHER 		0-51640-825-0 01 1 1312-1402 ●
307 BOLT; BRKT,PARKING BRK CABLE
M8X25 W/WASHER 		0-51640-825-0 01 1 1403- ● ●
324 BRACKET 8-98067-482-1 01 1 1312-1402 ●
324 BRACKET 8-98067-482-1 01 1 1403- ● ●
336 BRACKET; RADIATOR
(B) IDN 		8-98182-153-1 01 1 1403-1405 ●
336 BRACKET; RADIATOR
ZF9S1110 DD M/T(Y5P) (B) IDN 		8-98182-153-1 01 1 1406- ●
336 BRACKET; RADIATOR
(B) IDN 		8-98182-153-1 01 1 1406- ●
336 BRACKET; RADIATOR
MZW6P M/T(RSZ) (A) 		8-98044-680-0 01 1 1312- ●
351 BOLT; CLIP
M8X25 W/WASHER 		0-51640-825-0 03 1 1312-1402 ●
351 BOLT; CLIP
M8X25 W/WASHER 		0-51640-825-0 03 1 1403- ● ●
