3-05 — REAR WHEEL BRAKE (#131521) — 82 parça

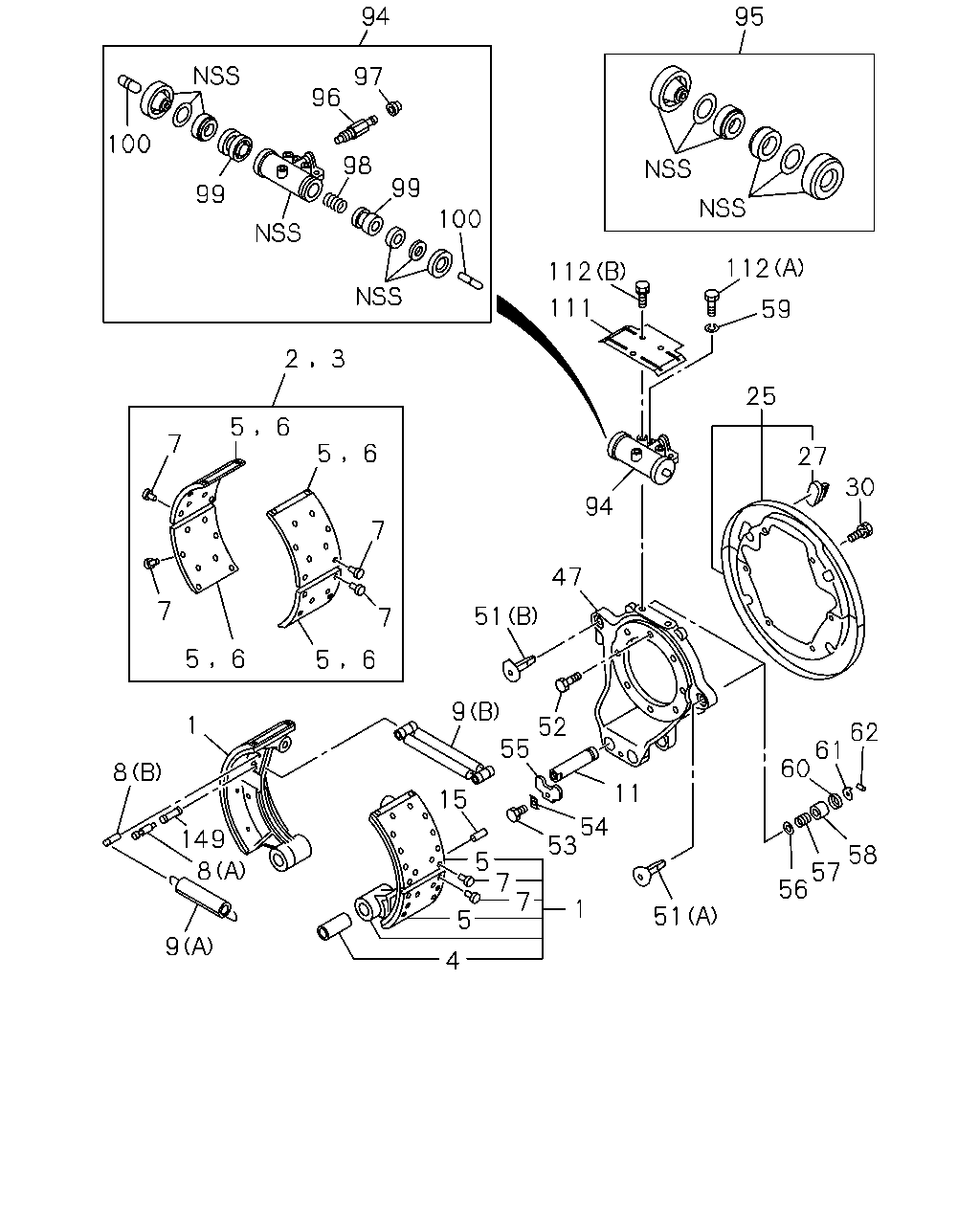

çizim 389633
94 97 96 100 99 98 99 100 3 2 6 5 6 5 7 7 6 5 7 7 6 5 1 8 149 8 9 51 47 94 9 52 55 15 5 7 7 1 5 4 112 95 111 112 59 25 27 30 62 61 60 11 54 53 51 58 57 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47170-442-0 04 1 1312-1402 ●
1 SHOE; BRK,RR 1-47170-442-0 04 1 1403- ● ●
2 LINING SET; RR BRK,STANDARD
T=16 		1-88311-359-1 02 1 1312-1402 ●
2 LINING SET; RR BRK,STANDARD
T=16 		1-88311-359-1 02 1 1403- ● ●
3 LINING SET; RR BRK,OVER SIZE
T=17 		1-88311-360-1 02 1 1312-1402 ●
3 LINING SET; RR BRK,OVER SIZE
T=17 		1-88311-360-1 02 1 1403- ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 1312-1402 ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 1403- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-760-0 08 1 1312-1402 ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-760-0 08 1 1403- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47126-761-0 08 1 1312-1402 ●
6 LINING; RR BRK SHOE,OVER SIZE
T=17 		1-47126-761-0 08 1 1403- ● ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 1312-1402 ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 1403- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-09744-051-0 04 1 1312-1402 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-09744-051-0 04 1 1403- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-025-0 04 1 1312-1402 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-025-0 04 1 1403- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-175-0 02 1 1312-1402 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-175-0 02 1 1403- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-210-0 02 1 1312-1402 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-210-0 02 1 1403- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 1312-1402 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 1403- ● ●
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 1312-1402 ●
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 1403- ● ●
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 1312-1402 ●
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 1403- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1312-1402 ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1403- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1312-1402 ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1403- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 1312-1402 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 1403- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 1312-1402 ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 1403- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 1312-1402 ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 1403- ● ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 1312-1402 ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 1403- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1312-1402 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1403- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1312-1402 ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1403- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 1312-1402 ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 1403- ● ●
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 1312-1402 ●
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 1403- ● ●
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 1312-1402 ●
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 1403- ● ●
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 1312-1402 ●
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 1403- ● ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 1312-1402 ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 1403- ● ●
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 1312-1402 ●
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 1403- ● ●
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 1312-1402 ●
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 1403- ● ●
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 1312-1402 ●
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 1403- ● ●
94 CYLINDER; WHEEL,RR BRK 1-47601-125-0 02 1 1312-1402 ●
94 CYLINDER; WHEEL,RR BRK 1-47601-125-0 02 1 1403- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-720-0 02 1 1312-1402 ●
95 CUP SET; RR WHEEL CYL 1-87830-720-0 02 1 1403- ● ●
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 1312-1402 ●
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 1403- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1312-1402 ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1403- ● ●
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 1312-1402 ●
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 1403- ● ●
99 PISTON; RR WHEEL CYL 1-47624-391-0 04 1 1312-1402 ●
99 PISTON; RR WHEEL CYL 1-47624-391-0 04 1 1403- ● ●
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 1312-1402 ●
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 1403- ● ●
111 COVER; WHEEL CYL 1-47159-081-0 02 1 1312-1402 ●
111 COVER; WHEEL CYL 1-47159-081-0 02 1 1403- ● ●
112 BOLT; WHEEL CYL SETTING
(A) M14X35 		0-20851-435-0 04 1 1312-1402 ●
112 BOLT; WHEEL CYL SETTING
(A) M14X35 		0-20851-435-0 04 1 1403- ● ●
112 BOLT; WHEEL CYL SETTING
(B) M8X16 W/LK WASHER 		0-50540-816-0 06 1 1312-1402 ●
112 BOLT; WHEEL CYL SETTING
(B) M8X16 W/LK WASHER 		0-50540-816-0 06 1 1403- ● ●
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 1312-1402 ●
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 1403- ● ●
