◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#131516) — 235 parça

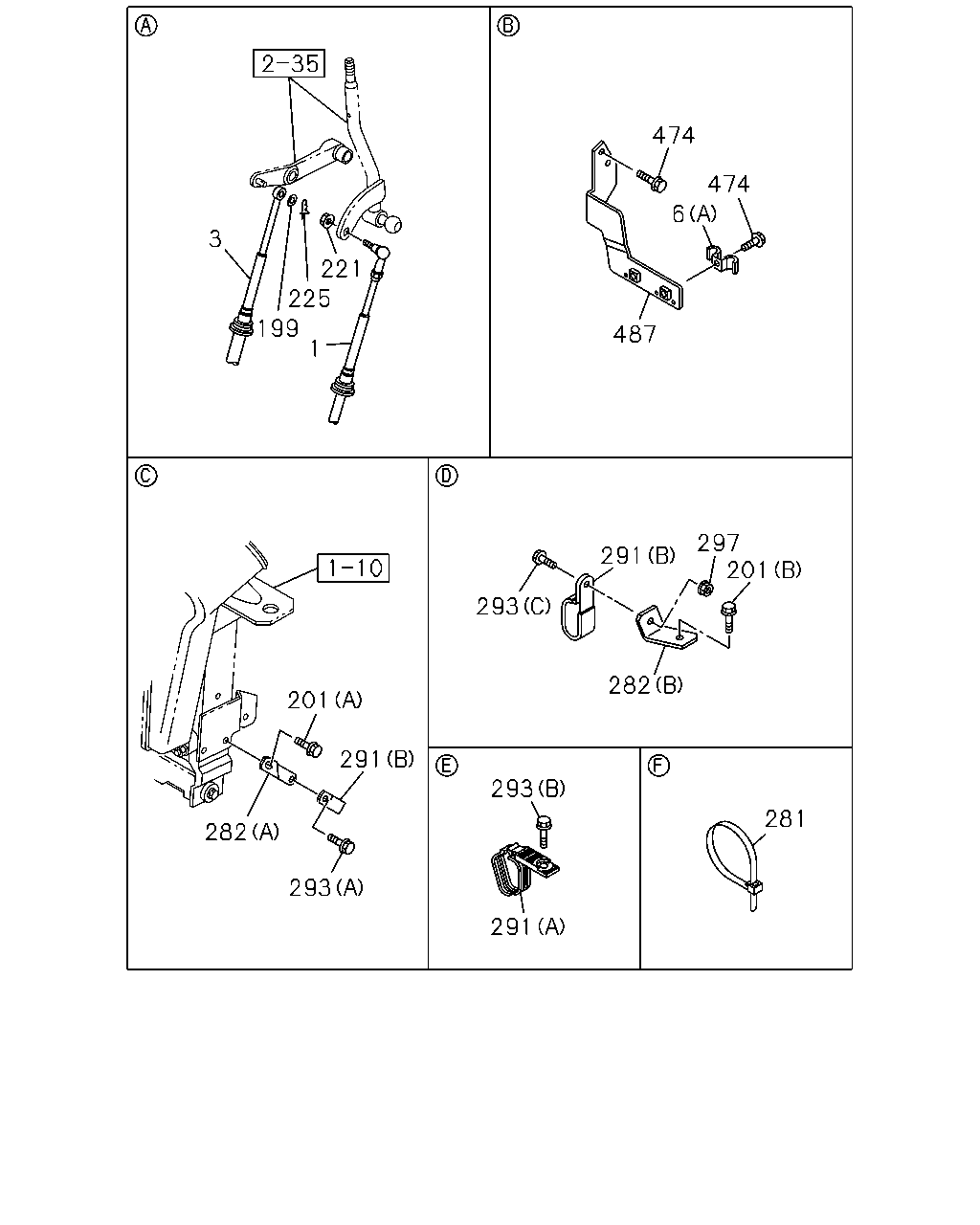

çizim 388388
3 221 225 199 1 474 474 6 487 201 291 282 293 291 293 281 282 293 291 201 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1406- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1403- ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3510 		8-98017-469-4 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1406- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1403- ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1312- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1403-1405 ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1406- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1406- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1312-1402 ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1403- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1312-1402 ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1403- ● ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1403-1405 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1406- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1406- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1402 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403-1405 ● ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403-1405 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ● ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1402 ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1403- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1312-1402 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1403- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1312-1402 ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1403- ● ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1312-1402 ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1403- ● ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1403-1405 ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) (A) 		8-98098-265-2 01 1 1406- ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1406- ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1312-1402 ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1403- ● ●
282 BRACKET; TRANS SIDE
MZW6P M/T(RSZ) (A) 		8-98010-418-0 01 1 1312- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 02 1 1312-1402 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 02 1 1403- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1312-1402 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1403- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1402 ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1402 ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1403- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1402 ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1403- ● ●
297 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
297 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1312-1402 ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1403- ● ●
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1403-1405 ●
487 BRACKET; CONT CABLE
ZF9S1110 DD M/T(Y5P) IDN 		8-98184-319-0 01 1 1406- ●
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1406- ●
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) 		8-98183-009-0 01 1 1312- ●

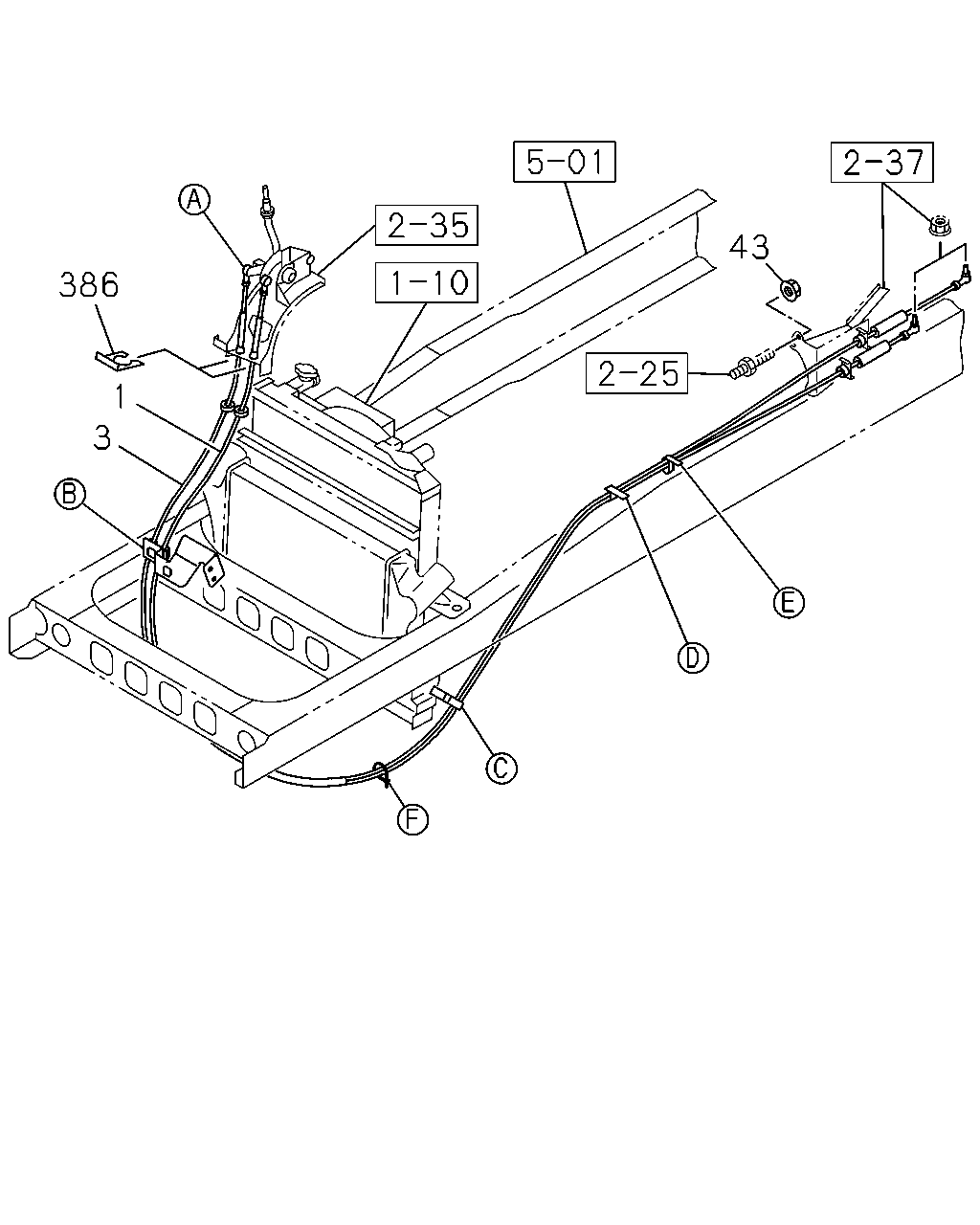

çizim 389151
3 386 43 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1406- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1403- ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3510 		8-98017-469-4 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1406- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1403- ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1312- ●
43 NUT; BRKT
MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1312- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1312-1402 ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1403- ● ●

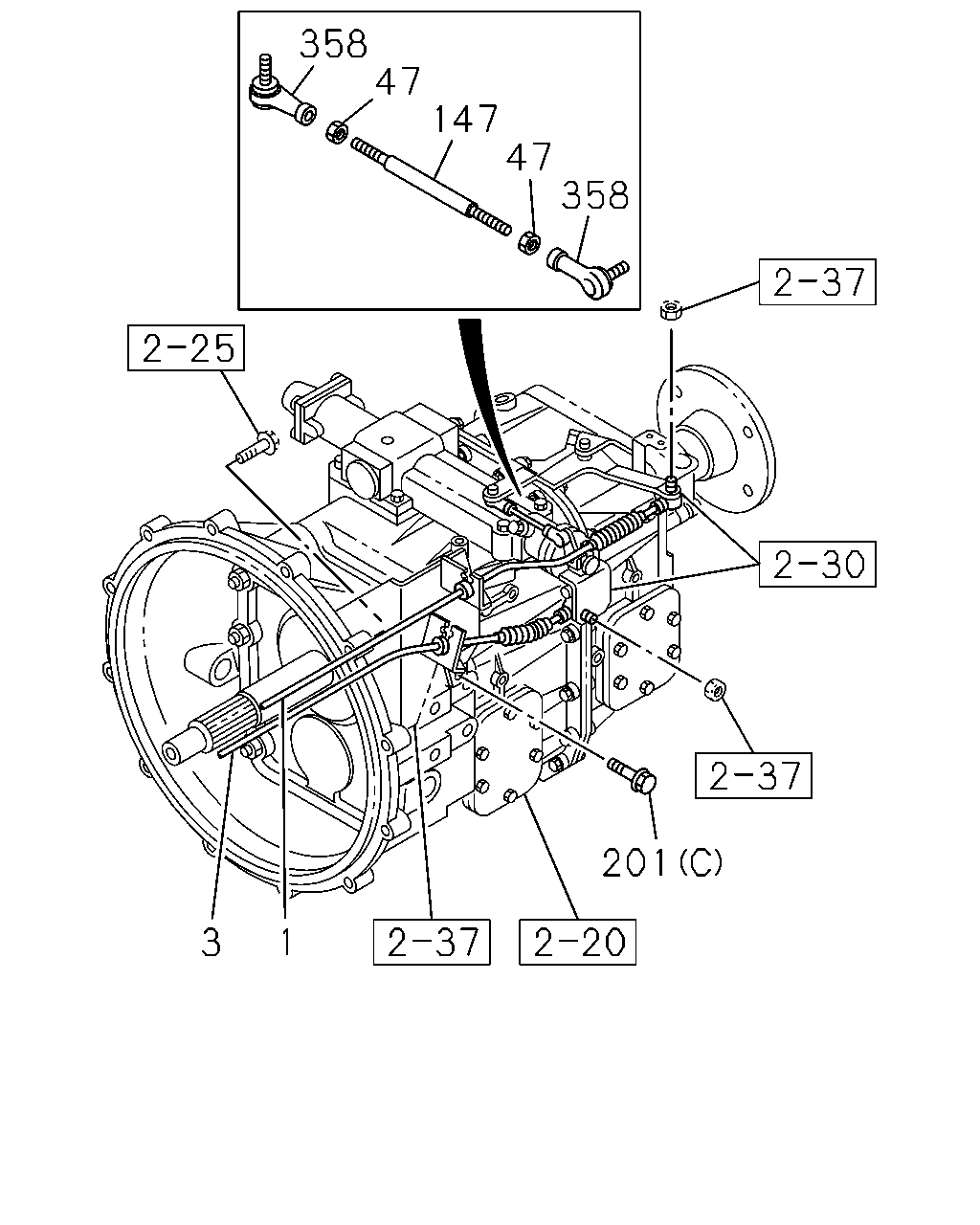

çizim 413281
358 47 147 358 47 201 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1406- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1403- ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3510 		8-98017-469-4 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1406- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1403- ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1312- ●
47 NUT; LK,LINK ROD
M8 		0-91111-508-0 02 1 1403- ●
147 ROD; LINK 0-84000-808-0 01 1 1403- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1403-1405 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1406- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1406- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1402 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403-1405 ● ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403-1405 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ● ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1402 ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1403- ● ●
358 ROD END; SCREW
L=45.5 		1-09760-118-1 02 1 1403- ●

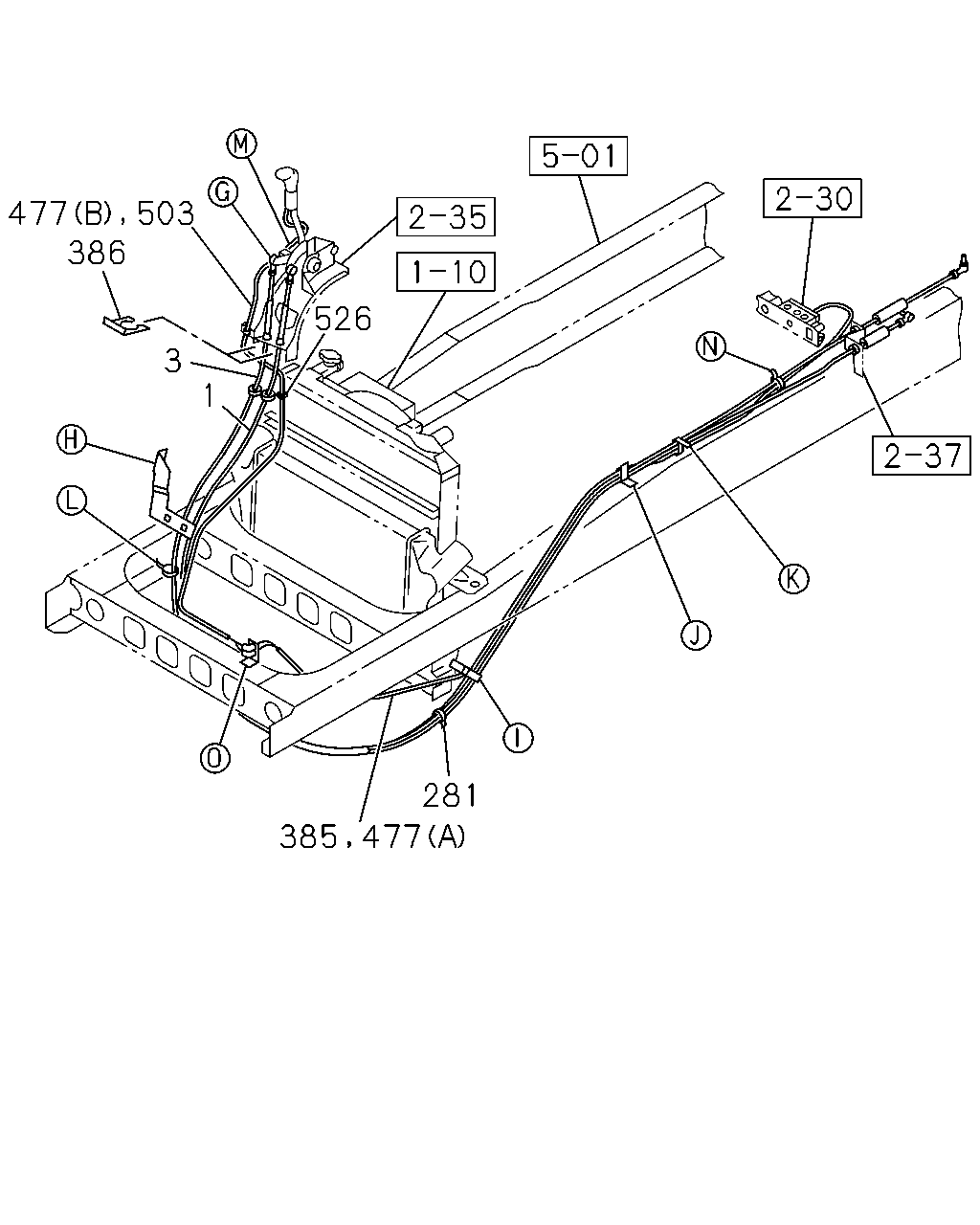

çizim 413293
503 477 3 1 385 477 281 526 386
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1406- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1403- ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3510 		8-98017-469-4 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1406- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1403- ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1312- ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1312-1402 ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1403- ● ●
385 TUBE; NYLON
SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1403- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1312-1402 ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1403- ● ●
477 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1403- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1403- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1403- ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1403- ●
526 GROMMET 5-09333-062-0 01 1 1403- ●

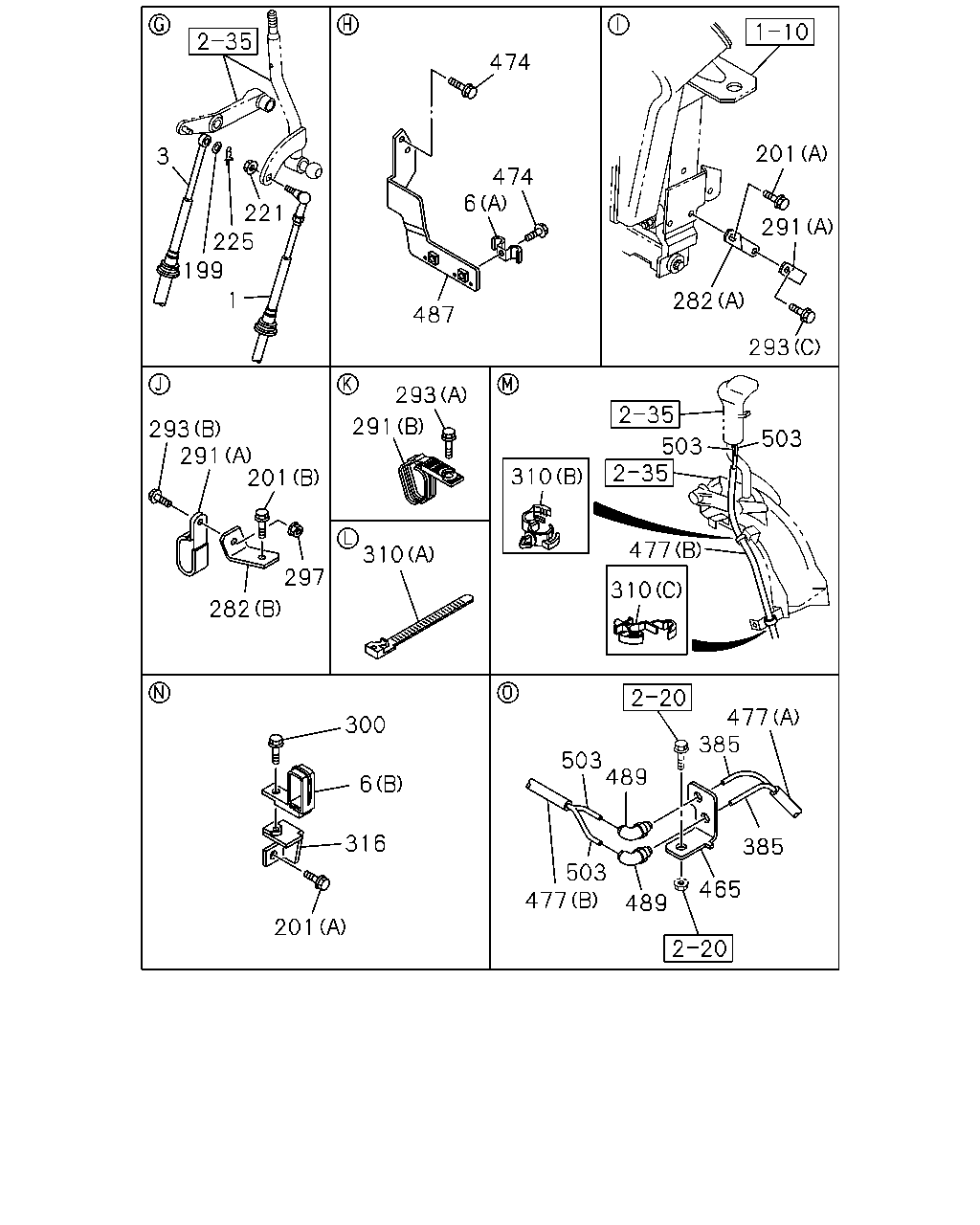

çizim 413693
3 221 225 199 474 474 6 487 201 291 293 282 503 503 477 310 310 477 385 385 465 489 503 477 489 503 316 6 300 201 310 291 293 201 297 282 291 293 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1406- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1403- ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3510 		8-98017-469-4 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1406- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1403- ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1312- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1403-1405 ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1406- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1406- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1312-1402 ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1403- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1312-1402 ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1403- ● ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1403-1405 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1406- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1406- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1402 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403-1405 ● ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403-1405 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ● ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1402 ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1403- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1312-1402 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1403- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1312-1402 ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1403- ● ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1403-1405 ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) (A) 		8-98098-265-2 01 1 1406- ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1406- ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1312-1402 ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1403- ● ●
282 BRACKET; TRANS SIDE
MZW6P M/T(RSZ) (A) 		8-98010-418-0 01 1 1312- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 02 1 1312-1402 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 02 1 1403- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1312-1402 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1403- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1402 ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1402 ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1403- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1402 ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1403- ● ●
297 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
297 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
300 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1403-1405 ●
300 BOLT; CLIP
ZF9S1110 DD M/T(Y5P) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1406- ●
300 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1406- ●
310 CLIP; TUBE
(A) L=100 		5-09707-036-1 01 1 1403- ●
310 CLIP; TUBE
(C) ID=12 		8-94218-436-0 01 1 1403- ●
310 CLIP; TUBE
(B) ID=6 & 10-13 		8-97069-515-0 01 1 1403- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1403-1405 ●
316 BRACKET; CLIP
ZF9S1110 DD M/T(Y5P) 		8-98086-439-0 01 1 1406- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1406- ●
385 TUBE; NYLON
SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1403- ●
465 BRACKET; CONNECTOR 8-98141-474-0 01 1 1403- ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1312-1402 ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1403- ● ●
477 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1403- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1403- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1403- ●
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1403-1405 ●
487 BRACKET; CONT CABLE
ZF9S1110 DD M/T(Y5P) IDN 		8-98184-319-0 01 1 1406- ●
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1406- ●
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) 		8-98183-009-0 01 1 1312- ●
489 CONNECTOR 8-98085-747-0 02 1 1403- ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1403- ●

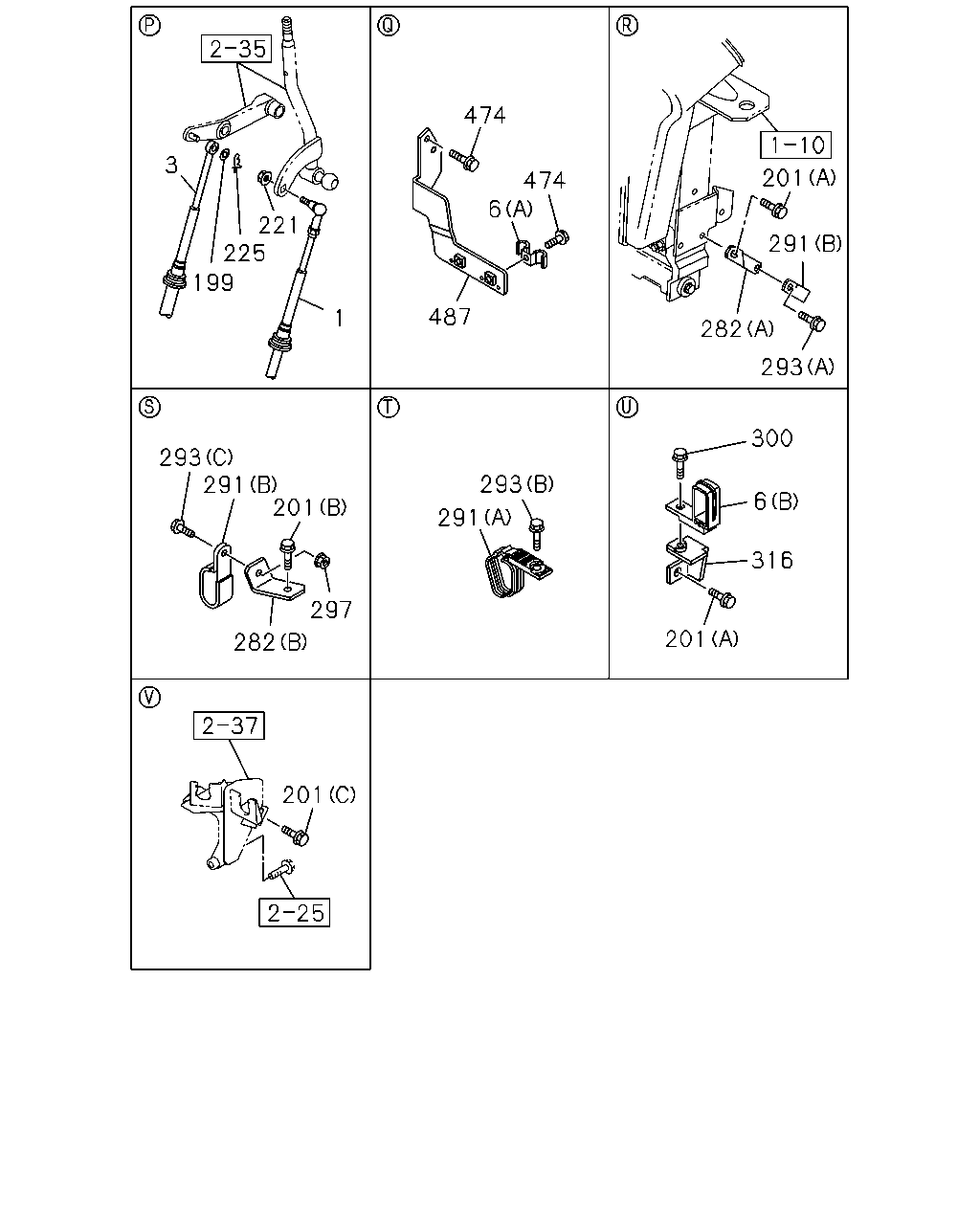

çizim 426252
3 221 225 199 1 474 474 6 487 201 291 282 293 300 6 316 201 293 291 293 291 201 297 282 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1406- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1403- ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3510 		8-98017-469-4 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1406- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1403- ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1312- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1403-1405 ●
6 CLIP; CABLE
ZF9S1110 DD M/T(Y5P) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1406- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1406- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1312-1402 ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1403- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1312-1402 ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1403- ● ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1403-1405 ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) (C) M12X35 FLANGE 		0-28151-235-0 01 1 1406- ●
201 BOLT; BRKT
(C) M12X35 FLANGE 		0-28151-235-0 01 1 1406- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1402 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403-1405 ● ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403-1405 ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ● ●
201 BOLT; BRKT
ZF9S1110 DD M/T(Y5P) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1406- ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1402 ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1403- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1312-1402 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1403- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1312-1402 ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1403- ● ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1403-1405 ●
282 BRACKET; TRANS SIDE
ZF9S1110 DD M/T(Y5P) (A) 		8-98098-265-2 01 1 1406- ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 1406- ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1312-1402 ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 1403- ● ●
282 BRACKET; TRANS SIDE
MZW6P M/T(RSZ) (A) 		8-98010-418-0 01 1 1312- ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 02 1 1312-1402 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 02 1 1403- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1312-1402 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1403- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1312-1402 ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1403- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1402 ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1403- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-1402 ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1403- ● ●
297 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
297 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
300 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1403-1405 ●
300 BOLT; CLIP
ZF9S1110 DD M/T(Y5P) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1406- ●
300 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1406- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1403-1405 ●
316 BRACKET; CLIP
ZF9S1110 DD M/T(Y5P) 		8-98086-439-0 01 1 1406- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 1406- ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1312-1402 ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1403- ● ●
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1403-1405 ●
487 BRACKET; CONT CABLE
ZF9S1110 DD M/T(Y5P) IDN 		8-98184-319-0 01 1 1406- ●
487 BRACKET; CONT CABLE
IDN 		8-98184-319-0 01 1 1406- ●
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) 		8-98183-009-0 01 1 1312- ●

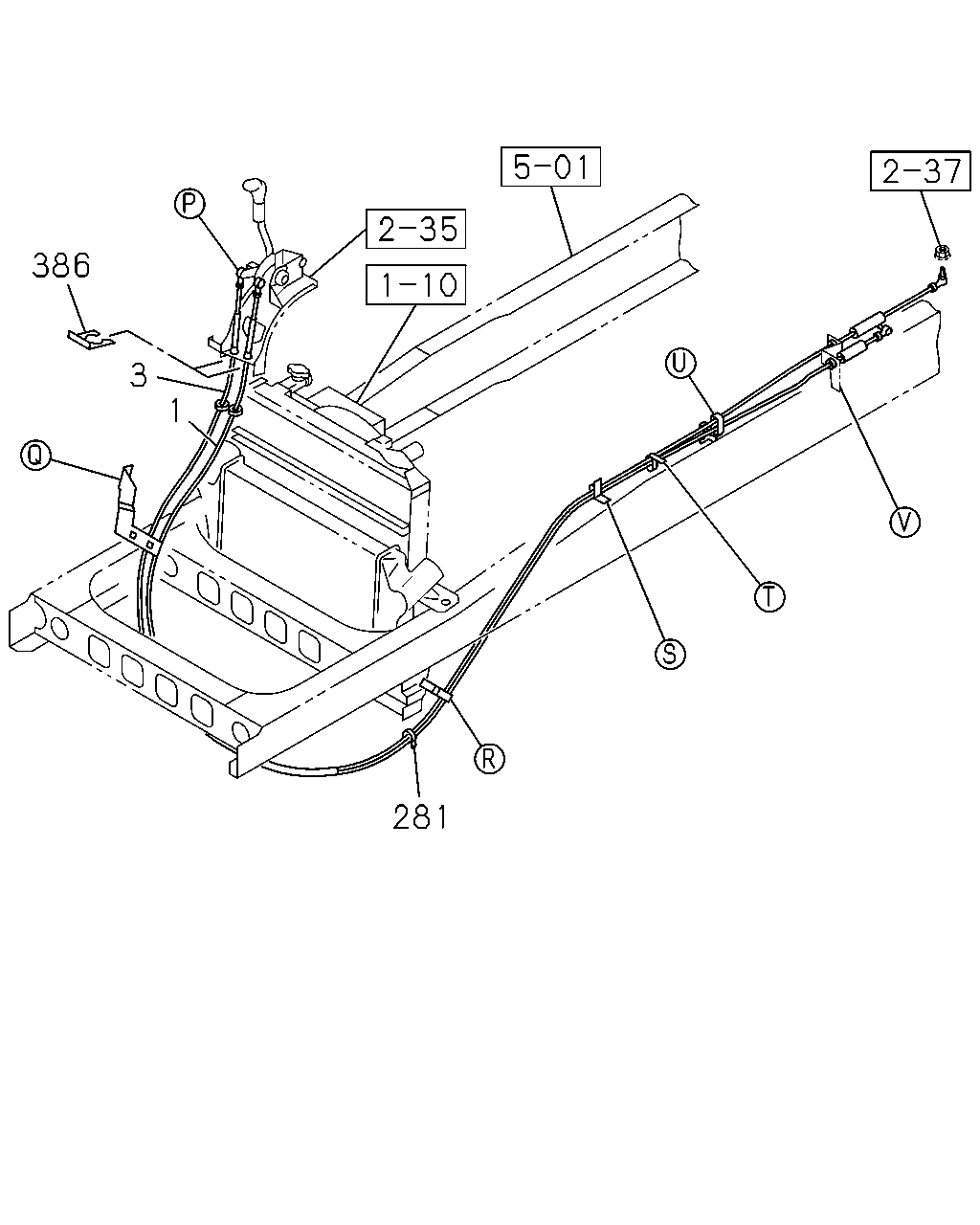

çizim 426481
281 1 3 386
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3630 		8-98184-317-2 01 1 1406- ●
1 CABLE; SHIFT,TRANS CONT
L=3625 		8-98182-402-2 01 1 1403- ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) L=3510 		8-98017-469-4 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 DD M/T(Y5P) L=3560 		8-98017-495-3 01 1 1406- ●
3 CABLE; SELECT,TRANS CONT
L=3790 		8-98182-403-1 01 1 1403- ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1312- ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1312-1402 ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1403- ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1312-1402 ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
