2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#131515) — 138 parça

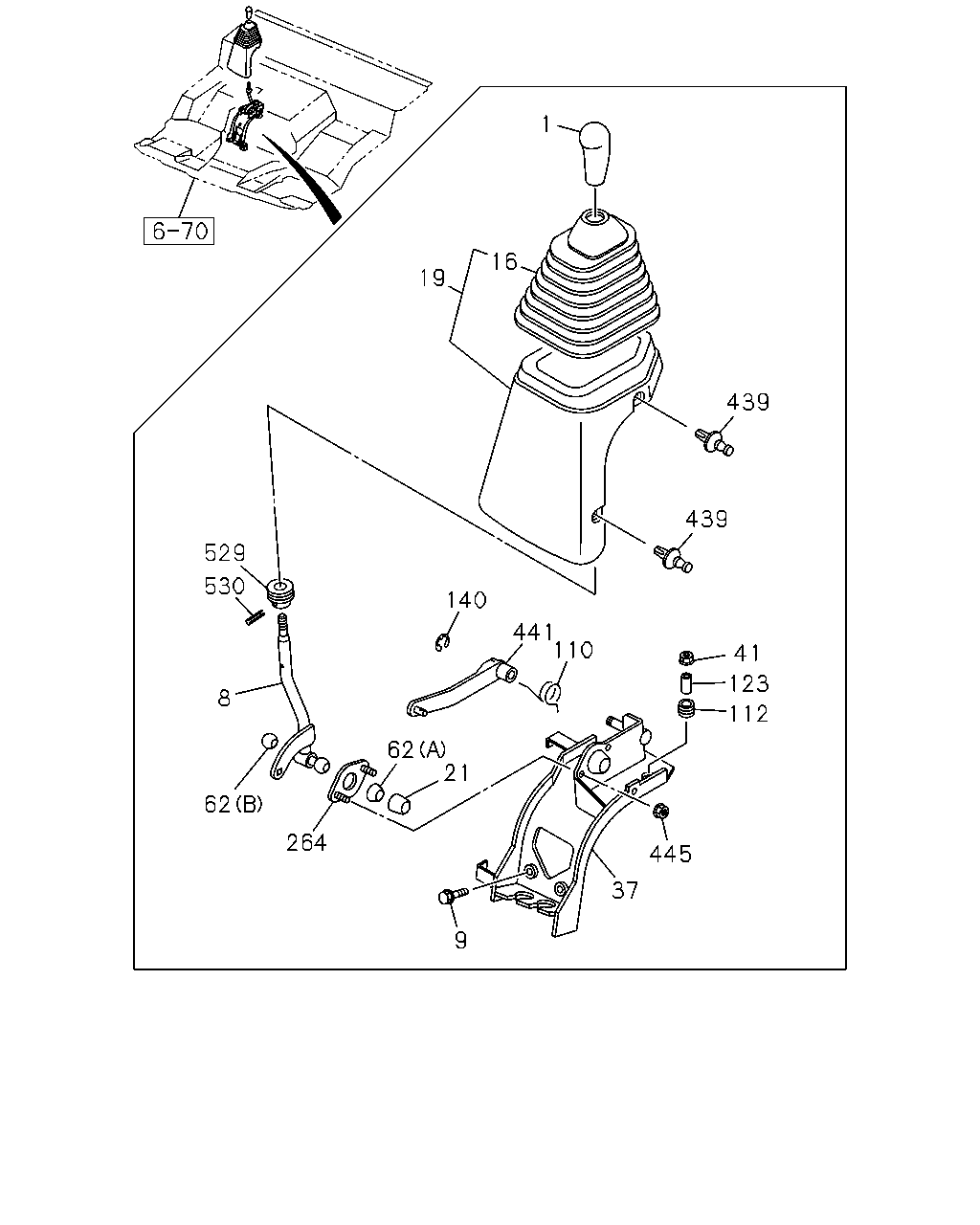

1 16 19 439 439 41 123 112 110 441 140 37 445 21 62 9 264 62 8 530 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER	8-98224-288-0	01	1	1403-	●
1	KNOB; CHANGE LEVER ZF9S1110 DD M/T(Y5P)	1-33611-099-1	01	1	1406-		●
1	KNOB; CHANGE LEVER 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	1-33611-070-1	01	1	1312-		●
8	LEVER; CHANGE ZF9S1110 DD M/T(Y5P)	8-98093-455-0	01	1	1406-		●
8	LEVER; CHANGE	8-98093-458-0	01	1	1403-	●
8	LEVER; CHANGE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98071-282-0	01	1	1312-		●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1312-1402		●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1403-	●	●
16	BOOT; CHANGE LEVER	1-79998-751-4	01	1	1312-1402		●
16	BOOT; CHANGE LEVER	1-79998-751-4	01	1	1403-	●	●
19	COVER; CHANGE LEVER GRAY	8-97407-954-0	01	1	1312-1402		●
19	COVER; CHANGE LEVER GRAY	8-97407-954-0	01	1	1403-	●	●
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1312-1402		●
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1403-	●	●
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 DD M/T(Y5P)	8-98093-444-0	01	1	1406-		●
37	BRACKET; CHANGE LEVER SUPPORT	8-98093-450-0	01	1	1403-	●
37	BRACKET; CHANGE LEVER SUPPORT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98071-302-0	01	1	1312-		●
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1312-1402		●
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1403-	●	●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1312-1402		●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1403-	●	●
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1312-1402		●
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1403-	●	●
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	1403-1405	●
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 DD M/T(Y5P)	1-33619-435-0	01	1	1406-		●
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	1406-	●
110	SPRING; RETURN,CHANGE LEVER 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	1-33619-586-0	01	1	1312-		●
112	RUBBER; CUSHION	1-33619-442-0	04	1	1312-1402		●
112	RUBBER; CUSHION	1-33619-442-0	04	1	1403-	●	●
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1312-1402		●
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1403-	●	●
140	RING; SNAP ID=10 IDN	0-91805-510-0	01	1	1312-1402		●
140	RING; SNAP ID=10 IDN	0-91805-510-0	01	1	1403-	●	●
264	PLATE; COVER	1-33619-430-0	01	1	1312-1402		●
264	PLATE; COVER	1-33619-430-0	01	1	1403-	●	●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1312-1402		●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1403-	●	●
441	LEVER; SELECT	8-98093-449-0	01	1	1403-1405	●
441	LEVER; SELECT ZF9S1110 DD M/T(Y5P)	8-98093-449-0	01	1	1406-		●
441	LEVER; SELECT	8-98093-449-0	01	1	1406-	●
441	LEVER; SELECT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98071-283-0	01	1	1312-		●
445	NUT; PLATE M6 FLANGE IDN	0-91180-106-0	02	1	1312-1402		●
445	NUT; PLATE M6 FLANGE IDN	0-91180-106-0	02	1	1403-	●	●
529	RING; BOOT	1-33619-504-0	01	1	1312-		●
530	PIN; SPRING	1-33619-505-0	01	1	1312-		●

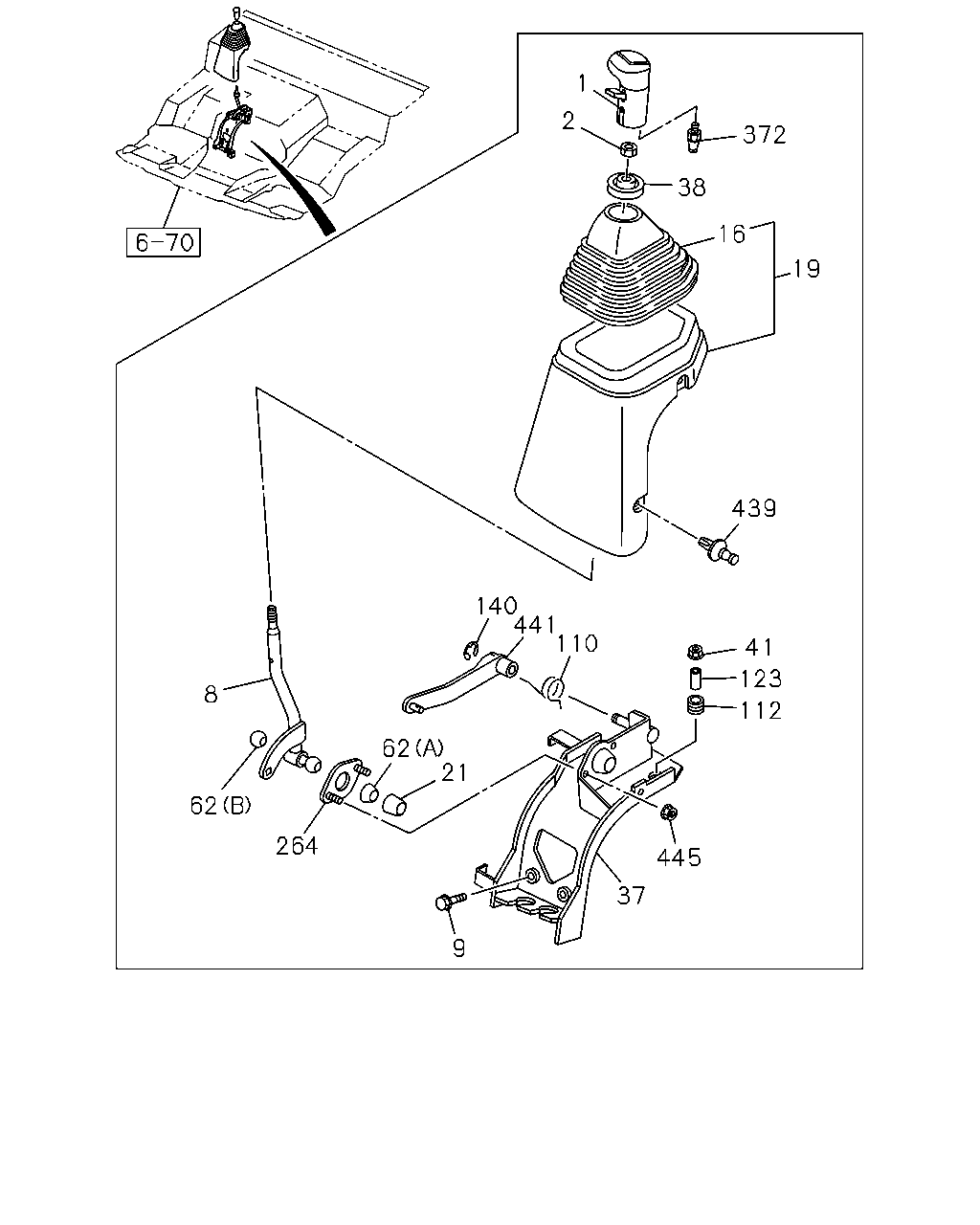

1 2 372 38 19 16 439 41 123 112 445 37 9 21 62 110 441 140 264 62 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER	8-98224-288-0	01	1	1403-	●
1	KNOB; CHANGE LEVER ZF9S1110 DD M/T(Y5P)	1-33611-099-1	01	1	1406-		●
1	KNOB; CHANGE LEVER 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	1-33611-070-1	01	1	1312-		●
2	NUT; KNOB 1/2-13UNC	1-33619-033-0	01	1	1403-	●
8	LEVER; CHANGE ZF9S1110 DD M/T(Y5P)	8-98093-455-0	01	1	1406-		●
8	LEVER; CHANGE	8-98093-458-0	01	1	1403-	●
8	LEVER; CHANGE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98071-282-0	01	1	1312-		●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1312-1402		●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1403-	●	●
16	BOOT; CHANGE LEVER	1-79998-751-4	01	1	1312-1402		●
16	BOOT; CHANGE LEVER	1-79998-751-4	01	1	1403-	●	●
19	COVER; CHANGE LEVER GRAY	8-97407-954-0	01	1	1312-1402		●
19	COVER; CHANGE LEVER GRAY	8-97407-954-0	01	1	1403-	●	●
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1312-1402		●
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1403-	●	●
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 DD M/T(Y5P)	8-98093-444-0	01	1	1406-		●
37	BRACKET; CHANGE LEVER SUPPORT	8-98093-450-0	01	1	1403-	●
37	BRACKET; CHANGE LEVER SUPPORT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98071-302-0	01	1	1312-		●
38	HOLDER; BOOT CHANGE LEVER	1-79996-383-0	01	1	1403-	●
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1312-1402		●
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1403-	●	●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1312-1402		●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1403-	●	●
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1312-1402		●
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1403-	●	●
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	1403-1405	●
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 DD M/T(Y5P)	1-33619-435-0	01	1	1406-		●
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	1406-	●
110	SPRING; RETURN,CHANGE LEVER 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	1-33619-586-0	01	1	1312-		●
112	RUBBER; CUSHION	1-33619-442-0	04	1	1312-1402		●
112	RUBBER; CUSHION	1-33619-442-0	04	1	1403-	●	●
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1312-1402		●
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1403-	●	●
140	RING; SNAP ID=10 IDN	0-91805-510-0	01	1	1312-1402		●
140	RING; SNAP ID=10 IDN	0-91805-510-0	01	1	1403-	●	●
264	PLATE; COVER	1-33619-430-0	01	1	1312-1402		●
264	PLATE; COVER	1-33619-430-0	01	1	1403-	●	●
372	CONNECTOR; CHANGE LEVER	8-98114-396-0	02	1	1403-	●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1312-1402		●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1403-	●	●
441	LEVER; SELECT	8-98093-449-0	01	1	1403-1405	●
441	LEVER; SELECT ZF9S1110 DD M/T(Y5P)	8-98093-449-0	01	1	1406-		●
441	LEVER; SELECT	8-98093-449-0	01	1	1406-	●
441	LEVER; SELECT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98071-283-0	01	1	1312-		●
445	NUT; PLATE M6 FLANGE IDN	0-91180-106-0	02	1	1312-1402		●
445	NUT; PLATE M6 FLANGE IDN	0-91180-106-0	02	1	1403-	●	●

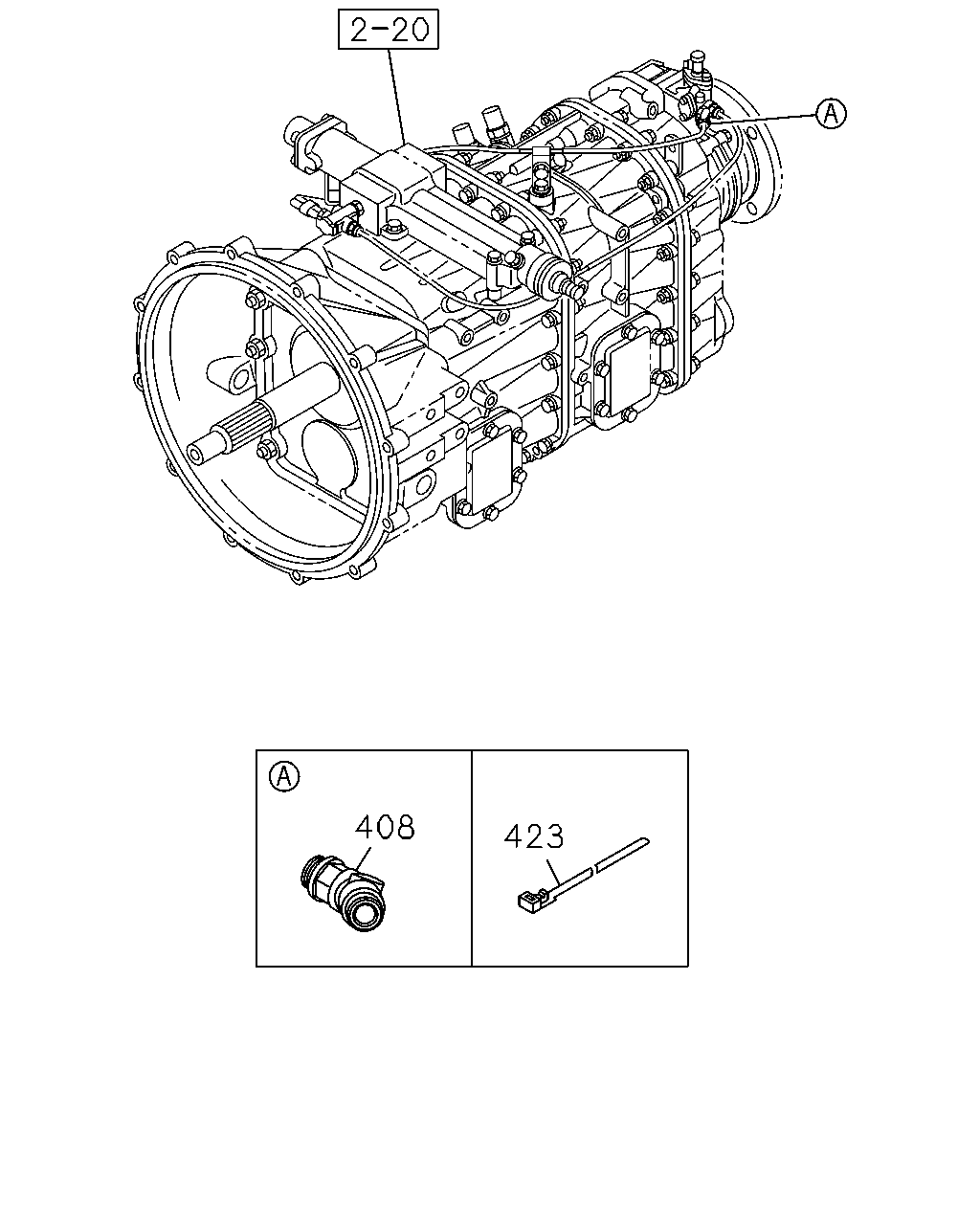

423 408

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	408	CONNECTOR; AIR HOSE	1-33549-381-0	01	1	1403-	●
	423	CLIP; BAND L=140 IDN	5-09707-031-1	01	1	1403-	●

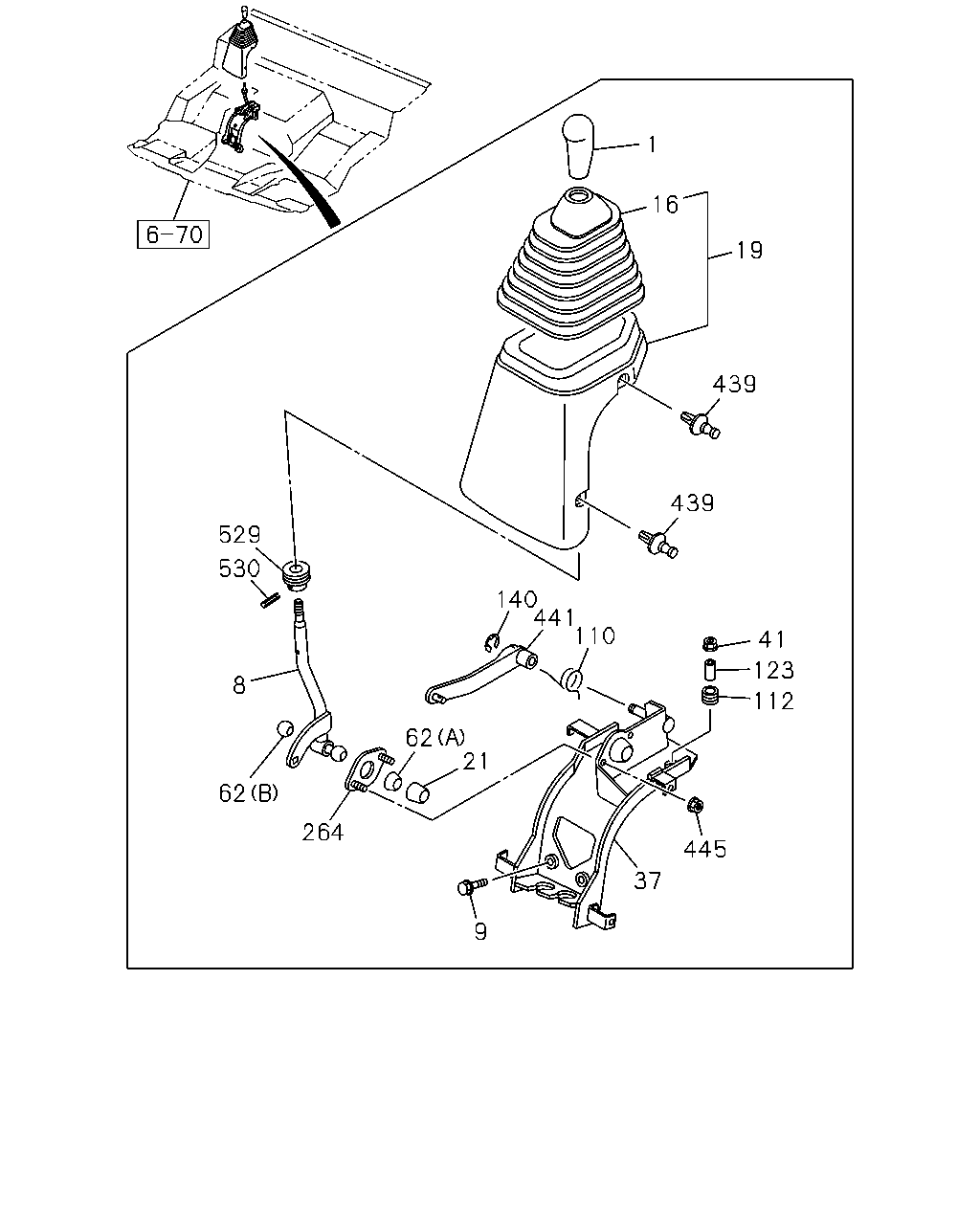

1 16 19 439 439 41 123 112 110 441 140 21 62 9 37 445 264 62 8 530 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER	8-98224-288-0	01	1	1403-	●
1	KNOB; CHANGE LEVER ZF9S1110 DD M/T(Y5P)	1-33611-099-1	01	1	1406-		●
1	KNOB; CHANGE LEVER 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	1-33611-070-1	01	1	1312-		●
8	LEVER; CHANGE ZF9S1110 DD M/T(Y5P)	8-98093-455-0	01	1	1406-		●
8	LEVER; CHANGE	8-98093-458-0	01	1	1403-	●
8	LEVER; CHANGE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98071-282-0	01	1	1312-		●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1312-1402		●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1403-	●	●
16	BOOT; CHANGE LEVER	1-79998-751-4	01	1	1312-1402		●
16	BOOT; CHANGE LEVER	1-79998-751-4	01	1	1403-	●	●
19	COVER; CHANGE LEVER GRAY	8-97407-954-0	01	1	1312-1402		●
19	COVER; CHANGE LEVER GRAY	8-97407-954-0	01	1	1403-	●	●
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1312-1402		●
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1403-	●	●
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 DD M/T(Y5P)	8-98093-444-0	01	1	1406-		●
37	BRACKET; CHANGE LEVER SUPPORT	8-98093-450-0	01	1	1403-	●
37	BRACKET; CHANGE LEVER SUPPORT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98071-302-0	01	1	1312-		●
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1312-1402		●
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1403-	●	●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1312-1402		●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1403-	●	●
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1312-1402		●
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1403-	●	●
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	1403-1405	●
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 DD M/T(Y5P)	1-33619-435-0	01	1	1406-		●
110	SPRING; RETURN,CHANGE LEVER	1-33619-435-0	01	1	1406-	●
110	SPRING; RETURN,CHANGE LEVER 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	1-33619-586-0	01	1	1312-		●
112	RUBBER; CUSHION	1-33619-442-0	04	1	1312-1402		●
112	RUBBER; CUSHION	1-33619-442-0	04	1	1403-	●	●
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1312-1402		●
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1403-	●	●
140	RING; SNAP ID=10 IDN	0-91805-510-0	01	1	1312-1402		●
140	RING; SNAP ID=10 IDN	0-91805-510-0	01	1	1403-	●	●
264	PLATE; COVER	1-33619-430-0	01	1	1312-1402		●
264	PLATE; COVER	1-33619-430-0	01	1	1403-	●	●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1312-1402		●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1403-	●	●
441	LEVER; SELECT	8-98093-449-0	01	1	1403-1405	●
441	LEVER; SELECT ZF9S1110 DD M/T(Y5P)	8-98093-449-0	01	1	1406-		●
441	LEVER; SELECT	8-98093-449-0	01	1	1406-	●
441	LEVER; SELECT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98071-283-0	01	1	1312-		●
445	NUT; PLATE M6 FLANGE IDN	0-91180-106-0	02	1	1312-1402		●
445	NUT; PLATE M6 FLANGE IDN	0-91180-106-0	02	1	1403-	●	●
529	RING; BOOT	1-33619-504-0	01	1	1312-		●
530	PIN; SPRING	1-33619-505-0	01	1	1312-		●
