◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#131509) — 48 parça
çizim 388349
1 1 47 20 2 91 36 89 90
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-360-1 01 1 1402-1402 ●
1 CYLINDER ASM; CLUTCH MASTER
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-360-1 01 1 1403-1406 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1312-1401 ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. VIN MODEL YEAR 2014<VZE> 		1-47500-250-2 01 1 1402-1402 ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. VIN MODEL YEAR 2014<VZE> 		1-47500-250-2 01 1 1403-1406 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1407- ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1312-1401 ●
2 REPAIR KIT; CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-85576-461-0 01 1 1402-1402 ●
2 REPAIR KIT; CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-85576-461-0 01 1 1403-1406 ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1407- ● ●
20 RING; SNAP,BODY 1-47519-013-0 01 1 1312-1401 ●
20 RING; SNAP,BODY
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-013-0 01 1 1402-1402 ●
20 RING; SNAP,BODY
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-013-0 01 1 1403-1406 ● ●
20 RING; SNAP,BODY 1-47519-013-0 01 1 1407- ● ●
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 1312-1401 ●
36 GASKET; CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-014-0 01 1 1402-1402 ●
36 GASKET; CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-014-0 01 1 1403-1406 ● ●
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 1407- ● ●
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 1312-1401 ●
47 COVER; DUST,PUSH ROD
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-018-0 01 1 1402-1402 ●
47 COVER; DUST,PUSH ROD
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-018-0 01 1 1403-1406 ● ●
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 1407- ● ●
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 1312-1401 ●
89 CAP; OIL FILLER,CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-017-0 01 1 1402-1402 ●
89 CAP; OIL FILLER,CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-017-0 01 1 1403-1406 ● ●
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 1407- ● ●
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 1312-1401 ●
90 GASKET; OIL FILLER,CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-016-0 01 1 1402-1402 ●
90 GASKET; OIL FILLER,CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-016-0 01 1 1403-1406 ● ●
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 1407- ● ●
91 BOLT; STOPPER 1-47519-015-0 01 1 1312-1401 ●
91 BOLT; STOPPER
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-015-0 01 1 1402-1402 ●
91 BOLT; STOPPER
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-015-0 01 1 1403-1406 ● ●
91 BOLT; STOPPER 1-47519-015-0 01 1 1407- ● ●

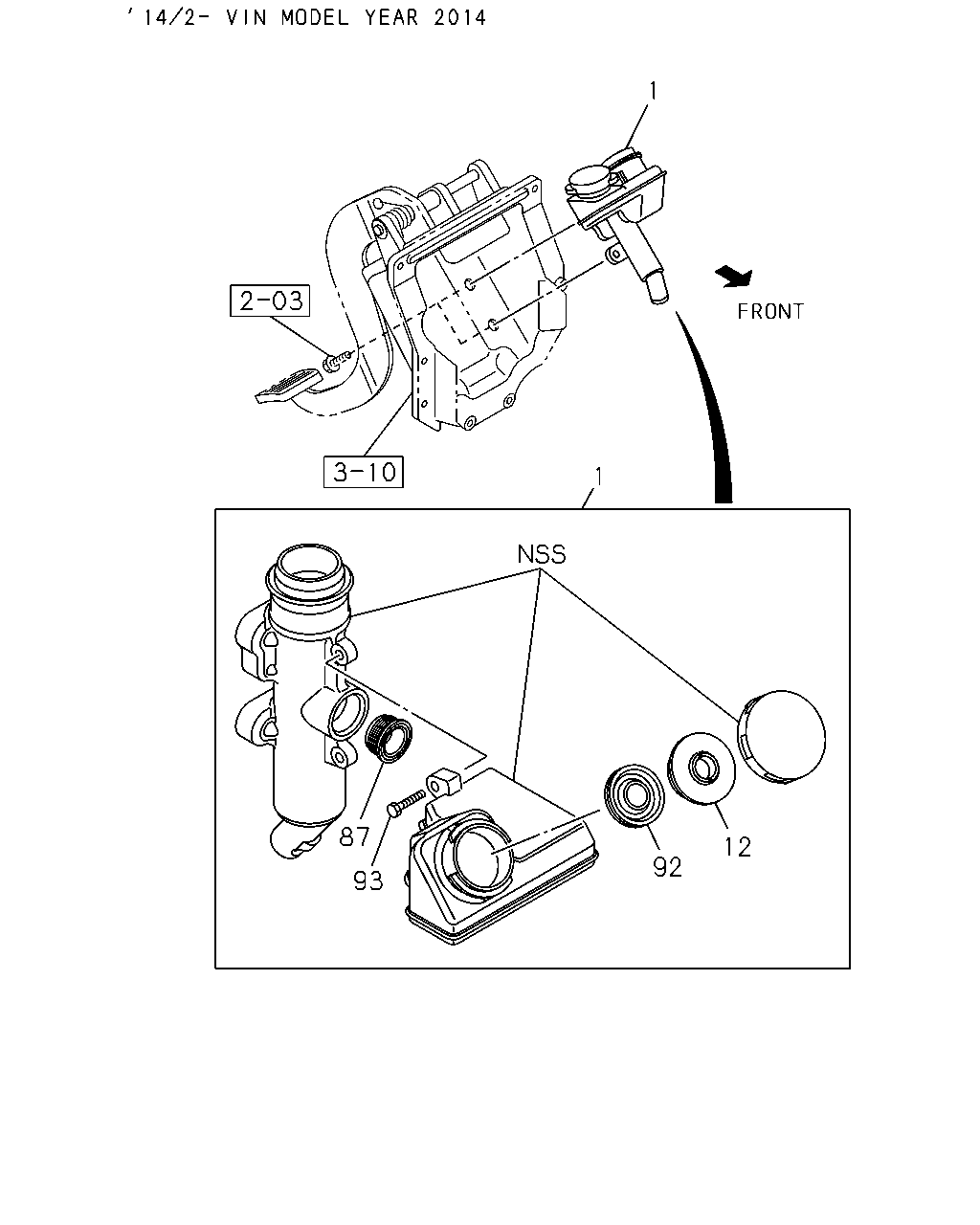

çizim 413208
1 1 12 92 93 87
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-360-1 01 1 1402-1402 ●
1 CYLINDER ASM; CLUTCH MASTER
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-360-1 01 1 1403-1406 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1312-1401 ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. VIN MODEL YEAR 2014<VZE> 		1-47500-250-2 01 1 1402-1402 ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. VIN MODEL YEAR 2014<VZE> 		1-47500-250-2 01 1 1403-1406 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1407- ● ●
12 CAP; INNER,OIL TANK,CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-94412-206-0 01 1 1402-1402 ●
12 CAP; INNER,OIL TANK,CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-94412-206-0 01 1 1403-1406 ● ●
87 GROMMET; CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-97942-834-0 01 1 1402-1402 ●
87 GROMMET; CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-97942-834-0 01 1 1403-1406 ● ●
92 SEAL; CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-94412-205-0 01 1 1402-1402 ●
92 SEAL; CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-94412-205-0 01 1 1403-1406 ● ●
93 BOLT; CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-97945-452-0 02 1 1402-1402 ●
93 BOLT; CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-97945-452-0 02 1 1403-1406 ● ●
