Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#131507) — 207 parça

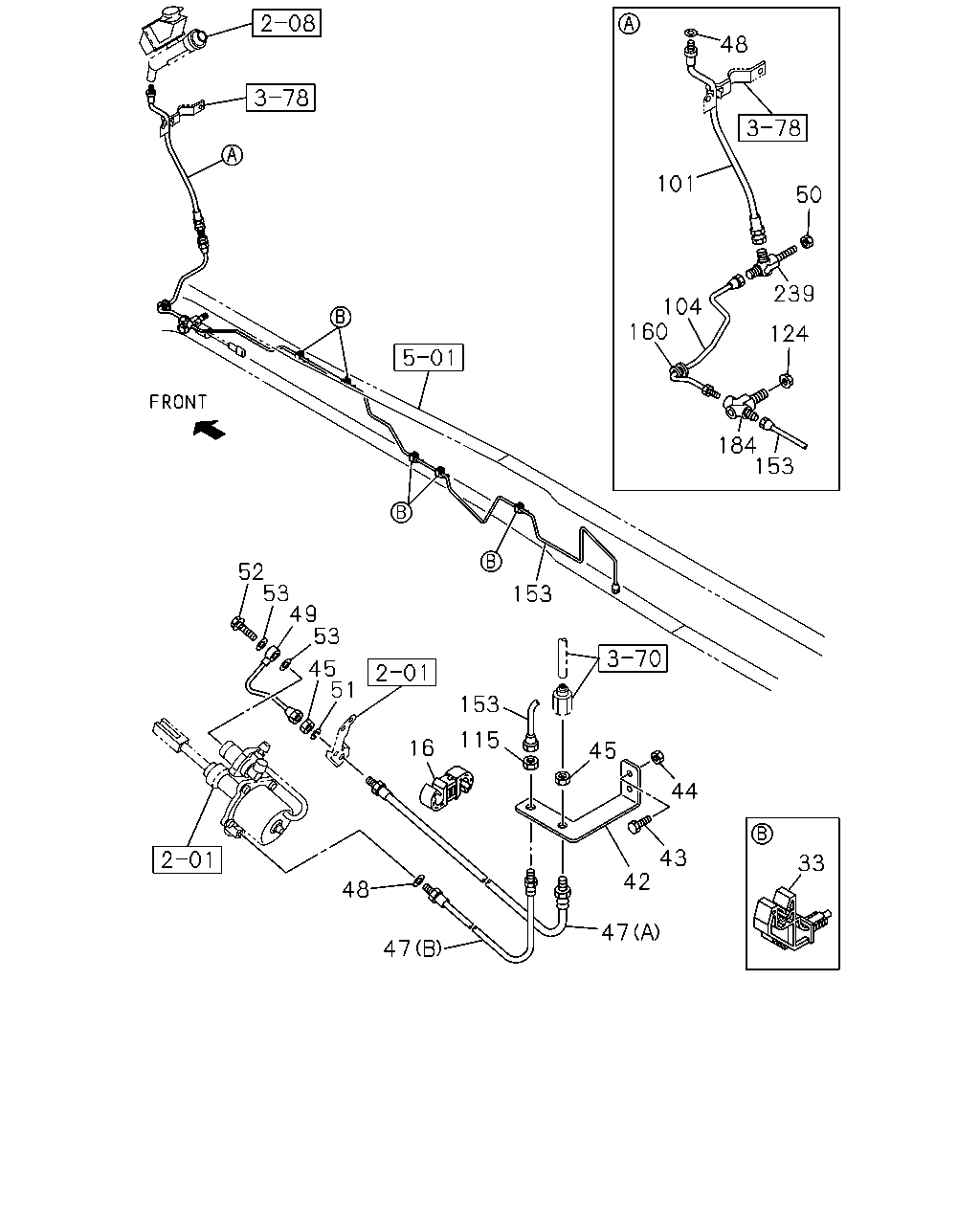

184 153 160 104 101 48 50 239 124 153 153 115 16 51 45 53 49 53 52 44 45 43 42 47 33 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1312-1402	●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1403-	●	●
33	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) ID=8 H=20 L=20	1-09700-604-0	03	1	1406-	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	1403-		●
33	CLIP; OIL PIPE 6HK1-TCN ENG(82L) ID=6.35	1-09701-247-1	04	1	1312-	●
42	BRACKET; FLEX HOSE,CLU CONT	8-98273-138-1	01	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P)	8-98077-571-0	01	1	1406-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCN ENG(82L)	8-98105-654-0	01	1	1312-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1312-1402	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1403-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE IDN	0-91180-108-0	02	1	1312-1402	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE IDN	0-91180-108-0	02	1	1403-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1312-1402	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1403-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (B) L=560	1-09363-689-0	01	1	1406-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (A) L=520	1-09364-583-0	01	1	1406-	●
47	HOSE; FLEX,CLU CONT (C) L=390	1-09363-629-0	01	1	1403-		●
47	HOSE; FLEX,CLU CONT (D) L=350	1-09364-446-0	01	1	1403-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (A) L=470	1-09363-716-0	01	1	1312-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=375	1-09364-407-0	01	1	1312-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1312-1402	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1403-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) L=232 IDN	1-49124-795-0	01	1	1406-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49124-974-0	01	1	1403-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=239 IDN	1-49117-401-0	01	1	1312-1405	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239 IDN	1-49117-401-0	01	1	1406-	●
50	NUT; UNION M12	0-91111-512-0	01	1	1312-1402	●
50	NUT; UNION M12	0-91111-512-0	01	1	1403-	●	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1312-1402	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1403-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1312-1402	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1403-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1312-1312	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1402	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1403-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1312-1402	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1403-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=544 SERVICED BY L=550	1-47428-753-0	01	1	1403-1405		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 DD M/T(Y5P) L=544 SERVICED BY L=550	1-47428-753-0	01	1	1406-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=544 SERVICED BY L=550	1-47428-753-0	01	1	1406-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554 IDN	8-98114-452-0	01	1	1312-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1403-1405		●
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) M14	0-91111-514-0	01	1	1406-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1406-		●
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1312-	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1312-1402	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1403-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) L=1585 SERVICED BY L=1700	1-47428-767-0	01	1	1406-	●
153	PIPE ASM; CLU,UNION TO FLEX L=2921	8-98250-585-0	01	1	1403-		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1312-	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1312-1402	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1403-	●	●
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1403-1405		●
184	UNION; FLEX HOSE ZF9S1110 DD M/T(Y5P) M14 2WAY	1-09654-176-2	01	1	1406-	●
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1406-		●
184	UNION; FLEX HOSE MZW6P M/T(RSZ)	8-98150-865-0	01	1	1312-	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	1403-1405		●
239	UNION; CLU HOSE ZF9S1110 DD M/T(Y5P)	8-98107-850-0	01	1	1406-	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	1406-		●
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1312-	●

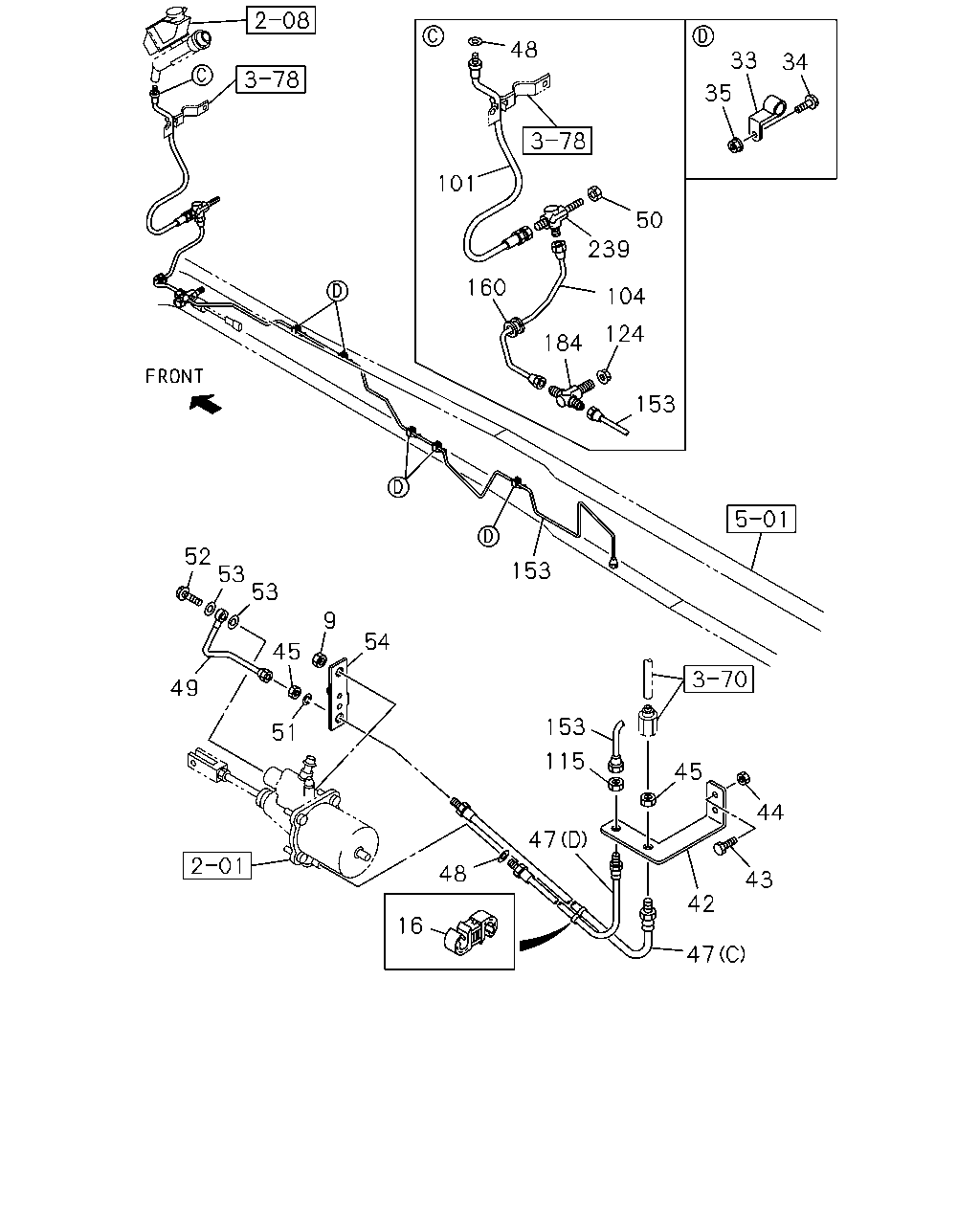

153 153 124 104 239 50 184 160 101 48 35 33 34 153 115 45 44 43 42 47 47 48 16 51 45 9 54 53 53 52 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	1403-		●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1312-1402	●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1403-	●	●
33	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) ID=8 H=20 L=20	1-09700-604-0	03	1	1406-	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	1403-		●
33	CLIP; OIL PIPE 6HK1-TCN ENG(82L) ID=6.35	1-09701-247-1	04	1	1312-	●
34	BOLT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	03	1	1406-	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	06	1	1403-		●
35	NUT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8 FLANGE IDN	0-91180-108-0	03	1	1406-	●
35	NUT; PIPE CLIP M8 FLANGE IDN	0-91180-108-0	06	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT	8-98273-138-1	01	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P)	8-98077-571-0	01	1	1406-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCN ENG(82L)	8-98105-654-0	01	1	1312-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1312-1402	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1403-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE IDN	0-91180-108-0	02	1	1312-1402	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE IDN	0-91180-108-0	02	1	1403-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1312-1402	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1403-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (B) L=560	1-09363-689-0	01	1	1406-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (A) L=520	1-09364-583-0	01	1	1406-	●
47	HOSE; FLEX,CLU CONT (C) L=390	1-09363-629-0	01	1	1403-		●
47	HOSE; FLEX,CLU CONT (D) L=350	1-09364-446-0	01	1	1403-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (A) L=470	1-09363-716-0	01	1	1312-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=375	1-09364-407-0	01	1	1312-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1312-1402	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1403-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) L=232 IDN	1-49124-795-0	01	1	1406-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49124-974-0	01	1	1403-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=239 IDN	1-49117-401-0	01	1	1312-1405	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239 IDN	1-49117-401-0	01	1	1406-	●
50	NUT; UNION M12	0-91111-512-0	01	1	1312-1402	●
50	NUT; UNION M12	0-91111-512-0	01	1	1403-	●	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1312-1402	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1403-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1312-1402	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1403-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1312-1312	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1402	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1403-	●	●
54	BRACKET; AIR,FLEX HOSE	8-98081-247-0	01	1	1403-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1312-1402	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1403-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=544 SERVICED BY L=550	1-47428-753-0	01	1	1403-1405		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 DD M/T(Y5P) L=544 SERVICED BY L=550	1-47428-753-0	01	1	1406-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=544 SERVICED BY L=550	1-47428-753-0	01	1	1406-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554 IDN	8-98114-452-0	01	1	1312-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1403-1405		●
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) M14	0-91111-514-0	01	1	1406-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1406-		●
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1312-	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1312-1402	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1403-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) L=1585 SERVICED BY L=1700	1-47428-767-0	01	1	1406-	●
153	PIPE ASM; CLU,UNION TO FLEX L=2921	8-98250-585-0	01	1	1403-		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1312-	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1312-1402	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1403-	●	●
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1403-1405		●
184	UNION; FLEX HOSE ZF9S1110 DD M/T(Y5P) M14 2WAY	1-09654-176-2	01	1	1406-	●
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1406-		●
184	UNION; FLEX HOSE MZW6P M/T(RSZ)	8-98150-865-0	01	1	1312-	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	1403-1405		●
239	UNION; CLU HOSE ZF9S1110 DD M/T(Y5P)	8-98107-850-0	01	1	1406-	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	1406-		●
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1312-	●

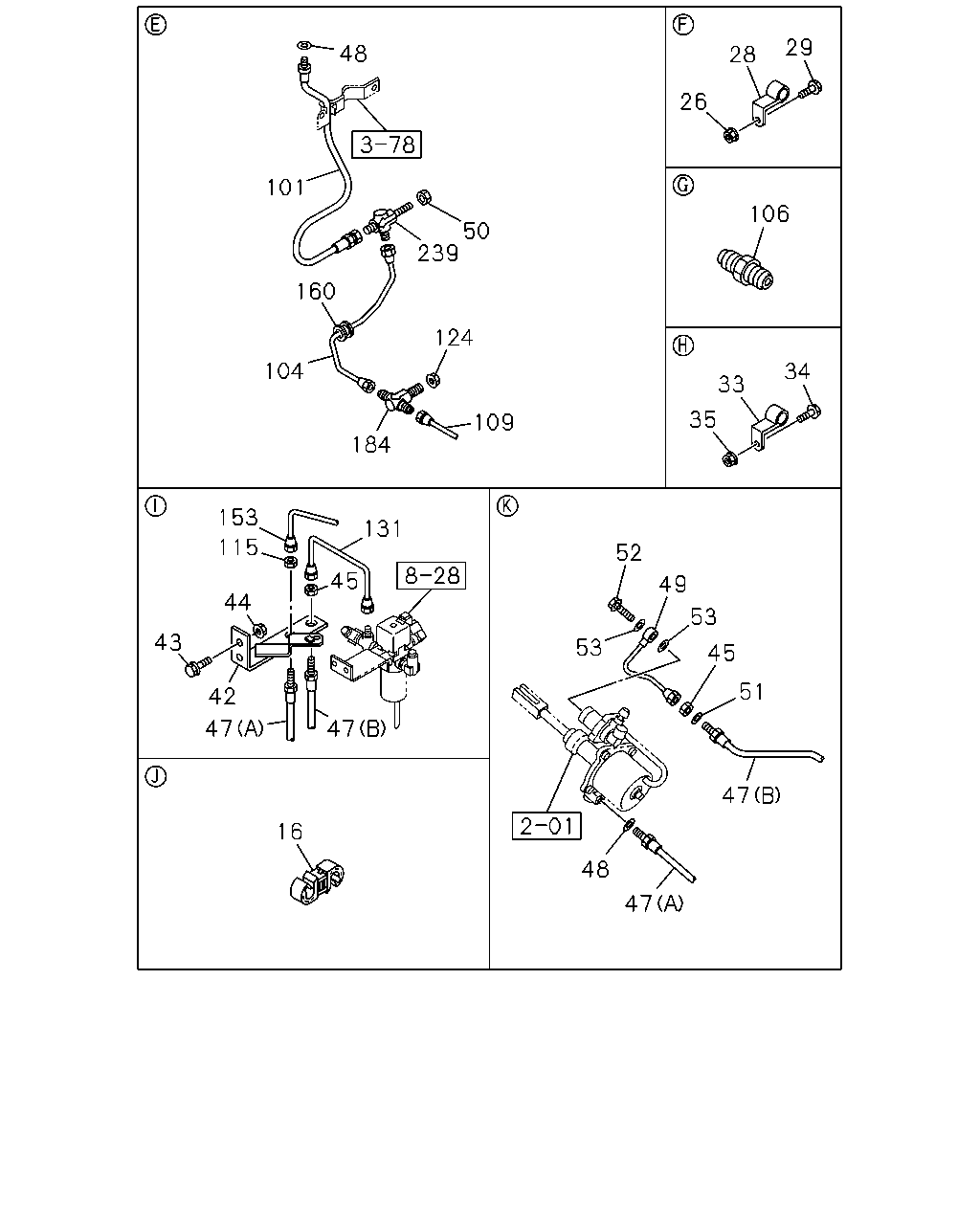

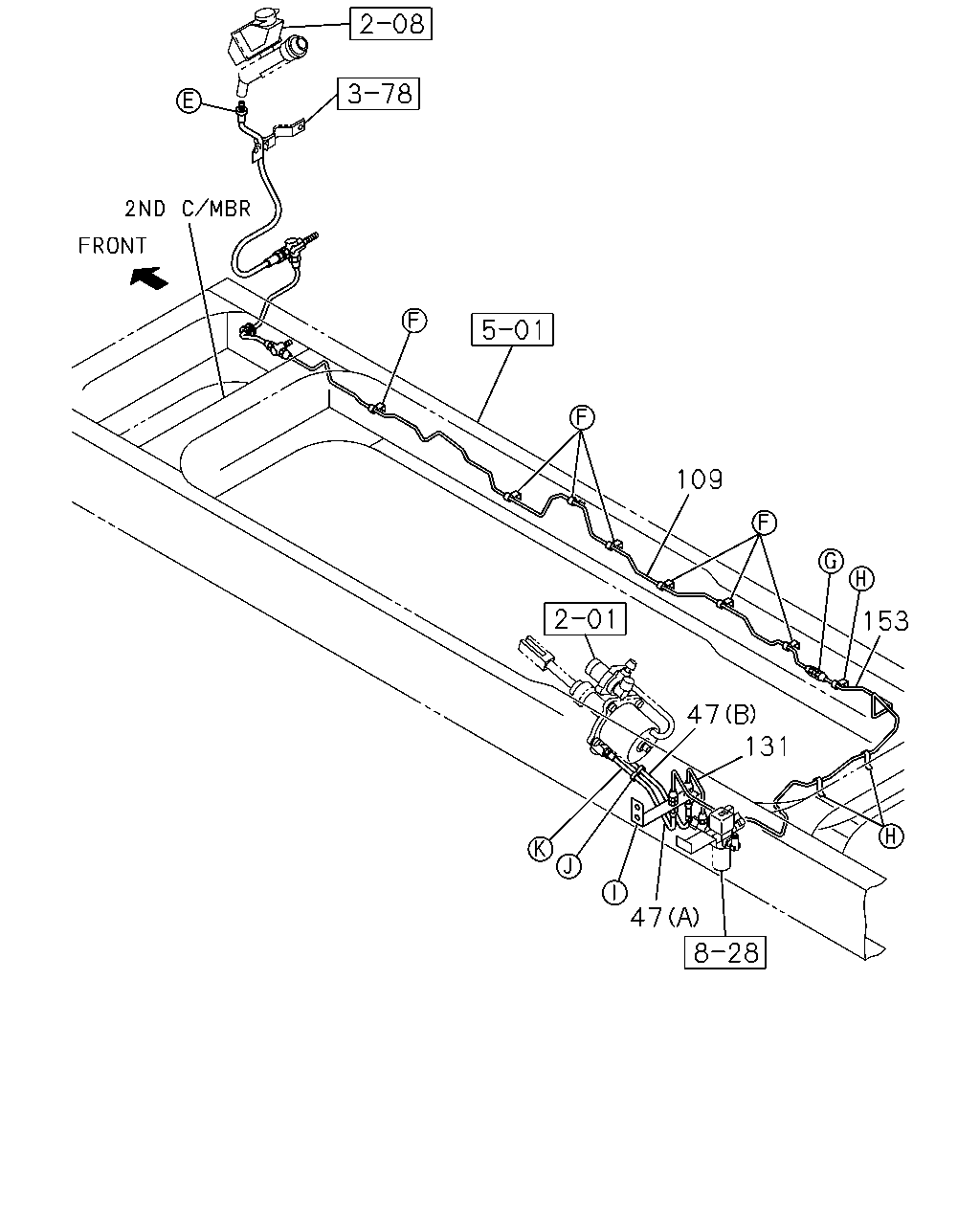

52 49 53 45 51 47 47 48 35 53 33 34 106 26 28 29 48 101 239 50 124 109 131 184 104 160 153 115 45 44 43 42 47 47 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1312-1402	●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1403-	●	●
26	NUT; CLIP,OIL PIPE ZF9S1110 DD M/T(Y5P) M8 FLANGE IDN	0-91180-108-0	07	1	1406-	●
28	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) ID=8 H=20 L=20	1-09700-604-0	07	1	1406-	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	07	1	1406-	●
33	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) ID=8 H=20 L=20	1-09700-604-0	03	1	1406-	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	1403-		●
33	CLIP; OIL PIPE 6HK1-TCN ENG(82L) ID=6.35	1-09701-247-1	04	1	1312-	●
34	BOLT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	03	1	1406-	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	06	1	1403-		●
35	NUT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8 FLANGE IDN	0-91180-108-0	03	1	1406-	●
35	NUT; PIPE CLIP M8 FLANGE IDN	0-91180-108-0	06	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT	8-98273-138-1	01	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P)	8-98077-571-0	01	1	1406-	●
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCN ENG(82L)	8-98105-654-0	01	1	1312-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1312-1402	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1403-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE IDN	0-91180-108-0	02	1	1312-1402	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE IDN	0-91180-108-0	02	1	1403-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1312-1402	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1403-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (B) L=560	1-09363-689-0	01	1	1406-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (A) L=520	1-09364-583-0	01	1	1406-	●
47	HOSE; FLEX,CLU CONT (C) L=390	1-09363-629-0	01	1	1403-		●
47	HOSE; FLEX,CLU CONT (D) L=350	1-09364-446-0	01	1	1403-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (A) L=470	1-09363-716-0	01	1	1312-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=375	1-09364-407-0	01	1	1312-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1312-1402	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1403-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) L=232 IDN	1-49124-795-0	01	1	1406-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49124-974-0	01	1	1403-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=239 IDN	1-49117-401-0	01	1	1312-1405	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239 IDN	1-49117-401-0	01	1	1406-	●
50	NUT; UNION M12	0-91111-512-0	01	1	1312-1402	●
50	NUT; UNION M12	0-91111-512-0	01	1	1403-	●	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1312-1402	●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1403-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1312-1402	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1403-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1312-1312	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1402	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1403-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1312-1402	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1403-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=544 SERVICED BY L=550	1-47428-753-0	01	1	1403-1405		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 DD M/T(Y5P) L=544 SERVICED BY L=550	1-47428-753-0	01	1	1406-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=544 SERVICED BY L=550	1-47428-753-0	01	1	1406-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554 IDN	8-98114-452-0	01	1	1312-	●
106	UNION; OIL PIPE ZF9S1110 DD M/T(Y5P) M14 STRAIGHT	0-92113-008-0	01	1	1406-	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 DD M/T(Y5P) L=2836	8-98260-396-0	01	1	1406-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1403-1405		●
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) M14	0-91111-514-0	01	1	1406-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1406-		●
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1312-	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1312-1402	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1403-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 DD M/T(Y5P) L=218 IDN	8-98108-924-0	01	1	1406-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) L=1585 SERVICED BY L=1700	1-47428-767-0	01	1	1406-	●
153	PIPE ASM; CLU,UNION TO FLEX L=2921	8-98250-585-0	01	1	1403-		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1312-	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1312-1402	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1403-	●	●
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1403-1405		●
184	UNION; FLEX HOSE ZF9S1110 DD M/T(Y5P) M14 2WAY	1-09654-176-2	01	1	1406-	●
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1406-		●
184	UNION; FLEX HOSE MZW6P M/T(RSZ)	8-98150-865-0	01	1	1312-	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	1403-1405		●
239	UNION; CLU HOSE ZF9S1110 DD M/T(Y5P)	8-98107-850-0	01	1	1406-	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	1406-		●
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1312-	●

109 153 47 131 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (B) L=560	1-09363-689-0	01	1	1406-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (A) L=520	1-09364-583-0	01	1	1406-	●
47	HOSE; FLEX,CLU CONT (C) L=390	1-09363-629-0	01	1	1403-		●
47	HOSE; FLEX,CLU CONT (D) L=350	1-09364-446-0	01	1	1403-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (A) L=470	1-09363-716-0	01	1	1312-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=375	1-09364-407-0	01	1	1312-	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 DD M/T(Y5P) L=2836	8-98260-396-0	01	1	1406-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 DD M/T(Y5P) L=218 IDN	8-98108-924-0	01	1	1406-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) L=1585 SERVICED BY L=1700	1-47428-767-0	01	1	1406-	●
153	PIPE ASM; CLU,UNION TO FLEX L=2921	8-98250-585-0	01	1	1403-		●
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1312-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
