Isuzu WW
▶
TRUCKS
▶
FVR
▶
11566 - FVR/GVR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

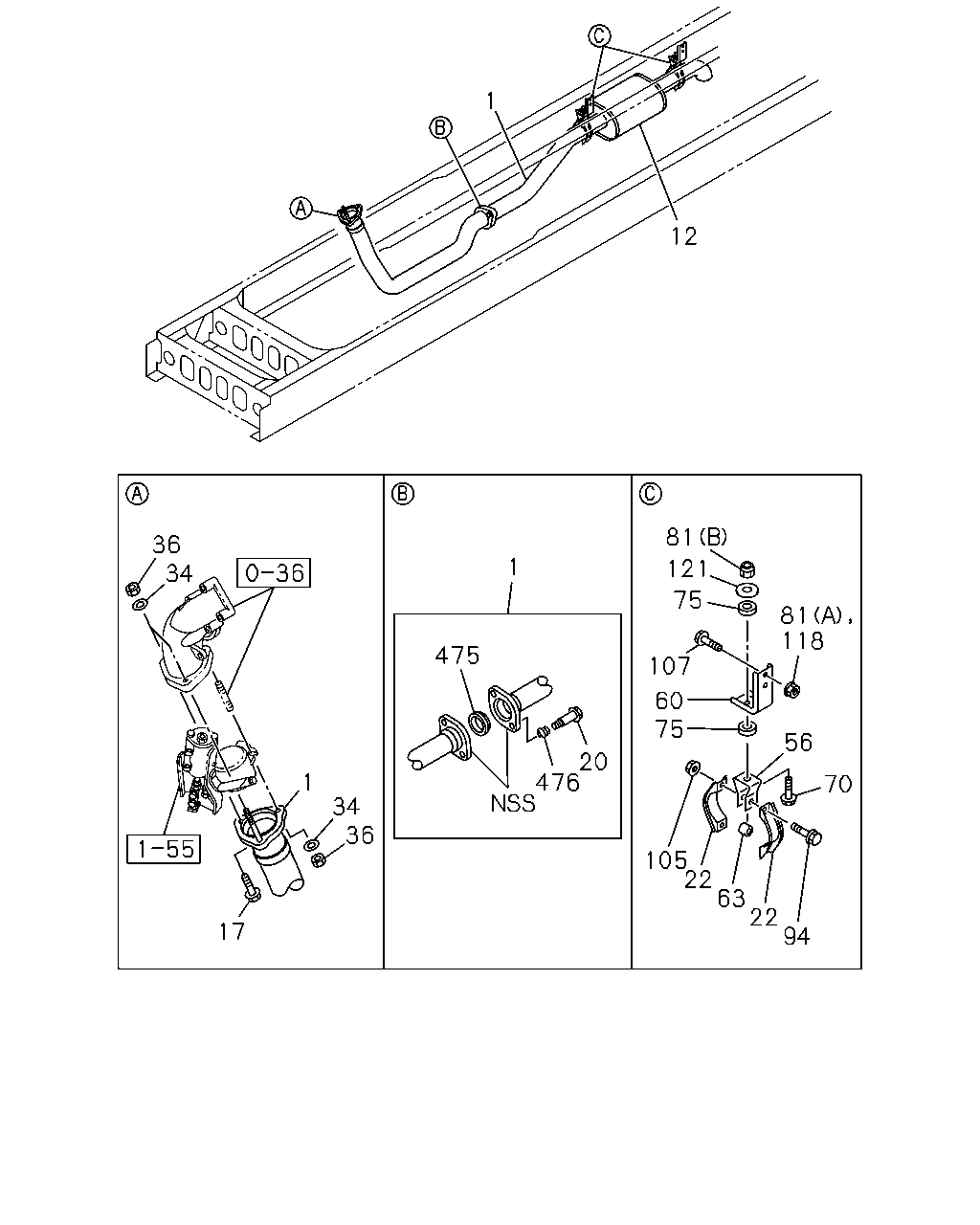

1-50 — EXHAUST PIPE AND SILENCER
(#131502) — 42 parça
Tümü
A - FGR5MV
B - GGR5MV
1
12
1
475
476
20
81
121
75
107
81
118
56
70
94
22
63
22
105
75
60
1
34
36
17
34
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; EXH
IDN
8-98183-953-0
01
1
1312-1402
●
1
PIPE; EXH
IDN
8-98183-953-0
01
1
1403-
●
●
12
SILENCER ASM; EXH
IDN
8-98182-451-0
01
1
1312-1402
●
12
SILENCER ASM; EXH
IDN
8-98182-451-0
01
1
1403-
●
●
17
BOLT; EXH PIPE
M12X120
1-09000-293-0
01
1
1312-1402
●
17
BOLT; EXH PIPE
M12X120
1-09000-293-0
01
1
1403-
●
●
20
BOLT; FLANGE,EXH PIPE
M10X49.8
8-97039-586-0
02
1
1312-1402
●
20
BOLT; FLANGE,EXH PIPE
M10X49.8
8-97039-586-0
02
1
1403-
●
●
22
CLAMP; EXH PIPE
ID=80-84 IDN
1-22133-233-0
04
1
1312-1402
●
22
CLAMP; EXH PIPE
ID=80-84 IDN
1-22133-233-0
04
1
1403-
●
●
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
1312-1402
●
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
1403-
●
●
36
NUT; EXH PIPE
M12
1-09400-010-0
03
1
1312-1402
●
36
NUT; EXH PIPE
M12
1-09400-010-0
03
1
1403-
●
●
56
BRACKET; CLAMP,EXH PIPE
L=40 B=50 H=74 IDN
1-22139-045-0
02
1
1312-1402
●
56
BRACKET; CLAMP,EXH PIPE
L=40 B=50 H=74 IDN
1-22139-045-0
02
1
1403-
●
●
60
BRACKET; FRAME TO BRKT
IDN
8-98183-955-0
02
1
1312-1402
●
60
BRACKET; FRAME TO BRKT
IDN
8-98183-955-0
02
1
1403-
●
●
63
TUBE; DIST,BRKT
L=11 IDN
1-22139-026-0
02
1
1312-1402
●
63
TUBE; DIST,BRKT
L=11 IDN
1-22139-026-0
02
1
1403-
●
●
70
BOLT; BRKT
M10X50
0-10856-050-0
02
1
1312-1402
●
70
BOLT; BRKT
M10X50
0-10856-050-0
02
1
1403-
●
●
75
RUBBER; SUPPORT,BRKT
OD=30
1-22159-106-1
04
1
1312-1402
●
75
RUBBER; SUPPORT,BRKT
OD=30
1-22159-106-1
04
1
1403-
●
●
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1312-1402
●
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1403-
●
●
81
NUT; BRKT
(B) M10 LOCK NUT IDN
0-91370-010-0
02
1
1312-1402
●
81
NUT; BRKT
(B) M10 LOCK NUT IDN
0-91370-010-0
02
1
1403-
●
●
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
04
1
1312-1402
●
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
04
1
1403-
●
●
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
04
1
1312-1402
●
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
04
1
1403-
●
●
107
BOLT; BRKT
M10X35 FLANGE IDN
0-28651-035-0
04
1
1312-1402
●
107
BOLT; BRKT
M10X35 FLANGE IDN
0-28651-035-0
04
1
1403-
●
●
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
1312-1402
●
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
1403-
●
●
121
WASHER; PL,BRKT
ID=10.5 OD=32
0-91614-810-0
02
1
1312-1402
●
121
WASHER; PL,BRKT
ID=10.5 OD=32
0-91614-810-0
02
1
1403-
●
●
475
BEARING; SEAL,VIBNON,EXH PIPE
OD=112
1-22119-294-1
01
1
1312-1402
●
475
BEARING; SEAL,VIBNON,EXH PIPE
OD=112
1-22119-294-1
01
1
1403-
●
●
476
SPRING; VIBNON,EXH PIPE
8-94141-851-0
02
1
1312-1402
●
476
SPRING; VIBNON,EXH PIPE
8-94141-851-0
02
1
1403-
●
●
