1-31 — AIR DUCT (#131497) — 83 parça

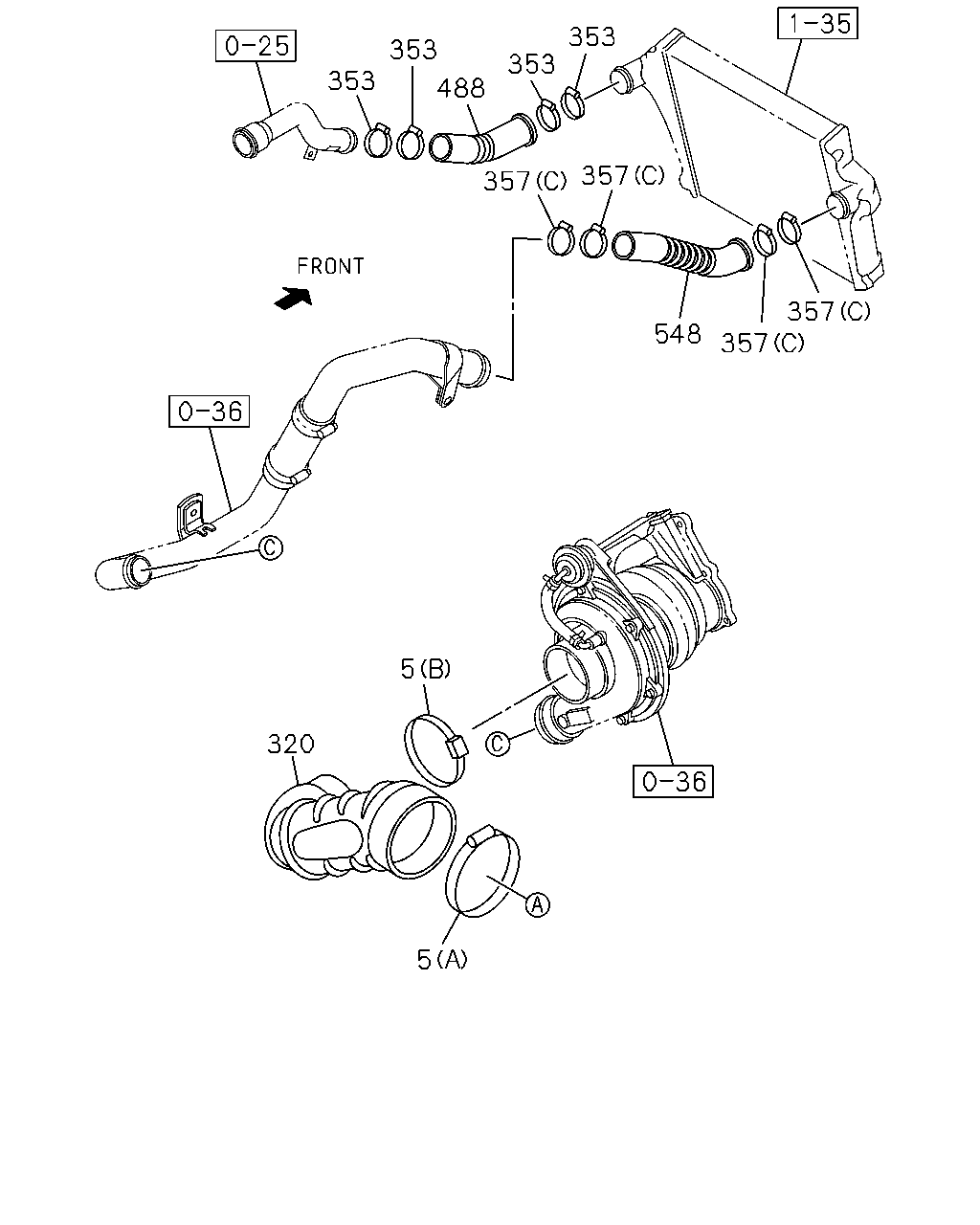

çizim 388250
5 5 320 357 357 548 357 357 353 353 488 353 353
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=130-150 		8-98133-360-0 01 1 1403- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1312- ●
5 CLIP; AIR DUCT
(B) ID=90-110 		8-98133-365-0 01 1 1312-1402 ●
5 CLIP; AIR DUCT
(B) ID=90-110 		8-98133-365-0 01 1 1403- ● ●
320 HOSE; CONN,ACL
IDN 		8-98073-259-0 01 1 1403- ●
320 HOSE; CONN,ACL
IDN 		8-98073-257-0 01 1 1312- ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 04 1 1312-1402 ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 04 1 1403- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1312-1402 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1403- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1312-1402 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1403- ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1312-1402 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1403- ● ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1312-1402 ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1403- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
IDN 		8-98181-974-1 01 1 1312-1402 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
IDN 		8-98181-974-1 01 1 1403- ● ●

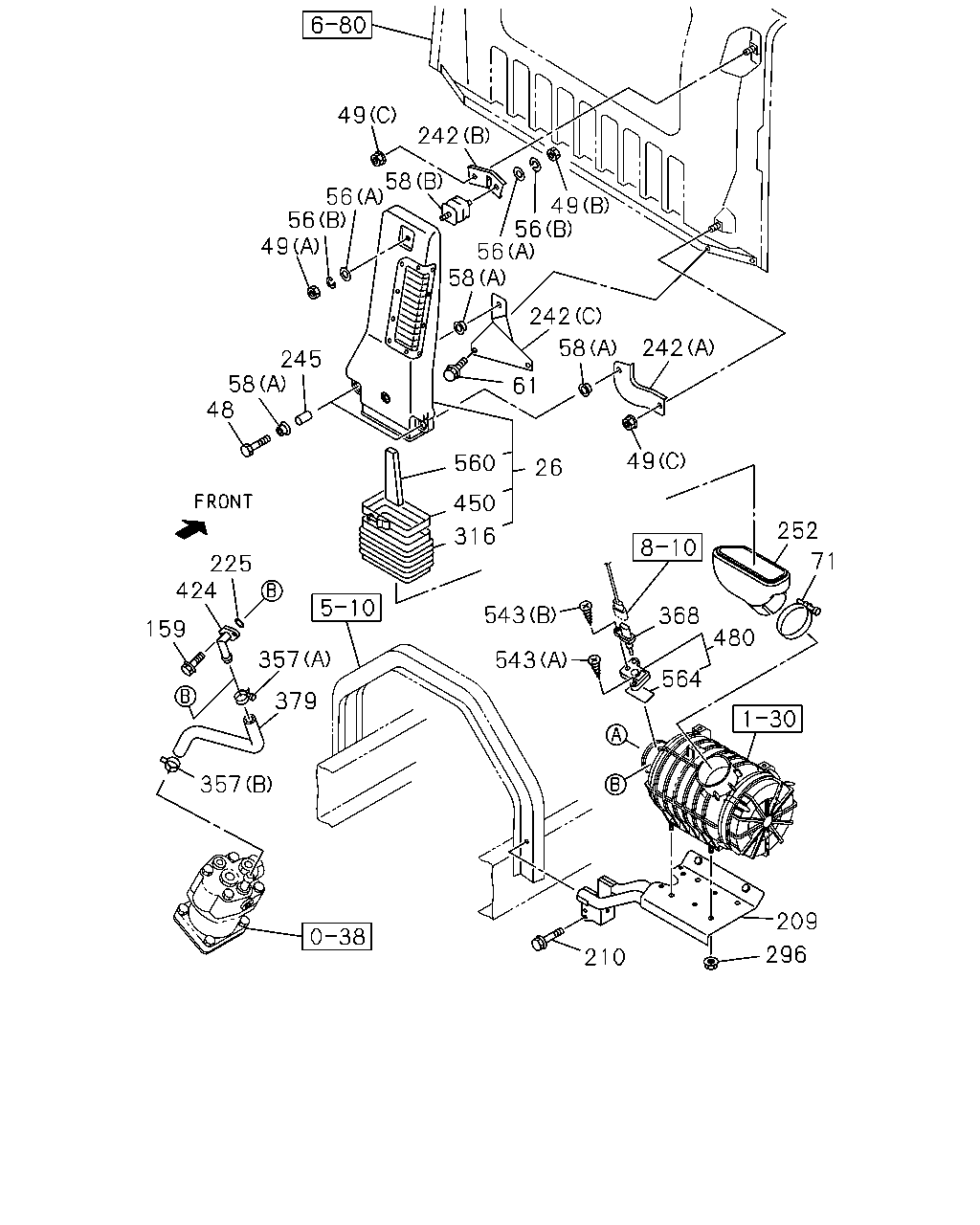

çizim 388947
210 296 209 564 368 480 71 252 543 543 316 450 560 26 49 242 58 242 61 58 56 56 49 242 49 58 56 56 49 245 58 48 225 424 159 357 379 357
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1312-1402 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1403- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1312-1402 ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1403- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1312-1402 ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1403- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1312-1402 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1403- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE IDN 		8-94279-517-0 02 1 1312-1402 ●
49 NUT; AIR DUCT
(C) M8 FLANGE IDN 		8-94279-517-0 02 1 1403- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1312-1402 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1403- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1312-1402 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1403- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1312-1402 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1403- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1312-1402 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1403- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1312-1402 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1403- ● ●
71 CLIP; AIR DUCT
ID=140-160 		8-98133-368-0 01 1 1403- ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1312- ●
159 BOLT; AIR PIPE
M6X16 FLANGE IDN 		0-28050-616-0 02 1 1312- ●
209 BRACKET; ACL
IDN 		8-97948-148-0 01 1 1312-1402 ●
209 BRACKET; ACL
IDN 		8-97948-148-0 01 1 1403- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1312-1402 ●
210 BOLT; ACL BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1403- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1312- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1312-1402 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1403- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1312-1402 ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1403- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1312-1402 ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1403- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1312-1402 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1403- ● ●
252 DUCT; AIR INT 8-98021-989-1 01 1 1403- ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1312- ●
296 NUT; ACL
M8 FLANGE IDN 		0-91180-108-0 04 1 1312-1402 ●
296 NUT; ACL
M8 FLANGE IDN 		0-91180-108-0 04 1 1403- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1312-1402 ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1403- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1312-1402 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1403- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1312-1402 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1403- ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1312-1402 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1403- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1312-1402 ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1403- ● ●
379 HOSE; RUBBER
IDN 		8-97639-463-0 01 1 1403- ●
379 HOSE; RUBBER 8-97619-194-0 01 1 1312- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1312- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1312-1402 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1403- ● ●
480 ADAPTER 8-98086-417-0 01 1 1312-1402 ●
480 ADAPTER 8-98086-417-0 01 1 1403- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1312-1402 ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1403- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1312-1402 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1403- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1312-1402 ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1403- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1312-1402 ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1403- ● ●
