Isuzu WW
▶
TRUCKS
▶
FVR
▶
11566 - FVR/GVR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

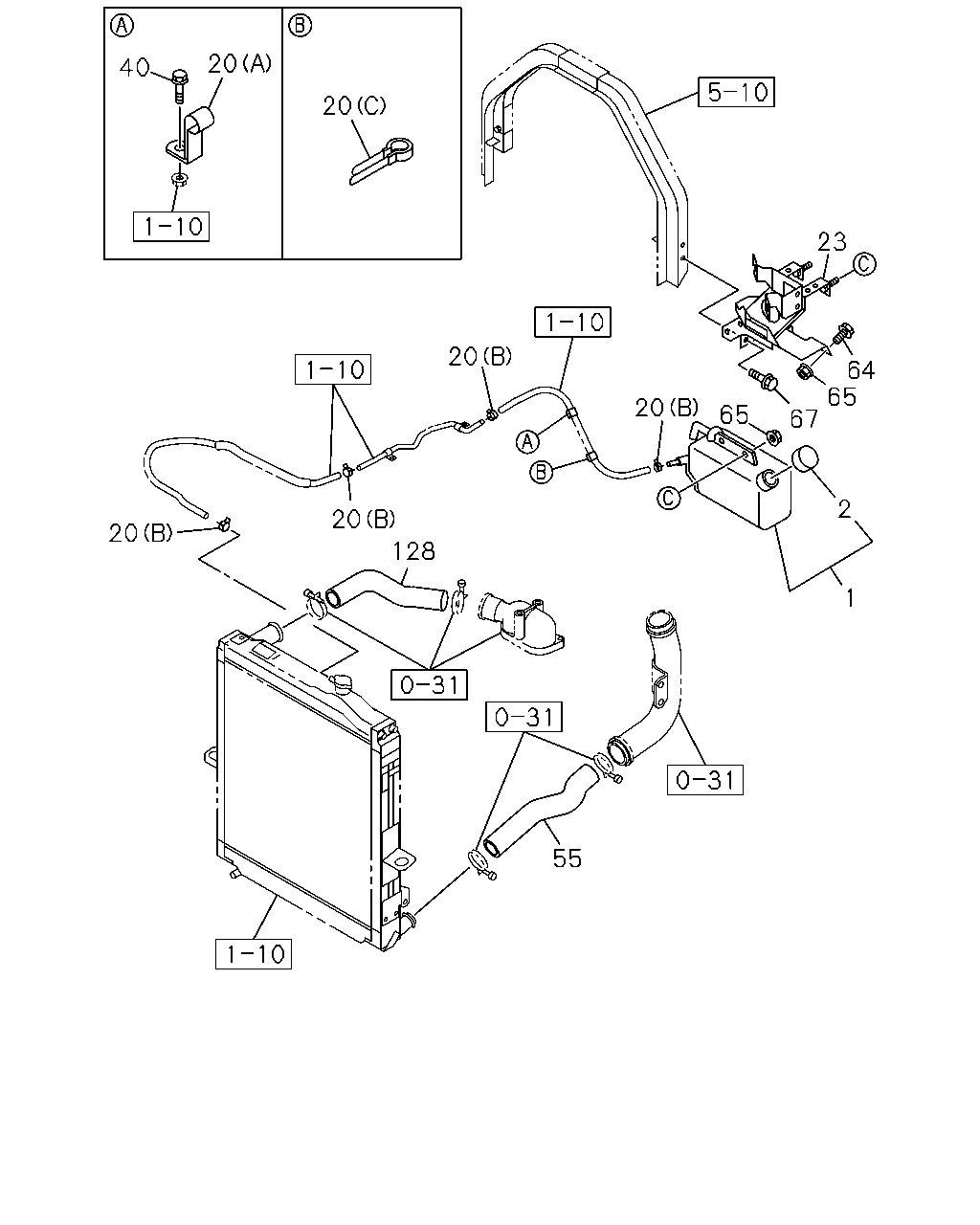

1-11 — RADIATOR HOSE AND SUB TANK
(#131495) — 24 parça
Tümü
A - 6HK1-TCN ENG
B - 6HK1-TCS ENG
40
20
20
23
64
65
67
2
1
65
20
20
20
20
128
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1312-1402
●
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1403-
●
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1312-1402
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1403-
●
●
20
CLIP; HOSE,RAD
(A) ID=13 H=40 L=25
1-09700-620-0
01
1
1312-1402
●
20
CLIP; HOSE,RAD
(A) ID=13 H=40 L=25
1-09700-620-0
01
1
1403-
●
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
1312-1402
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
1403-
●
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1312-1402
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1403-
●
●
23
BRACKET; RESERVE TANK
8-98049-965-4
01
1
1312-1402
●
23
BRACKET; RESERVE TANK
8-98049-965-4
01
1
1403-
●
●
40
BOLT; CLIP
M8X20 FLANGE IDN
0-28650-820-0
01
1
1312-1402
●
40
BOLT; CLIP
M8X20 FLANGE IDN
0-28650-820-0
01
1
1403-
●
●
55
HOSE; WATER,RAD OUTLET
IDN
8-98079-430-1
01
1
1403-
●
55
HOSE; WATER,RAD OUTLET
IDN
8-98079-429-1
01
1
1312-
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1312-1402
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1403-
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE IDN
0-91180-108-0
03
1
1312-1402
●
65
NUT; BRKT,SUB TANK
M8 FLANGE IDN
0-91180-108-0
03
1
1403-
●
●
67
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
03
1
1312-1402
●
67
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
03
1
1403-
●
●
128
HOSE; WATER,RAD INL
IDN
8-98010-578-1
01
1
1403-
●
128
HOSE; WATER,RAD INL
IDN
8-98050-924-1
01
1
1312-
●
