◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#131494) — 116 parça

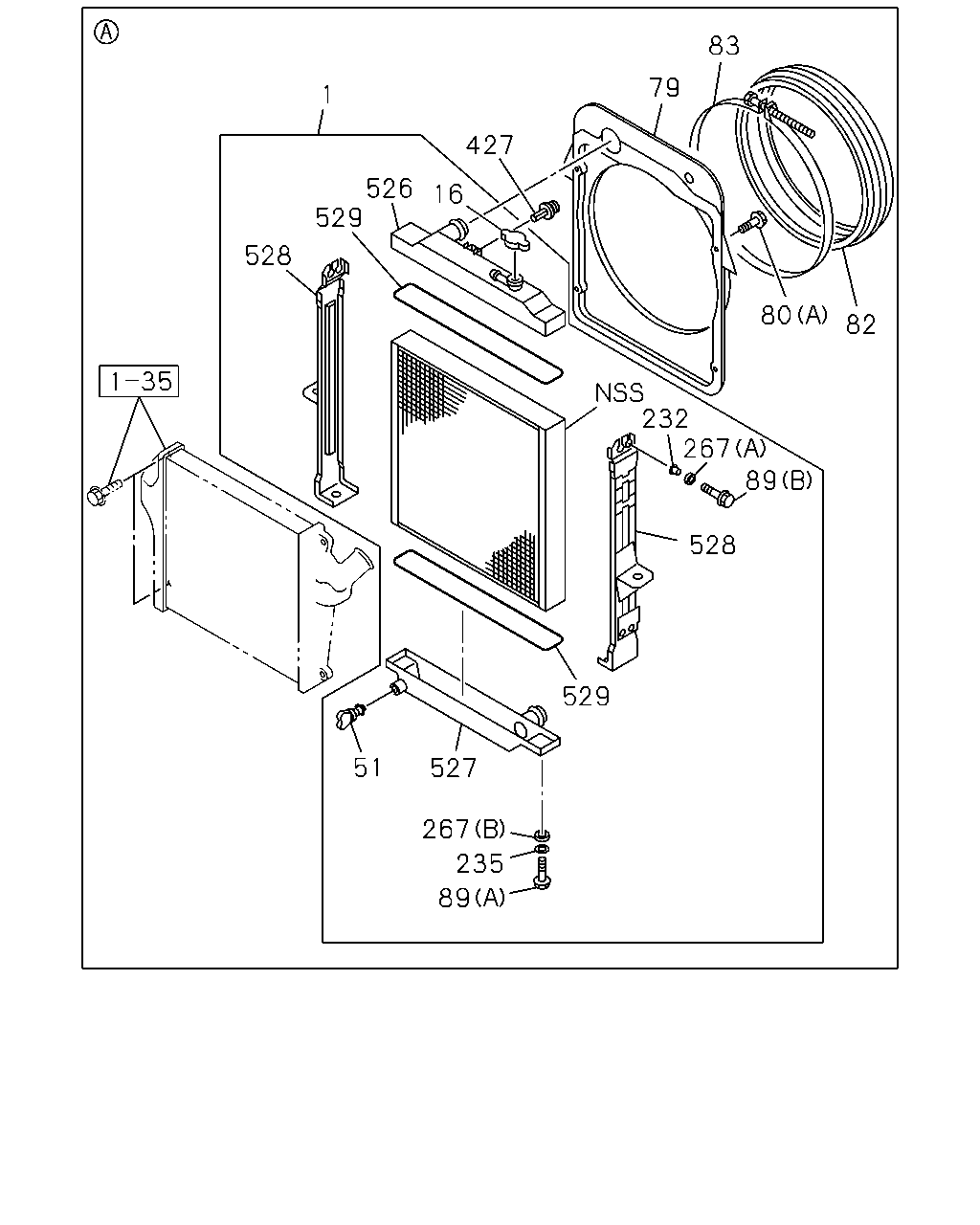

çizim 388234
1 528 529 526 16 427 79 83 82 80 232 267 89 528 529 527 51 267 235 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
IDN 		8-98248-324-0 01 1 1403- ●
1 RADIATOR ASM
IDN 		8-98248-323-0 01 1 1312- ●
16 CAP; RAD
IDN 		8-98096-226-0 01 1 1403- ●
16 CAP; RAD
IDN 		8-97239-187-0 01 1 1312- ●
51 PLUG; DRAIN
W/GASKET IDN 		8-97171-437-0 01 1 1312-1402 ●
51 PLUG; DRAIN
W/GASKET IDN 		8-97171-437-0 01 1 1403- ● ●
79 GUIDE; FAN,RAD
IDN 		8-98010-384-0 01 1 1403-1410 ●
79 GUIDE; FAN,RAD
IDN 		8-98273-634-0 01 1 1411- ●
79 GUIDE; FAN,RAD
IDN 		8-98004-207-0 01 1 1312-1410 ●
79 GUIDE; FAN,RAD
IDN 		8-98286-937-0 01 1 1411- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1312-1402 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1403- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 IDN 		8-98046-222-0 04 1 1312-1402 ●
80 BOLT; FAN GUIDE
(A) M8X14 IDN 		8-98046-222-0 04 1 1403-1410 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1411- ● ●
82 COVER; FAN,RAD
IDN 		8-98004-211-0 01 1 1312-1402 ●
82 COVER; FAN,RAD
IDN 		8-98004-211-0 01 1 1403-1410 ● ●
82 COVER; FAN,RAD
IDN 		8-98293-253-0 01 1 1411- ● ●
83 CLIP; FAN COVER
IDN 		1-09707-177-2 01 1 1411- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1312-1402 ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1403- ● ●
89 BOLT
(B) M8X25 W/PL WASHER IDN 		1-21469-153-0 04 1 1312-1402 ●
89 BOLT
(B) M8X25 W/PL WASHER IDN 		1-21469-153-0 04 1 1403- ● ●
232 COLLAR; DIST,CUSHION RUBBER
IDN 		8-98141-232-0 04 1 1312-1402 ●
232 COLLAR; DIST,CUSHION RUBBER
IDN 		8-98141-232-0 04 1 1403- ● ●
235 WASHER; CUSHION RUBBER
IDN 		1-21469-133-0 02 1 1312-1402 ●
235 WASHER; CUSHION RUBBER
IDN 		1-21469-133-0 02 1 1403- ● ●
267 RUBBER; CUSHION
(A) IDN 		1-21469-130-0 04 1 1312-1402 ●
267 RUBBER; CUSHION
(A) IDN 		1-21469-130-0 04 1 1403- ● ●
267 RUBBER; CUSHION
(B) IDN 		1-21469-131-0 02 1 1312-1402 ●
267 RUBBER; CUSHION
(B) IDN 		1-21469-131-0 02 1 1403- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1312-1402 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1403-1410 ● ●
526 TANK; UPR,RADIATOR CORE
IDN 		8-98004-202-2 01 1 1312-1402 ●
526 TANK; UPR,RADIATOR CORE
IDN 		8-98004-202-2 01 1 1403- ● ●
527 TANK; LWR,RADIATOR CORE
IDN 		8-98004-203-0 01 1 1312-1402 ●
527 TANK; LWR,RADIATOR CORE
IDN 		8-98004-203-0 01 1 1403- ● ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98010-372-4 01 1 1403- ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98185-754-0 01 1 1403- ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98042-838-3 01 1 1312- ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98042-839-2 01 1 1312- ●
529 GASKET; CORE,RADIATOR
IDN 		8-98004-206-0 02 1 1312-1402 ●
529 GASKET; CORE,RADIATOR
IDN 		8-98004-206-0 02 1 1403- ● ●

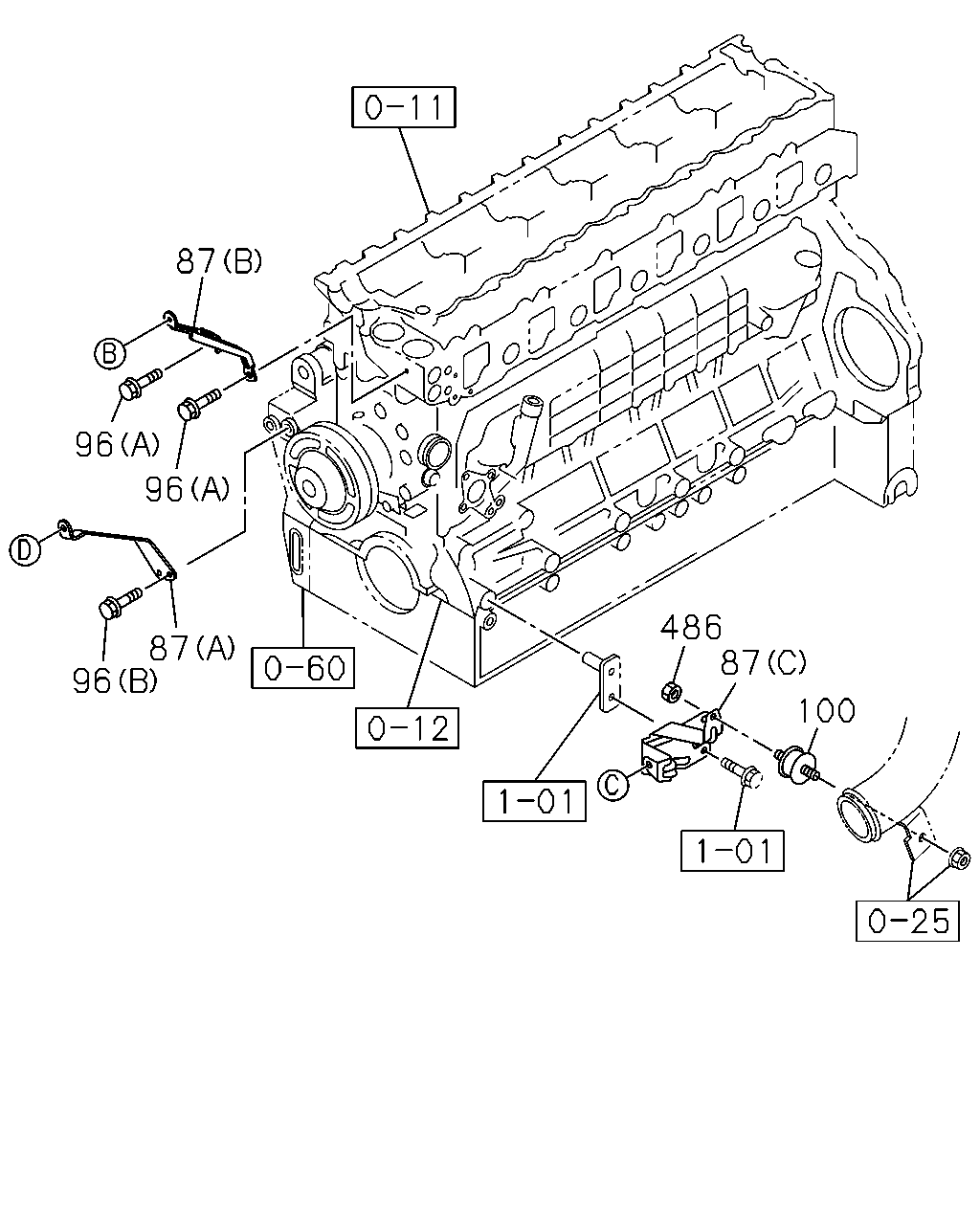

çizim 388236
486 87 100 96 87 96 96 87
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
KD ENGINE<7MB> (B) 		8-97520-825-0 01 1 1411- ● ●
87 STAY; FAN GUIDE
KD ENGINE<7MB> (C) 		8-97520-826-0 01 1 1411- ● ●
87 STAY; FAN GUIDE
KD ENGINE<7MB> (A) 		8-97520-828-0 01 1 1411- ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1312-1402 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1403-1410 ● ●
87 STAY; FAN GUIDE
EXC. KD ENGINE<7MB> (B) 		8-94393-776-1 01 1 1411- ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1312-1402 ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1403-1410 ● ●
87 STAY; FAN GUIDE
EXC. KD ENGINE<7MB> (C) 		8-94393-778-2 01 1 1411- ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1312-1402 ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1403-1410 ● ●
87 STAY; FAN GUIDE
EXC. KD ENGINE<7MB> (A) 		8-97602-988-0 01 1 1411- ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1312-1402 ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1403- ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1312-1402 ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1403- ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 1312-1402 ●
100 RUBBER; MTG 8-98148-109-0 01 1 1403-1410 ● ●
486 NUT; MTG RUBBER
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
486 NUT; MTG RUBBER
M8 FLANGE IDN 		0-91180-108-0 01 1 1403-1410 ● ●

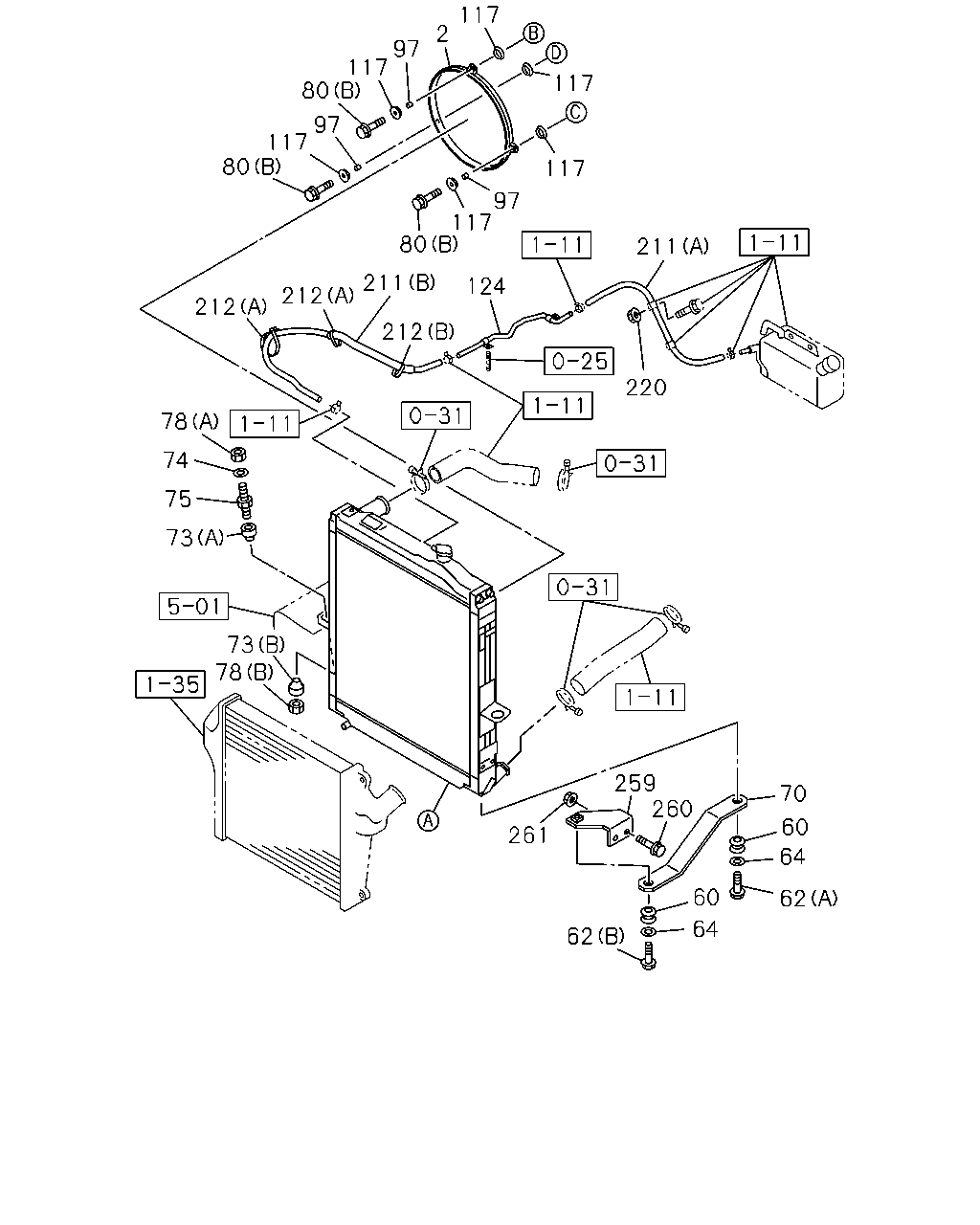

çizim 388739
117 2 97 117 80 97 117 80 117 117 97 117 80 211 212 212 78 74 75 73 73 78 261 62 259 260 60 64 62 64 60 70 220 211 124 212
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-94393-779-1 01 1 1312-1402 ●
2 GUIDE; FAN 8-94393-779-1 01 1 1403- ● ●
60 GROMMET 1-09332-117-0 04 1 1312-1402 ●
60 GROMMET 1-09332-117-0 04 1 1403- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1312-1402 ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1403- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1312-1402 ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1403- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1312-1402 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1403- ● ●
70 STAY; RAD 8-98004-132-2 02 1 1312-1402 ●
70 STAY; RAD 8-98004-132-2 02 1 1403- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1312-1402 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1403- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1312-1402 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1403- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1312-1402 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1403- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1312-1402 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1403- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1312-1402 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1403- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1312-1402 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1403- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1312-1402 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1403- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 IDN 		8-98046-222-0 04 1 1312-1402 ●
80 BOLT; FAN GUIDE
(A) M8X14 IDN 		8-98046-222-0 04 1 1403-1410 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1411- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1312-1402 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1403- ● ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1312-1402 ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1403- ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1312-1402 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1403- ● ●
211 HOSE; RAD TO PIPE
(B) L=970 IDN 		8-98073-545-0 01 1 1403- ●
211 HOSE; RAD TO PIPE
(B) L=940 IDN 		8-98073-544-0 01 1 1312- ●
211 HOSE; RAD TO PIPE
(A) L=560 IDN 		8-98119-375-0 01 1 1312-1402 ●
211 HOSE; RAD TO PIPE
(A) L=560 IDN 		8-98119-375-0 01 1 1403- ● ●
212 CLIP; HOSE
(A) L=250 IDN 		5-09707-030-1 02 1 1312-1402 ●
212 CLIP; HOSE
(A) L=250 IDN 		5-09707-030-1 02 1 1403- ● ●
212 CLIP; HOSE
(B) L=140 IDN 		5-09707-031-1 01 1 1312-1402 ●
212 CLIP; HOSE
(B) L=140 IDN 		5-09707-031-1 01 1 1403- ● ●
220 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1312-1402 ●
220 NUT; CLIP
M8 FLANGE IDN 		0-91180-108-0 01 1 1403- ● ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 1312-1402 ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 1403- ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 1312-1402 ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 1403- ● ●
260 BOLT; BRKT
M8X20 FLANGE IDN 		0-28650-820-0 04 1 1312-1402 ●
260 BOLT; BRKT
M8X20 FLANGE IDN 		0-28650-820-0 04 1 1403- ● ●
261 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 04 1 1312-1402 ●
261 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 04 1 1403- ● ●
