Isuzu WW
▶
TRUCKS
▶
FVR
▶
11566 - FVR/GVR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

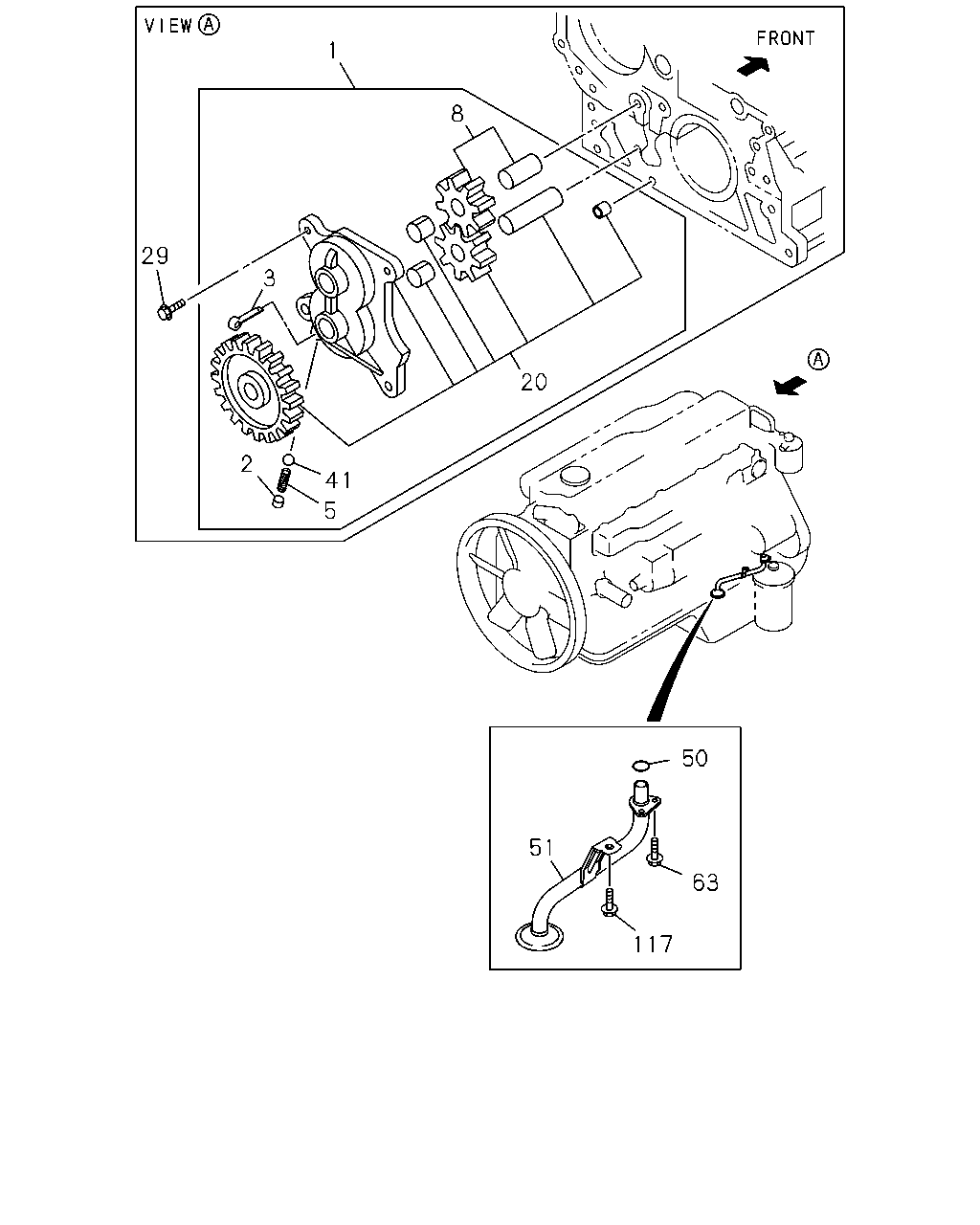

0-51 — OIL PUMP AND OIL STRAINER
(#131486) — 24 parça
Tümü
A - 6HK1-TCN ENG
B - 6HK1-TCS ENG
1
8
20
41
5
2
3
29
50
63
117
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; OIL
8-97641-835-0
01
1
1312-1402
●
1
PUMP ASM; OIL
8-97641-835-0
01
1
1403-
●
●
2
SEAT; SPR
5-13165-004-0
01
1
1312-1402
●
2
SEAT; SPR
5-13165-004-0
01
1
1403-
●
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
1312-1402
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
1403-
●
●
5
SPRING; COIL
5-09580-098-0
01
1
1312-1402
●
5
SPRING; COIL
5-09580-098-0
01
1
1403-
●
●
8
GEAR; DRIVEN,OIL PUMP
8-97641-838-0
01
1
1312-1402
●
8
GEAR; DRIVEN,OIL PUMP
8-97641-838-0
01
1
1403-
●
●
20
GEAR; DRIVE,OIL PUMP
8-97641-839-0
01
1
1312-1402
●
20
GEAR; DRIVE,OIL PUMP
8-97641-839-0
01
1
1403-
●
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28050-825-0
04
1
1312-1402
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28050-825-0
04
1
1403-
●
●
41
BALL; OIL RELIEF VLV
5-09843-003-0
01
1
1312-1402
●
41
BALL; OIL RELIEF VLV
5-09843-003-0
01
1
1403-
●
●
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1312-1402
●
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1403-
●
●
51
STRAINER & PIPE ASM; OIL
8-98204-158-0
01
1
1312-1402
●
51
STRAINER & PIPE ASM; OIL
8-98204-158-0
01
1
1403-
●
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X16 HEX SOCKET
0-58330-816-0
02
1
1312-1402
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X16 HEX SOCKET
0-58330-816-0
02
1
1403-
●
●
117
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
8-94399-669-1
01
1
1312-1402
●
117
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
8-94399-669-1
01
1
1403-
●
●
