◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

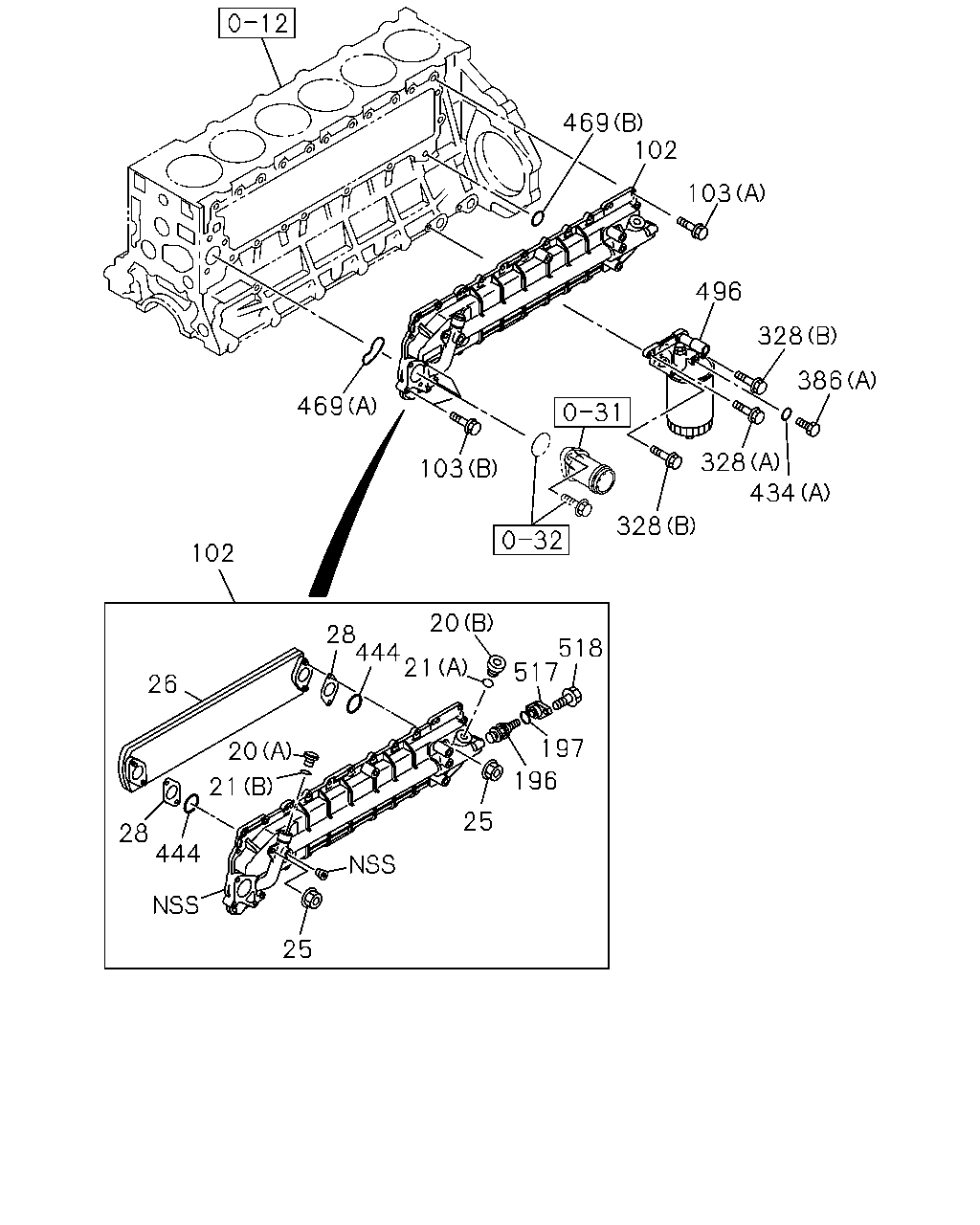

0-50 — OIL COOLER AND OIL FILTER (#131485) — 72 parça

469 103 102 496 386 328 328 328 103 469 102 434 25 444 28 20 21 26 28 444 21 518 20 517 197 196 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	1312-1402	●
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	1403-	●	●
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	1312-1402	●
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	1403-	●	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	1312-1402	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	1403-	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	1312-1402	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	1403-	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1312-1402	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1403-	●	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	1312-1402	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	1403-	●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1312-1402	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1403-	●	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1312-1402	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	1403-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1312-1402	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1403-	●	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	1312-1402	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	1403-	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1312-1402	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1403-	●	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	1312-1402	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	1403-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1312-1402	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1403-	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1312-1402	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1403-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1312-1402	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1403-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1312-1402	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1403-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1312-1402	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1403-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1312-1402	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1403-	●	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1312-1402	●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	1403-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1312-1402	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1403-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1312-1402	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1403-	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1312-1402	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1403-	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	1312-1402	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	1403-	●	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	1312-1402	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	1403-	●	●

496 386 434 66 13 265 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1312-1402	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1403-	●	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1312-1402	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1403-	●	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1312-1402	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1403-	●	●
66	SPRING; VLV	8-98238-943-0	01	1	1312-1402	●
66	SPRING; VLV	8-98238-943-0	01	1	1403-	●	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1312-1402	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1403-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1312-1402	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1403-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1312-1402	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1403-	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1312-1402	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1403-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1312-1402	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1403-	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1312-1402	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1403-	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1312-1402	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1403-	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1312-1402	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1403-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
