◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#131483) — 199 parça

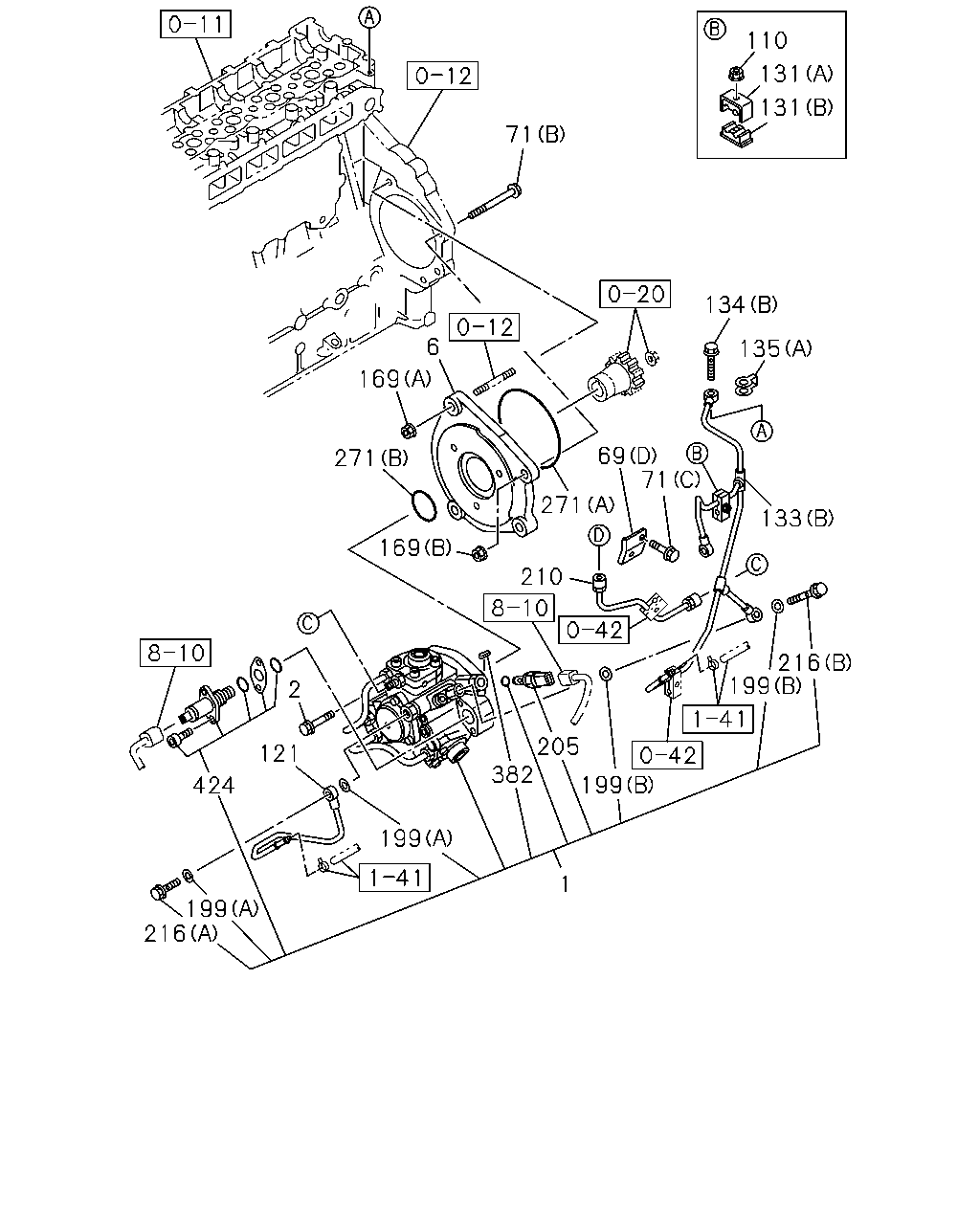

çizim 388140
216 199 199 1 382 205 210 271 69 71 133 135 134 131 131 110 71 6 169 271 169 2 121 199 424 199 216
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97605-946-7 01 1 1312-1402 ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1403- ● ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 1312-1402 ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 1403- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 1312-1402 ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 1403- ● ●
69 BRACKET; INJ PIPE CLIP
KD ENGINE<7MB> (B) 		8-97520-846-0 01 1 1411- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1403-1410 ● ●
69 BRACKET; INJ PIPE CLIP
EXC. KD ENGINE<7MB> (B) 		8-98038-940-0 01 1 1411- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1403- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1403- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 1403- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1312-1402 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1403- ● ●
71 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 01 1 1312-1402 ●
71 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 01 1 1403- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1312-1402 ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1403- ● ●
110 NUT; CLIP
M6 FLANGE IDN 		0-91180-106-0 05 1 1312-1402 ●
110 NUT; CLIP
M6 FLANGE IDN 		0-91180-106-0 05 1 1403- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 1312-1402 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 1403- ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 1312-1402 ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 1403- ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 1312-1402 ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 1403- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 1312-1402 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 1403- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1312-1402 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1403- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1312-1402 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1403- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1312-1402 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1403- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1312-1402 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1403- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1312-1402 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1403- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1312-1402 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1403- ● ●
169 NUT; BRKT
(A) M10 FLANGE IDN 		0-91180-110-0 02 1 1312-1402 ●
169 NUT; BRKT
(A) M10 FLANGE IDN 		0-91180-110-0 02 1 1403- ● ●
169 NUT; BRKT
(B) M12 FLANGE IDN 		0-91180-112-0 01 1 1312-1402 ●
169 NUT; BRKT
(B) M12 FLANGE IDN 		0-91180-112-0 01 1 1403- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1312-1402 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1403- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1312-1402 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1403- ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1312-1402 ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1403- ● ●
210 PIPE; INJ,C/R
KD ENGINE<7MB> 		8-97520-845-0 01 1 1411- ● ●
210 PIPE; INJ,C/R 8-98059-805-0 01 1 1312-1402 ●
210 PIPE; INJ,C/R 8-98059-805-0 01 1 1403-1410 ● ●
210 PIPE; INJ,C/R
EXC. KD ENGINE<7MB> 		8-98059-805-0 01 1 1411- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1312-1402 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1403- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1312-1402 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1403- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1312-1402 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1403- ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 1312-1402 ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 1403- ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 1312-1402 ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 1403- ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1312-1402 ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1403- ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1312-1402 ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1403- ● ●

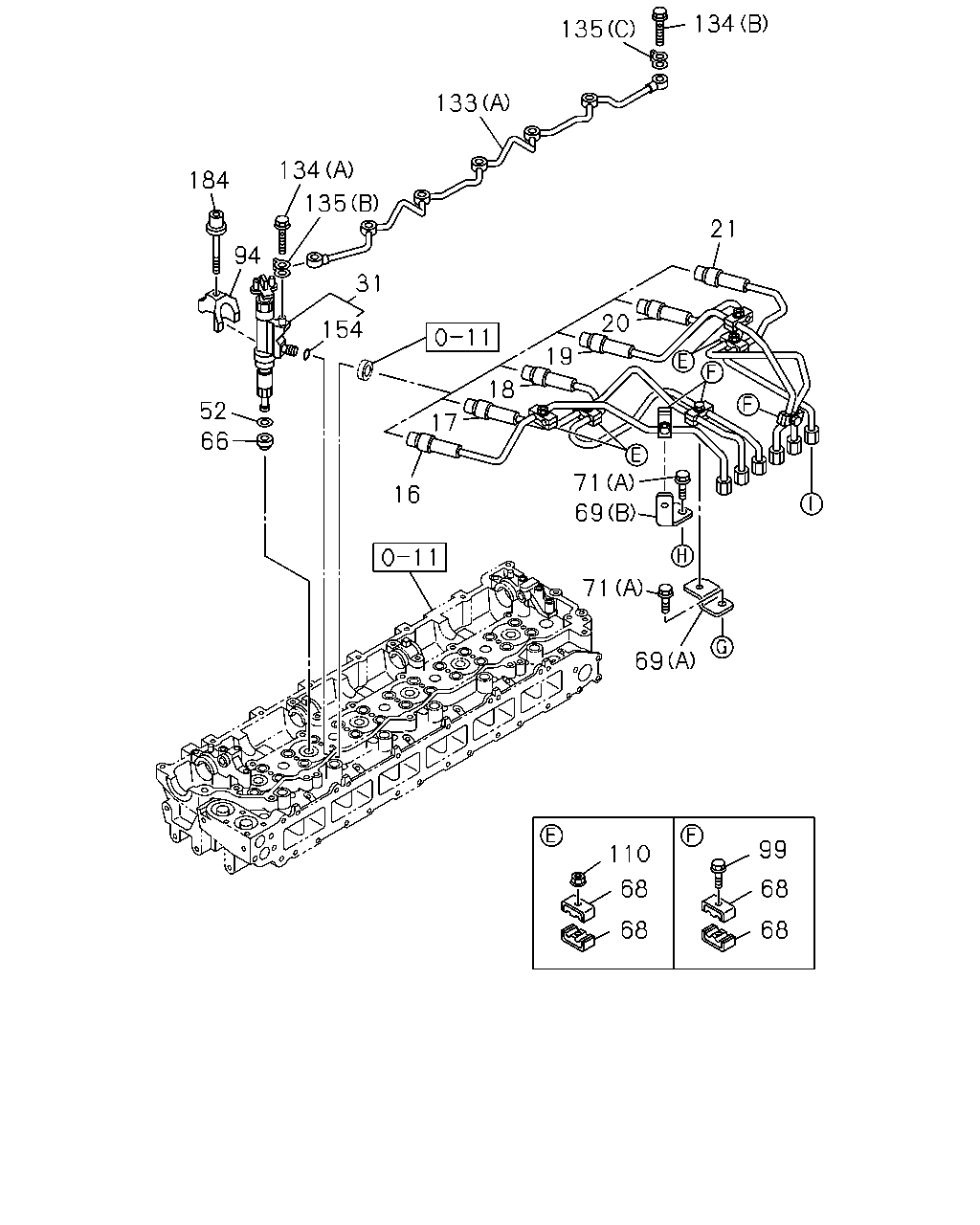

çizim 388143
135 134 133 134 184 135 94 52 66 154 31 16 17 18 19 20 21 71 69 71 69 110 99 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1
KD ENGINE<7MB> 		8-97520-840-1 01 1 1411-1412 ● ●
16 PIPE; INJ NO.1
KD ENGINE<7MB> IDN 		8-98298-618-0 01 1 1501- ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1312-1402 ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1403-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1410 ● ●
16 PIPE; INJ NO.1
EXC. KD ENGINE<7MB> 		8-98271-207-0 01 1 1411-1501 ● ●
16 PIPE; INJ NO.1
EXC. KD ENGINE<7MB> 		8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2
KD ENGINE<7MB> 		8-97520-841-1 01 1 1411-1412 ● ●
17 PIPE; INJ NO.2
KD ENGINE<7MB> IDN 		8-98298-619-0 01 1 1501- ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1312-1402 ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1403-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1410 ● ●
17 PIPE; INJ NO.2
EXC. KD ENGINE<7MB> 		8-98271-208-0 01 1 1411-1501 ● ●
17 PIPE; INJ NO.2
EXC. KD ENGINE<7MB> 		8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3
KD ENGINE<7MB> 		8-97520-842-1 01 1 1411-1412 ● ●
18 PIPE; INJ NO.3
KD ENGINE<7MB> IDN 		8-98298-620-0 01 1 1501- ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1312-1402 ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1403-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1410 ● ●
18 PIPE; INJ NO.3
EXC. KD ENGINE<7MB> 		8-98271-209-0 01 1 1411-1501 ● ●
18 PIPE; INJ NO.3
EXC. KD ENGINE<7MB> 		8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4
KD ENGINE<7MB> 		8-97520-843-1 01 1 1411-1412 ● ●
19 PIPE; INJ NO.4
KD ENGINE<7MB> IDN 		8-98298-621-0 01 1 1501- ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1312-1402 ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1403-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1410 ● ●
19 PIPE; INJ NO.4
EXC. KD ENGINE<7MB> 		8-98271-210-0 01 1 1411-1501 ● ●
19 PIPE; INJ NO.4
EXC. KD ENGINE<7MB> 		8-98298-614-0 01 1 1502- ● ●
20 PIPE; INJ NO.5
KD ENGINE<7MB> 		8-97520-844-1 01 1 1411-1412 ● ●
20 PIPE; INJ NO.5
KD ENGINE<7MB> IDN 		8-98298-622-0 01 1 1501- ● ●
20 PIPE; INJ NO.5 8-98185-366-0 01 1 1312-1402 ●
20 PIPE; INJ NO.5 8-98185-366-0 01 1 1403-1403 ● ●
20 PIPE; INJ NO.5 8-98271-211-0 01 1 1404-1410 ● ●
20 PIPE; INJ NO.5
EXC. KD ENGINE<7MB> 		8-98271-211-0 01 1 1411-1501 ● ●
20 PIPE; INJ NO.5
EXC. KD ENGINE<7MB> 		8-98298-615-0 01 1 1502- ● ●
21 PIPE; INJ NO.6
KD ENGINE<7MB> 		8-97520-864-1 01 1 1411-1412 ● ●
21 PIPE; INJ NO.6
KD ENGINE<7MB> IDN 		8-98298-623-0 01 1 1501- ● ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1312-1402 ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1403-1403 ● ●
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-1410 ● ●
21 PIPE; INJ NO.6
EXC. KD ENGINE<7MB> 		8-98271-212-0 01 1 1411-1501 ● ●
21 PIPE; INJ NO.6
EXC. KD ENGINE<7MB> 		8-98298-617-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-97609-789-6 06 1 1312-1402 ●
31 NOZZLE ASM; INJ 8-97609-789-6 06 1 1403- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 1312-1402 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 1403- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 1312-1402 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 1403- ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 14 1 1312-1402 ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 14 1 1403-1405 ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 14 1 1406- ● ●
69 BRACKET; INJ PIPE CLIP
KD ENGINE<7MB> (B) 		8-97520-846-0 01 1 1411- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1403-1410 ● ●
69 BRACKET; INJ PIPE CLIP
EXC. KD ENGINE<7MB> (B) 		8-98038-940-0 01 1 1411- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1403- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1403- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 1403- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1312-1402 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1403- ● ●
71 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 01 1 1312-1402 ●
71 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 01 1 1403- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1312-1402 ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1403- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1312-1402 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1403- ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 1312-1402 ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 1403- ● ●
110 NUT; CLIP
M6 FLANGE IDN 		0-91180-106-0 05 1 1312-1402 ●
110 NUT; CLIP
M6 FLANGE IDN 		0-91180-106-0 05 1 1403- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 1312-1402 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 1403- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1312-1402 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1403- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1312-1402 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1403- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1312-1402 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1403- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1312-1402 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1403- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1312-1402 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1403- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1312-1402 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1403- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1312-1402 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1403- ● ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 1312-1402 ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 1403- ● ●

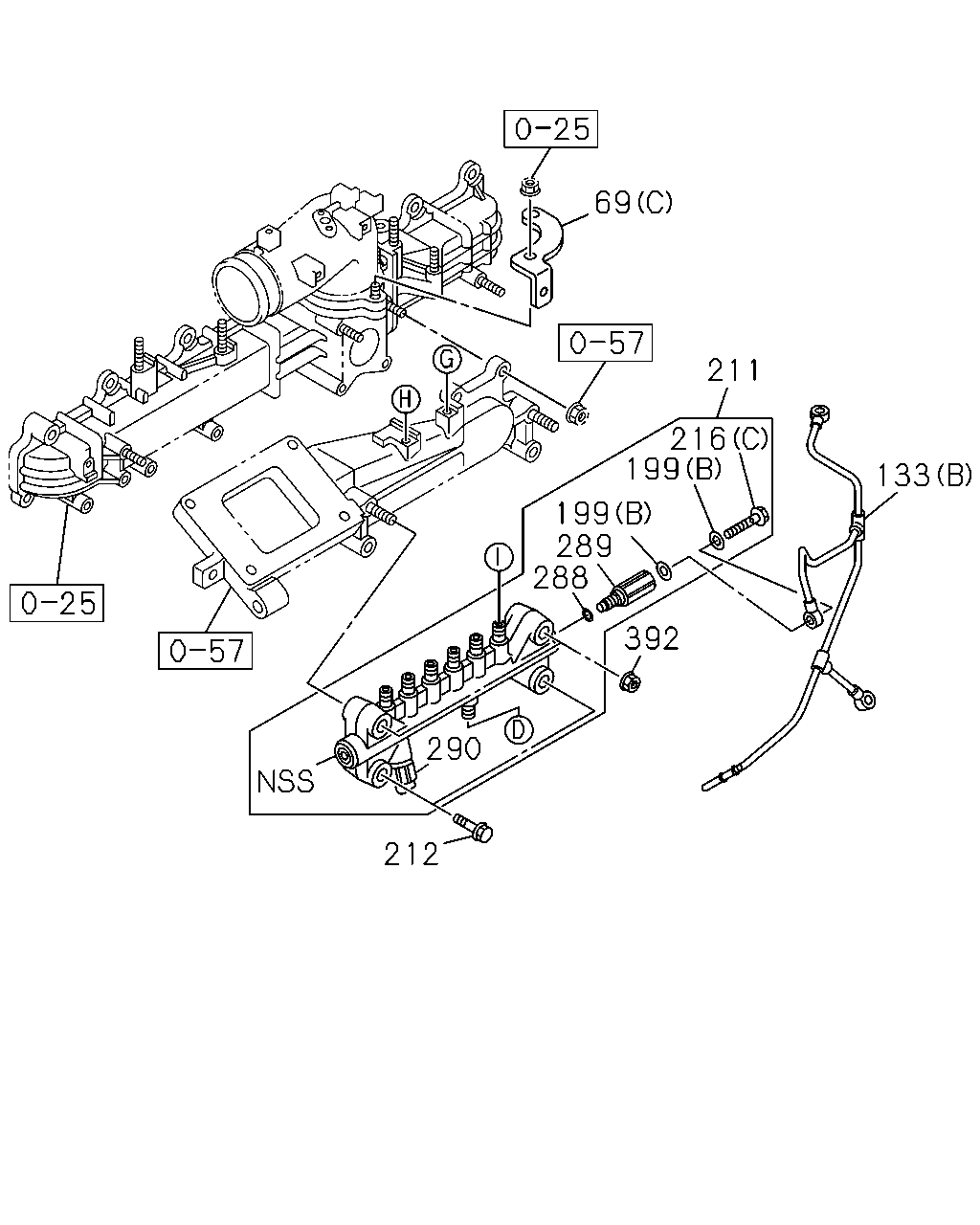

çizim 388151
69 211 216 199 199 289 288 133 392 290 212
BalonParca AdiParca NoAdetTipApplied Date A B
69 BRACKET; INJ PIPE CLIP
KD ENGINE<7MB> (B) 		8-97520-846-0 01 1 1411- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1403-1410 ● ●
69 BRACKET; INJ PIPE CLIP
EXC. KD ENGINE<7MB> (B) 		8-98038-940-0 01 1 1411- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1403- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1403- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 1312-1402 ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 1403- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 1312-1402 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 1403- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1312-1402 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1403- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1312-1402 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1403- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1312-1402 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1403- ● ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1312-1402 ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1403- ● ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 1312-1402 ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 1403- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1312-1402 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1403- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1312-1402 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1403- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1312-1402 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1403- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1312-1402 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1403- ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1312-1402 ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1403- ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1312-1402 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1403- ● ●
392 NUT; RAIL ASM
M10 FLANGE IDN 		0-91180-110-0 02 1 1312-1402 ●
392 NUT; RAIL ASM
M10 FLANGE IDN 		0-91180-110-0 02 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
