◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#131482) — 42 parça

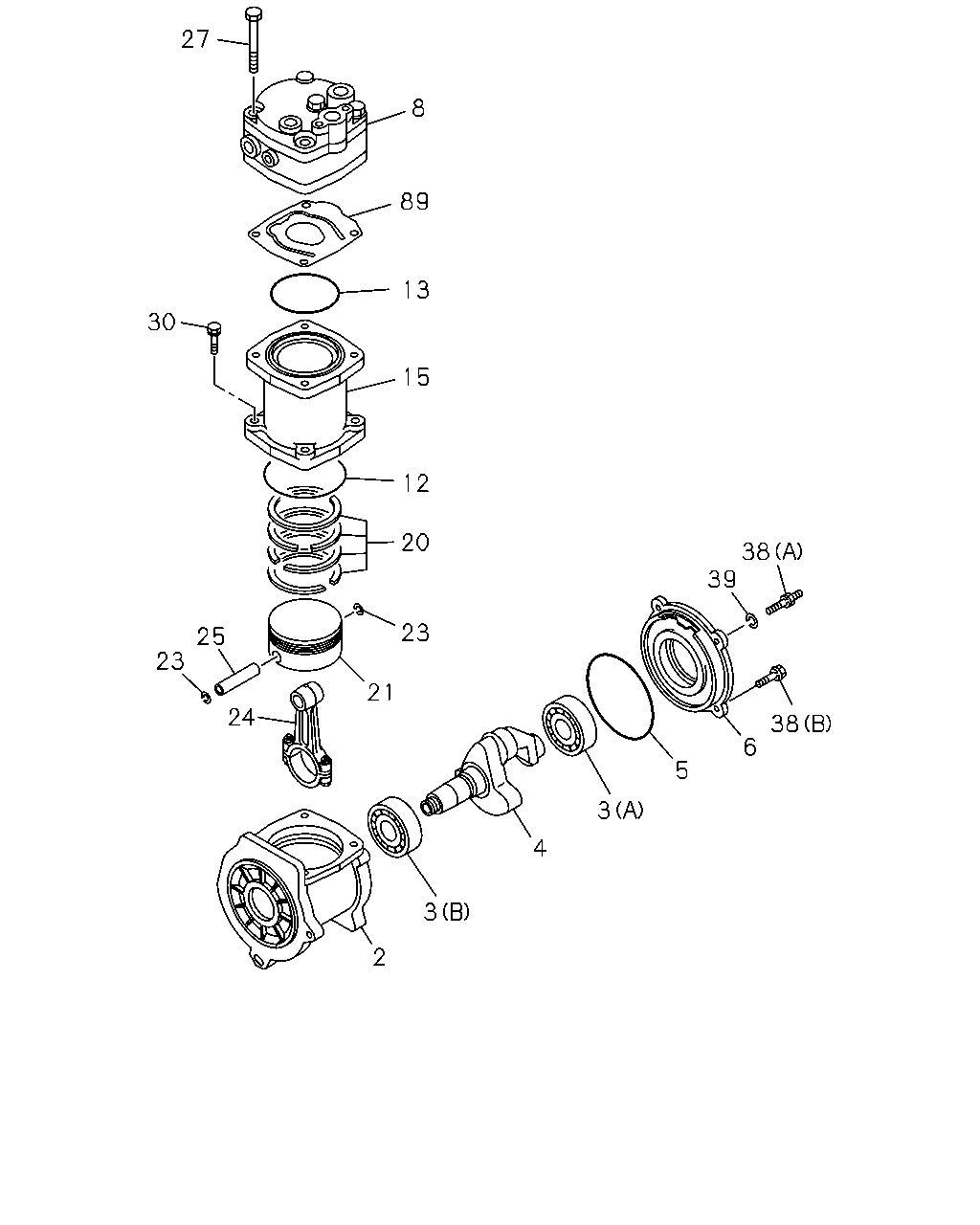

çizim 388134
38 39 6 38 5 3 4 3 2 21 23 20 12 15 13 89 8 27 30 23 25 24
BalonParca AdiParca NoAdetTipApplied Date A B
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 1312-1402 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 1403- ● ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 1312-1402 ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 1403- ● ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 1312-1402 ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 1403- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 1312-1402 ●
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 1403- ● ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1312-1402 ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1403- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 1312-1402 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 1403- ● ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-014-0 01 1 1312-1402 ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-014-0 01 1 1403- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1312-1402 ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1403- ● ●
13 GASKET; AIR CMPR 8-98048-640-0 01 1 1312-1402 ●
13 GASKET; AIR CMPR 8-98048-640-0 01 1 1403- ● ●
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 1312-1402 ●
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 1403- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1312-1402 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1403- ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1312-1402 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1403- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1312-1402 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1403- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1312-1402 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1403- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1312-1402 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1403- ● ●
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1312-1402 ●
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1403- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 1312-1402 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 1403- ● ●
38 BOLT; COVER FIX
(A) 		8-97617-894-0 02 1 1312-1402 ●
38 BOLT; COVER FIX
(A) 		8-97617-894-0 02 1 1403- ● ●
38 BOLT; COVER FIX
(B) M8X20 		8-97617-895-0 02 1 1312-1402 ●
38 BOLT; COVER FIX
(B) M8X20 		8-97617-895-0 02 1 1403- ● ●
39 WASHER; LK,COVER FIX 8-97617-893-0 02 1 1312-1402 ●
39 WASHER; LK,COVER FIX 8-97617-893-0 02 1 1403- ● ●
89 VALVE; SUCTION 1-19119-045-0 01 1 1312-1402 ●
89 VALVE; SUCTION 1-19119-045-0 01 1 1403- ● ●
