0-32 — WATER PIPING; ENGINE (#131477) — 77 parça

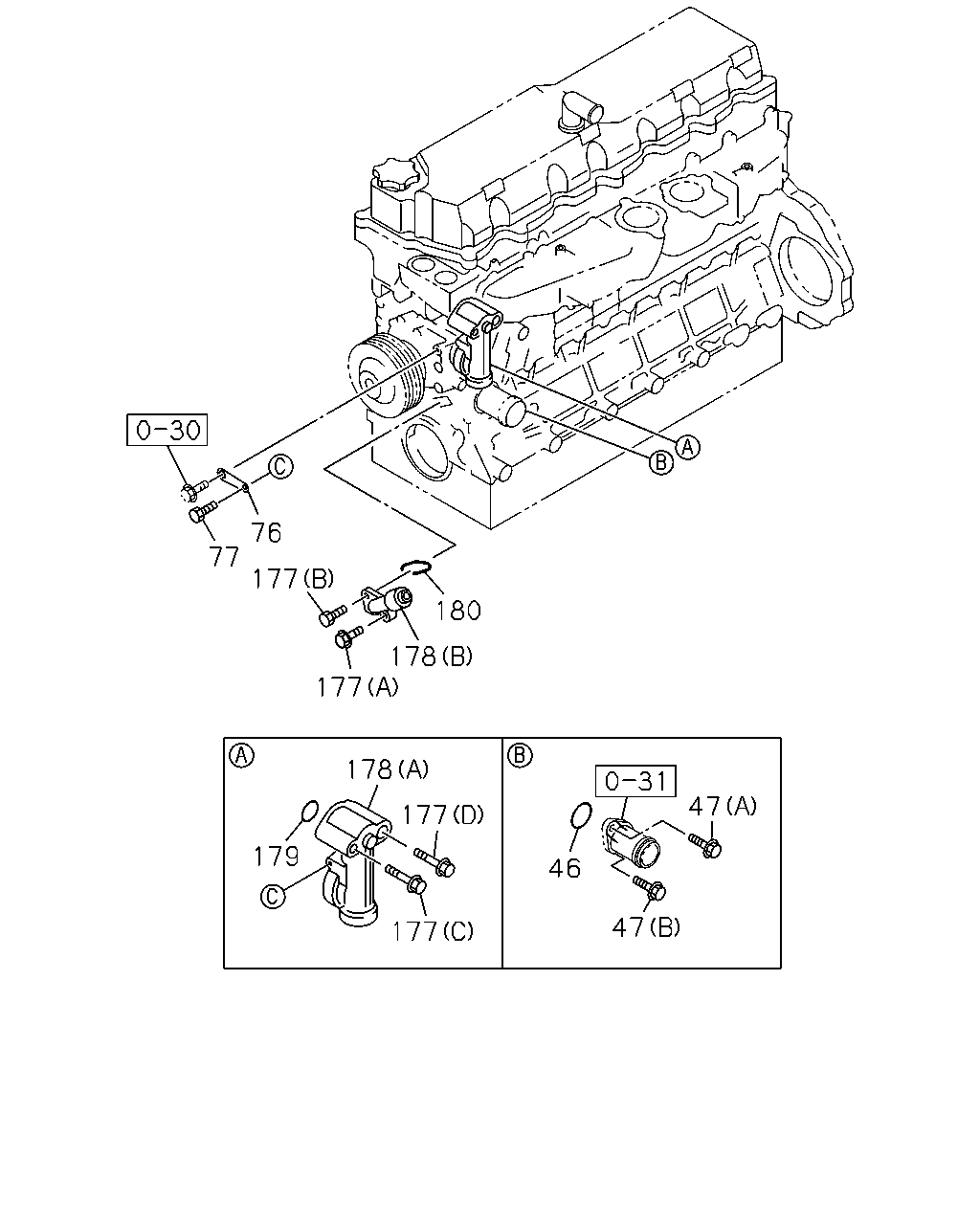

76 77 177 177 178 180 178 179 177 177 46 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1312-1402	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1403-	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	1312-1402	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	1403-	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1312-1402	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1403-	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1312-1402	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1403-	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1312-1402	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1403-	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	1312-1402	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	1403-	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1312-1402	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1403-	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1312-1402	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1403-	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1312-1402	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1403-	●	●
178	DUCT; WATER,BYPASS KD ENGINE<7MB> (A)	8-97520-830-0	01	1	1411-	●	●
178	DUCT; WATER,BYPASS (B)	8-94390-644-0	01	1	1312-1402	●
178	DUCT; WATER,BYPASS (B)	8-94390-644-0	01	1	1403-	●	●
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	1312-1402	●
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	1403-1410	●	●
178	DUCT; WATER,BYPASS EXC. KD ENGINE<7MB> (A)	8-94396-627-3	01	1	1411-	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1312-1402	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1403-1408	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1312-1402	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1403-	●	●

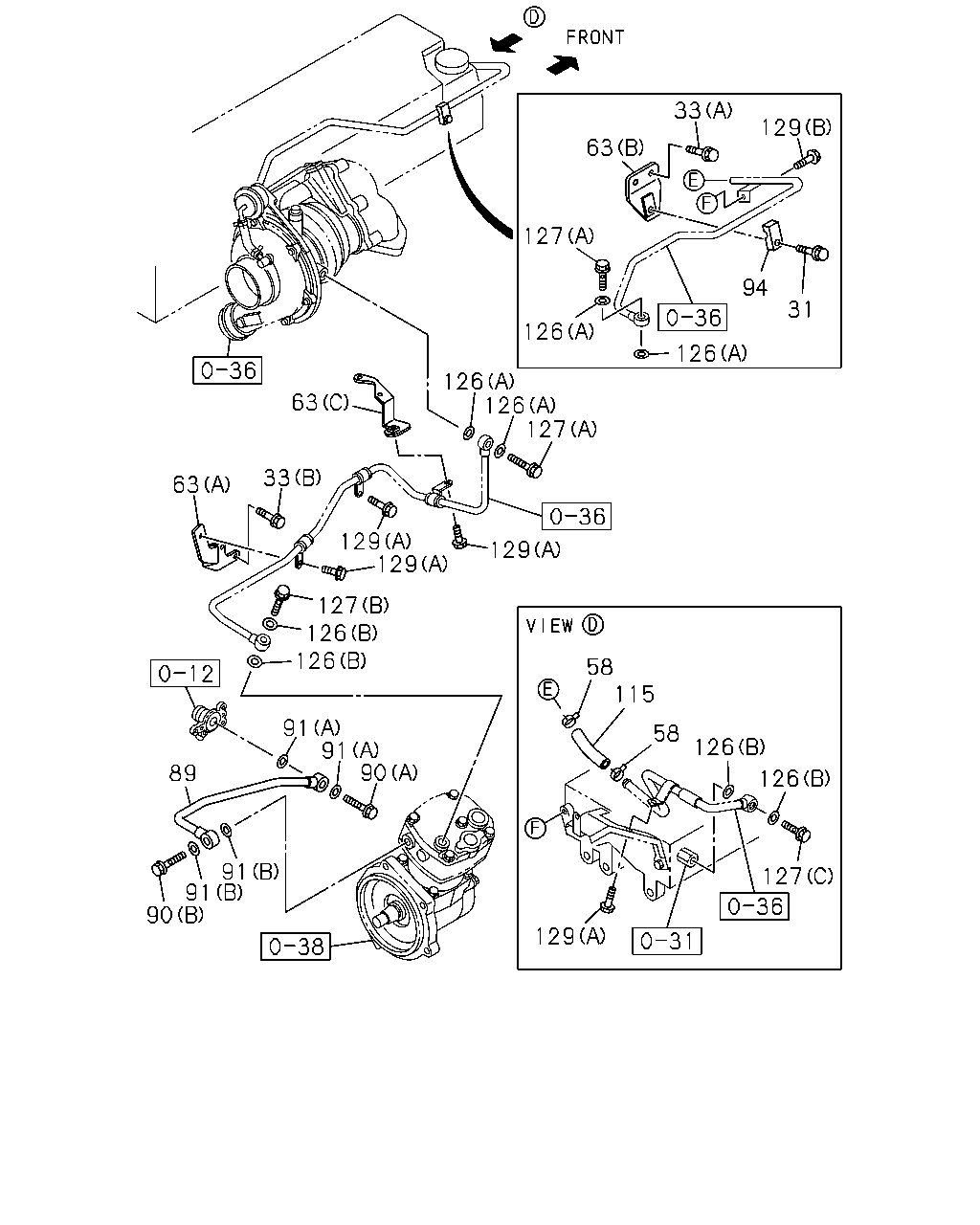

33 63 127 126 126 31 94 129 126 126 127 129 129 129 33 63 63 127 126 126 91 91 90 91 91 90 89 58 115 58 126 126 127 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	01	1	1312-1402	●
31	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	01	1	1403-	●	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1312-1402	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1403-	●	●
33	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	1312-1402	●
33	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	1403-	●	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	1312-1402	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	1403-	●	●
63	BRACKET; WATER PIPE KD ENGINE<7MB> (A)	8-97520-831-0	01	1	1411-	●	●
63	BRACKET; WATER PIPE (B)	8-94392-951-0	01	1	1312-1402	●
63	BRACKET; WATER PIPE (B)	8-94392-951-0	01	1	1403-	●	●
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	1312-1402	●
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	1403-	●	●
63	BRACKET; WATER PIPE (A)	8-98074-253-0	01	1	1312-1402	●
63	BRACKET; WATER PIPE (A)	8-98074-253-0	01	1	1403-1410	●	●
63	BRACKET; WATER PIPE EXC. KD ENGINE<7MB> (A)	8-98074-253-0	01	1	1411-	●	●
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	1312-1402	●
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	1403-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1312-1402	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1403-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1312-1402	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1403-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1312-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1402	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1403-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1312-1402	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1403-	●	●
94	CLIP; WATER PIPE	8-94396-860-0	01	1	1312-1402	●
94	CLIP; WATER PIPE	8-94396-860-0	01	1	1403-	●	●
115	HOSE; RUBBER KD ENGINE<7MB> L=60	8-97520-832-0	01	1	1411-	●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1312-1402	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1403-1410	●	●
115	HOSE; RUBBER EXC. KD ENGINE<7MB> L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1411-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1312-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-1402	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1403-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1312-1402	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1403-	●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1312-1402	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1403-	●	●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	1312-1402	●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	1403-	●	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1312-1402	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1403-	●	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	05	1	1312-1402	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	05	1	1403-	●	●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 FLANGE	0-28151-220-0	01	1	1312-1402	●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 FLANGE	0-28151-220-0	01	1	1403-	●	●
