0-14 — CAMSHAFT AND VALVE (#131468) — 100 parça

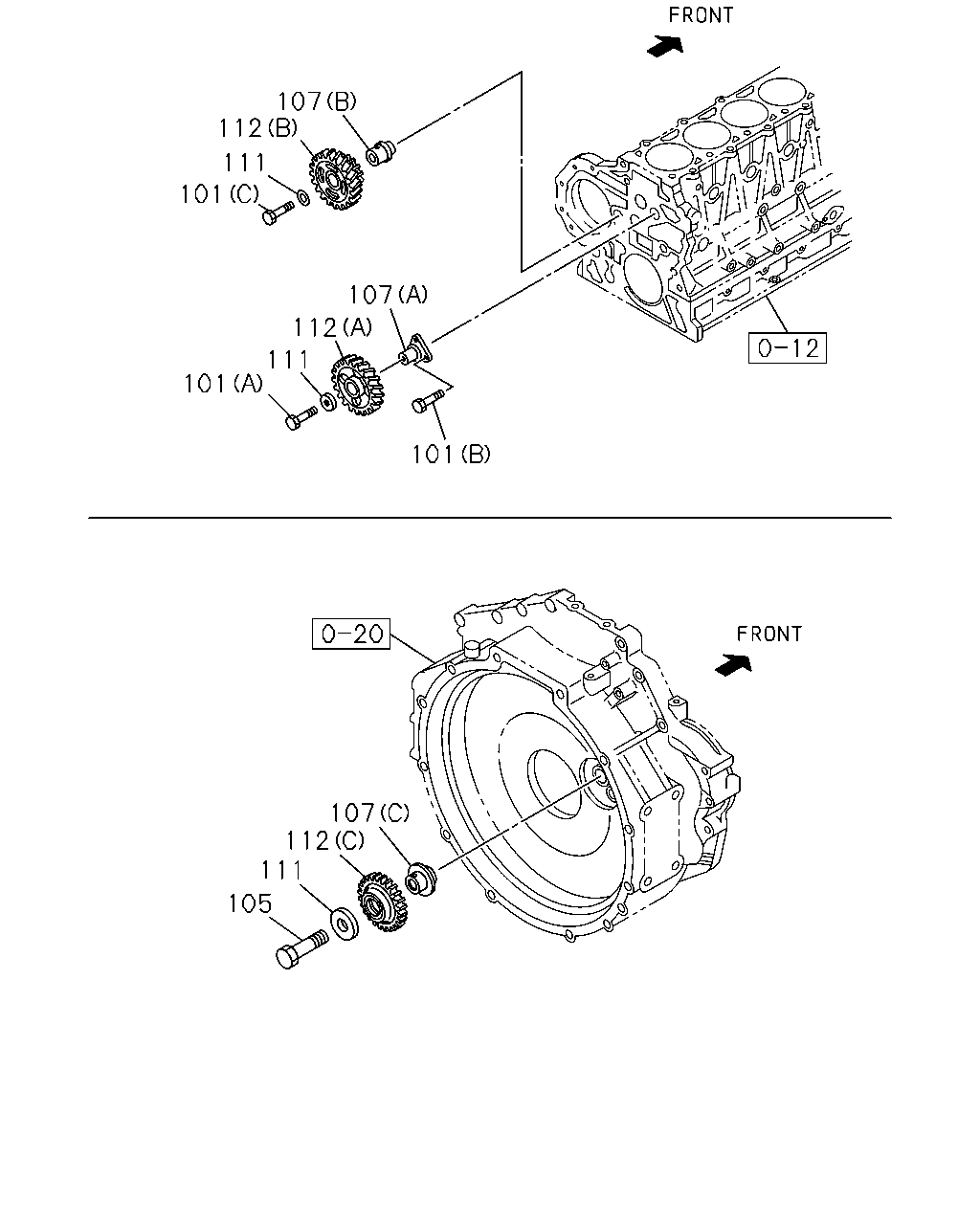

107 112 101 111 107 112 111 101 101 107 112 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	1312-1402	●
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	1403-	●	●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	1312-1402	●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	1403-	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1312-1402	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1403-	●	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1312-1402	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1403-	●	●
107	SHAFT; IDLE GEAR KD ENGINE<7MB> (A)	8-98209-525-0	01	1	1402-1402	●
107	SHAFT; IDLE GEAR KD ENGINE<7MB> (A)	8-98209-525-0	01	1	1403-	●	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1312-1402	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1403-	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1312-1401	●
107	SHAFT; IDLE GEAR EXC. KD ENGINE<7MB> (A)	8-97350-021-0	01	1	1402-1402	●
107	SHAFT; IDLE GEAR EXC. KD ENGINE<7MB> (A)	8-97350-021-0	01	1	1403-	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1312-1402	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1403-	●	●
111	COLLAR; THRUST,IDLE GEAR KD ENGINE<7MB> ID=14.5 OD=46	8-97209-728-2	02	1	1402-1402	●
111	COLLAR; THRUST,IDLE GEAR KD ENGINE<7MB> ID=14.5 OD=46	8-97209-728-2	02	1	1403-1405	●	●
111	COLLAR; THRUST,IDLE GEAR KD ENGINE<7MB> ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1402-1402	●
111	COLLAR; THRUST,IDLE GEAR KD ENGINE<7MB> ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1403-1405	●	●
111	COLLAR; THRUST,IDLE GEAR KD ENGINE<7MB> ID=14.5 OD=46 IDN	8-98209-850-0	03	1	1406-	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	1312-1401	●
111	COLLAR; THRUST,IDLE GEAR EXC. KD ENGINE<7MB> ID=14.5 OD=46	8-97209-728-2	03	1	1402-1402	●
111	COLLAR; THRUST,IDLE GEAR EXC. KD ENGINE<7MB> ID=14.5 OD=46	8-97209-728-2	03	1	1403-	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1312-1402	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1403-1403	●	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-	●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1312-1402	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1403-	●	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	1312-1402	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	1403-	●	●

37 37 37 37 37 37 37 1 37 9 8 7 38 4 115 114 4 5 5 71 71 71 71 72 65 68 65 63 212 78 84 53 75 72 72 68 71 65 65 65 65 62 71 61 63 212 71 68 72 71 65 65 62 61 75 78 81 83 81 83 95 68

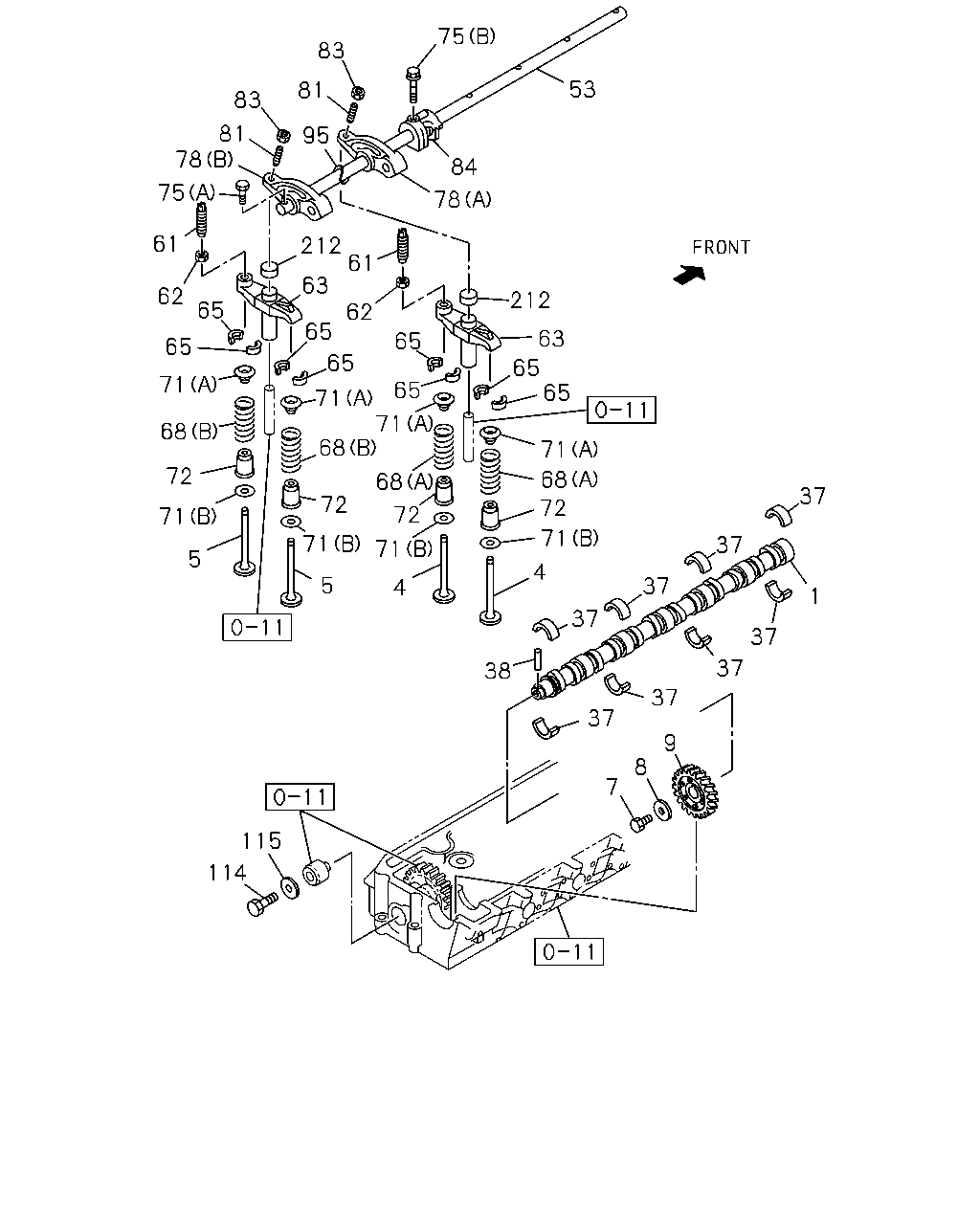

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97601-438-0	01	1	1312-1312	●
1	CAMSHAFT	8-98227-261-0	01	1	1312-1402	●
1	CAMSHAFT	8-98227-261-1	01	1	1403-	●	●
4	VALVE; INL	8-94395-882-2	12	1	1312-1402	●
4	VALVE; INL	8-94395-882-2	12	1	1403-	●	●
5	VALVE; EXH	8-97209-876-3	12	1	1312-1402	●
5	VALVE; EXH	8-97209-876-4	12	1	1403-	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1312-1402	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1403-	●	●
8	WASHER; CM/SHF GEAR KD ENGINE<7MB> ID=14.5	8-98209-848-0	01	1	1402-1402	●
8	WASHER; CM/SHF GEAR KD ENGINE<7MB> ID=14.5	8-98209-848-0	01	1	1403-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1312-1401	●
8	WASHER; CM/SHF GEAR EXC. KD ENGINE<7MB> ID=14.5	9-09851-850-3	01	1	1402-1402	●
8	WASHER; CM/SHF GEAR EXC. KD ENGINE<7MB> ID=14.5	9-09851-850-3	01	1	1403-	●	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1312-1402	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1403-	●	●
37	METAL; CM/SHF KD ENGINE<7MB>	8-98272-101-0	04	1	1411-	●	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	1312-1402	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	1403-1410	●	●
37	METAL; CM/SHF EXC. KD ENGINE<7MB> B=16	8-97386-189-0	04	1	1411-	●	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	1312-1402	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	1403-	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	1312-1402	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	1403-	●	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1312-1402	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1403-	●	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1312-1402	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1403-	●	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1312-1402	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1403-	●	●
63	BRIDGE	8-94392-002-3	12	1	1312-1402	●
63	BRIDGE	8-94392-002-3	12	1	1403-	●	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1312-1402	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1403-	●	●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	1312-1402	●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	1403-	●	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1312-1402	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1403-	●	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1312-1402	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1403-	●	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1312-1402	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1403-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1312-1402	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1403-	●	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	1312-1402	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	1403-	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	1312-1402	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	1403-	●	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1312-1402	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1403-	●	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1312-1402	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1403-	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1312-1402	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1403-	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1312-1402	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1403-	●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	1312-1402	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	1403-	●	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1312-1402	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1403-	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	1312-1402	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	1403-	●	●
115	WASHER; THRUST,IDLE GEAR KD ENGINE<7MB> ID=14.5 OD=46 IDN	8-98209-850-0	01	1	1406-	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	1312-1402	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	1403-1405	●	●
115	WASHER; THRUST,IDLE GEAR EXC. KD ENGINE<7MB> ID=14.5 OD=46	8-97209-728-2	01	1	1406-	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	1312-1402	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	1403-	●	●
