◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#131465) — 86 parça

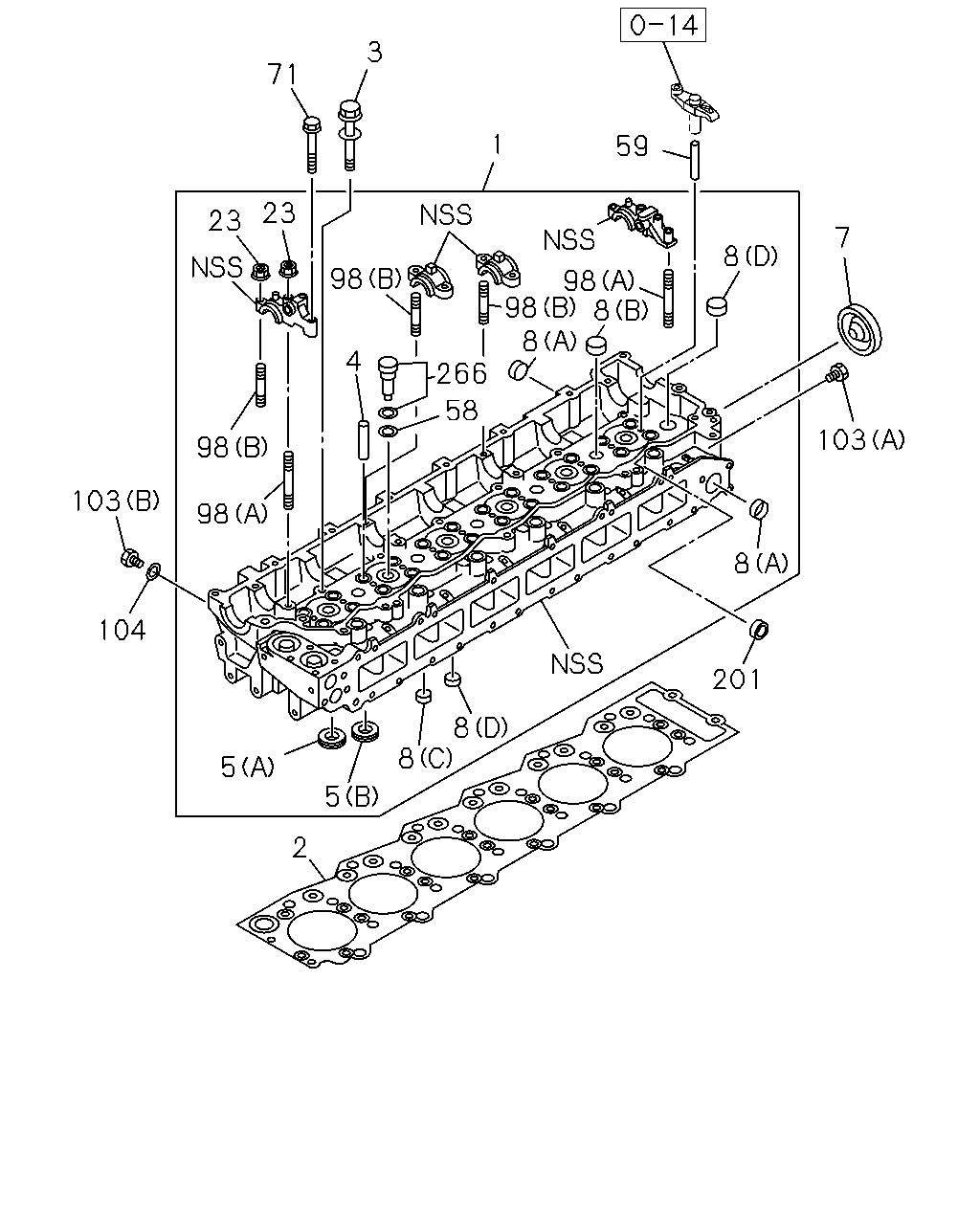

çizim 388014
201 8 103 7 8 59 1 3 71 23 23 98 98 8 98 8 266 58 4 98 98 103 104 5 5 2 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98243-823-0 01 1 1403- ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1312- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-819-5 01 1 1312-1402 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-819-5 01 1 1403- ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 1312-1402 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 1403-1407 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 1312-1402 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 1403- ● ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 12 1 1312-1402 ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 12 1 1403- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 1312-1402 ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 1403- ● ●
7 CUP; SEALING,CYL HEAD
KD ENGINE<7MB> OD=51 		8-98209-813-0 01 1 1402-1402 ●
7 CUP; SEALING,CYL HEAD
KD ENGINE<7MB> OD=51 		8-98209-813-0 01 1 1403- ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 1312-1401 ●
7 CUP; SEALING,CYL HEAD
EXC. KD ENGINE<7MB> OD=51 		8-97096-826-0 01 1 1402-1402 ●
7 CUP; SEALING,CYL HEAD
EXC. KD ENGINE<7MB> OD=51 		8-97096-826-0 01 1 1403- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 1403- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 07 1 1312-1402 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 01 1 1403- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 1312-1402 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 1403- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 1312-1402 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 1403- ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 1312-1402 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 1403- ● ●
23 NUT; CAM BRKT
M8 FLANGE IDN 		0-91180-208-0 08 1 1312-1402 ●
23 NUT; CAM BRKT
M8 FLANGE IDN 		0-91180-208-0 08 1 1403- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 06 1 1312-1402 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 06 1 1403- ● ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 1312-1402 ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 1403- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1312-1402 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1403- ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 1312-1402 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 1403- ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 1312-1402 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 1403- ● ●
103 PLUG; HD
(A) M8X10 		8-98003-416-0 01 1 1312-1402 ●
103 PLUG; HD
(A) M8X10 		8-98003-416-0 01 1 1403- ● ●
103 PLUG; HD
(B) M14X14 IDN 		9-09862-156-0 01 1 1312-1402 ●
103 PLUG; HD
(B) M14X14 IDN 		9-09862-156-0 01 1 1403- ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 01 1 1312-1312 ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-1402 ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 01 1 1403- ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 1312-1402 ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 1403- ● ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 1312-1402 ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 1403- ● ●

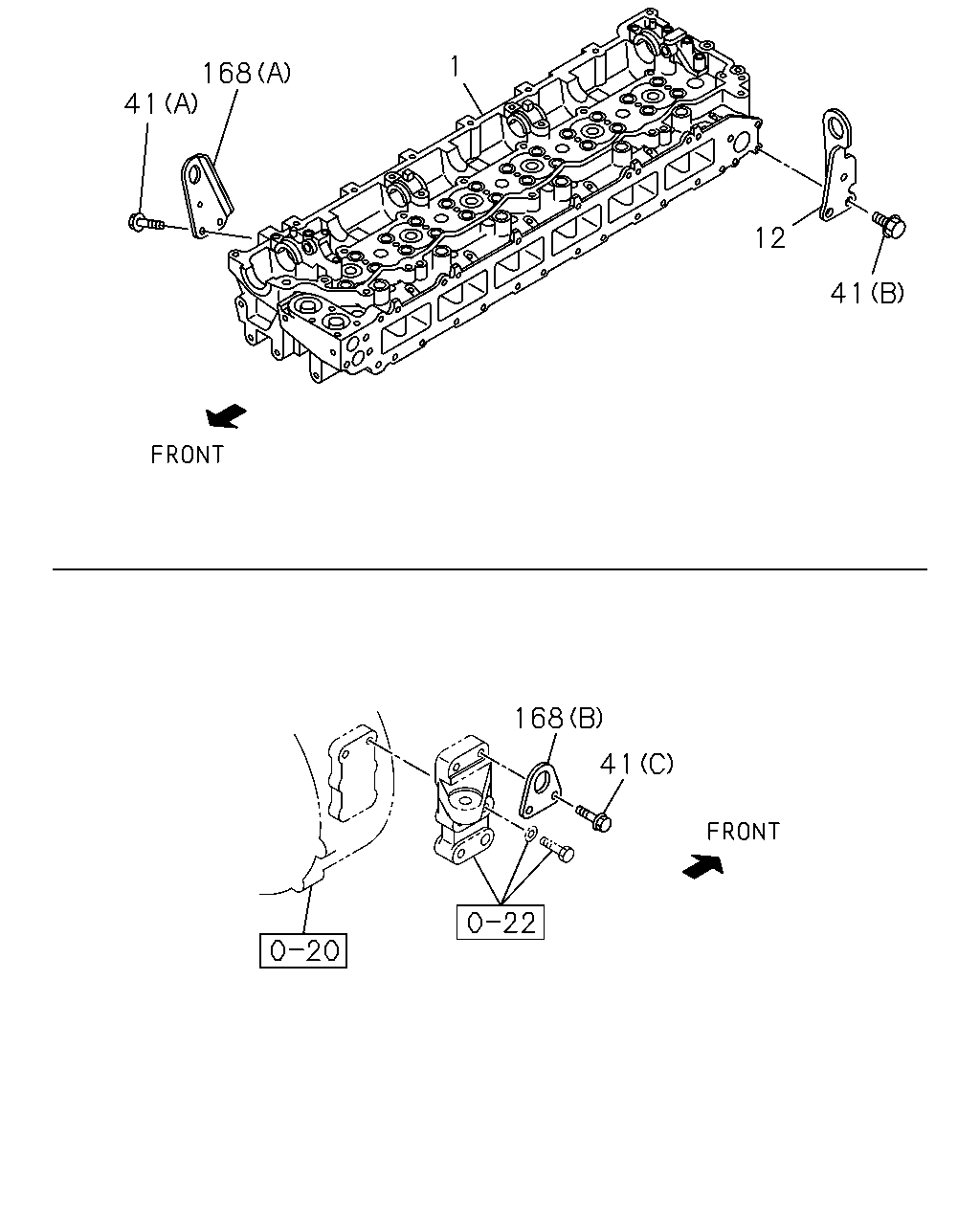

çizim 388019
41 168 1 12 41 41 168
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98243-823-0 01 1 1403- ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1312- ●
12 HANGER; ENG,RR
KD ENGINE<7MB> 		8-97520-814-0 01 1 1411- ● ●
12 HANGER; ENG,RR 8-94392-081-1 01 1 1312-1402 ●
12 HANGER; ENG,RR 8-94392-081-1 01 1 1403-1410 ● ●
12 HANGER; ENG,RR
EXC. KD ENGINE<7MB> 		8-94392-081-1 01 1 1411- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1312-1402 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1403- ● ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 1312-1402 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 1403- ● ●
41 BOLT; ENG HANGER
(C) M12X25 FLANGE 		0-28751-225-0 02 1 1312-1402 ●
41 BOLT; ENG HANGER
(C) M12X25 FLANGE 		0-28751-225-0 02 1 1403- ● ●
168 HANGER; ENG,FRT
KD ENGINE<7MB> (A) 		8-97520-813-0 01 1 1411- ● ●
168 HANGER; ENG,FRT
KD ENGINE<7MB> (B) 		8-97520-848-0 01 1 1411- ● ●
168 HANGER; ENG,FRT
(A) 		8-94394-071-2 01 1 1312-1402 ●
168 HANGER; ENG,FRT
(A) 		8-94394-071-2 01 1 1403-1410 ● ●
168 HANGER; ENG,FRT
EXC. KD ENGINE<7MB> (A) 		8-94394-071-2 01 1 1411- ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-1 01 1 1312-1402 ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-1 01 1 1403-1410 ● ●
168 HANGER; ENG,FRT
EXC. KD ENGINE<7MB> (B) 		8-94394-398-1 01 1 1411- ● ●

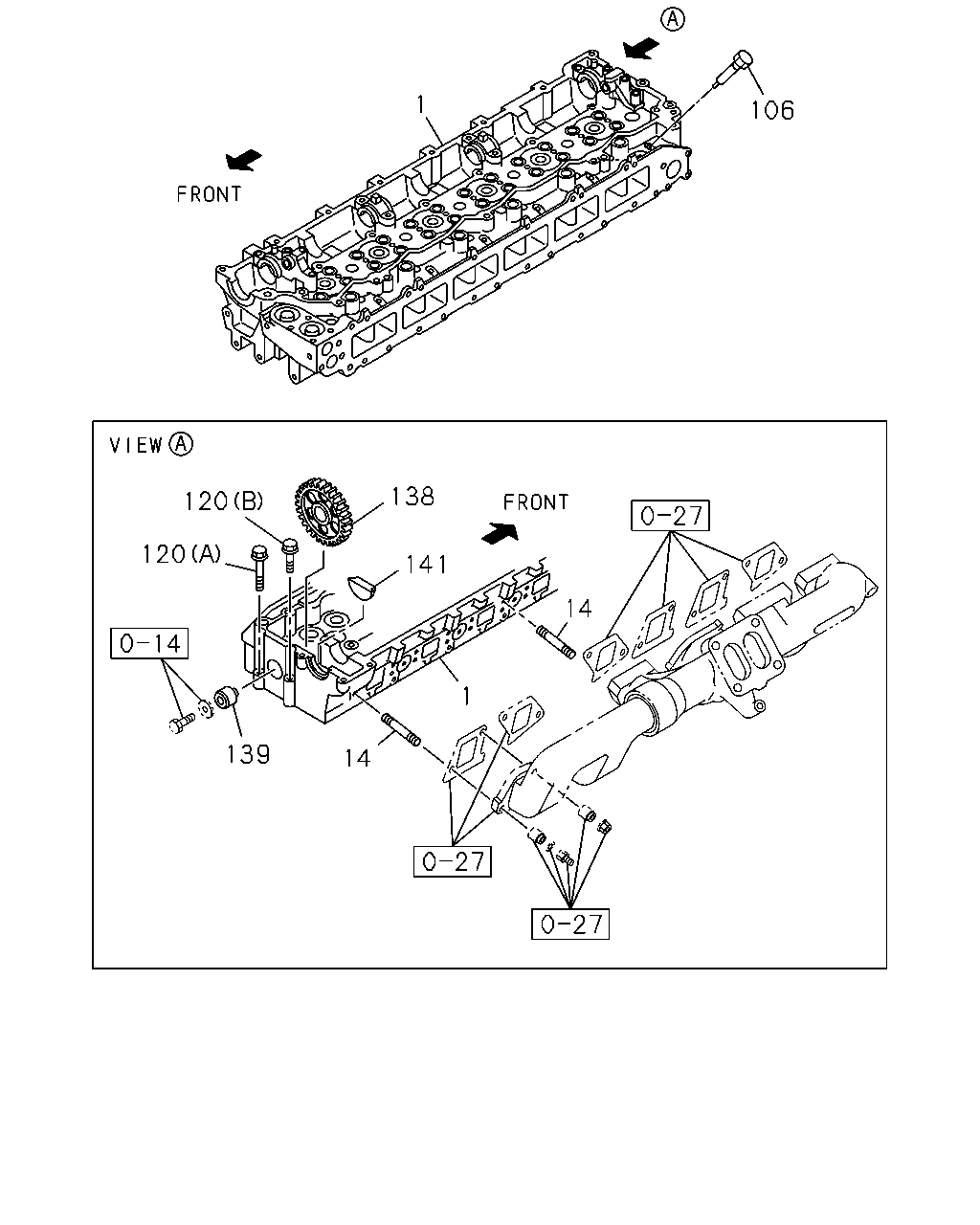

çizim 388022
1 106 120 138 141 120 14 1 14 139
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98243-823-0 01 1 1403- ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1312- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 1312-1402 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 1403- ● ●
106 PLUG; GLOW PLUG HOLE 8-94392-236-0 06 1 1312-1402 ●
106 PLUG; GLOW PLUG HOLE 8-94392-236-0 06 1 1403- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 1312-1402 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 1403- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 1312-1402 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 1403- ● ●
138 GEAR; IDLE
Z=41 		8-97606-929-0 01 1 1312-1402 ●
138 GEAR; IDLE
Z=41 		8-97606-929-0 01 1 1403- ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 1312-1402 ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 1403- ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1312-1402 ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1403- ● ●
