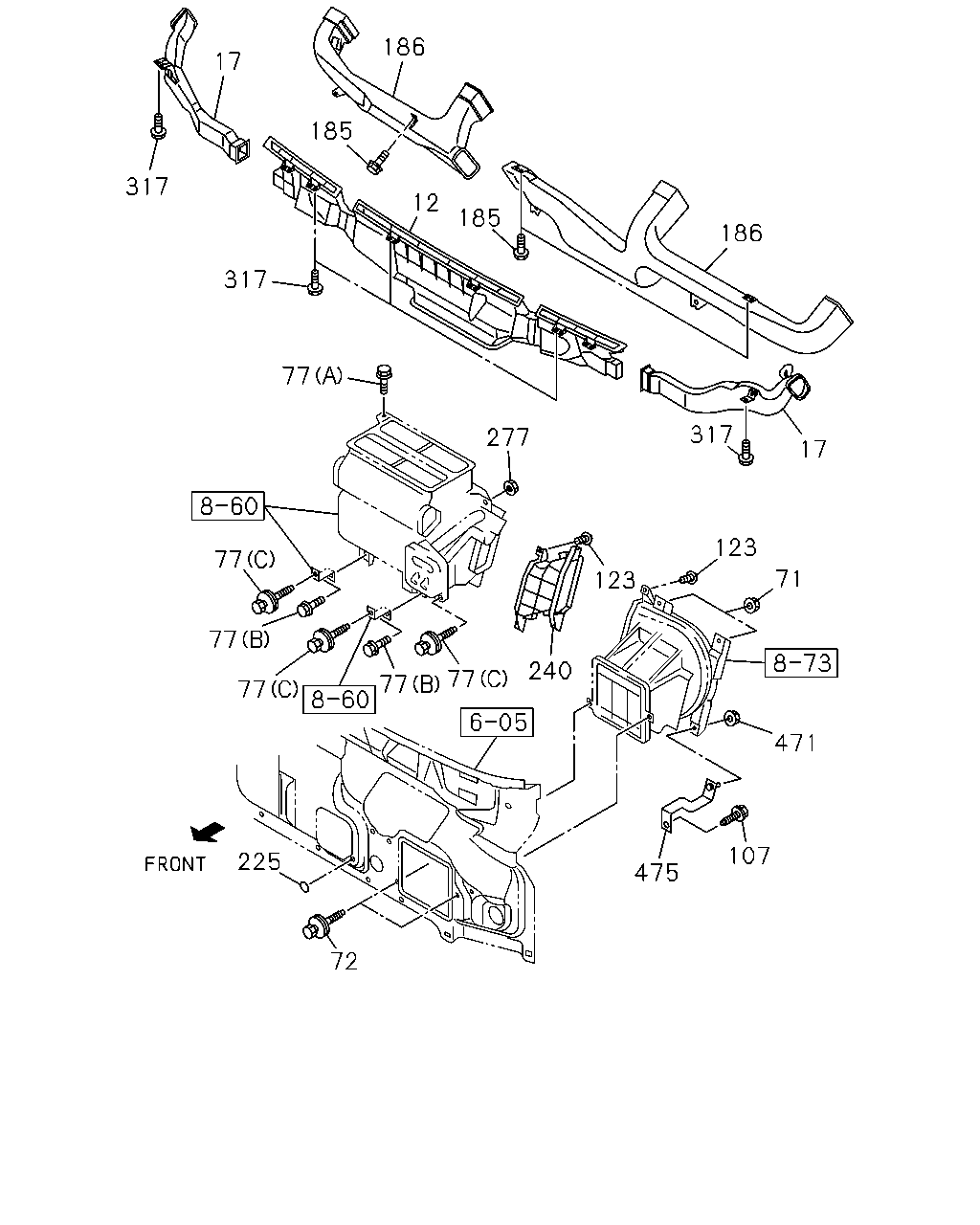

8-40 — HEATER SYSTEM (#131454) — 64 parça

186 185 17 317 317 77 277 185 12 186 17 317 123 71 471 107 475 240 123 77 77 77 77 77 225 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	1312-1401
12	NOZZLE; DEFROSTER EXC. VIN MODEL YEAR 2014<VZE>	8-98040-009-3	01	1	1402-
17	NOZZLE; DEFROSTER,SIDE	8-98040-018-1	01	1	1312-1401
17	NOZZLE; DEFROSTER,SIDE EXC. VIN MODEL YEAR 2014<VZE>	8-98040-018-1	01	1	1402-
17	NOZZLE; DEFROSTER,SIDE	8-98040-013-1	01	1	1312-1401
17	NOZZLE; DEFROSTER,SIDE EXC. VIN MODEL YEAR 2014<VZE>	8-98040-013-1	01	1	1402-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE	0-91180-106-0	02	1	1312-
72	BOLT; BLOWER UNIT M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1312-
77	BOLT; HTR UNIT (A) M6X16 FLANGE	0-28650-616-0	01	1	1312-
77	BOLT; HTR UNIT (B) M6X20 FLANGE IDN	0-28650-620-0	02	1	1312-1401
77	BOLT; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE> (B) M6X20 FLANGE IDN	0-28650-620-0	02	1	1402-
77	BOLT; HTR UNIT (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1312-1401
77	BOLT; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE> (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1402-
107	BOLT; STAY,HTR UNIT M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	1312-
123	SCREW; DUCT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1312-
185	SCREW; VENT DUCT VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1312-
186	DUCT; VENTILATOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97585-489-4	01	1	1312-1410
186	DUCT; VENTILATOR	8-98285-574-0	01	1	1411-
186	DUCT; VENTILATOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98174-737-0	01	1	1312-1410
186	DUCT; VENTILATOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98285-571-0	01	1	1411-
225	SEAL; WATER EXC. VIN MODEL YEAR 2014<VZE> OD=25 BLACK	1-76798-019-0	01	1	1402-
225	SEAL; WATER OD=25 BLACK	1-76798-019-0	01	1	1312-1401
225	SEAL; WATER VIN MODEL YEAR 2014<VZE> OD=25 BLACK	1-76798-019-0	03	1	1402-
240	DUCT; AIR,HTR	8-98041-402-1	01	1	1312-
277	NUT; HTR M6 FLANGE	0-91180-106-0	01	1	1312-
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	1312-1401
317	SCREW; DEFROSTER NOZZLE EXC. VIN MODEL YEAR 2014<VZE> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	1402-
471	NUT; BLOWER M6 FLANGE	0-91180-106-0	01	1	1312-
475	BRACKET; BLOWER	8-98043-500-1	01	1	1312-

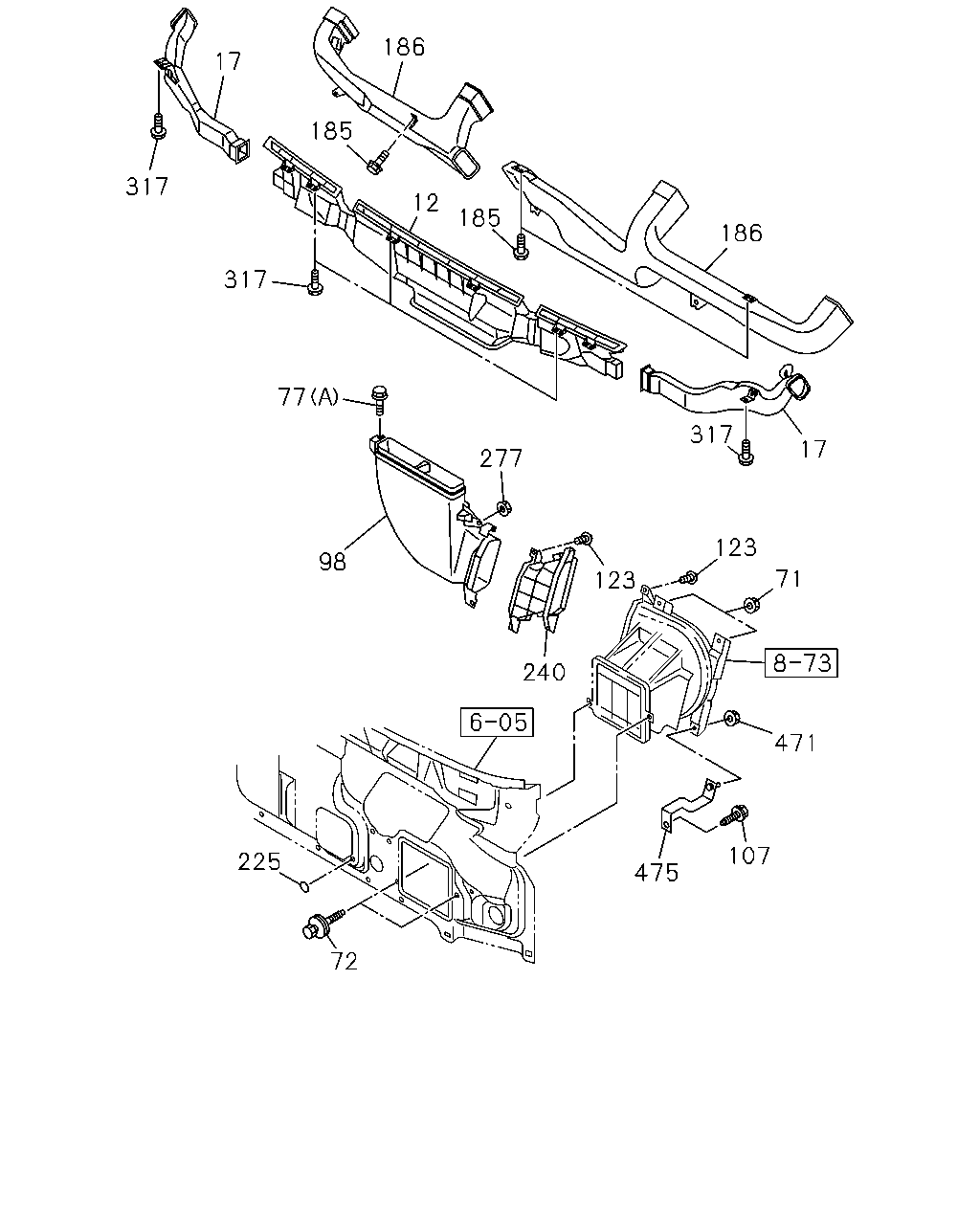

17 317 317 185 186 12 77 185 186 17 317 277 98 123 123 71 240 471 107 475 72 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	1312-1401
12	NOZZLE; DEFROSTER EXC. VIN MODEL YEAR 2014<VZE>	8-98040-009-3	01	1	1402-
17	NOZZLE; DEFROSTER,SIDE	8-98040-018-1	01	1	1312-1401
17	NOZZLE; DEFROSTER,SIDE EXC. VIN MODEL YEAR 2014<VZE>	8-98040-018-1	01	1	1402-
17	NOZZLE; DEFROSTER,SIDE	8-98040-013-1	01	1	1312-1401
17	NOZZLE; DEFROSTER,SIDE EXC. VIN MODEL YEAR 2014<VZE>	8-98040-013-1	01	1	1402-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE	0-91180-106-0	02	1	1312-
72	BOLT; BLOWER UNIT M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1312-
77	BOLT; HTR UNIT (A) M6X16 FLANGE	0-28650-616-0	01	1	1312-
77	BOLT; HTR UNIT (B) M6X20 FLANGE IDN	0-28650-620-0	02	1	1312-1401
77	BOLT; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE> (B) M6X20 FLANGE IDN	0-28650-620-0	02	1	1402-
77	BOLT; HTR UNIT (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1312-1401
77	BOLT; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE> (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1402-
98	DUCT; BLOWER UNIT TO HTR UNIT VIN MODEL YEAR 2014<VZE> IDN	8-97520-909-0	01	1	1402-
107	BOLT; STAY,HTR UNIT M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	1312-
123	SCREW; DUCT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1312-
185	SCREW; VENT DUCT VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1312-
186	DUCT; VENTILATOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-97585-489-4	01	1	1312-1410
186	DUCT; VENTILATOR	8-98285-574-0	01	1	1411-
186	DUCT; VENTILATOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98174-737-0	01	1	1312-1410
186	DUCT; VENTILATOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98285-571-0	01	1	1411-
225	SEAL; WATER EXC. VIN MODEL YEAR 2014<VZE> OD=25 BLACK	1-76798-019-0	01	1	1402-
225	SEAL; WATER OD=25 BLACK	1-76798-019-0	01	1	1312-1401
225	SEAL; WATER VIN MODEL YEAR 2014<VZE> OD=25 BLACK	1-76798-019-0	03	1	1402-
240	DUCT; AIR,HTR	8-98041-402-1	01	1	1312-
277	NUT; HTR M6 FLANGE	0-91180-106-0	01	1	1312-
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	1312-1401
317	SCREW; DEFROSTER NOZZLE EXC. VIN MODEL YEAR 2014<VZE> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	1402-
471	NUT; BLOWER M6 FLANGE	0-91180-106-0	01	1	1312-
475	BRACKET; BLOWER	8-98043-500-1	01	1	1312-

223 50 476 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	VALVE ASM; HTR IDN	8-97925-112-0	01	1	1312-
206	GROMMET; A/C PIPE TO BLOWER UNIT IDN	8-98019-649-0	01	1	1312-1401
206	GROMMET; A/C PIPE TO BLOWER UNIT EXC. VIN MODEL YEAR 2014<VZE> IDN	8-98019-649-0	01	1	1402-
223	GROMMET; SCREW D=7.9X7.9 L=20 M5 IDN	8-94441-539-0	01	1	1312-
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR IDN	8-98062-675-0	01	1	1312-
