8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#131452) — 16 parça

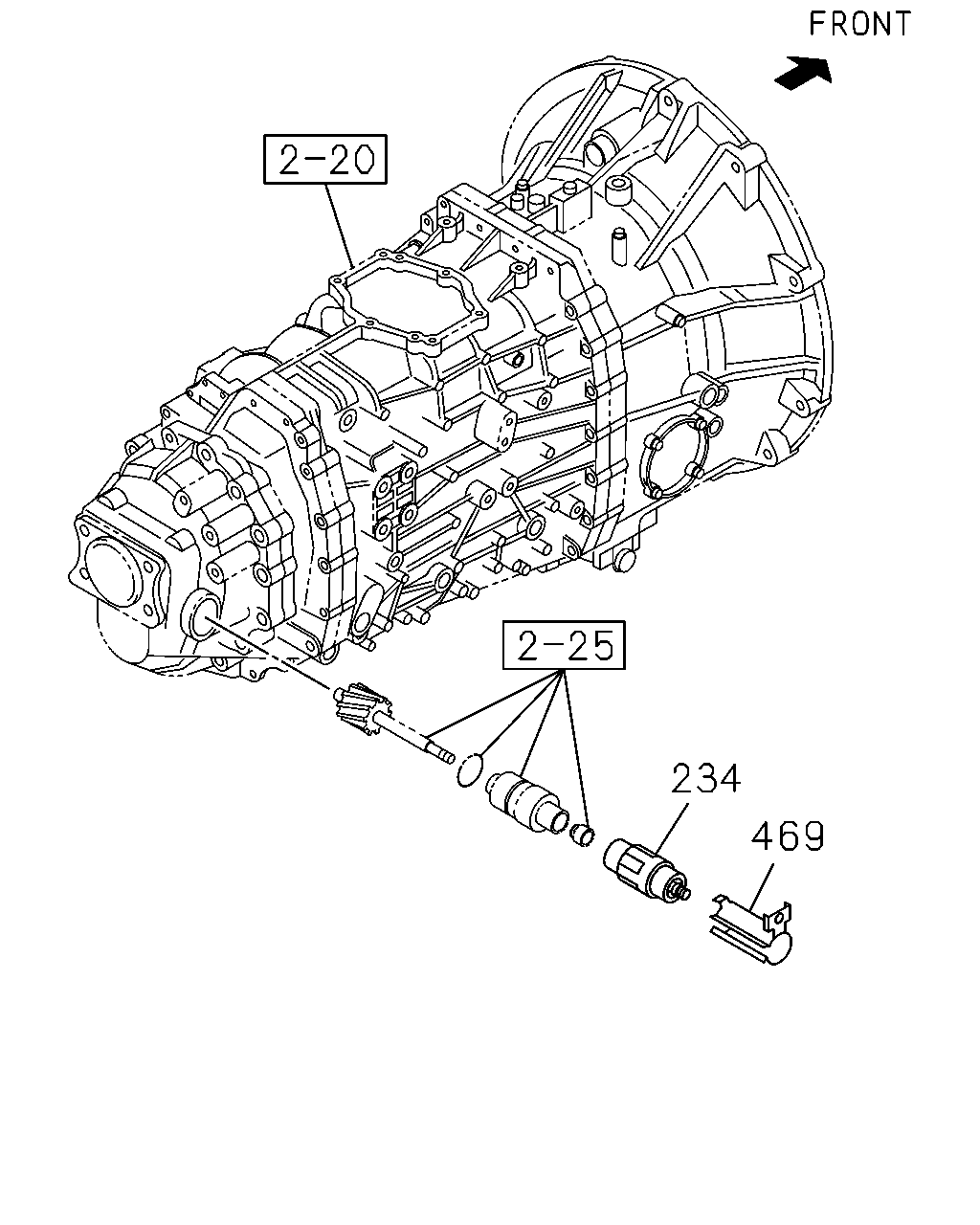

çizim 389511
469 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1312-
469 PROTECTOR; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98119-901-0 01 1 1312-

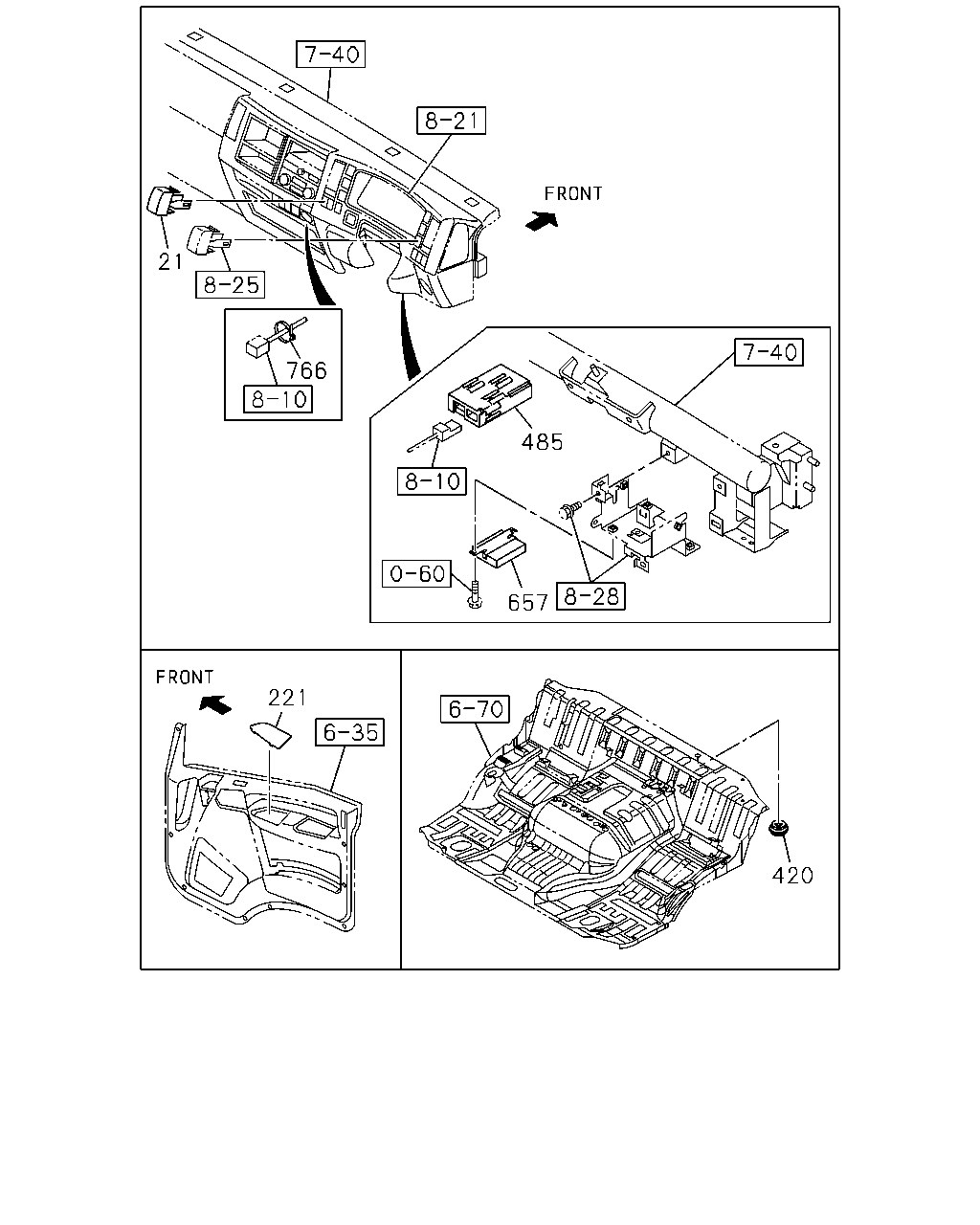

çizim 389601
766 21 485 657 221 420
BalonParca AdiParca NoAdetTipApplied Date
21 COVER; HOLE 8-98025-954-1 01 1 1312-
221 COVER; HOLE,DOOR LOCK SW
IDN 		8-98029-915-2 01 1 1312-
221 COVER; HOLE,DOOR LOCK SW
IDN 		8-98029-916-2 01 1 1312-
420 PLUG; SWITCH
OD=35 IDN 		8-94122-971-0 01 1 1312-
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 DD M/T(Y5P) 		1-80190-063-0 01 1 1312-
657 CONTROL UNIT; MIMAMORI
IDN 		8-97948-260-1 01 1 1312-
766 BAND; CLIP
L=140 IDN 		5-09707-031-1 01 1 1312-

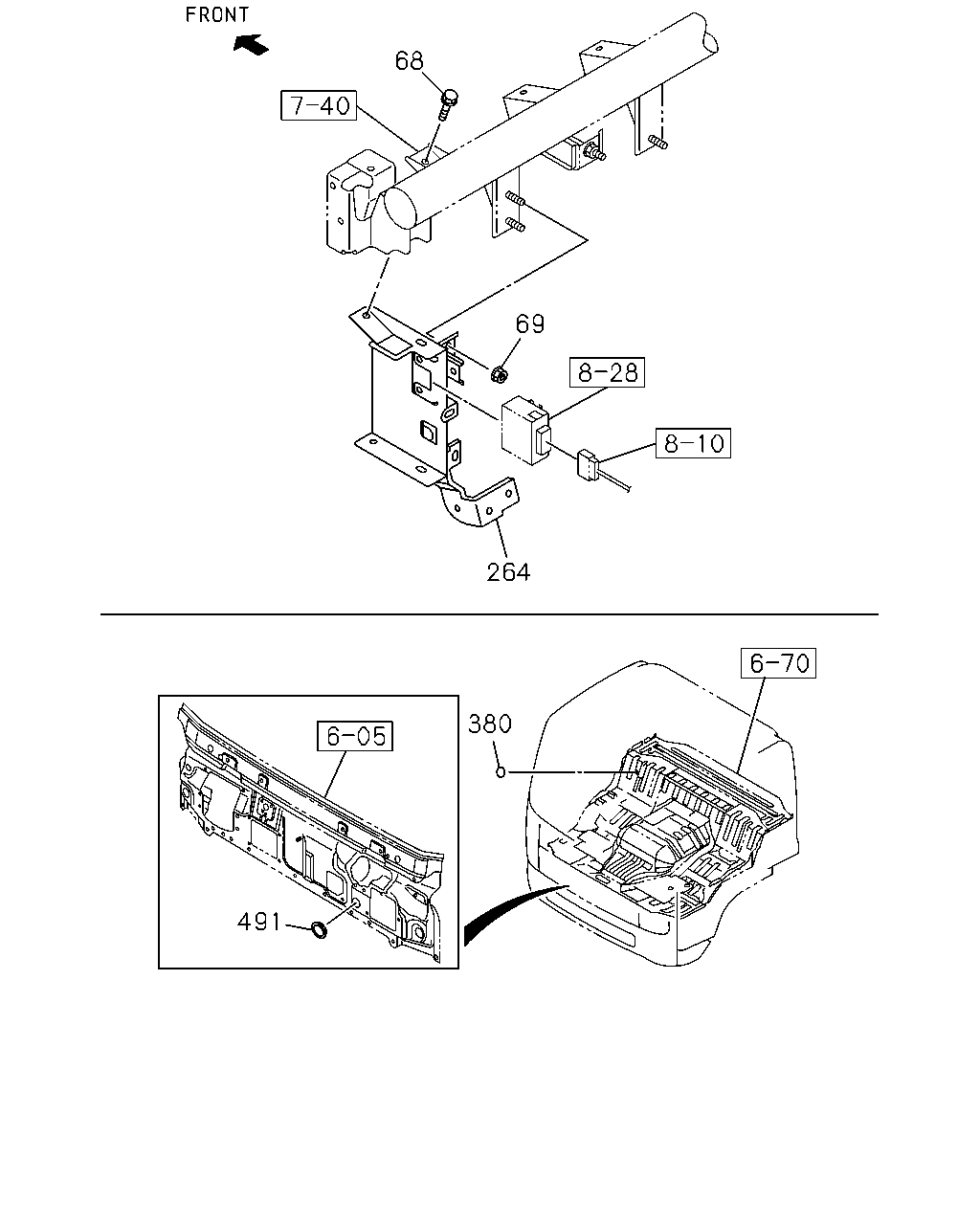

çizim 389619
380 264 69 68 491
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1312-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1312-
264 BRACKET; CONT UNIT
VIN MODEL YEAR 2014<VZE> 		8-98246-453-0 01 1 1402-
264 BRACKET; CONT UNIT 8-98249-082-1 01 1 1312-1401
264 BRACKET; CONT UNIT
EXC. VIN MODEL YEAR 2014<VZE> 		8-98249-082-1 01 1 1402-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1312-
491 PLUG; HOLE,CONT UNIT
OD=60 IDN 		8-98054-651-0 01 1 1312-
