Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#131440) — 55 parça

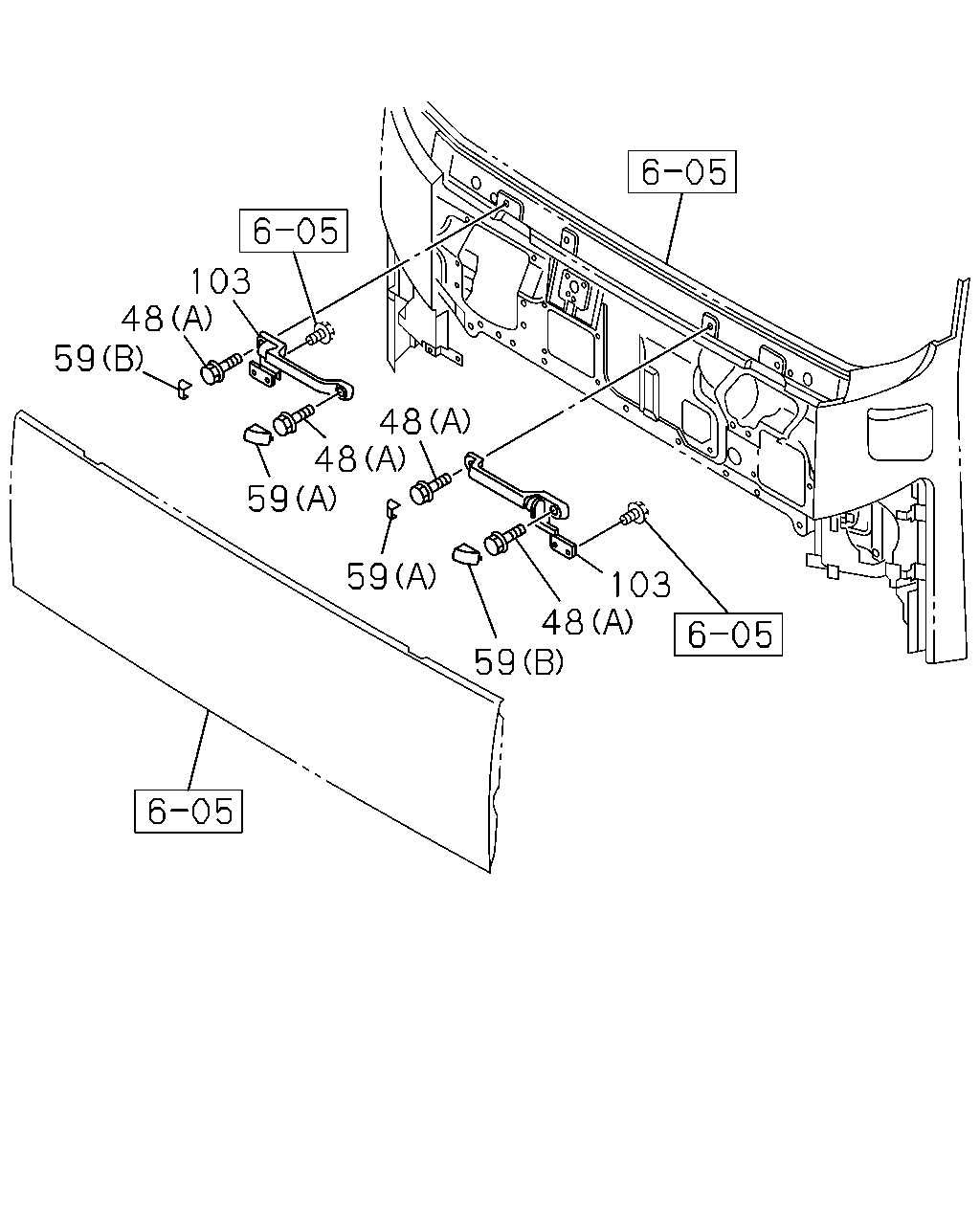

103 48 59 59 48 48 59 59 48 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	1312-
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1312-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1312-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1312-
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	01	1	1312-
103	GRIP; ASSIST,FRT PNL	8-98036-565-1	01	1	1312-
103	GRIP; ASSIST,FRT PNL	8-98036-566-1	01	1	1312-

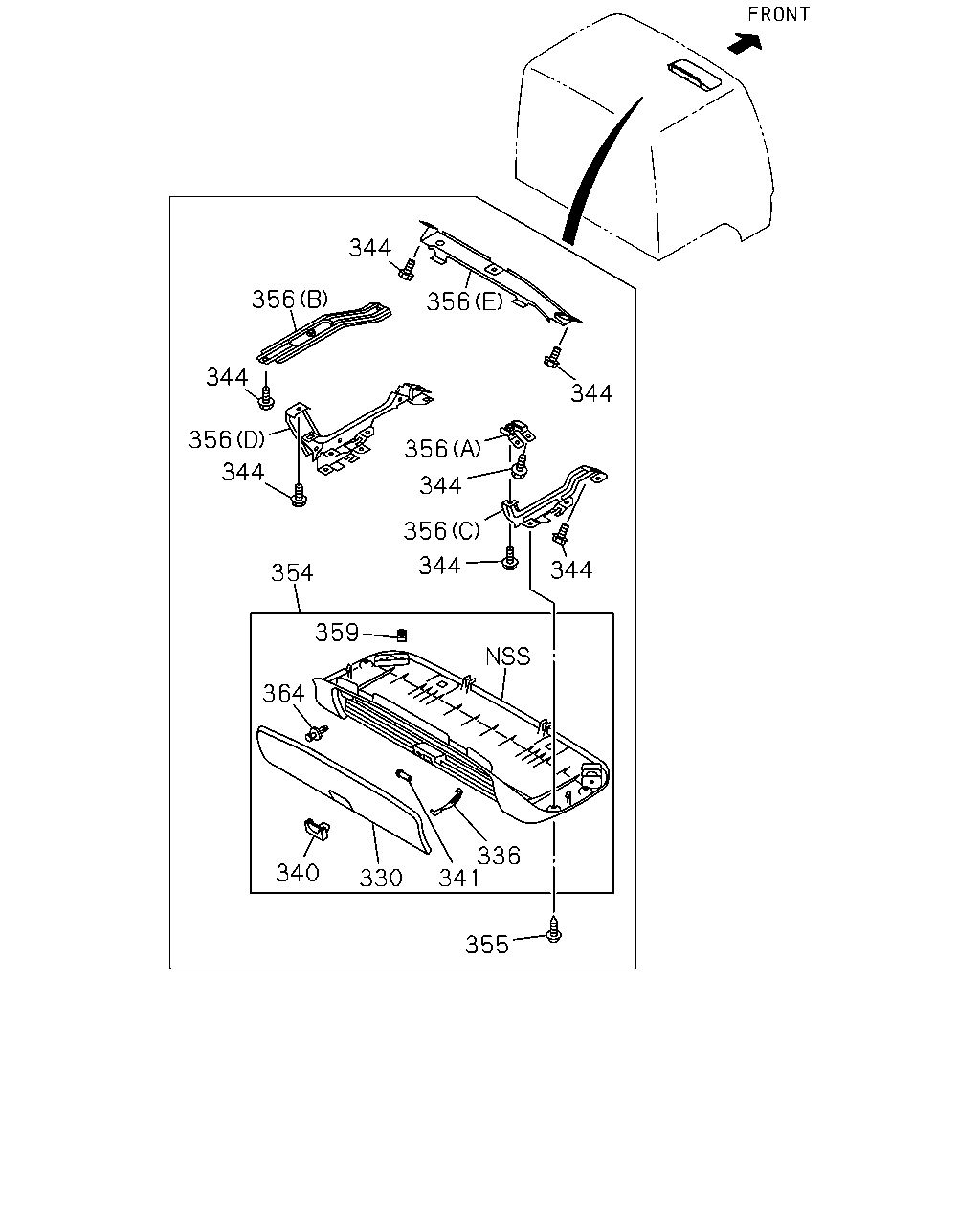

344 356 344 356 344 356 354 344 356 356 344 344 344 359 364 340 330 355 341 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	01	1	1312-
336	STAY; LID	1-72448-379-3	02	1	1312-
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	1312-
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1312-
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	08	1	1404-
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	10	1	1312-1403
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	02	1	1404-
354	TRAY; HEADER ROOF DARK GRAY	8-97407-386-5	01	1	1312-1401
354	TRAY; HEADER ROOF DARK GRAY	8-97428-821-0	01	1	1402-
355	SCREW; TRAY M5X16 TAPPING HEXALOBULAR IDN	0-72380-516-0	04	1	1312-
356	BRACKET; ROOF OUTER (A)	8-97386-874-1	01	1	1312-
356	BRACKET; ROOF OUTER (B)	8-98010-059-0	01	1	1312-
356	BRACKET; ROOF OUTER (C)	8-98014-088-3	01	1	1312-
356	BRACKET; ROOF OUTER (D)	8-98023-257-2	01	1	1312-
356	BRACKET; ROOF OUTER (E)	8-98042-015-3	01	1	1312-
359	HOLDER; HEADER TRAY	8-98041-754-0	04	1	1312-
364	STOPPER; LID IDN	8-98010-867-1	03	1	1312-

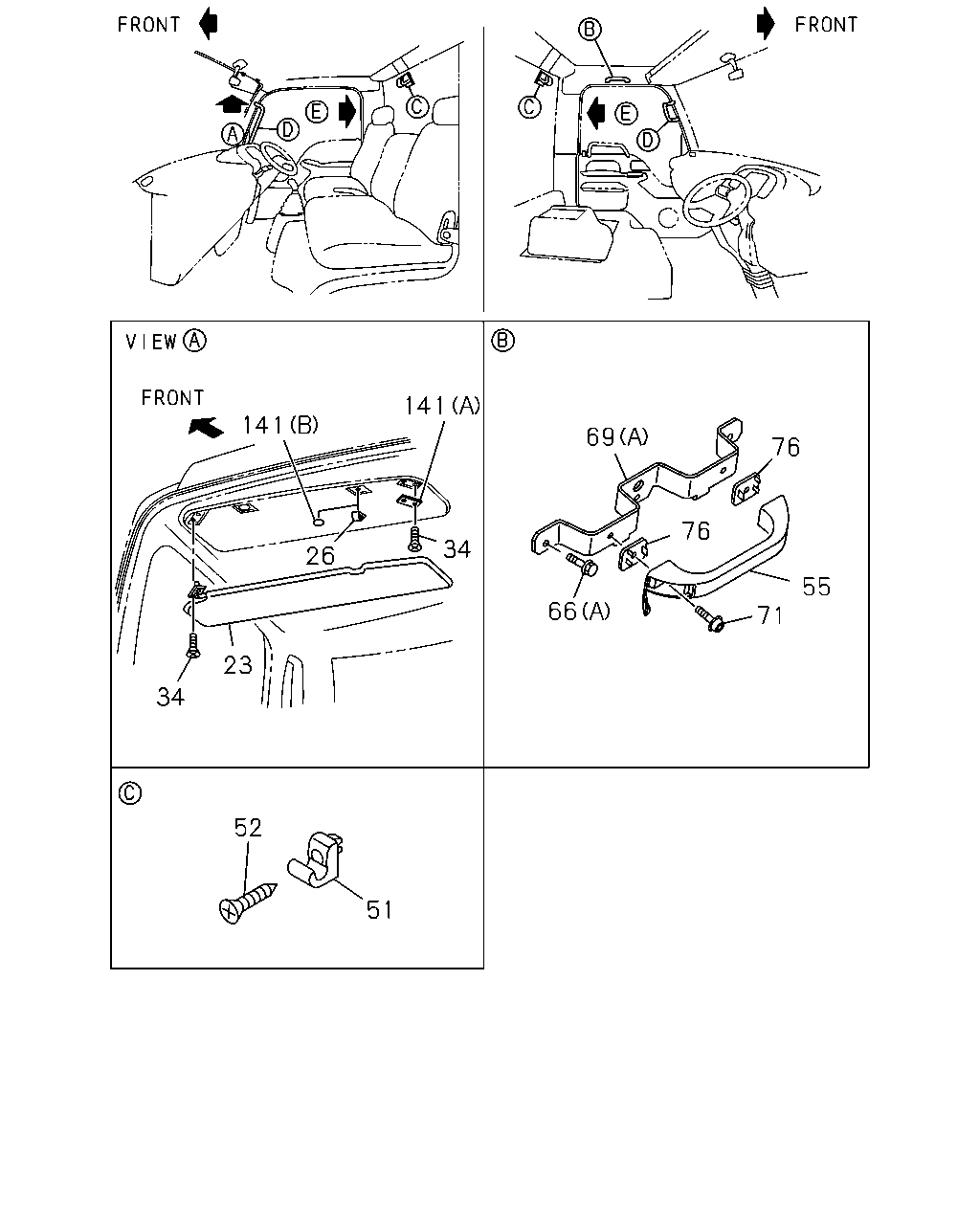

141 141 26 34 23 34 52 51 69 66 76 71 55 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SUN VISOR DARK GRAY IDN	8-97407-373-2	01	1	1312-
26	HOLDER; SUN VISOR DARK GRAY	8-97405-171-0	01	1	1312-
34	SCREW; SUN VISOR M6X26	8-98033-674-0	04	1	1312-
51	HOOK; COAT HANGER DARK GRAY	8-97409-845-0	02	1	1312-
52	SCREW; HOOK M4X20 TAPPING OVAL-HEAD IDN	0-70540-420-0	02	1	1312-
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	1312-
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE	0-28050-816-0	04	1	1312-
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	03	1	1312-
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	01	1	1312-
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1312-
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1312-
71	SCREW M6X28	8-98004-344-0	02	1	1312-
76	SPACER; ASSIST GRIP DARK GRAY	8-97405-286-0	02	1	1312-
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1312-
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1312-1401
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	02	1	1402-

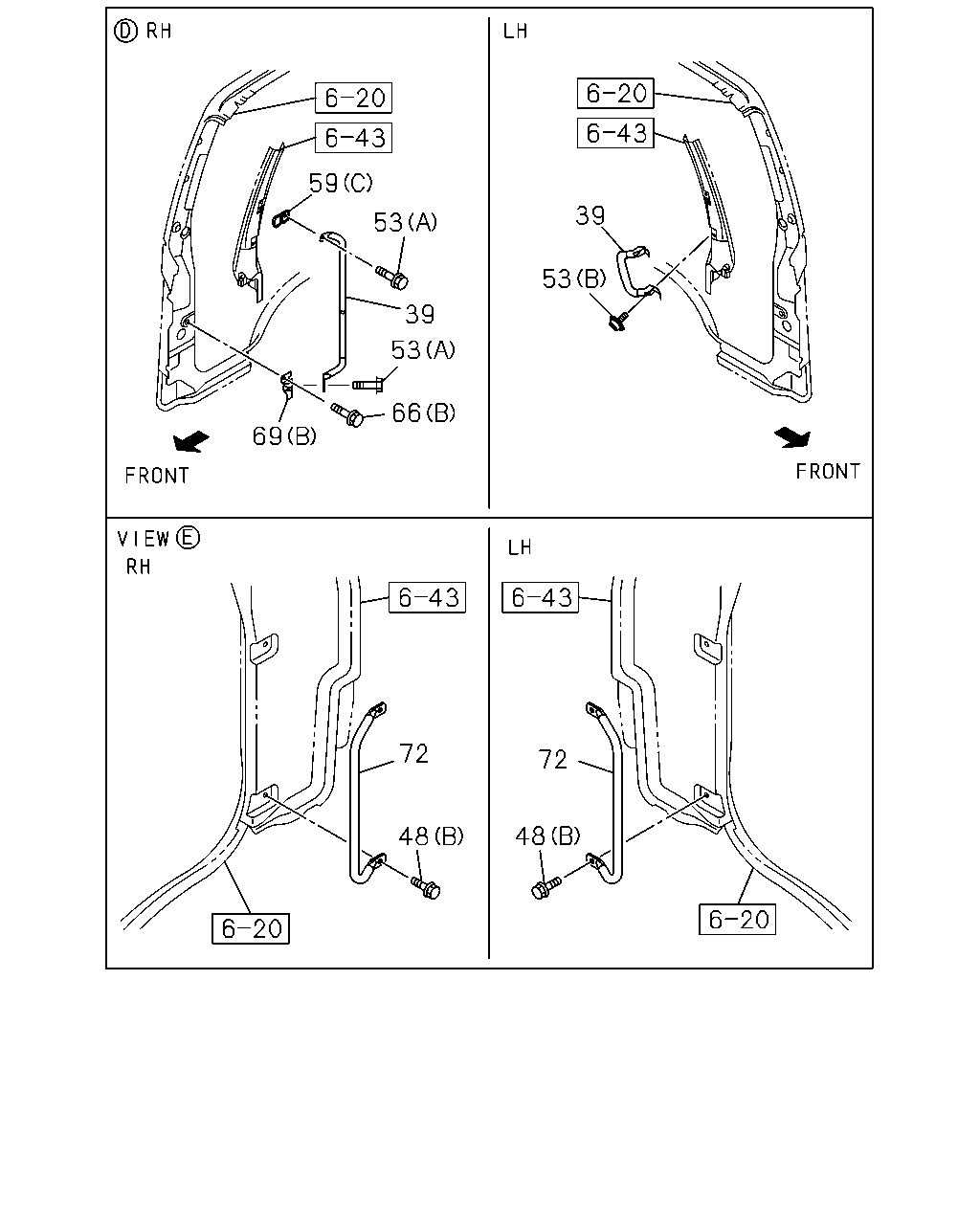

59 53 39 53 66 69 39 53 72 48 72 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	01	1	1312-
39	HANDLE; ASSIST,A-POST DARK GRAY IDN	8-97407-942-2	01	1	1312-
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	1312-
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1312-
53	SCREW; ASSIST HANDLE (B) M6X28	8-98004-344-0	02	1	1312-
53	SCREW; ASSIST HANDLE (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1312-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1312-
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	01	1	1312-
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE	0-28050-816-0	04	1	1312-
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	03	1	1312-
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	01	1	1312-
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1312-
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1312-
72	GRIP; ASSIST,CAB ENTRY,BACK IDN	8-97386-939-0	02	1	1312-
