7-20 — MIRROR AND MIRROR STAY (#131436) — 86 parça

13 53 14 53 71 26 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1312-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1312-
14	MIRROR ASM; OUTSIDE	8-98045-690-0	01	1	1312-
14	MIRROR ASM; OUTSIDE	8-98108-511-0	01	1	1312-
25	SCREW; OUTSIDE MIRROR M6X40	1-71707-223-0	04	1	1312-
26	COVER; OUTSIDE MIRROR	1-71707-222-0	01	1	1312-
26	COVER; OUTSIDE MIRROR	1-71707-221-0	01	1	1312-
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	04	1	1312-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1312-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1312-

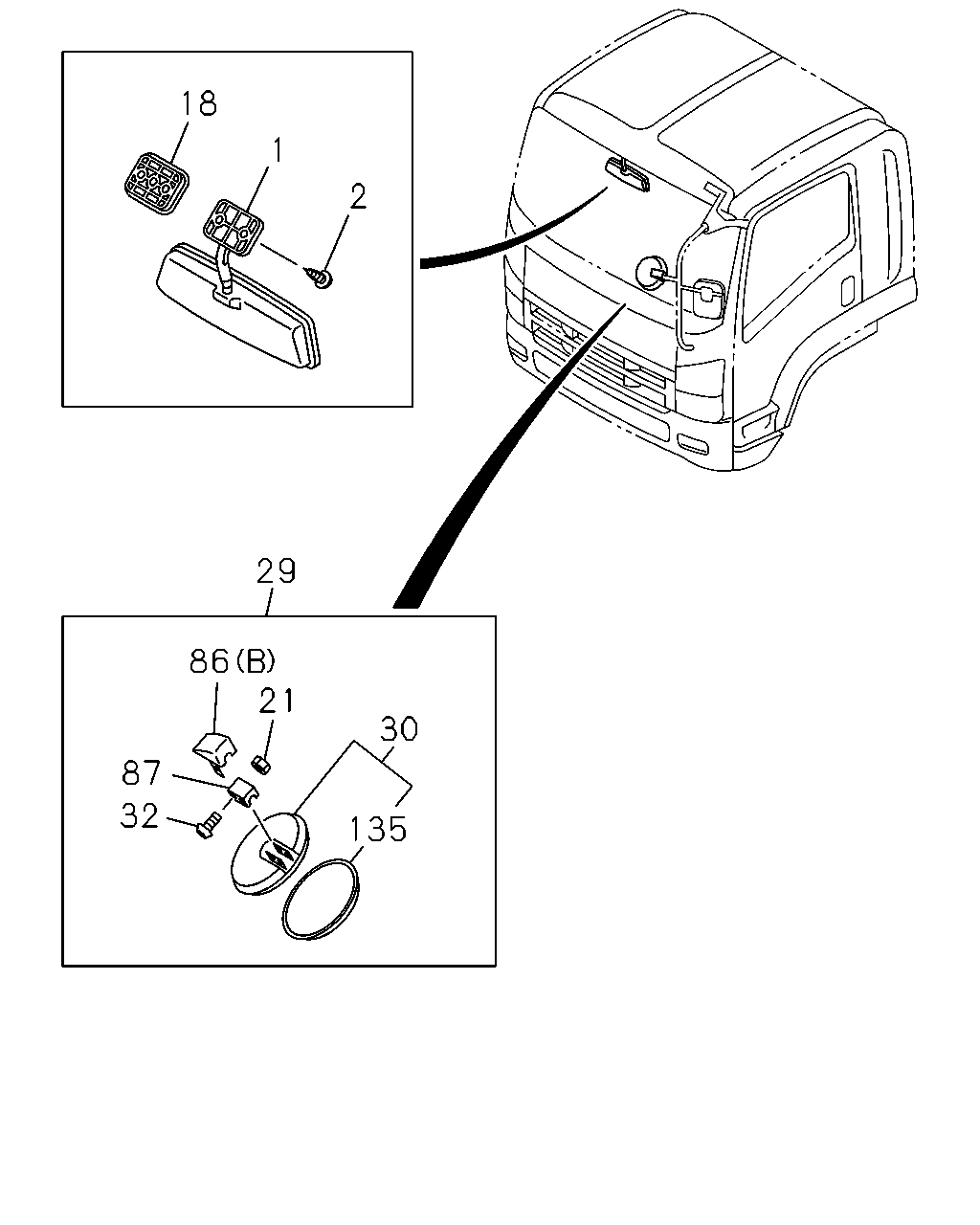

18 1 29 21 30 135 87 32 86 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM IDN	8-97924-058-2	01	1	1312-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1312-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1312-
21	NUT; MIRROR M5	1-09984-124-0	02	1	1312-
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1312-
30	MIRROR; UNDER	1-71798-591-1	01	1	1312-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1312-
87	SPACER	1-71737-646-2	01	1	1312-
135	LENS; MIRROR,SIDE UNDER	1-71798-838-0	01	1	1312-

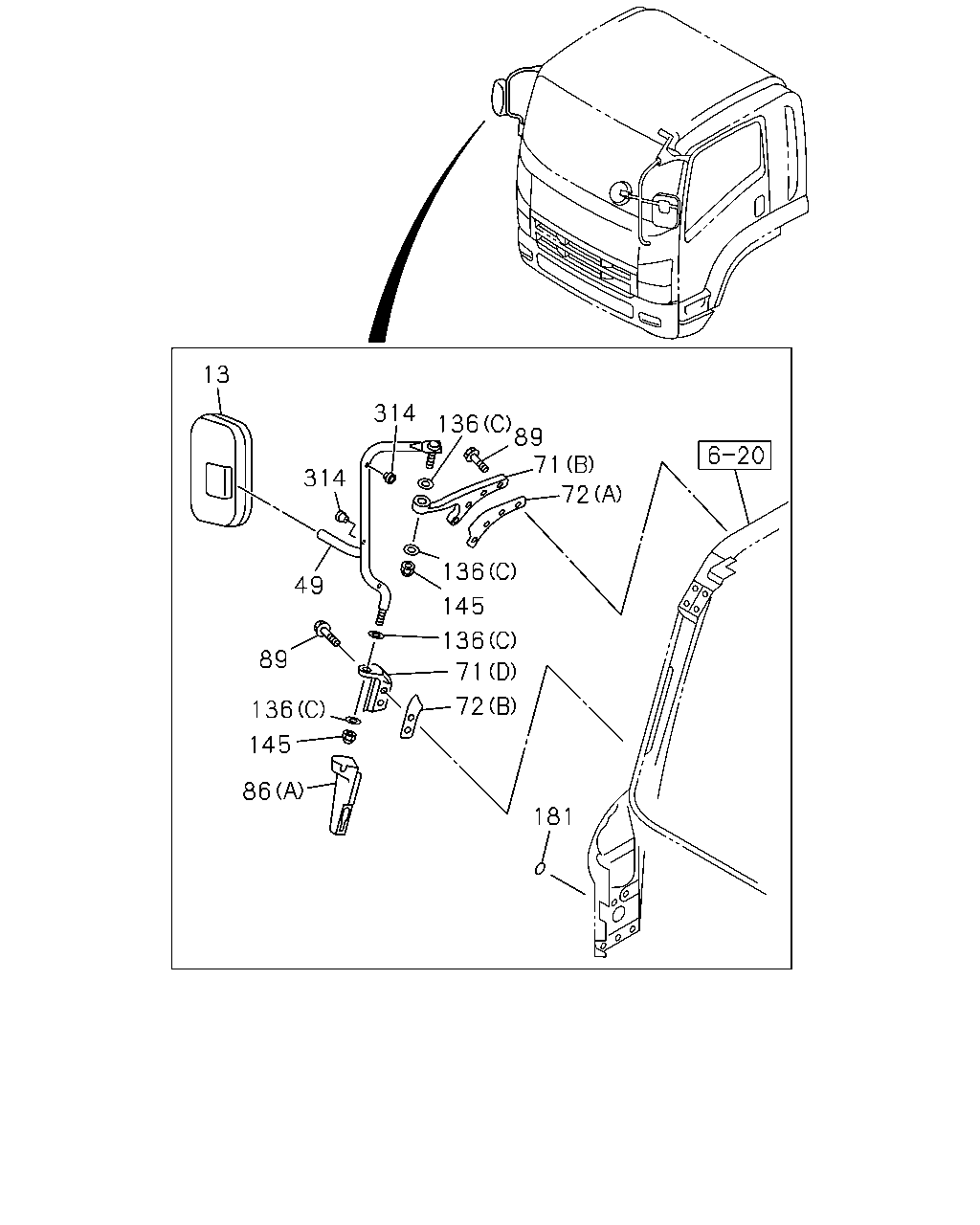

181 86 136 145 72 136 89 145 136 314 71 89 136 314 49 71 72 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1312-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1312-
49	STAY; MIRROR SIDE	8-98085-112-1	01	1	1312-
49	STAY; MIRROR SIDE	8-98091-477-0	01	1	1312-1502
49	STAY; MIRROR SIDE	8-98305-582-0	01	1	1503-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1312-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1312-
72	SHEET (C)	8-98040-535-0	01	1	1312-
72	SHEET (D)	8-98040-537-1	01	1	1312-
72	SHEET (A)	8-98040-351-0	01	1	1312-
72	SHEET (B)	8-98040-353-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1312-
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1312-
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1312-
181	SEAL; BRKT 25X25	8-94272-533-0	01	1	1312-
181	SEAL; BRKT OD=25 BLACK	1-76798-019-0	01	1	1312-
314	BUFFER; STOPPER	8-94314-317-0	02	1	1312-

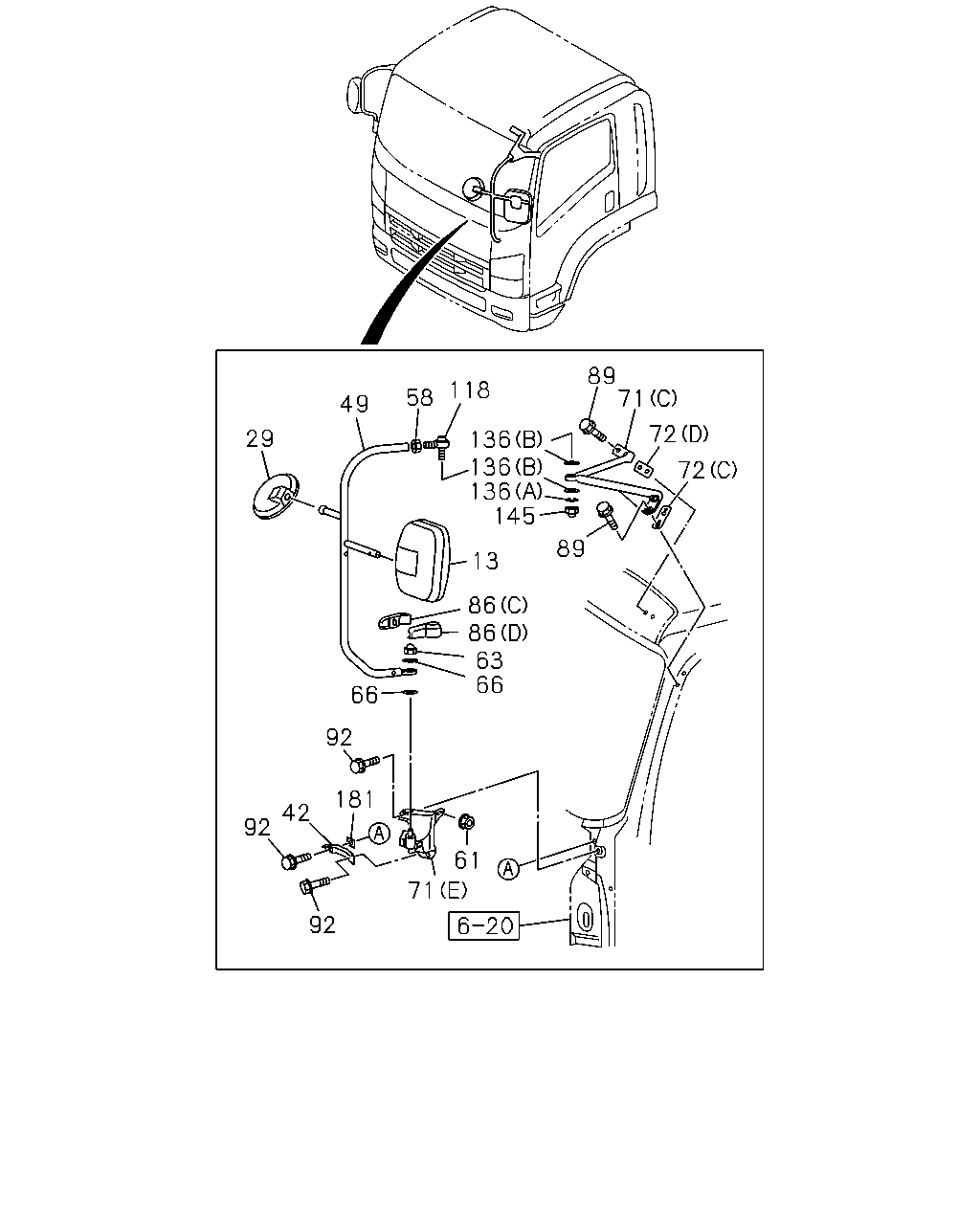

89 118 58 49 29 66 66 86 86 63 13 136 136 136 145 72 89 72 71 92 181 42 92 92 61 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1312-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1312-
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1312-
42	ATTACHMENT; OUTSIDE MIRROR	8-98070-643-0	01	1	1312-
49	STAY; MIRROR SIDE	8-98085-112-1	01	1	1312-
49	STAY; MIRROR SIDE	8-98091-477-0	01	1	1312-1502
49	STAY; MIRROR SIDE	8-98305-582-0	01	1	1503-
58	NUT; MIRROR STAY M12	8-98061-883-0	01	1	1312-
61	NUT; STAY,OUTSIDE MIRROR M8 FLANGE	0-91180-108-0	01	1	1312-
63	NUT; STAY M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1312-
66	WASHER; PL LOWER	0-91610-614-0	01	1	1312-
66	WASHER; PL UPPER	8-98201-756-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1312-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1312-
72	SHEET (C)	8-98040-535-0	01	1	1312-
72	SHEET (D)	8-98040-537-1	01	1	1312-
72	SHEET (A)	8-98040-351-0	01	1	1312-
72	SHEET (B)	8-98040-353-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1312-
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1312-
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	04	1	1312-
118	JOINT ASM; BALL	1-71798-356-2	01	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1312-
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1312-
181	SEAL; BRKT 25X25	8-94272-533-0	01	1	1312-
181	SEAL; BRKT OD=25 BLACK	1-76798-019-0	01	1	1312-
