6-05 — FRONT PANEL (#131415) — 109 parça

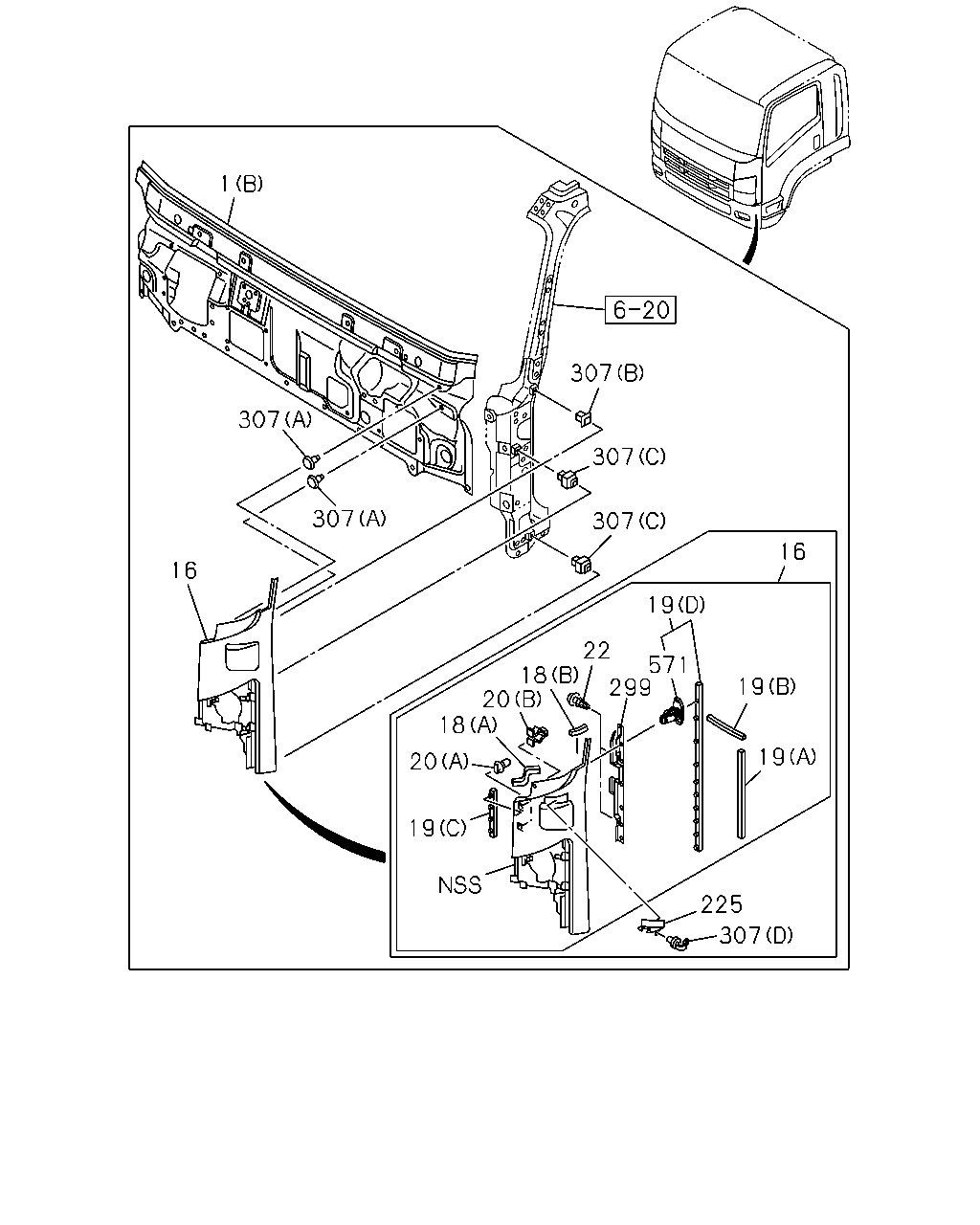

çizim 388618
307 307 307 307 307 307 16 19 19 19 22 18 299 571 225 19 20 20 18 16 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1312-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1312-
16 PANEL; FRONT,SIDE
WHITE IDN 		8-97407-511-5 01 1 1312-
16 PANEL; FRONT,SIDE
WHITE IDN 		8-97407-509-4 01 1 1312-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) IDN 		8-98038-608-0 02 1 1312-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) IDN 		8-98043-511-1 02 1 1312-
19 SEAL; FRT SIDE PANEL
(B) IDN 		8-98035-268-0 02 1 1312-
19 SEAL; FRT SIDE PANEL
(A) IDN 		8-98062-215-0 02 1 1312-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1312-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1312-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1312-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1312-
20 CLIP; FRT PANEL SIDE
(A) IDN 		8-97410-739-1 04 1 1312-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1312-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER IDN 		0-74360-410-0 06 1 1312-
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1312-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1312-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1312-
307 GROMMET; FRT PANEL
(B) IDN 		8-97410-738-0 02 1 1312-
307 GROMMET; FRT PANEL
(C) IDN 		8-98021-300-1 04 1 1312-
307 GROMMET; FRT PANEL
(A) OD=20 IDN 		8-98034-363-1 04 1 1312-
307 GROMMET; FRT PANEL
(D) IDN 		8-98028-743-0 01 1 1312-
571 CLIP; SEAL
NATURAL IDN 		8-98027-457-0 20 1 1312-

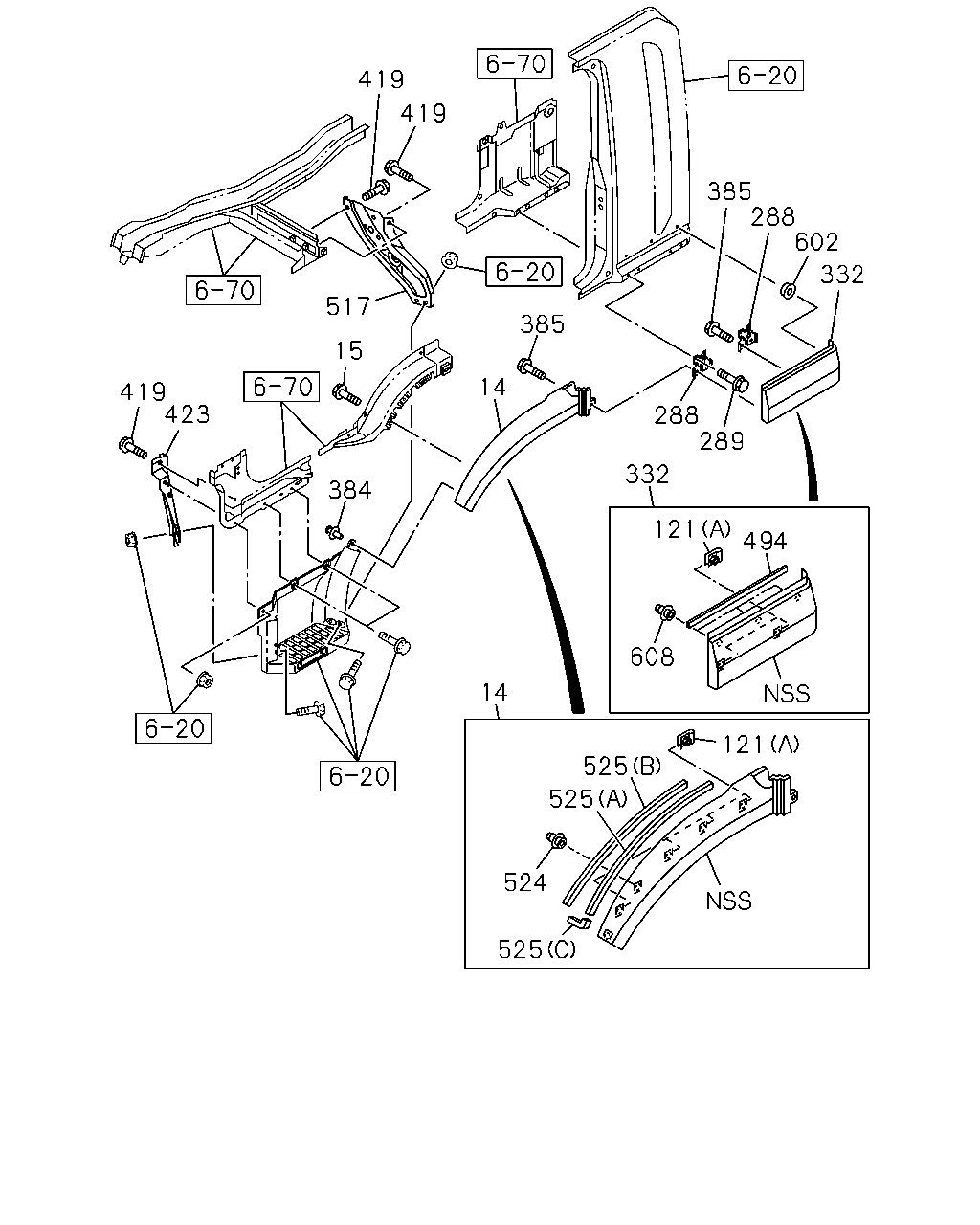

çizim 388623
419 419 608 525 525 525 524 121 494 121 332 289 288 14 384 14 385 517 15 419 385 288 602 332 423
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT 8-98182-321-0 01 1 1312-
14 FENDER; FRT 8-98182-320-0 01 1 1312-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1312-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 1312-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1312-
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 1312-
121 GROMMET; FENDER
(D) OD=8.3 IDN 		8-94279-989-0 12 1 1312-
121 GROMMET; FENDER
(B) H=15 IDN 		8-94463-268-1 04 1 1312-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1312-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1312-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1312-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1312-
332 FENDER; RR 8-98038-435-2 01 1 1312-
332 FENDER; RR 8-98038-434-2 01 1 1312-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1312-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1312-
419 BOLT; STEP
M8X20 FLANGE IDN 		0-28650-820-0 08 1 1312-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1312-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1312-
494 FINISHER; FENDER 8-98072-723-0 01 1 1312-
494 FINISHER; FENDER 8-98041-172-1 01 1 1312-
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 1312-
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 1312-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1312-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1312-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1312-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1312-
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1312-
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1312-

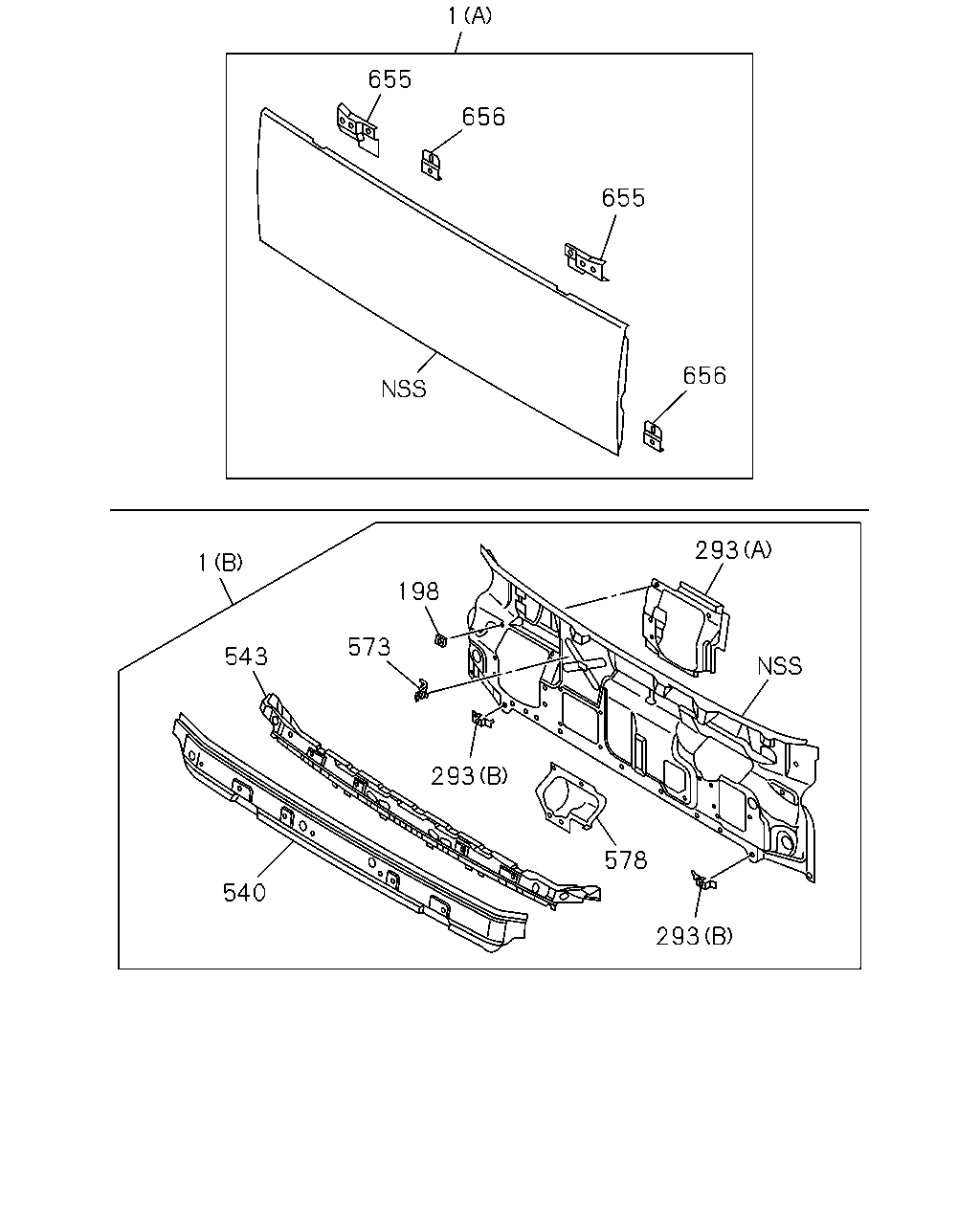

çizim 388628
1 655 656 655 656 1 198 573 543 540 293 293 578 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1312-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1312-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1312-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1312-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1312-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1312-
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1312-
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1312-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1312-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1312-
655 PATCH; HINGE 8-98031-263-0 01 1 1312-
655 PATCH; HINGE 8-98031-264-0 01 1 1312-
656 PATCH; STRIKER 8-98031-265-0 02 1 1312-

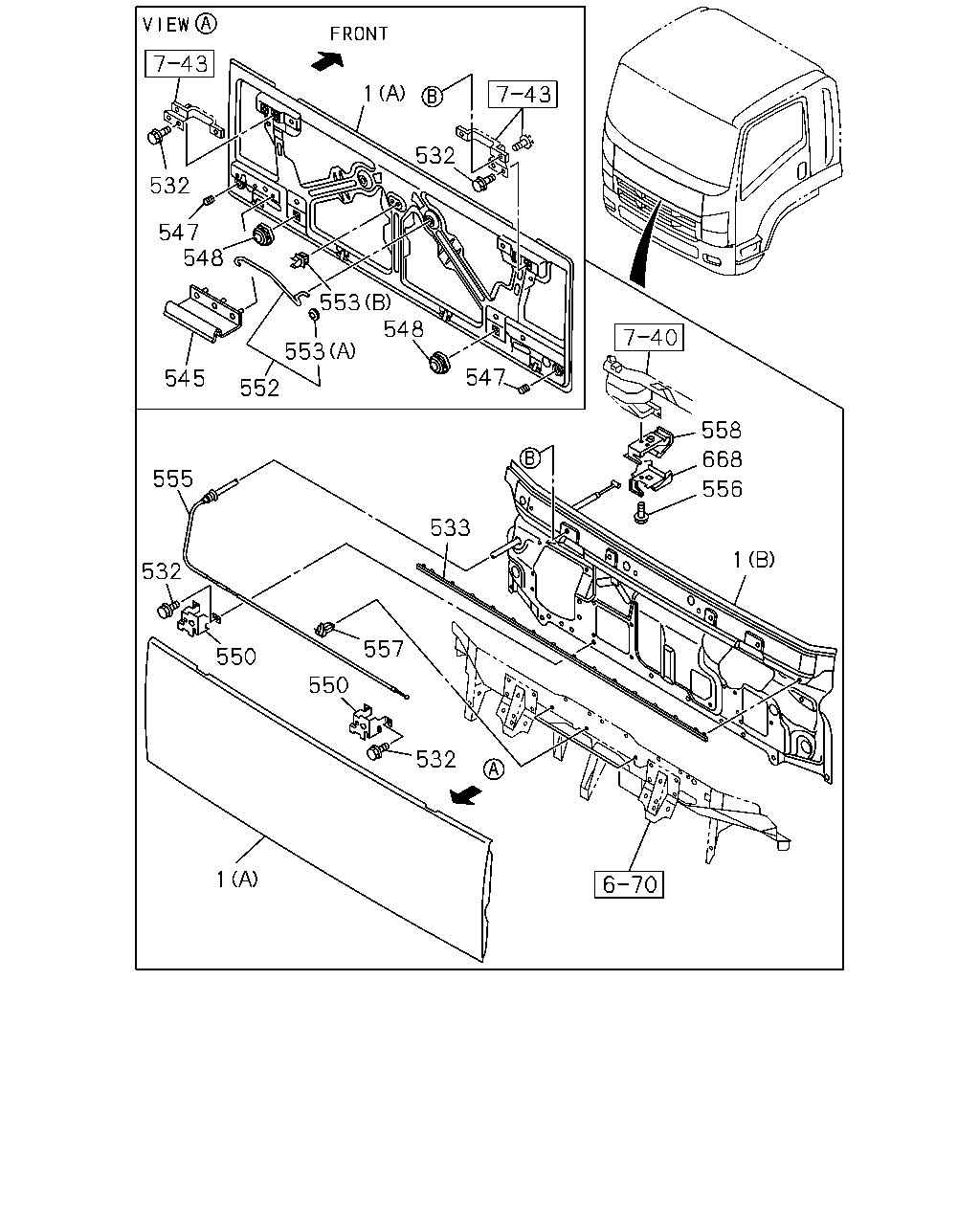

çizim 388677
1 532 532 547 553 548 548 553 552 545 547 555 558 556 668 1 533 557 550 550 532 1 532
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1312-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1312-
532 BOLT; FRT PANEL
M8X20 FLANGE IDN 		0-28650-820-0 08 1 1312-
533 SEAL; FRT PANEL
IDN 		8-98096-289-0 01 1 1312-
545 SEAL; FRT LID
IDN 		8-98123-265-0 01 1 1312-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1312-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1312-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1312-
552 STAY; FRT LID 8-98089-838-0 01 1 1312-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1312-
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1312-
555 CABLE; FRT LID 8-98036-574-1 01 1 1312-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1312-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1312-
558 LEVER; FRT LID 1-79338-007-1 01 1 1312-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1312-

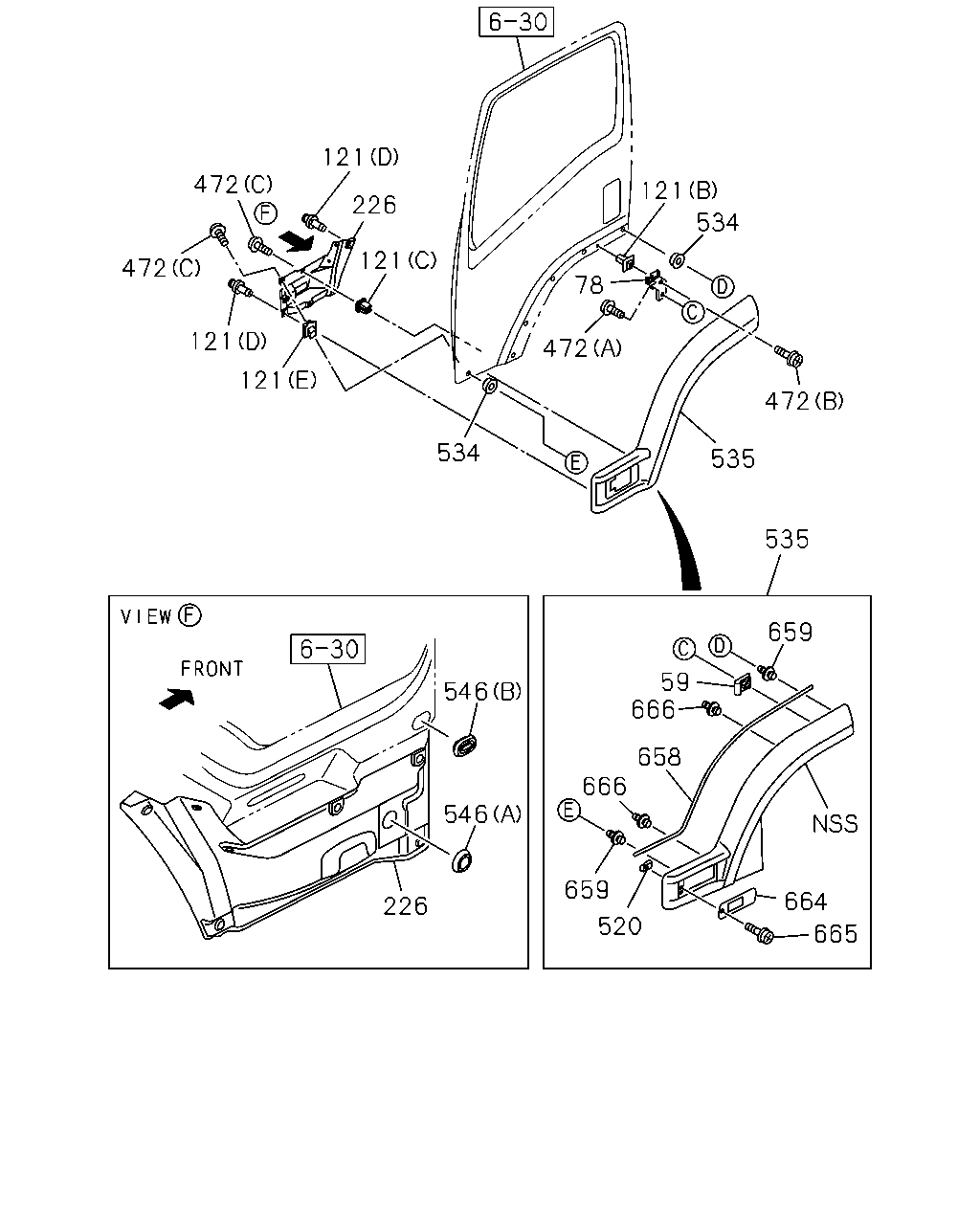

çizim 389255
121 534 78 472 472 535 534 121 226 121 472 472 121 121 546 546 226 535 659 59 666 658 666 659 520 664 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 02 1 1312-
78 BRACKET; FENDER 8-98041-166-1 01 1 1312-
78 BRACKET; FENDER 8-98041-165-1 01 1 1312-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 1312-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1312-
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 1312-
121 GROMMET; FENDER
(D) OD=8.3 IDN 		8-94279-989-0 12 1 1312-
121 GROMMET; FENDER
(B) H=15 IDN 		8-94463-268-1 04 1 1312-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1312-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1312-
226 PROTECTOR; FRT 8-98037-715-2 01 1 1312-
226 PROTECTOR; FRT 8-98037-714-2 01 1 1312-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1312-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1312-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1312-
520 NUT; FENDER 8-94279-501-0 02 1 1312-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1312-
535 FENDER; BLISTER 8-98106-503-0 01 1 1312-
535 FENDER; BLISTER 8-98106-502-0 01 1 1312-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1312-
546 PLUG; DUMMY HOLE
(B) IDN 		8-94430-184-1 02 1 1312-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1312-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1312-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1312-
664 BASE; DOOR,SIDE TURN 8-98053-146-1 01 1 1312-
664 BASE; DOOR,SIDE TURN 8-98053-145-1 01 1 1312-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1312-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1312-
