◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11565 - FVM(INDONESIA)6HK1 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#131408) — 105 parça

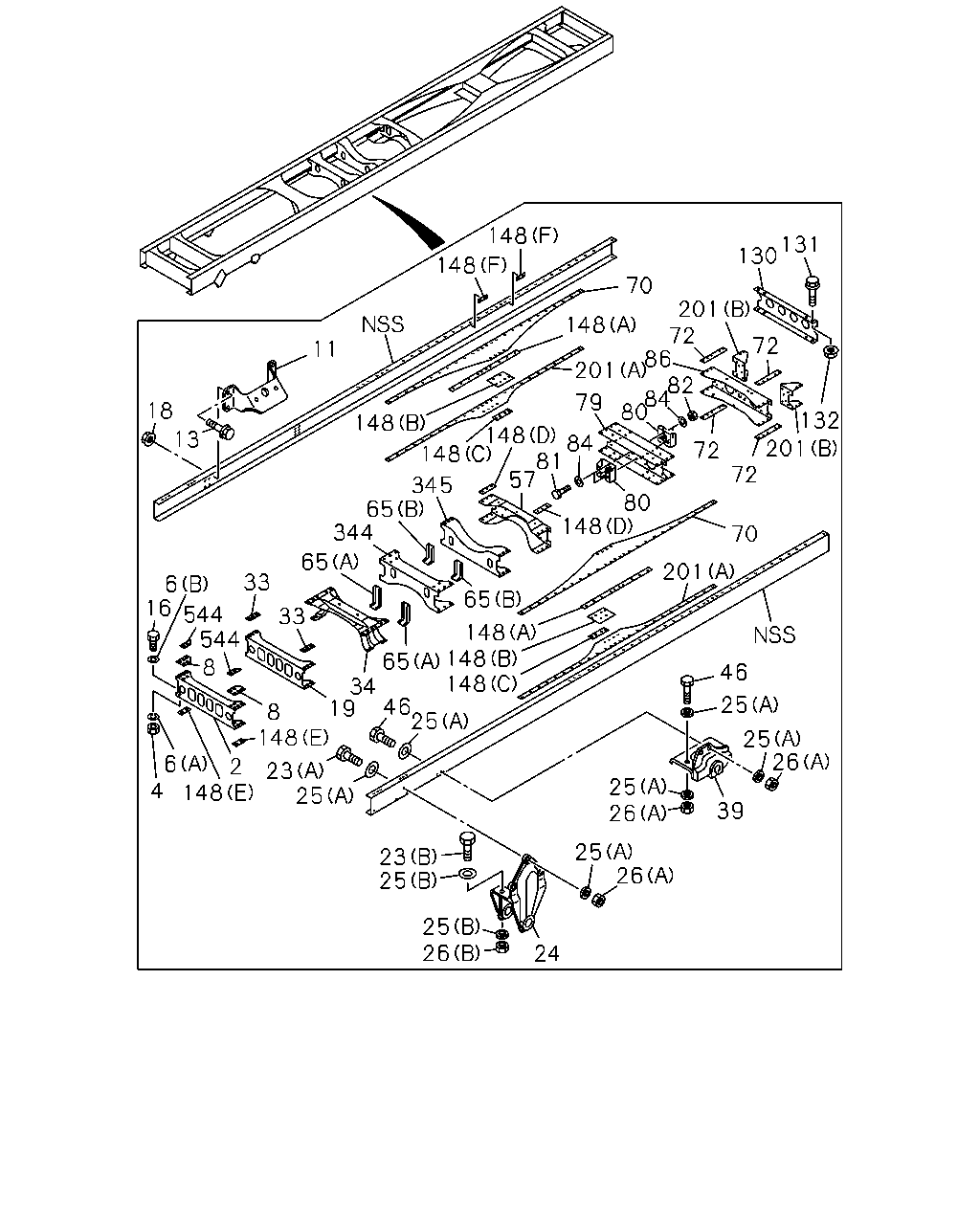

çizim 388762
18 13 11 148 148 70 130 131 201 72 72 148 86 132 201 72 72 82 201 79 84 80 80 148 84 148 81 57 148 345 65 148 344 70 201 65 33 6 16 544 544 33 8 8 148 23 2 6 4 148 25 23 25 25 26 24 26 25 26 25 39 26 25 25 46 25 46 19 34 65 148 148 148 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST
IDN 		8-97695-001-0 01 1 1312- ●
2 MEMBER; CROSS,1ST
6HK1-TCN ENG(82L) IDN 		8-97695-001-0 01 1 1312- ●
2 MEMBER; CROSS,1ST
6HK1-TCS ENG(80L) IDN 		8-97610-852-7 01 1 1312- ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1312- ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=14.2 		0-91510-814-0 02 1 1312- ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=15 		8-98010-627-1 02 1 1312- ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1312- ● ●
11 BRACKET; ENG MTG
IDN 		8-97695-131-0 02 1 1312- ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) IDN 		8-97695-131-0 02 1 1312- ●
11 BRACKET; ENG MTG
6HK1-TCS ENG(80L) 		8-97619-550-0 02 1 1312- ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 1312- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M14X40 		0-20851-440-0 02 1 1312- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1312- ● ●
19 MEMBER; CROSS,2ND
IDN 		8-97695-002-0 01 1 1312- ●
19 MEMBER; CROSS,2ND
6HK1-TCN ENG(82L) IDN 		8-97695-002-0 01 1 1312- ●
19 MEMBER; CROSS,2ND
6HK1-TCS ENG(80L) IDN 		8-97610-853-5 01 1 1312- ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1312- ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1312- ● ●
24 BRACKET; FRT SPR,FRT
IDN 		8-97695-046-0 01 1 1312- ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) IDN 		8-97695-046-0 01 1 1312- ●
24 BRACKET; FRT SPR,FRT
IDN 		8-97695-047-0 01 1 1312- ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) IDN 		8-97695-047-0 01 1 1312- ●
24 BRACKET; FRT SPR,FRT
6HK1-TCS ENG(80L) 		8-98018-840-0 01 1 1312- ●
24 BRACKET; FRT SPR,FRT
6HK1-TCS ENG(80L) 		8-98018-841-0 01 1 1312- ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1312- ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1312- ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1312- ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1312- ● ●
33 SPACER; 2ND C/MBR,UPR
IDN 		8-97948-140-0 02 1 1312- ●
33 SPACER; 2ND C/MBR,UPR
6HK1-TCN ENG(82L) IDN 		8-97948-140-0 02 1 1312- ●
33 SPACER; 2ND C/MBR,UPR
6HK1-TCS ENG(80L) 		8-97611-040-0 02 1 1312- ●
34 MEMBER; CROSS,3RD
IDN 		8-97695-208-0 01 1 1312- ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) IDN 		8-97695-208-0 01 1 1312- ●
34 MEMBER; CROSS,3RD
6HK1-TCS ENG(80L) 		8-97610-854-2 01 1 1312- ●
39 BRACKET; FRT SPR,RR
IDN 		8-97924-625-0 01 1 1312- ●
39 BRACKET; FRT SPR,RR
6HK1-TCN ENG(82L) IDN 		8-97924-625-0 01 1 1312- ●
39 BRACKET; FRT SPR,RR
IDN 		8-97924-626-0 01 1 1312- ●
39 BRACKET; FRT SPR,RR
6HK1-TCN ENG(82L) IDN 		8-97924-626-0 01 1 1312- ●
39 BRACKET; FRT SPR,RR
6HK1-TCS ENG(80L) 		8-98043-648-0 01 1 1312- ●
39 BRACKET; FRT SPR,RR
6HK1-TCS ENG(80L) 		8-98043-649-0 01 1 1312- ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1312- ● ●
57 MEMBER; CROSS,RR SUSP FRT
IDN 		8-97695-021-0 01 1 1312- ●
57 MEMBER; CROSS,RR SUSP FRT
6HK1-TCN ENG(82L) IDN 		8-97695-021-0 01 1 1312- ●
57 MEMBER; CROSS,RR SUSP FRT
6HK1-TCS ENG(80L) IDN 		8-97612-103-1 01 1 1312- ●
65 BRACKET; CENTER BRG
(A) 		8-97622-644-0 02 1 1312- ●
65 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (B) 		8-97614-128-0 02 1 1312- ●
65 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (A) 		8-97614-150-0 02 1 1312- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) (A) 		8-97614-129-0 02 1 1312- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) (B) 		8-97614-132-0 02 1 1312- ●
70 GUSSET; TRUNNION,UPR
IDN 		8-97695-027-0 02 1 1312- ●
70 GUSSET; TRUNNION,UPR
6HK1-TCN ENG(82L) IDN 		8-97695-027-0 02 1 1312- ●
70 GUSSET; TRUNNION,UPR
6HK1-TCS ENG(80L) IDN 		8-97612-106-0 02 1 1312- ●
72 SPACER; TRUNNION 8-97612-110-0 04 1 1312- ● ●
79 MEMBER; CROSS,TRUNNION ASM
IDN 		8-97695-005-0 01 1 1312- ●
79 MEMBER; CROSS,TRUNNION ASM
6HK1-TCN ENG(82L) IDN 		8-97695-005-0 01 1 1312- ●
79 MEMBER; CROSS,TRUNNION ASM
6HK1-TCS ENG(80L) IDN 		8-97612-104-0 01 1 1312- ●
80 BRACKET; C/MBR
IDN 		8-97948-138-0 02 1 1312- ●
80 BRACKET; C/MBR
6HK1-TCN ENG(82L) IDN 		8-97948-138-0 02 1 1312- ●
80 BRACKET; C/MBR
6HK1-TCS ENG(80L) 		1-53363-068-0 02 1 1312- ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 1312- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1312- ● ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1312- ● ●
86 MEMBER; CROSS,RR SUSP RR
IDN 		8-97695-006-0 01 1 1312- ●
86 MEMBER; CROSS,RR SUSP RR
6HK1-TCN ENG(82L) IDN 		8-97695-006-0 01 1 1312- ●
86 MEMBER; CROSS,RR SUSP RR
6HK1-TCS ENG(80L) IDN 		8-97612-105-4 01 1 1312- ●
130 MEMBER; CROSS,END
IDN 		8-97695-020-0 01 1 1312- ●
130 MEMBER; CROSS,END
6HK1-TCN ENG(82L) IDN 		8-97695-020-0 01 1 1312- ●
130 MEMBER; CROSS,END
6HK1-TCS ENG(80L) IDN 		8-97610-869-1 01 1 1312- ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1312- ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1312- ● ●
148 SPACER; C/MBR
(F) IDN 		8-97695-165-0 04 1 1312- ●
148 SPACER; C/MBR
6HK1-TCN ENG(82L) (F) IDN 		8-97695-165-0 04 1 1312- ●
148 SPACER; C/MBR
(E) 		8-97611-039-0 02 1 1312- ● ●
148 SPACER; C/MBR
(D) 		8-97612-109-0 02 1 1312- ● ●
148 SPACER; C/MBR
(A) IDN 		8-97695-162-0 02 1 1312- ●
148 SPACER; C/MBR
6HK1-TCN ENG(82L) (A) IDN 		8-97695-162-0 02 1 1312- ●
148 SPACER; C/MBR
(C) IDN 		8-97695-163-0 02 1 1312- ●
148 SPACER; C/MBR
6HK1-TCN ENG(82L) (C) IDN 		8-97695-163-0 02 1 1312- ●
148 SPACER; C/MBR
(B) IDN 		8-97695-164-0 02 1 1312- ●
148 SPACER; C/MBR
6HK1-TCN ENG(82L) (B) IDN 		8-97695-164-0 02 1 1312- ●
148 SPACER; C/MBR
6HK1-TCS ENG(80L) (F) 		8-97612-111-0 04 1 1312- ●
148 SPACER; C/MBR
6HK1-TCS ENG(80L) (A) 		8-97612-112-0 02 1 1312- ●
148 SPACER; C/MBR
6HK1-TCS ENG(80L) (B) 		8-97612-113-0 02 1 1312- ●
148 SPACER; C/MBR
6HK1-TCS ENG(80L) (C) 		8-97612-115-0 02 1 1312- ●
201 GUSSET; C/MBR
(B) IDN 		8-97695-028-0 02 1 1312- ●
201 GUSSET; C/MBR
6HK1-TCN ENG(82L) (B) IDN 		8-97695-028-0 02 1 1312- ●
201 GUSSET; C/MBR
(A) IDN 		8-97695-032-0 01 1 1312- ●
201 GUSSET; C/MBR
(A) IDN 		8-97695-035-0 01 1 1312- ●
201 GUSSET; C/MBR
6HK1-TCN ENG(82L) (A) IDN 		8-97695-033-0 01 1 1312- ●
201 GUSSET; C/MBR
6HK1-TCN ENG(82L) (A) IDN 		8-97695-036-0 01 1 1312- ●
201 GUSSET; C/MBR
6HK1-TCS ENG(80L) (B) IDN 		8-97612-108-2 02 1 1312- ●
201 GUSSET; C/MBR
6HK1-TCS ENG(80L) (A) IDN 		8-97640-017-2 01 1 1312- ●
201 GUSSET; C/MBR
6HK1-TCS ENG(80L) (A) IDN 		8-97640-402-1 01 1 1312- ●
201 GUSSET; C/MBR
(B) IDN 		8-97695-028-0 02 1 1312- ●
201 GUSSET; C/MBR
6HK1-TCN ENG(82L) (B) IDN 		8-97695-028-0 02 1 1312- ●
344 MEMBER; CROSS,4TH
IDN 		8-97695-004-0 01 1 1312- ●
344 MEMBER; CROSS,4TH
6HK1-TCN ENG(82L) IDN 		8-97695-004-0 01 1 1312- ●
344 MEMBER; CROSS,4TH
6HK1-TCS ENG(80L) IDN 		8-97611-238-1 01 1 1312- ●
345 MEMBER; CROSS,5TH
6HK1-TCN ENG(82L) IDN 		8-97695-004-0 01 1 1312- ●
345 MEMBER; CROSS,5TH
6HK1-TCS ENG(80L) IDN 		8-97611-238-1 01 1 1312- ●
544 PLATE; CAB FRT MTG
IDN 		8-97695-134-0 02 1 1312- ●
544 PLATE; CAB FRT MTG
6HK1-TCN ENG(82L) IDN 		8-97695-134-0 02 1 1312- ●
544 PLATE; CAB FRT MTG
IDN 		8-97695-134-0 02 1 1312- ●
544 PLATE; CAB FRT MTG
6HK1-TCN ENG(82L) IDN 		8-97695-134-0 02 1 1312- ●
544 PLATE; CAB FRT MTG
6HK1-TCS ENG(80L) 		8-97615-598-0 02 1 1312- ●
