4-50 — FRONT SUSPENSION (#131403) — 33 parça

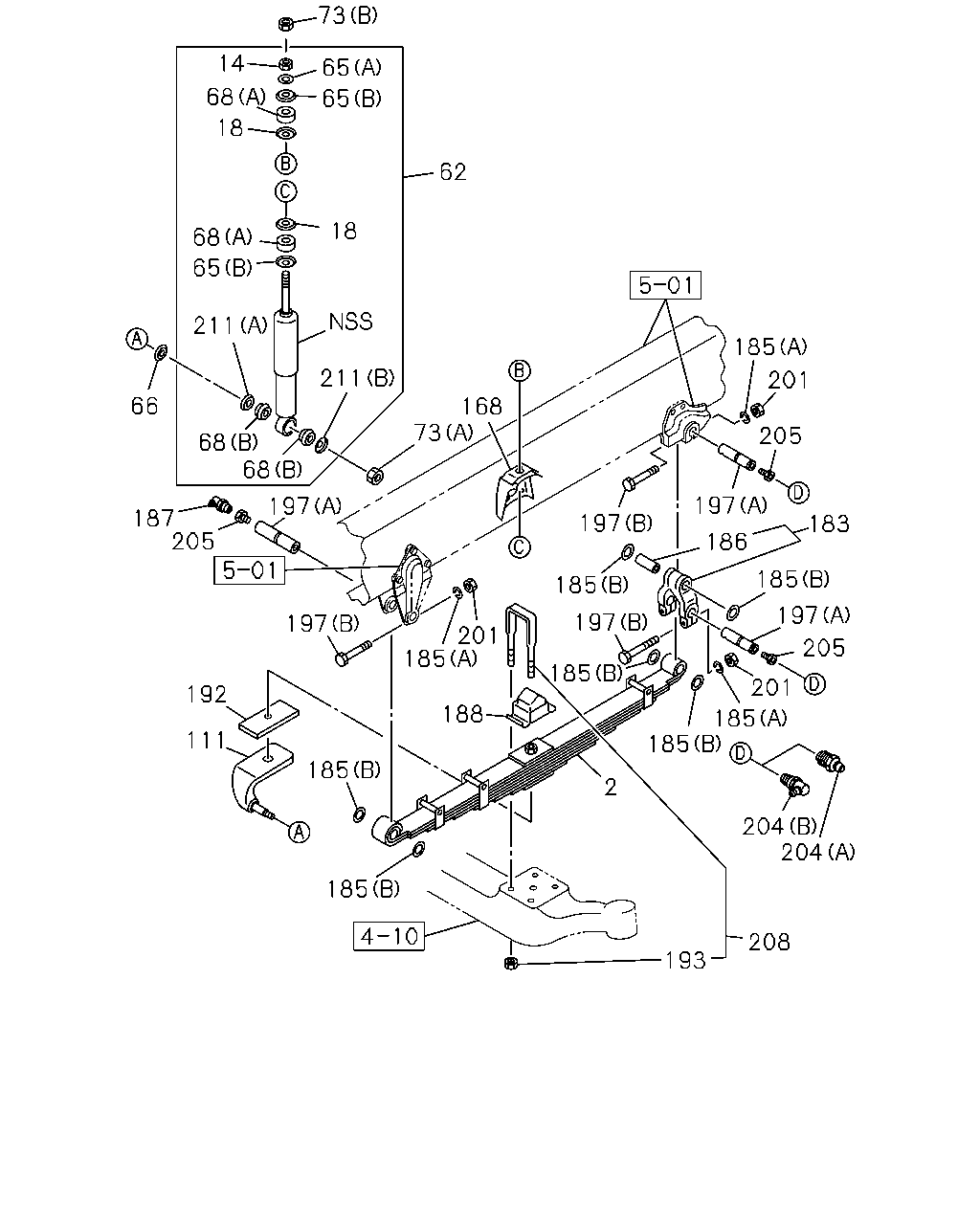

çizim 389239
14 18 68 65 62 65 73 18 68 65 211 211 68 197 68 205 187 66 168 73 197 197 185 197 185 185 188 2 201 197 185 186 201 205 185 192 111 185 185 204 204 208 193 185 185 201 197 183
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. IDN 		8-98167-308-0 02 1 1312-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1312-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1312-
62 ABSORBER ASM; SHOCK,FRT
IDN 		1-51630-512-0 02 1 1312-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1312-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1312-
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1312-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1312-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1312-
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1312-
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1312-
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1312-
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1312-
168 BRACKET; S/ABS,FRT SUSP
6HK1-TCN ENG(82L) IDN 		8-97695-128-0 02 1 1312-
168 BRACKET; S/ABS,FRT SUSP
6HK1-TCS ENG(80L) 		1-51681-616-0 02 1 1312-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1312-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1312-
185 WASHER; LK,PIN
(A) ID=12.2 		8-98179-315-0 12 1 1312-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1312-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1312-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
IDN 		1-51172-125-1 02 1 1312-
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 1312-
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1312-
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1312-
197 PIN; FRT SPR,FRT
(A) IDN 		8-97948-141-0 06 1 1312-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1312-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1312-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1312-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1312-1401
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1402-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1312-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1312-
