◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11565 - FVM(INDONESIA)6HK1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#131401) — 59 parça

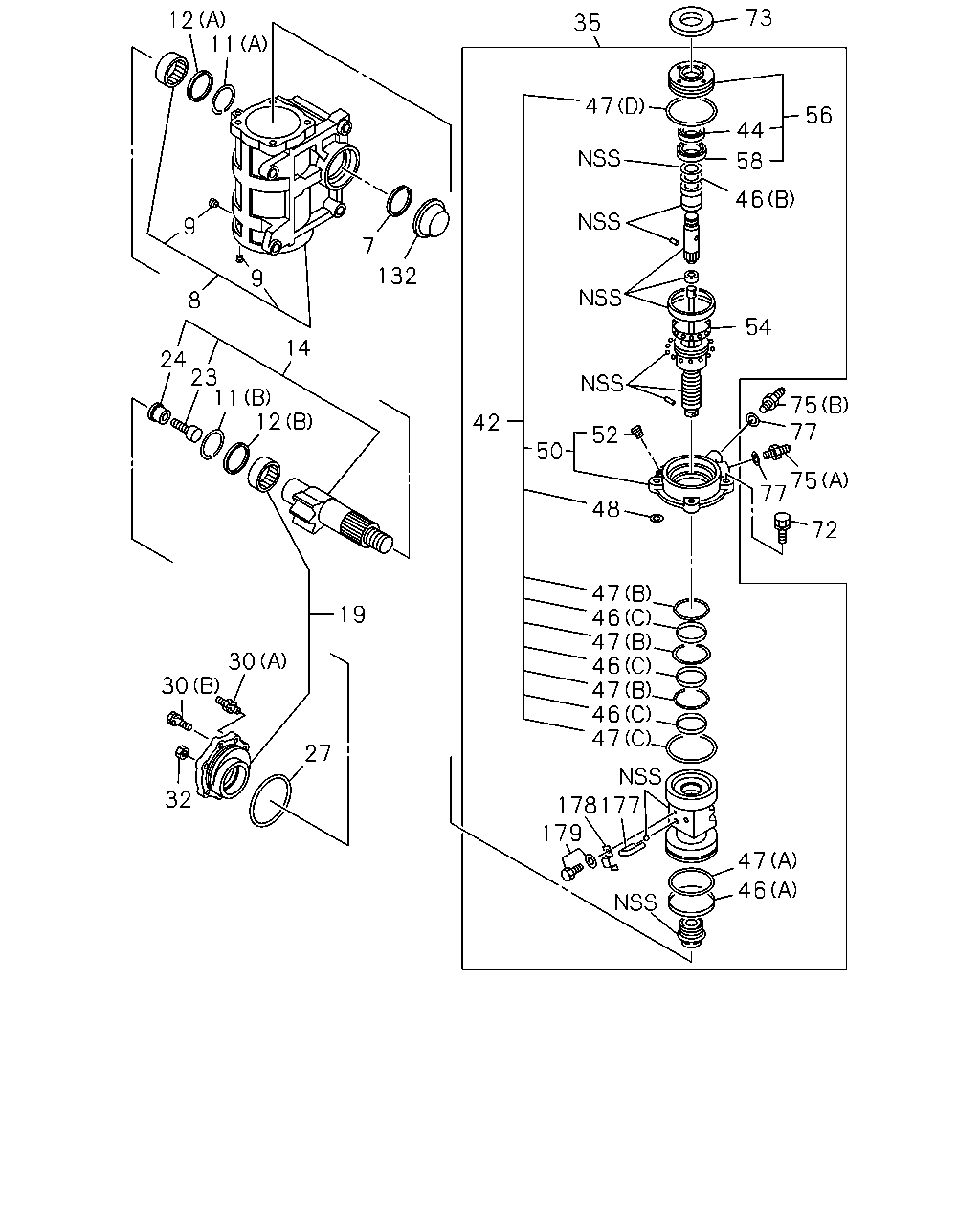

çizim 388591
75 75 72 77 77 54 52 48 47 46 47 46 47 46 47 178 179 177 47 46 27 19 30 30 32 42 12 132 35 73 44 56 46 58 47 50 11 14 7 9 23 24 8 9 11 12
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98159-116-0 01 1 -
8 BOX ASM; STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98159-752-0 01 1 -
9 PLUG; FILLER,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-226-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44320-003-0 01 1 -
19 COVER; SIDE STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98159-763-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98095-563-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C), IDN ASM PART: A = 1-44000-953-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C), IDN ASM PART: A = 1-44000-953-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), IDN ASM PART: A = 1-44000-953-1 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-953-1 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-953-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-227-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44159-032-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44159-034-0 01 1 -
179 SCREW; CLIP STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-09000-610-0 02 1 -

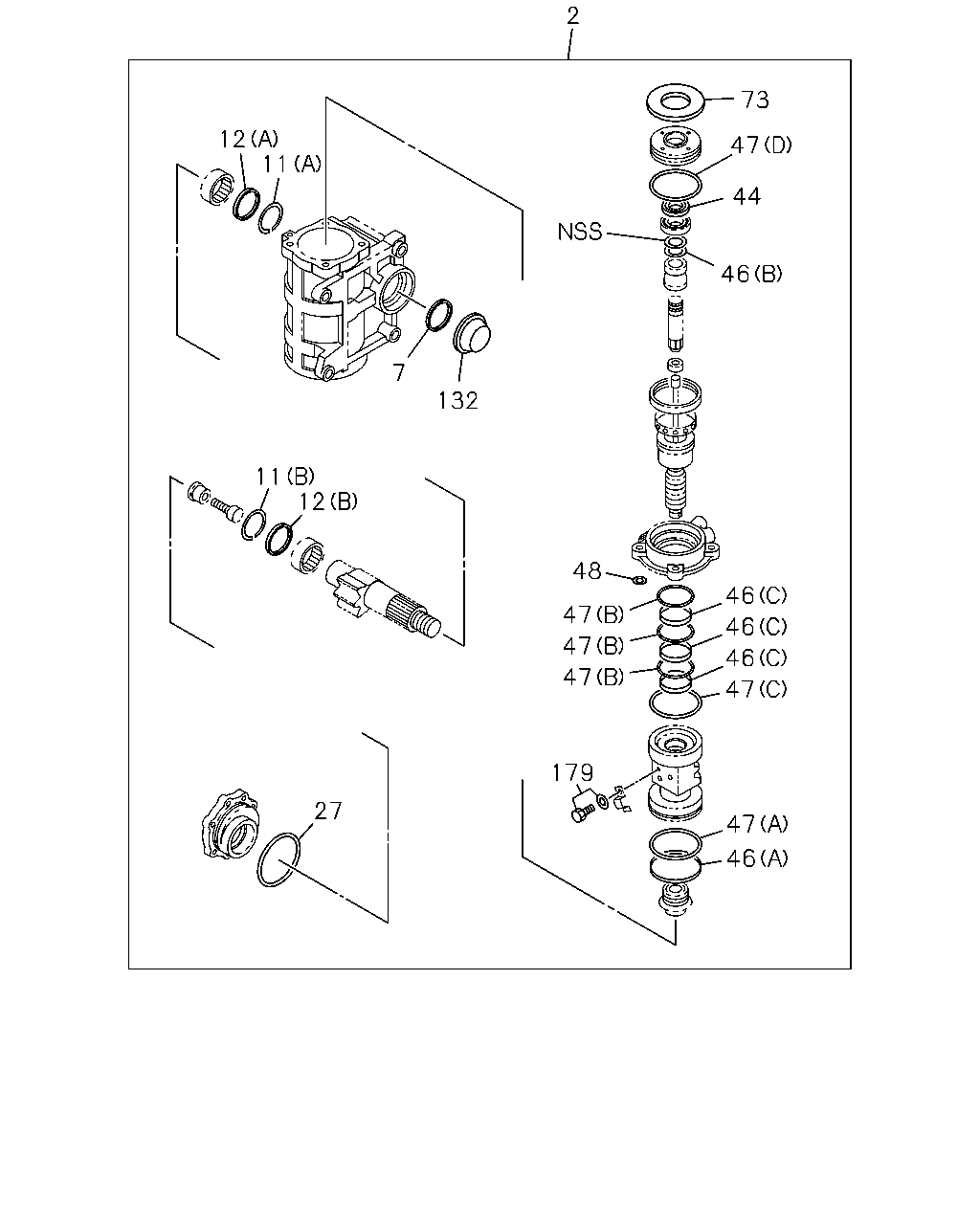

çizim 388594
2 73 44 47 46 46 46 6 47 47 47 48 47 179 47 46 12 11 27 132 7 11 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR, IDN ASM PART: A = 1-44000-953-1 		8-98095-830-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98159-116-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C), IDN ASM PART: A = 1-44000-953-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C), IDN ASM PART: A = 1-44000-953-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), IDN ASM PART: A = 1-44000-953-1 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-227-0 01 1 -
179 SCREW; CLIP STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-09000-610-0 02 1 -
