4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#131399) — 64 parça

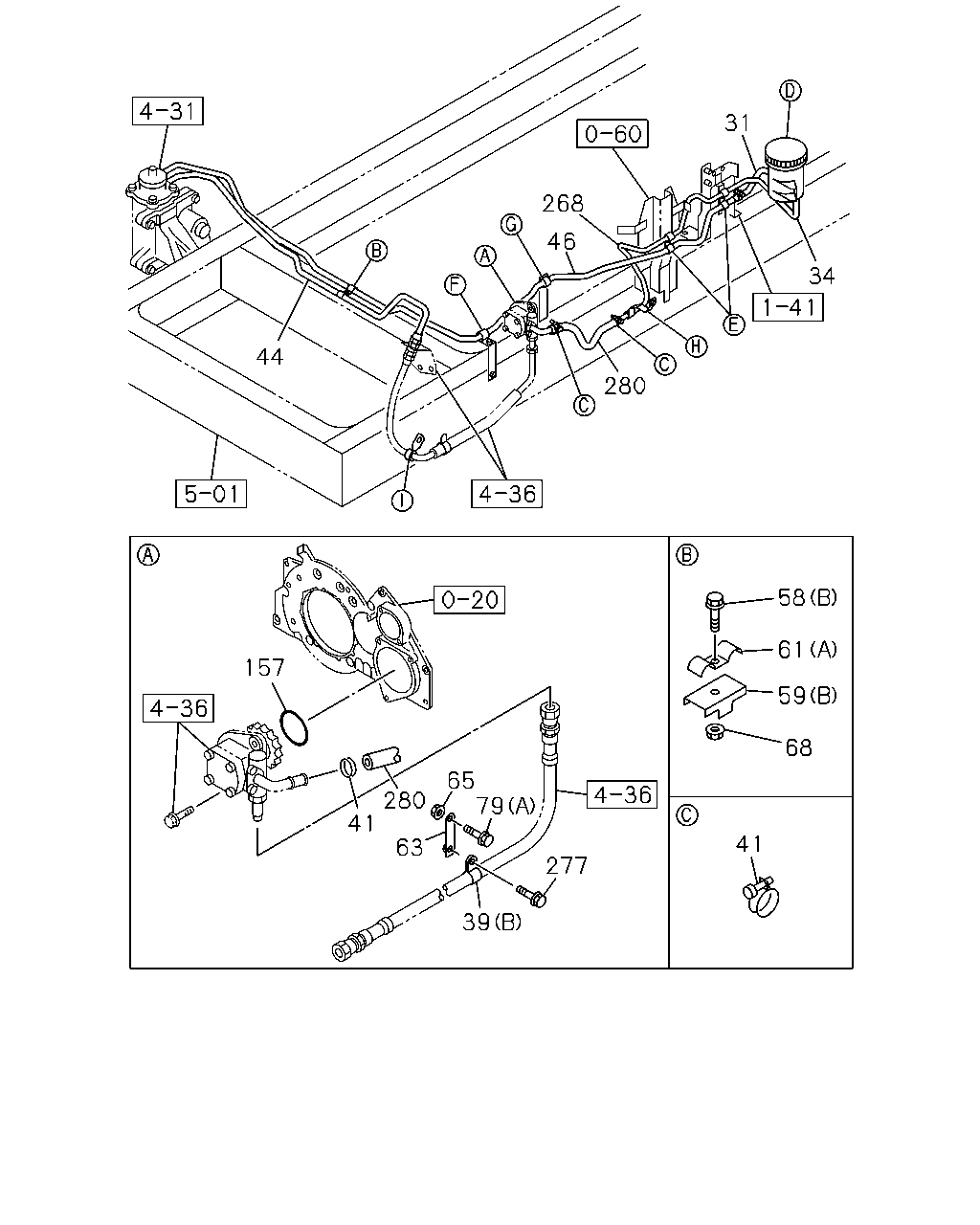

44 157 41 280 65 63 39 79 277 41 68 59 61 58 280 46 268 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL IDN	8-98092-730-0	01	1	1312-
34	HOSE; P/S OIL TANK,OUTLET IDN	8-98021-827-0	01	1	1312-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1312-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1312-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1312-
44	PIPE; OIL,P/S UNIT TO NIPPLE IDN	8-98075-632-1	01	1	1312-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2775	8-98092-721-0	01	1	1312-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1312-
58	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1312-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1312-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1312-
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1312-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1312-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1312-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1312-
63	BRACKET; CLIP,P/S	1-47476-396-1	01	1	1312-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1312-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1312-
79	BOLT; BRKT (A) M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-
79	BOLT; BRKT (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1312-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1312-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). KD ENGINE<7MB>	8-97520-878-0	01	1	1411-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1312-1410
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KD ENGINE<7MB> ID=96.4	1-09623-467-0	01	1	1411-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1312-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1312-
280	HOSE; P/S OIL PUMP,INL IDN	8-98090-818-0	01	1	1312-

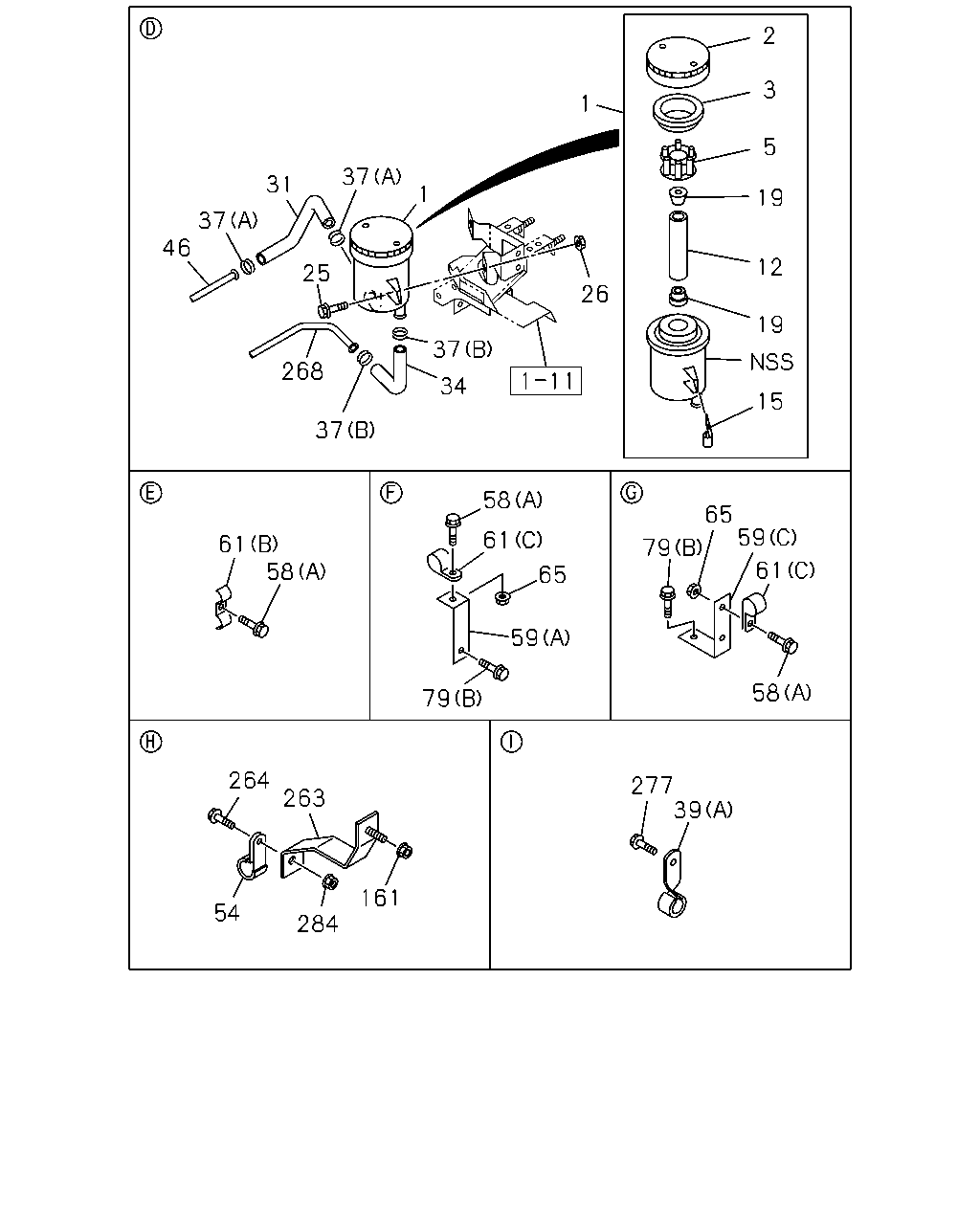

1 2 3 5 19 12 19 15 26 1 37 31 37 46 25 268 37 37 34 61 58 58 65 61 59 79 79 61 65 59 58 264 263 161 284 54 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S IDN	8-98166-928-0	01	1	1312-
2	CAP; OIL TANK,P/S IDN	8-98166-876-0	01	1	1312-
3	GASKET; OIL TANK,P/S IDN	1-21249-003-1	01	1	1312-
5	STRAINER; OIL TANK,P/S IDN	1-21235-007-1	01	1	1312-
12	FILTER; MICROBON,OIL TANK,P/S IDN	1-21235-011-0	01	1	1312-
15	PLATE; FILTER,OIL TANK IDN	1-21249-016-0	02	1	1312-
19	SEAT; OIL TANK IDN	1-21249-004-0	02	1	1312-
25	BOLT; OIL TANK BRKT M8X25 FLANGE IDN	0-28650-825-0	02	1	1312-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1312-
31	HOSE; P/S OIL TANK,INL IDN	8-98092-730-0	01	1	1312-
34	HOSE; P/S OIL TANK,OUTLET IDN	8-98021-827-0	01	1	1312-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1312-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1312-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1312-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1312-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2775	8-98092-721-0	01	1	1312-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1312-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1312-
58	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1312-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1312-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1312-
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1312-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1312-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1312-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1312-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1312-
79	BOLT; BRKT (A) M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-
79	BOLT; BRKT (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1312-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1312-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1312-
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	1312-
264	BOLT; PIPE BRKT M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1312-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1312-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1312-
