3-78 — FIXING PARTS; AIR PIPING (#131390) — 73 parça

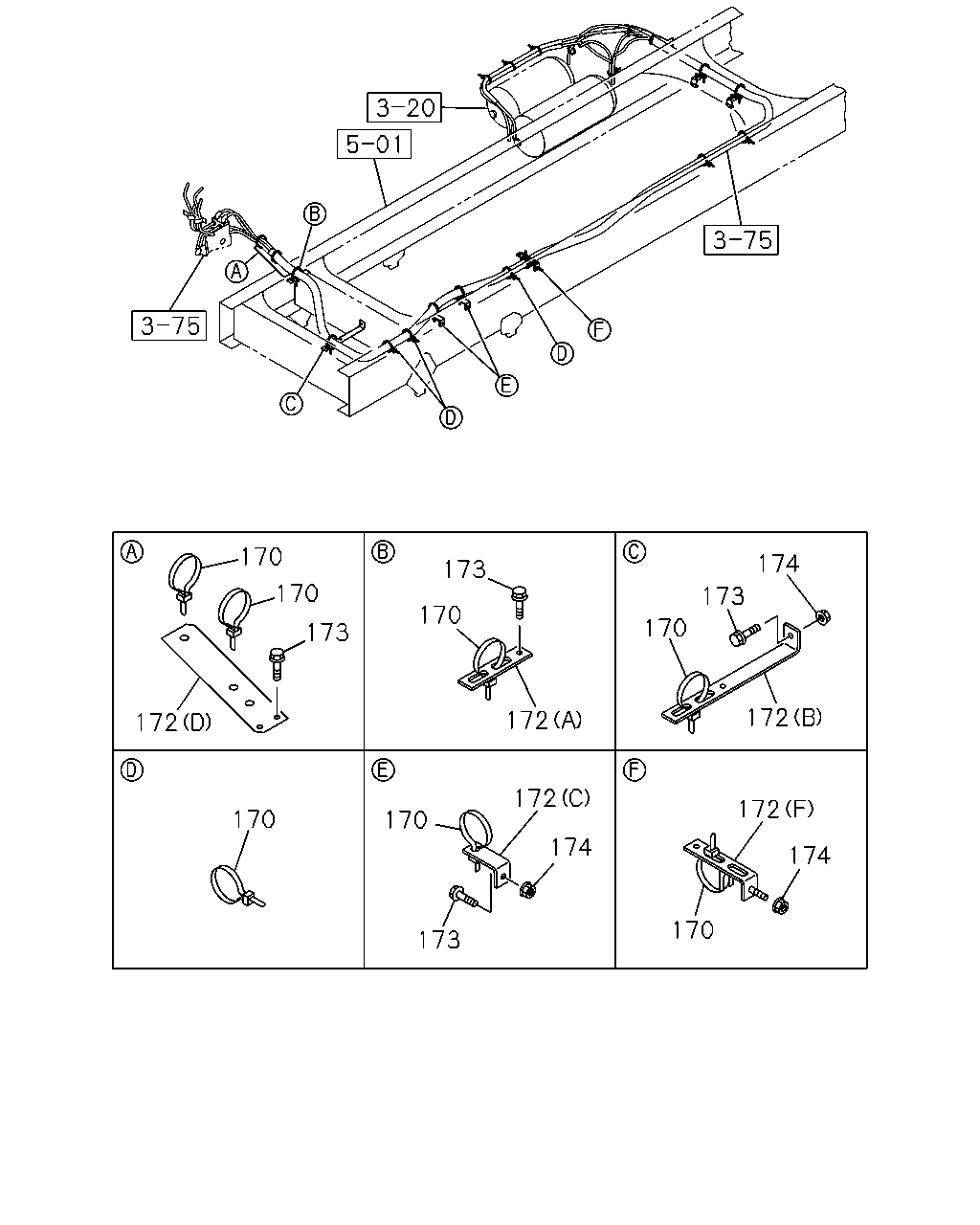

çizim 388489
170 170 173 172 170 170 172 172 170 173 170 174 174 173 172 172 173 174 170
BalonParca AdiParca NoAdetTipApplied Date
170 CLIP; NYLON TUBE
L=350 		1-09707-183-0 27 1 1312-
172 BRACKET; TUBE CLIP
(A) 		1-47477-514-3 01 1 1312-
172 BRACKET; TUBE CLIP
(B) L=225 		1-47477-646-3 01 1 1312-
172 BRACKET; TUBE CLIP
(C) L=60 H=30 		1-47477-716-1 02 1 1312-
172 BRACKET; TUBE CLIP
(D) 		8-98031-420-2 01 1 1312-
172 BRACKET; TUBE CLIP
(E) 		8-98047-730-0 02 1 1312-
172 BRACKET; TUBE CLIP
(G) IDN 		8-98184-177-0 01 1 1312-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (H) 		8-98169-222-0 01 1 1312-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (F) 		8-98177-873-0 01 1 1312-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (I) 		8-98182-331-0 01 1 1312-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (J) 		8-98182-760-0 01 1 1312-
172 BRACKET; TUBE CLIP
6HK1-TCS ENG(80L) (F) 		8-98177-873-0 04 1 1312-
173 BOLT; CLIP BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-
173 BOLT; CLIP BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1312-
173 BOLT; CLIP BRKT
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 05 1 1312-
173 BOLT; CLIP BRKT
6HK1-TCS ENG(80L) M8X30 FLANGE 		0-28650-830-0 04 1 1312-
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 11 1 1312-

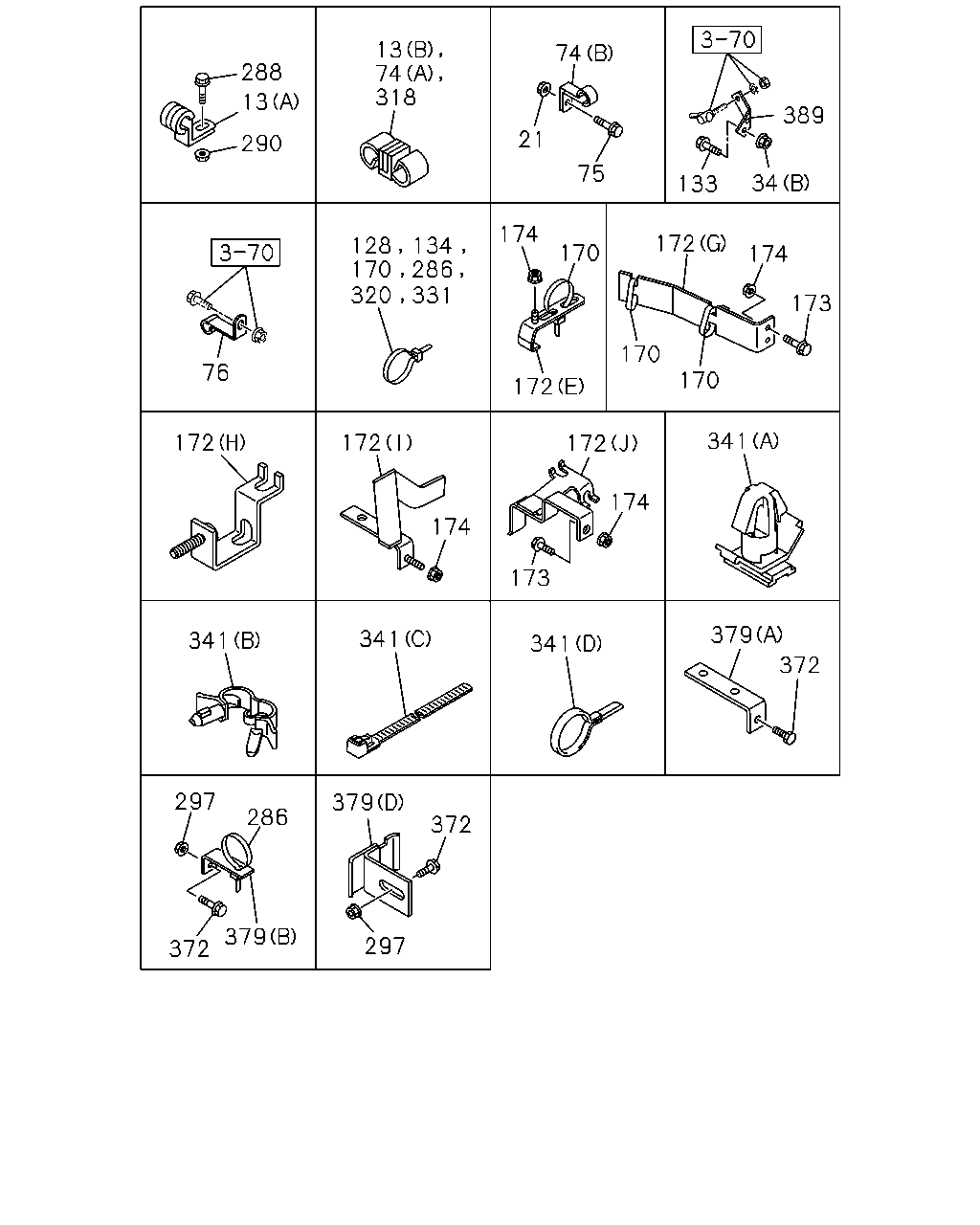

çizim 388878
288 290 13 13 74 318 74 21 75 133 34 389 76 128 320 170 134 286 331 174 172 170 172 170 174 170 173 172 172 174 172 341 174 173 341 341 341 379 372 297 286 372 379 372 379 297
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1312-
13 CLIP; AIR PIPE
(B) ID=6.35 & 15 		1-09709-276-1 01 1 1312-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1312-
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1312-
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1312-
74 CLIP; NYLON TUBE
(B) ID=13 H=50 L=25 		1-09700-529-0 01 1 1312-
74 CLIP; NYLON TUBE
(A) ID=12 & 15 		1-09709-281-1 01 1 1312-
75 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-
76 CLIP; NYLON TUBE
ID=13 H=50 L=25 		1-09700-529-0 01 1 1312-
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1312-
133 BOLT; BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1312-
170 CLIP; NYLON TUBE
L=350 		1-09707-183-0 27 1 1312-
172 BRACKET; TUBE CLIP
(A) 		1-47477-514-3 01 1 1312-
172 BRACKET; TUBE CLIP
(B) L=225 		1-47477-646-3 01 1 1312-
172 BRACKET; TUBE CLIP
(C) L=60 H=30 		1-47477-716-1 02 1 1312-
172 BRACKET; TUBE CLIP
(D) 		8-98031-420-2 01 1 1312-
172 BRACKET; TUBE CLIP
(E) 		8-98047-730-0 02 1 1312-
172 BRACKET; TUBE CLIP
(G) IDN 		8-98184-177-0 01 1 1312-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (H) 		8-98169-222-0 01 1 1312-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (F) 		8-98177-873-0 01 1 1312-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (I) 		8-98182-331-0 01 1 1312-
172 BRACKET; TUBE CLIP
6HK1-TCN ENG(82L) (J) 		8-98182-760-0 01 1 1312-
172 BRACKET; TUBE CLIP
6HK1-TCS ENG(80L) (F) 		8-98177-873-0 04 1 1312-
173 BOLT; CLIP BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-
173 BOLT; CLIP BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1312-
173 BOLT; CLIP BRKT
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 05 1 1312-
173 BOLT; CLIP BRKT
6HK1-TCS ENG(80L) M8X30 FLANGE 		0-28650-830-0 04 1 1312-
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 11 1 1312-
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 1312-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1312-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 1312-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1312-
318 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 05 1 1312-
320 CLIP; BAND,FLEX FIX
L=250 IDN 		5-09707-030-1 01 1 1312-
331 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1312-
341 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1312-
341 CLIP; HARNESS
(B) ID=5-12 L=26 		1-09709-289-0 03 1 1312-
341 CLIP; HARNESS
(C) L=250 IDN 		5-09707-030-1 04 1 1312-
341 CLIP; HARNESS
(D) ID=14 L=44 		9-09917-427-0 04 1 1312-
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1312-
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W) M8X30 FLANGE 		0-28650-830-0 02 1 1312-
372 BOLT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 03 1 1312-
379 BRACKET; NYLON TUBE
(A) L=90 		1-47477-755-1 01 1 1312-
379 BRACKET; NYLON TUBE
(C) 		8-98044-013-0 01 1 1312-
379 BRACKET; NYLON TUBE
WHEEL BASE 5500MM(55W) (B) L=60 H=30 		1-47477-716-1 01 1 1312-
379 BRACKET; NYLON TUBE
WHEEL BASE 5500MM(55W) (D) 		8-98119-184-1 01 1 1312-
379 BRACKET; NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=60 H=30 		1-47477-716-1 02 1 1312-
389 BRACKET; UNION 1-47471-363-0 01 1 1312-

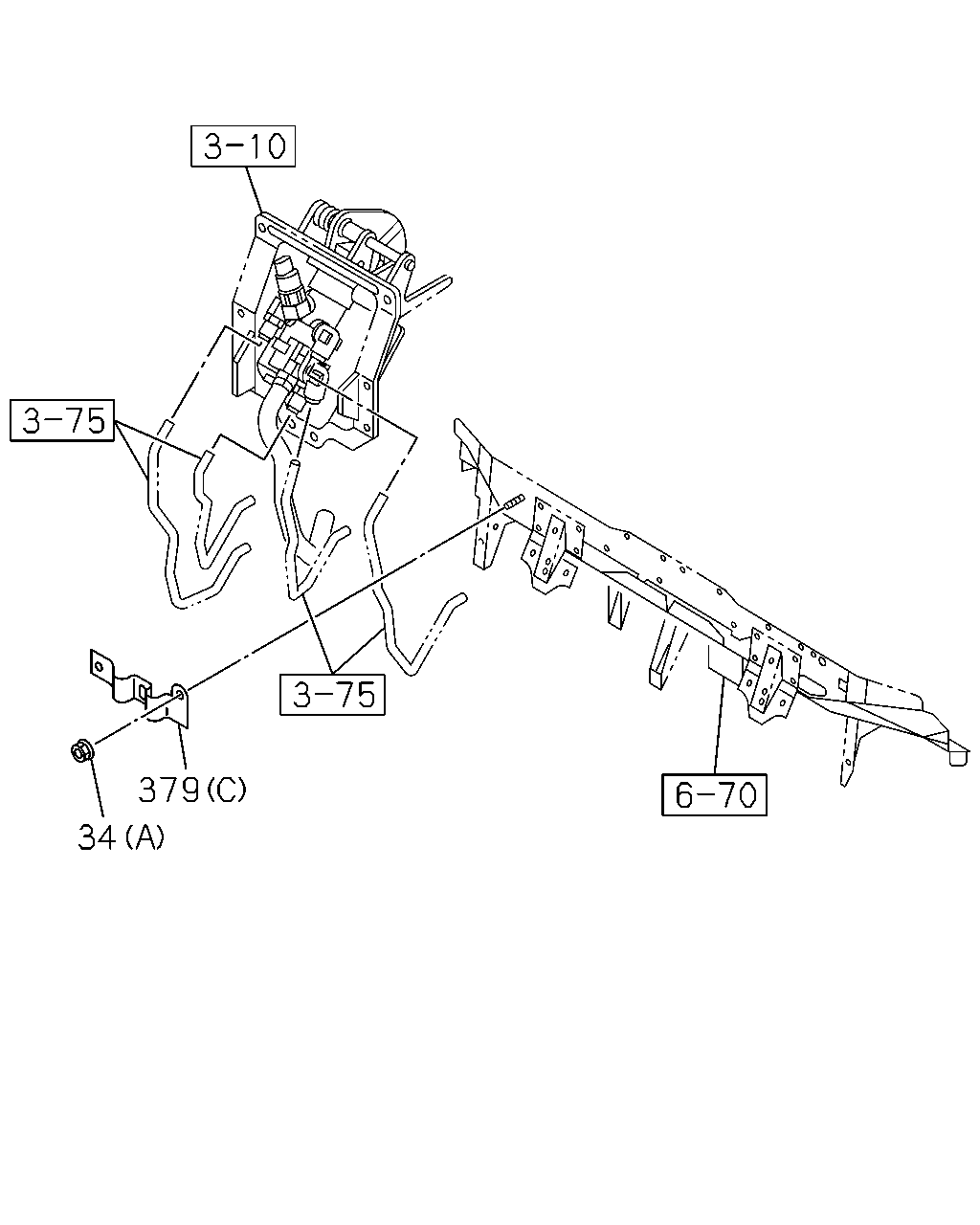

çizim 389205
379 34
BalonParca AdiParca NoAdetTipApplied Date
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1312-
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1312-
379 BRACKET; NYLON TUBE
(A) L=90 		1-47477-755-1 01 1 1312-
379 BRACKET; NYLON TUBE
(C) 		8-98044-013-0 01 1 1312-
379 BRACKET; NYLON TUBE
WHEEL BASE 5500MM(55W) (B) L=60 H=30 		1-47477-716-1 01 1 1312-
379 BRACKET; NYLON TUBE
WHEEL BASE 5500MM(55W) (D) 		8-98119-184-1 01 1 1312-
379 BRACKET; NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=60 H=30 		1-47477-716-1 02 1 1312-
