Isuzu WW
▶
TRUCKS
▶
FVM
▶
11565 - FVM(INDONESIA)6HK1
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#131377) — 48 parça
◀

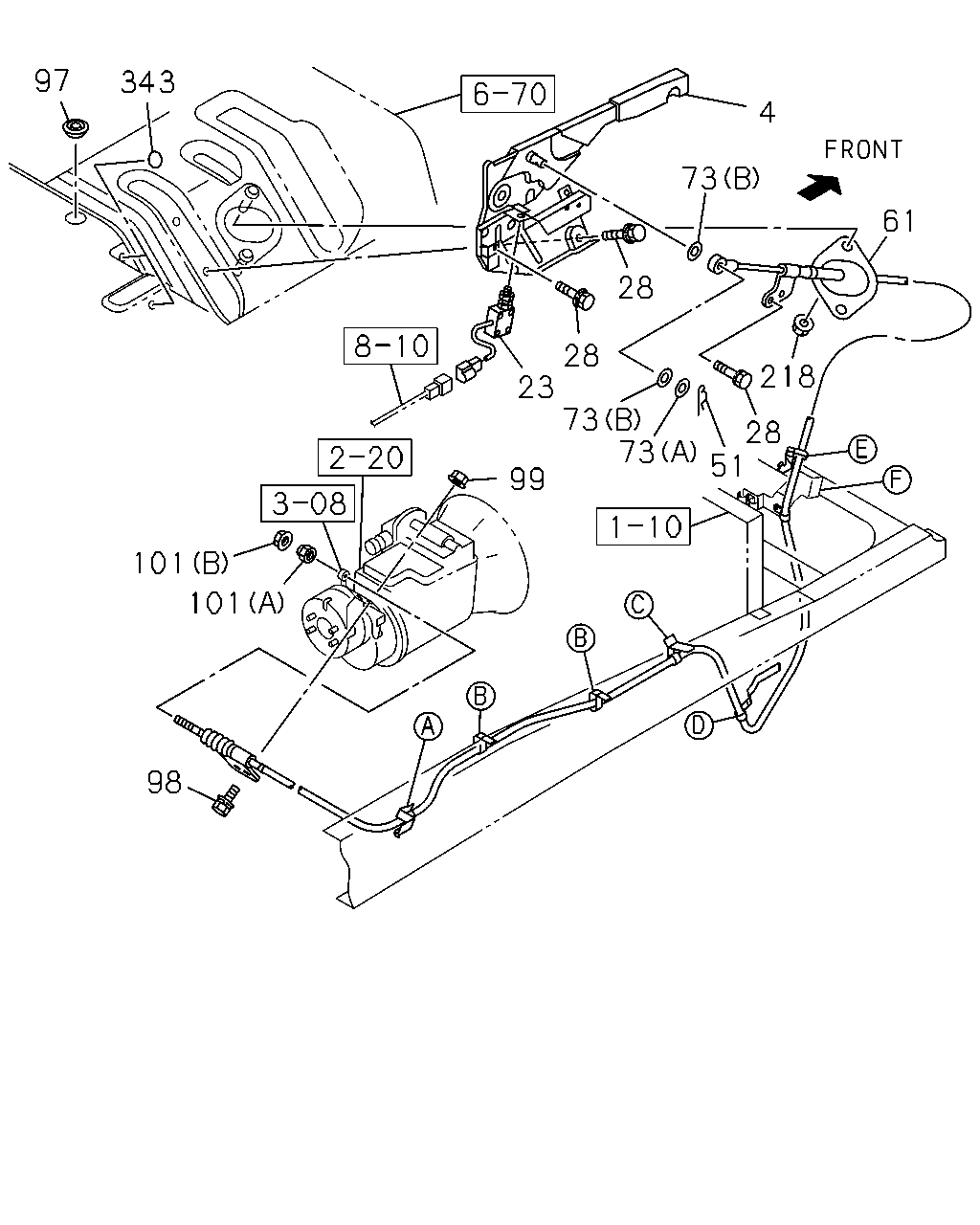

[311A] NO.1 (17 parça)

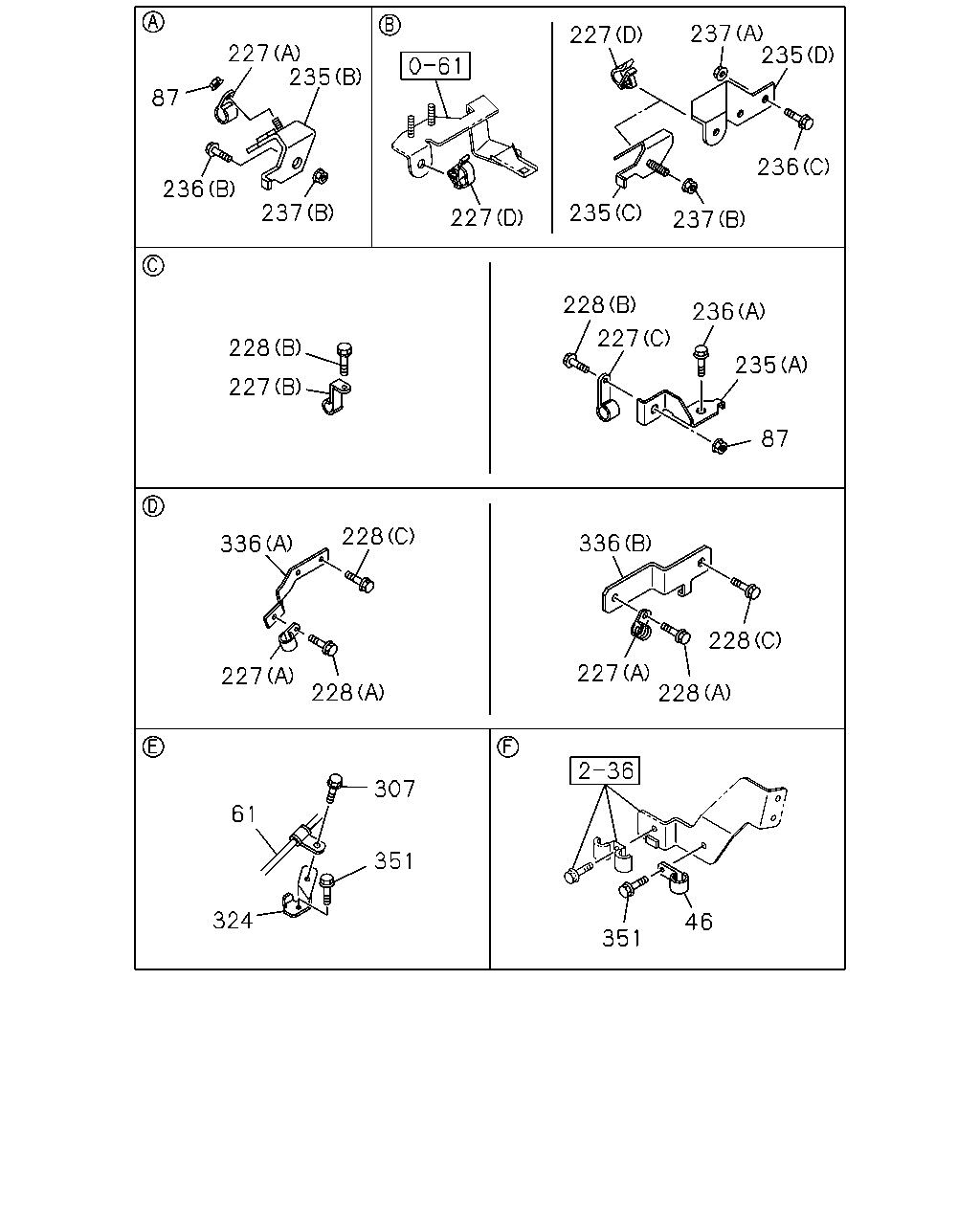

[311A] NO.2 (31 parça)
▶
343
97
101
101
98
99
23
73
73
28
28
4
73
61
218
28
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
8-98173-353-0
01
1
1312-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
1312-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1312-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
1312-
61
CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4615
8-98173-502-0
01
1
1312-1401
61
CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4615
8-98257-635-0
01
1
1402-
61
CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046
8-98184-206-0
01
1
1312-1401
61
CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046
8-98257-639-0
01
1
1402-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
1312-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
1312-
97
GROMMET; PARKING BRK CABLE
OD=35 IDN
8-94122-971-0
01
1
1312-
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
1312-
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
1312-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE
0-91180-108-0
01
1
1312-
101
NUT; CABLE TO LEVER
(A)
1-46259-007-0
01
1
1312-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE
0-91180-108-0
02
1
1312-
343
SEAL
OD=25 BLACK
1-76798-019-0
04
1
1312-
227
87
235
236
237
227
235
237
236
235
237
227
228
227
228
236
227
235
87
336
228
227
228
336
227
228
228
61
307
351
324
351
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
01
1
1312-1401
46
CLIP; FRT CABLE TO FLOOR
ID=13 L=20
0-95235-235-0
01
1
1402-
61
CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4615
8-98173-502-0
01
1
1312-1401
61
CABLE; PARKING BRK
MZW6P M/T(RSZ) L=4615
8-98257-635-0
01
1
1402-
61
CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046
8-98184-206-0
01
1
1312-1401
61
CABLE; PARKING BRK
ZF9S1110 DD M/T(Y5P) L=5046
8-98257-639-0
01
1
1402-
87
NUT
M8 FLANGE
0-91180-108-0
02
1
1312-
227
CLIP; RAD
(A) ID=13 L=20
0-95235-235-0
02
1
1312-
227
CLIP; RAD
(B) ID=25 H=30 L=35
1-09700-875-0
01
1
1312-
227
CLIP; RAD
(C) ID=14.5 L=40
1-09701-014-0
01
1
1312-
227
CLIP; RAD
MZW6P M/T(RSZ) (D) ID=9.5
5-09709-020-0
01
1
1312-
227
CLIP; RAD
ZF9S1110 DD M/T(Y5P) (D) ID=9.5
5-09709-020-0
02
1
1312-
228
BOLT; CLIP RAD MTG
(A) M8X16 FLANGE
0-28050-816-0
01
1
1312-
228
BOLT; CLIP RAD MTG
(B) M8X25 FLANGE IDN
0-28650-825-0
02
1
1312-
228
BOLT; CLIP RAD MTG
MZW6P M/T(RSZ) (C) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1312-
228
BOLT; CLIP RAD MTG
ZF9S1110 DD M/T(Y5P) (C) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1312-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98111-492-0
01
1
1312-
235
BRACKET; CONT CABLE TO FRAME
(A)
8-98126-426-0
01
1
1312-
235
BRACKET; CONT CABLE TO FRAME
ZF9S1110 DD M/T(Y5P) (D)
8-98100-152-0
01
1
1312-
235
BRACKET; CONT CABLE TO FRAME
ZF9S1110 DD M/T(Y5P) (C)
8-98126-934-0
01
1
1312-
236
BOLT; BRKT TO FRAME
(A) M8X25 FLANGE IDN
0-28650-825-0
01
1
1312-
236
BOLT; BRKT TO FRAME
(B) M10X35 FLANGE IDN
0-28651-035-0
01
1
1312-
236
BOLT; BRKT TO FRAME
ZF9S1110 DD M/T(Y5P) (C) M8X30 FLANGE
0-28650-830-0
02
1
1312-
237
NUT; BRKT TO FRAME
MZW6P M/T(RSZ) (B) M10 FLANGE
0-91180-210-0
01
1
1312-
237
NUT; BRKT TO FRAME
ZF9S1110 DD M/T(Y5P) (A) M8 FLANGE
0-91180-108-0
02
1
1312-
237
NUT; BRKT TO FRAME
ZF9S1110 DD M/T(Y5P) (B) M10 FLANGE
0-91180-210-0
02
1
1312-
307
BOLT; BRKT,PARKING BRK CABLE
M8X25 W/WASHER
0-51640-825-0
01
1
1312-
324
BRACKET
8-98067-482-1
01
1
1312-
336
BRACKET; RADIATOR
MZW6P M/T(RSZ) (A)
8-98044-680-0
01
1
1312-
336
BRACKET; RADIATOR
ZF9S1110 DD M/T(Y5P) (B) IDN
8-98182-153-1
01
1
1312-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
1312-
