3-08A — PARKING BRAKE (#131374) — 26 parça

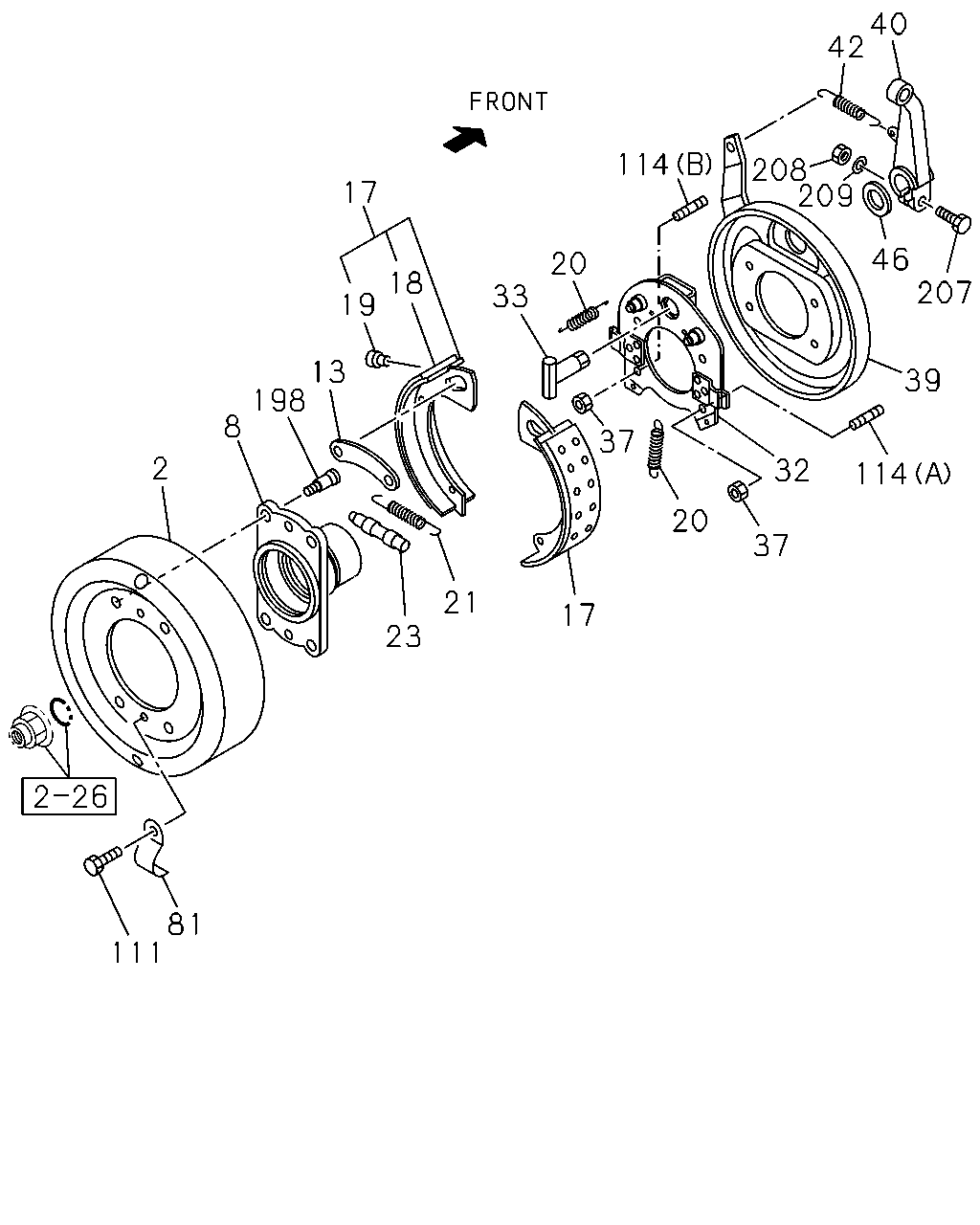

111 81 2 8 198 13 19 18 17 33 20 114 208 209 46 207 40 42 39 114 32 37 20 17 37 21 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK	1-46211-019-0	01	1	1312-
8	FLANGE; PARKING BRK	8-98153-193-0	01	1	1312-
13	BRACE; PARKING BRK	9-46239-002-0	01	1	1312-
17	SHOE; PARKING BRK	1-46220-022-1	02	1	1312-
18	LINING; BRK,PARKING	1-46225-023-0	02	1	1312-
19	RIVET; LINING,PARKING BRK	1-09732-058-0	32	1	1312-
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	1312-
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	1312-
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	1312-
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	1312-
33	SHAFT; CAM,PARKING BRK	1-46251-010-0	01	1	1312-
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1312-
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	1312-
40	LEVER; CM/SHF,PARKING BRK	1-46252-046-0	01	1	1312-
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	1312-
46	WASHER; LEVER	9-09855-362-0	01	1	1312-
81	COVER; CHECK HOLE,PARKING BRK	1-46219-030-0	02	1	1312-
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1312-
114	STUD; SUPPORT PLATE (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1312-
114	STUD; SUPPORT PLATE (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1312-
198	BOLT; KNURL M16X55	8-98023-172-0	04	1	1312-
207	BOLT; LEVER	8-98061-595-0	01	1	1312-
208	NUT; LEVER M10	0-91111-510-0	01	1	1312-
209	WASHER; SP,LEVER ID=10.2	0-91510-510-0	01	1	1312-

197 130

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

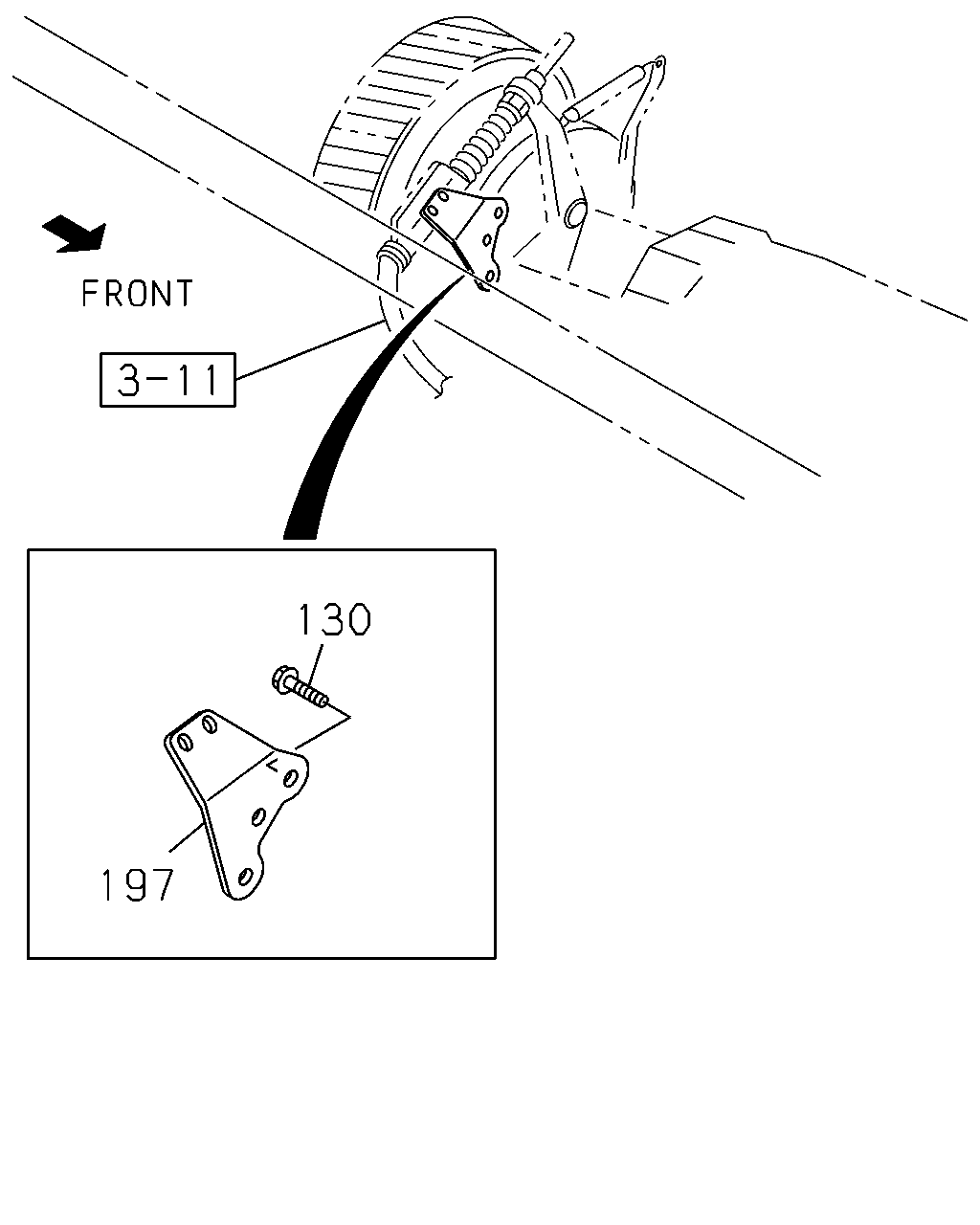

	130	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1312-
	197	BRACKET; CENTER BRAKE CABLE	8-98009-002-1	01	1	1312-
