2-30B — GEAR SHIFTER AND QUADRANT BOX (#131363) — 131 parça

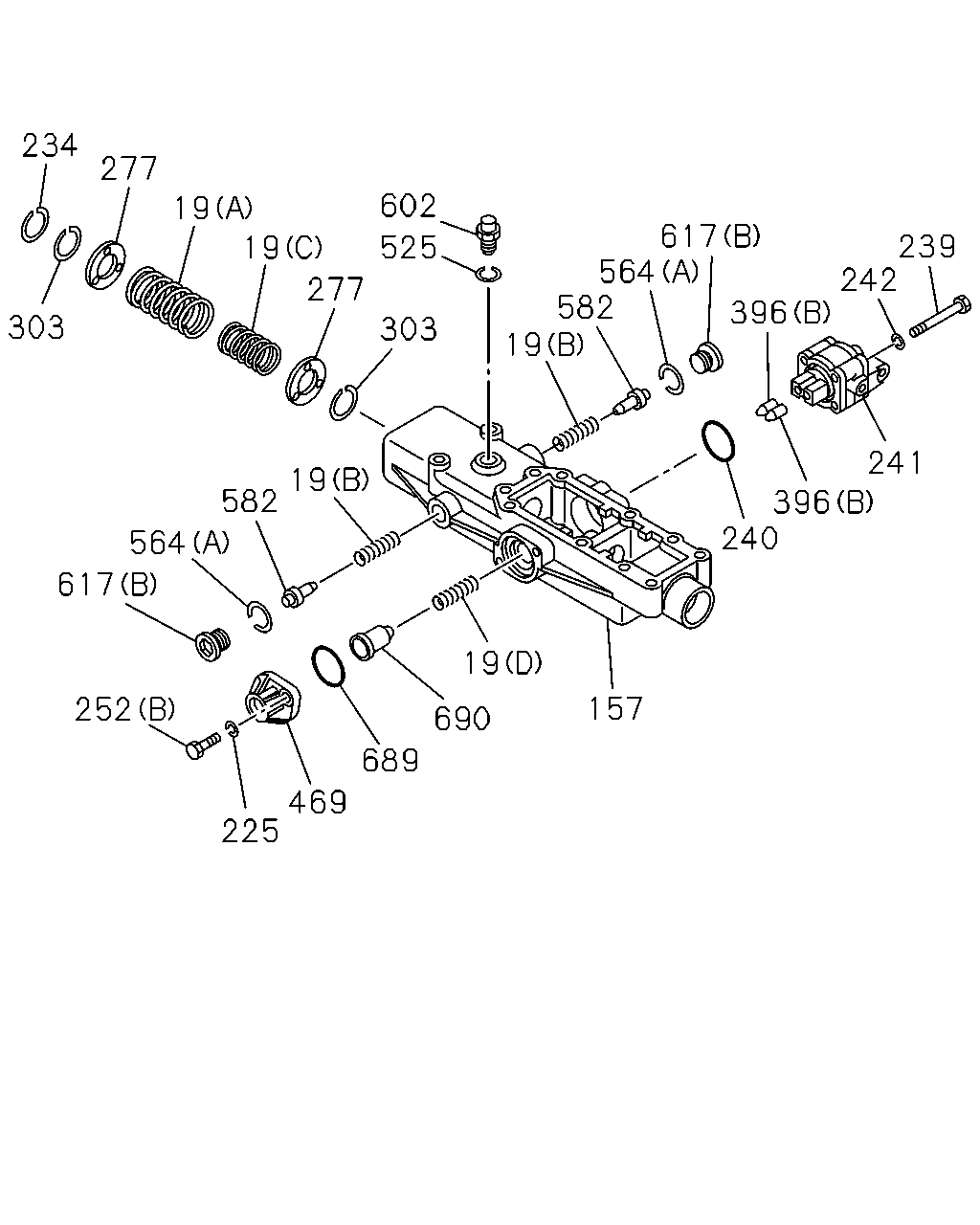

çizim 388386
234 303 277 19 19 277 525 602 303 19 582 564 617 252 225 469 689 690 19 157 240 396 241 396 242 239 617 564 582 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-027-0 01 1 1312-
19 SPRING; COIL COMP
(B) 		1-33539-030-0 02 1 1312-
19 SPRING; COIL COMP
(C) 		1-33539-104-0 01 1 1312-
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 1312-
157 BOX; QUAD,TRANS 1-33549-570-0 01 1 1312-
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1312-
234 RING; SNAP 1-44519-224-0 01 1 1312-
239 BOLT; CUT OFF VALVE 1-33549-585-0 04 1 1312-
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 1312-
241 VALVE; CUT OFF 1-33549-495-0 01 1 1312-
242 WASHER; CUT OFF VALVE 1-33549-583-0 04 1 1312-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-581-0 02 1 1312-
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1312-
277 PLATE; SPRING SEAT 1-33539-107-0 02 1 1312-
303 RING; SNAP,SHAFT 1-33539-040-0 02 1 1312-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1312-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1312-
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 1312-
525 RING; DETENT 1-33119-286-0 01 1 1312-
564 SEAL; RING
(A) 		1-33119-249-0 02 1 1312-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1312-
582 BOLT; SPRING GUIDE 1-33549-487-0 02 1 1312-
602 PLUNGER; DETENT 1-33119-618-0 01 1 1312-
617 PLUG
(B) 		1-33119-619-0 02 1 1312-
617 PLUG
(A) 		1-33539-109-0 01 1 1312-
689 GASKET; COVER 1-33542-063-0 01 1 1312-
690 PIN; STOP 1-33549-496-0 01 1 1312-

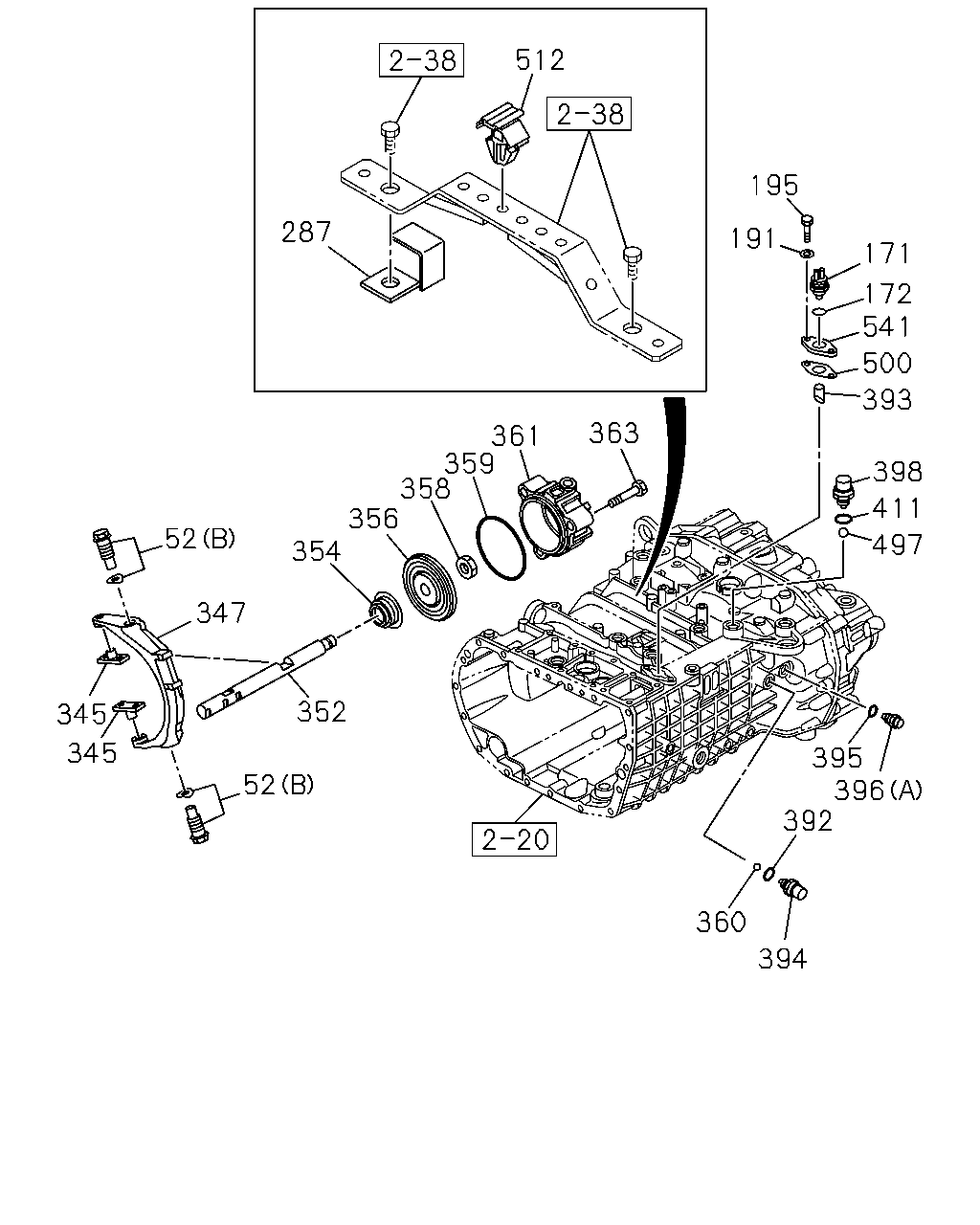

çizim 388390
287 512 52 347 352 345 345 52 354 356 358 359 361 363 191 195 171 172 541 500 393 398 411 497 395 396 392 360 394
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 06 1 1312-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1312-
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1312-
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1312-
191 WASHER; LK 1-33549-583-0 02 1 1312-
195 BOLT 1-33119-593-0 02 1 1312-
287 COVER; AIR BREATHER 1-34141-026-0 01 1 1312-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1312-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1312-
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1312-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1312-
356 PISTON; AIR CYL 1-33519-197-0 01 1 1312-
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1312-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1312-
360 BALL; AIR CYL 1-33119-252-0 01 1 1312-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1312-
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1312-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1312-
393 PIN; SW 1-33119-298-0 01 1 1312-
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1312-
395 GASKET; PLUNGER 1-33549-497-0 01 1 1312-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1312-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1312-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1312-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1312-
497 BALL; SWITCH 1-33119-252-0 01 1 1312-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 1312-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1312-
541 PLATE; SWITCH 1-33119-300-0 01 1 1312-

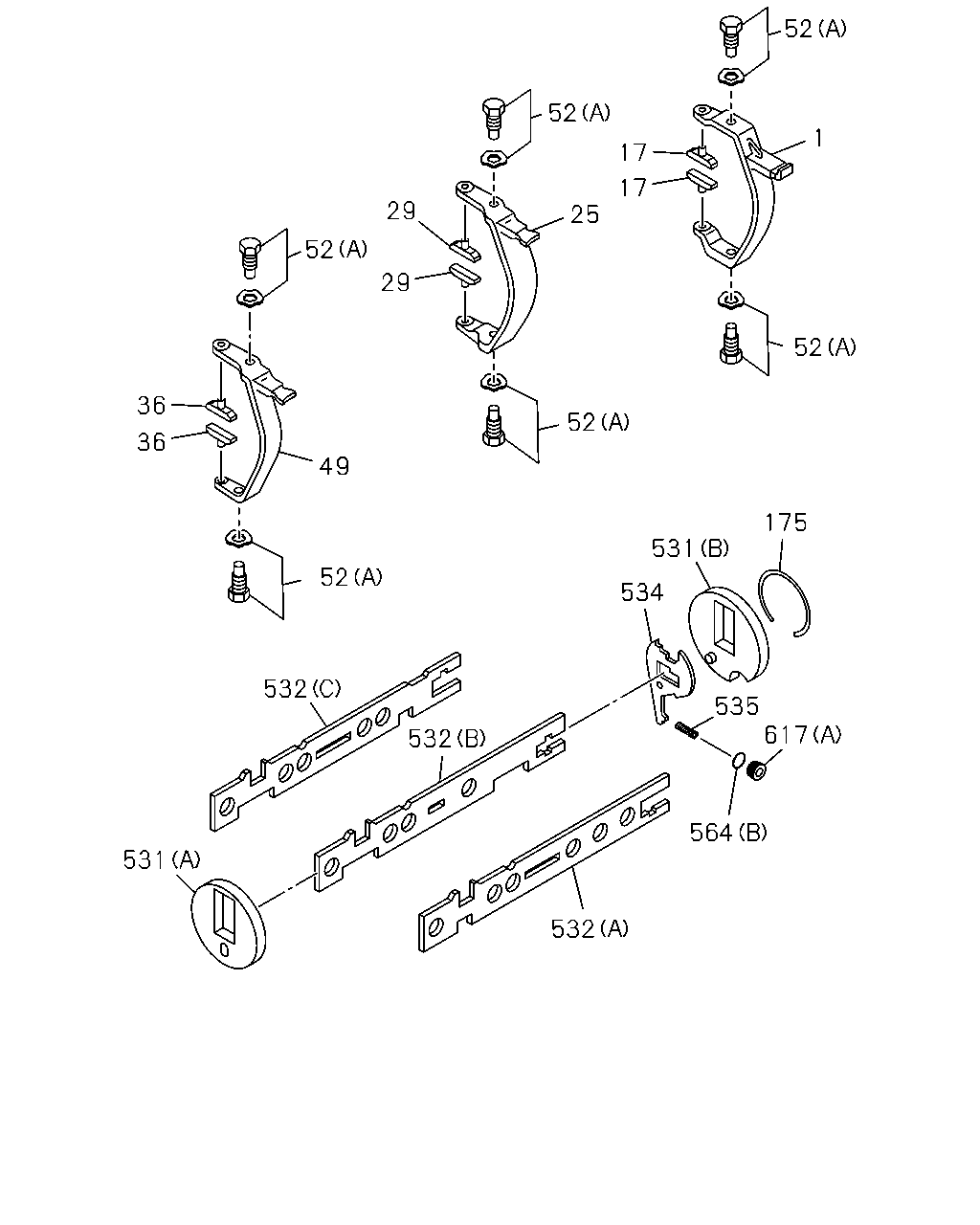

çizim 388393
52 1 17 17 25 52 52 175 531 534 52 535 617 564 532 532 532 531 52 49 36 36 29 29 52
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1312-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1312-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1312-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1312-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 1312-
49 ARM; SHIFT,4TH & 5TH 1-33511-664-0 01 1 1312-
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 06 1 1312-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1312-
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1312-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1312-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1312-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1312-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1312-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1312-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1312-
535 SPRING; LEVER 1-33539-049-0 01 1 1312-
564 SEAL; RING
(A) 		1-33119-249-0 02 1 1312-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1312-
617 PLUG
(B) 		1-33119-619-0 02 1 1312-
617 PLUG
(A) 		1-33539-109-0 01 1 1312-

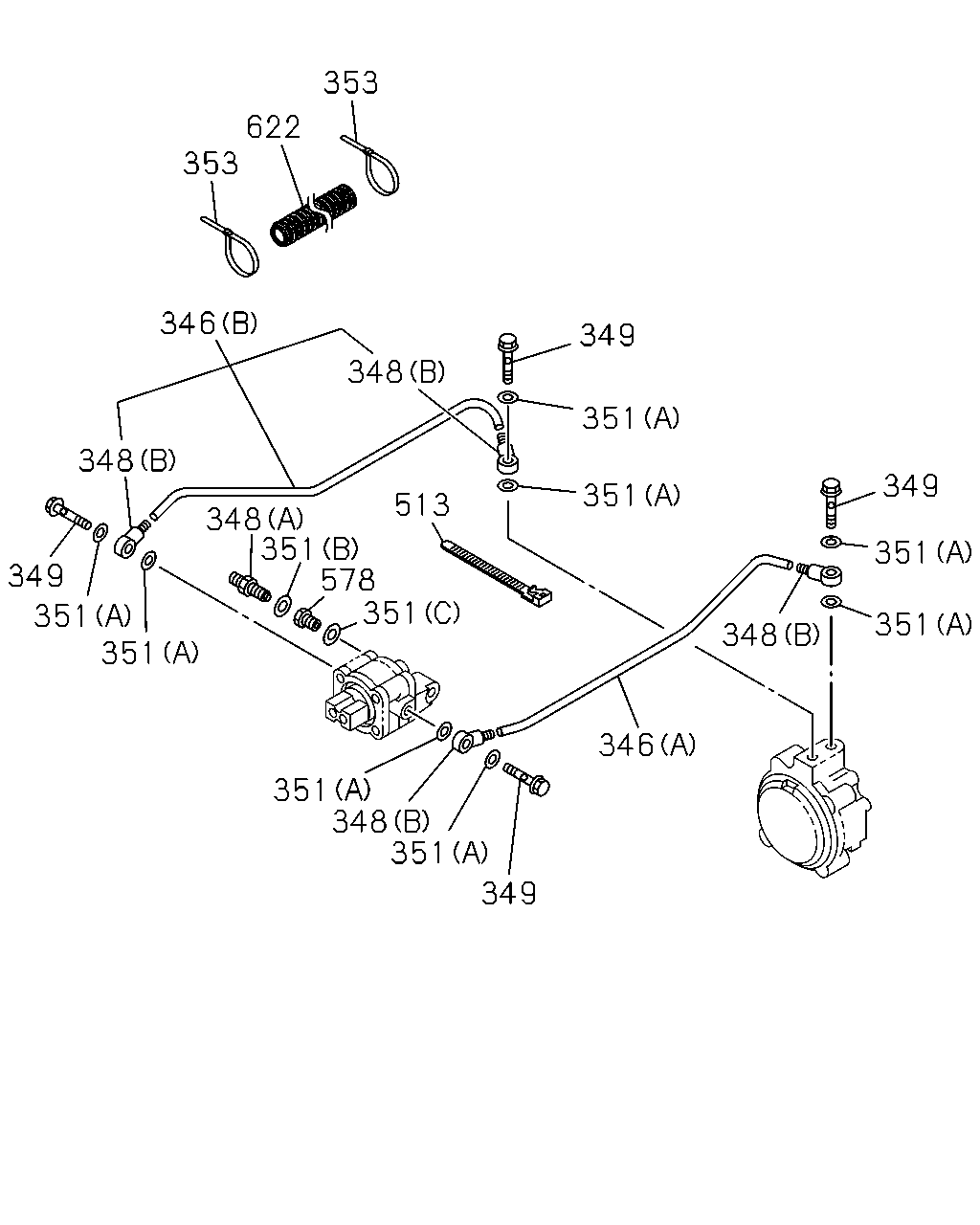

çizim 388398
353 622 353 346 348 348 349 351 351 348 351 578 351 513 351 348 351 349 346 348 351 351 349 351 351 349
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(B) 		1-33549-598-0 01 1 1312-
346 HOSE; AIR
(A) 		1-33549-618-0 01 1 1312-
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1312-
348 CONNECTOR; AIR HOSE
(B) 		1-33549-593-0 04 1 1312-
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 04 1 1312-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1312-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(C) 		1-33549-554-0 01 1 1312-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 08 1 1312-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 1312-
513 CLIP; BAND
L=250 IDN 		5-09707-030-1 06 1 1312-
513 CLIP; BAND
L=140 IDN 		5-09707-031-1 01 1 1312-
578 CONNECTOR 1-33549-553-0 01 1 1312-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1312-

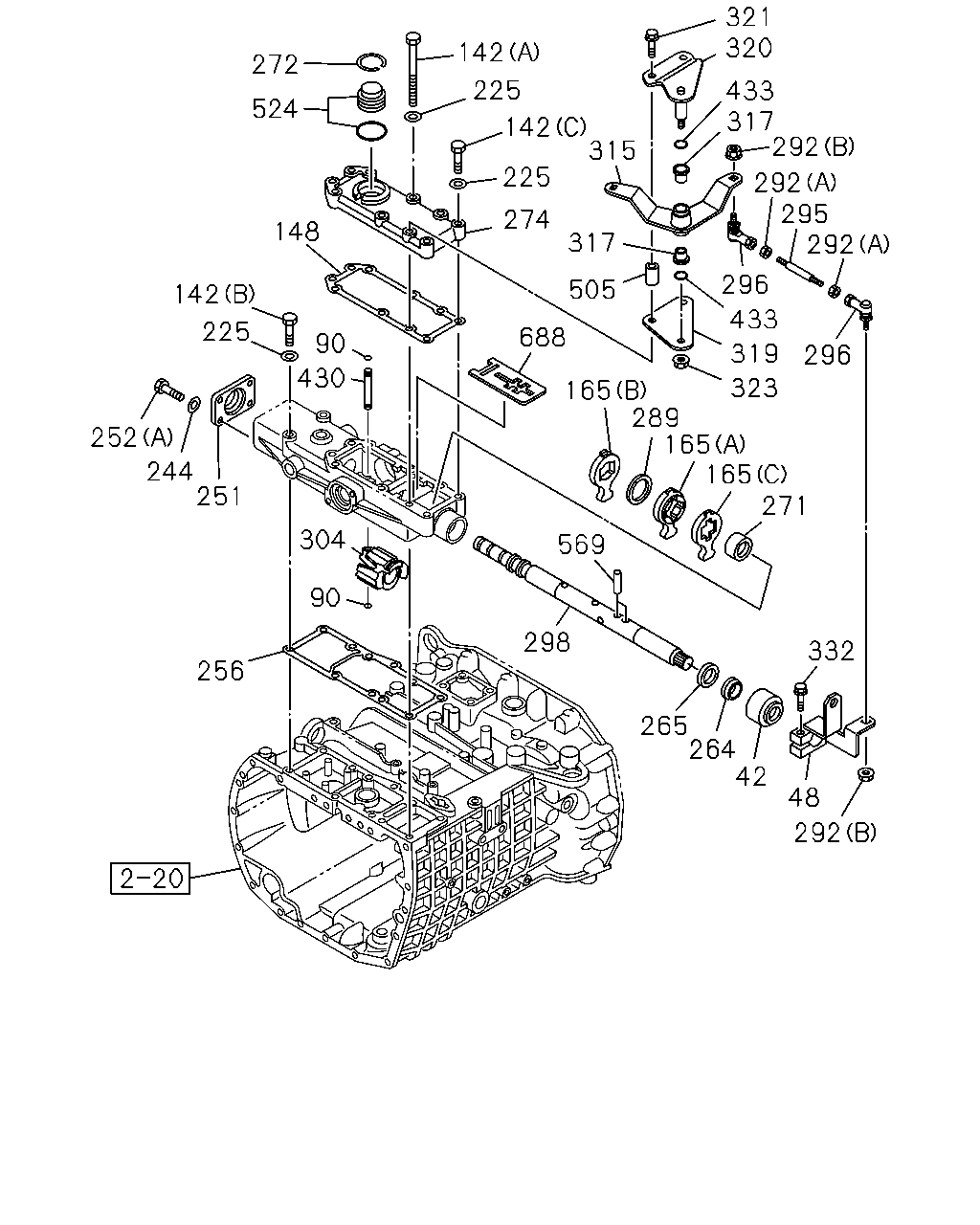

çizim 388700
272 524 148 142 225 90 430 252 244 251 304 90 256 298 569 265 264 42 48 292 332 271 165 165 289 165 688 505 317 274 225 315 142 225 142 321 320 433 317 292 292 295 292 296 433 319 323 296
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX 1-33549-589-0 01 1 1312-
48 LEVER; 4TH,SHIFT 8-98085-725-0 01 1 1312-
90 RING; SNAP,SHIFT ROD 1-33549-494-0 02 1 1312-
142 BOLT; QUAD BOX
(A) M8X100 		1-33549-582-0 06 1 1312-
142 BOLT; QUAD BOX
(B) M8X75 		1-33549-584-0 02 1 1312-
142 BOLT; QUAD BOX
(C) M8X40 		1-33549-587-0 04 1 1312-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-064-0 01 1 1312-
165 LEVER; SHIFT
(C) 		1-33549-488-0 01 1 1312-
165 LEVER; SHIFT
(A) 		1-33549-489-0 01 1 1312-
165 LEVER; SHIFT
(B) 		1-33549-603-0 01 1 1312-
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1312-
244 WASHER; LK,COVER 1-33549-583-0 04 1 1312-
251 COVER; SIDE 1-33549-590-0 01 1 1312-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-581-0 02 1 1312-
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1312-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-065-0 01 1 1312-
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 1312-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 1312-
271 BUSHING; QUAD BOX 1-33549-124-0 01 1 1312-
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 1312-
274 COVER; SHAFT,QUAD BOX 1-33549-579-0 01 1 1312-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-491-0 01 1 1312-
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1312-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1312-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1312-
296 ROD END 1-09760-108-0 02 1 1312-
298 SHAFT; SHIFT LEVER 1-33522-205-0 01 1 1312-
304 BLOCK; SHIFT SHAFT 1-33549-492-0 01 1 1312-
315 LEVER; SELECT 8-98085-738-0 01 1 1312-
317 BUSHING; LEVER 1-09330-119-0 02 1 1312-
319 BRACKET; SELECT LEVER 8-98085-740-0 01 1 1312-
320 SHAFT; LEVER 8-98085-739-0 01 1 1312-
321 BOLT; BRKT,RELAY LEVER
M8X130 FLANGE 		0-28065-813-0 02 1 1312-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1312-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 1312-
430 PIN; SPR,SHIFT ROD 1-33549-493-0 01 1 1312-
433 GASKET; BUSHING 1-09623-594-0 02 1 1312-
505 SPACER; BRKT
L=24.5 		1-33659-186-1 02 1 1312-
524 DETENT; QUAD BOX 1-33549-501-0 01 1 1312-
569 PIN; QUADRANT BOX 1-33529-128-0 02 1 1312-
688 SHIFT; INTERLOCK 1-33549-572-0 01 1 1312-
