Isuzu WW
▶
TRUCKS
▶
FVM
▶
11565 - FVM(INDONESIA)6HK1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30A - GEAR SHIFTER AND QUADRANT BOX
▶
2-30A — GEAR SHIFTER AND QUADRANT BOX
(#131362) — 73 parça
◀
[230A] ARM AND ROD (24 parça)
[230A] SHIFT CONTROL BOX (41 parça)
[230A] BRACKET AND OTHER PARTS (8 parça)
▶
51
551
65
551
82
551
682
683
234
453
685
320
192
6
192
6
192
192
6
66
99
551
102
89
551
684
32
551
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
LEVER; RELAY
(A)
8-97241-342-0
03
1
1312-
6
LEVER; RELAY
(B)
8-98022-855-0
01
1
1312-
32
ARM; SHIFT,1ST & 2ND
8-98236-424-1
01
1
1312-
51
BLOCK; SHIFT,1ST & 2ND
8-98074-457-1
01
1
1312-
65
BLOCK ASM; SHIFT,5TH & 6TH
8-97388-980-1
01
1
1312-
66
ARM; SHIFT,5TH & 6TH
8-97388-981-0
01
1
1312-
78
ARM; SHIFT,REV
8-97388-975-1
01
1
1312-
82
BLOCK; SHIFT,REV
8-97388-969-0
01
1
1312-
89
ROD; SHIFT,REV
8-98062-172-0
01
1
1312-
99
ARM; SHIFT,4TH & 3RD
8-98062-170-0
01
1
1312-1506
99
ARM; SHIFT,4TH & 3RD
8-98309-861-0
01
1
1507-
102
BLOCK; SHIFT,3RD & 4TH
8-97388-978-2
01
1
1312-
192
WASHER; PL
(A) ID=18.2 OD=29
1-09503-032-0
04
1
1312-
192
WASHER; PL
(B)
8-97305-661-0
02
1
1312-
234
RING; SNAP
ID=16.5
0-91800-618-0
01
1
1312-
320
SHAFT; LEVER
8-97377-928-0
01
1
1312-
453
BLOCK; RELAY LEVER
8-97377-927-1
01
1
1312-
551
PIN; SPRING
(C) L=25 OD=5
1-09748-032-0
01
1
1312-
551
PIN; SPRING
(A) L=32
8-97011-596-2
05
1
1312-
551
PIN; SPRING
(B) L=20
8-97241-340-0
01
1
1312-
682
ROD; SHIFT,REV,SUB
8-97388-974-0
01
1
1312-
683
ROD; SHIFT,5TH & 6TH
8-98062-173-1
01
1
1312-
684
BLOCK; SHIFT,REV,SUB
8-97388-970-0
01
1
1312-
685
BOLT; BLOCK
M8X30 FLANGE
8-98034-764-0
02
1
1312-

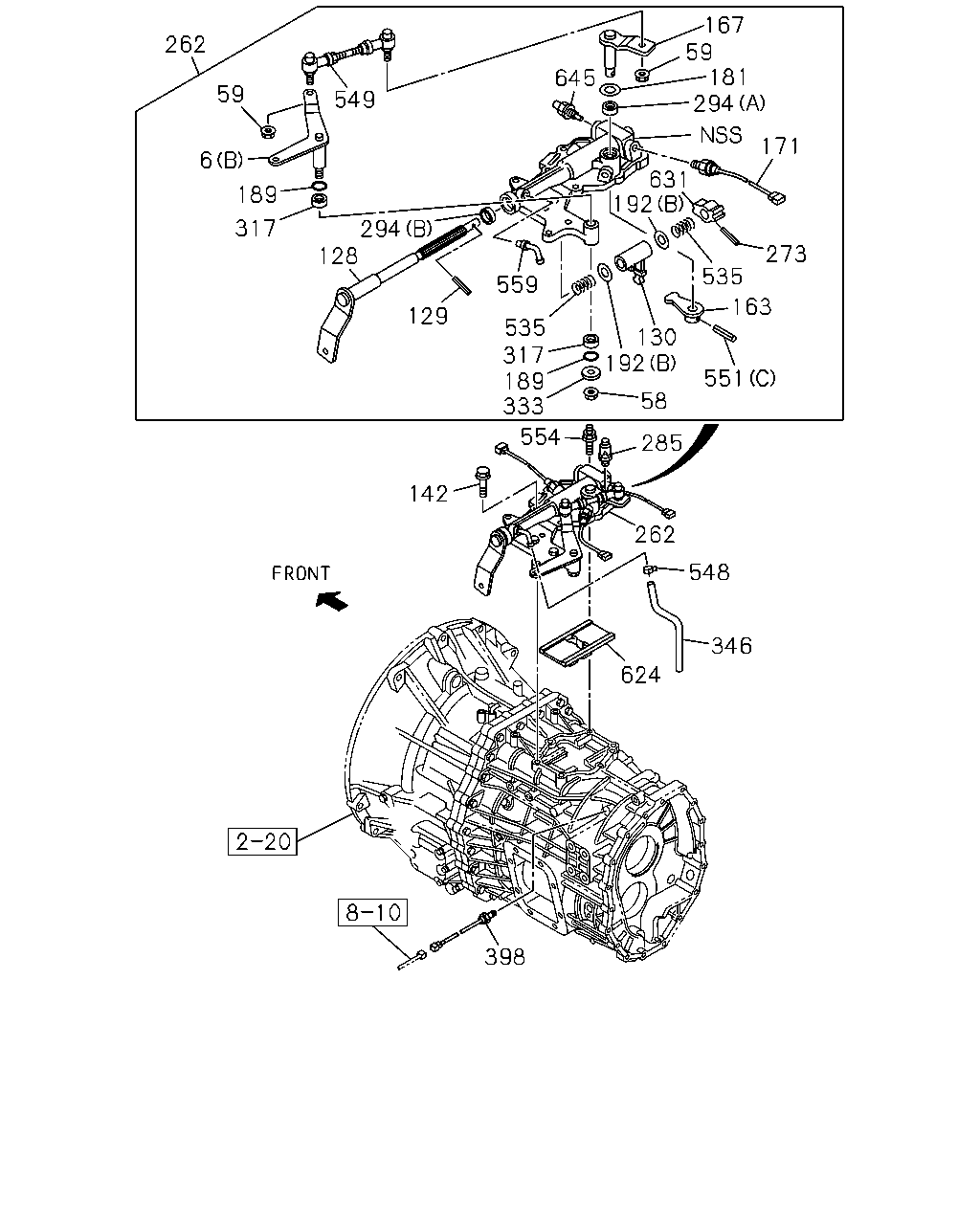

262
59
6
189
317
128
294
549
129
559
535
317
189
333
192
130
551
163
535
192
631
273
171
294
181
59
167
58
285
554
142
398
624
346
548
262
645
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
LEVER; RELAY
(A)
8-97241-342-0
03
1
1312-
6
LEVER; RELAY
(B)
8-98022-855-0
01
1
1312-
58
NUT
M10 FLANGE
0-91180-110-0
01
1
1312-
59
NUT
M8 FLANGE
0-91180-108-0
02
1
1312-
128
LEVER; SHIFT,EXTERNAL
8-97306-927-0
01
1
1312-1507
128
LEVER; SHIFT,EXTERNAL
8-98305-346-0
01
1
1508-
129
PIN; SPR,SHIFT
L=30 OD=4
1-09748-031-0
01
1
1312-
130
LEVER; SHIFT,INTERNAL
8-97306-647-0
01
1
1312-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
1312-
163
LEVER; SELECT,INTERNAL
8-97305-663-0
01
1
1312-
167
LEVER; SELECT,EXTERNAL
8-98022-857-0
01
1
1312-
171
SWITCH; NEUTRAL
8-98023-050-0
01
1
1312-1312
171
SWITCH; NEUTRAL
8-98242-172-1
01
1
1401-
181
WASHER; PL,SELECT LEVER
8-97367-327-0
01
1
1312-
189
GASKET; SELECT LEVER,CONT BOX
1-09623-594-0
02
1
1312-
192
WASHER; PL
(A) ID=18.2 OD=29
1-09503-032-0
04
1
1312-
192
WASHER; PL
(B)
8-97305-661-0
02
1
1312-
262
BOX ASM; SHIFT CONT
8-98249-041-0
01
1
1312-1312
262
BOX ASM; SHIFT CONT
8-98241-010-0
01
1
1401-1404
262
BOX ASM; SHIFT CONT
8-98276-161-1
01
1
1405-1507
262
BOX ASM; SHIFT CONT
8-98305-336-0
01
1
1508-
273
PIN; SPR,STOPPER
D=4.2 L=25
8-97103-142-0
01
1
1312-
285
BREATHER; AIR,QUAD BOX
1-33149-003-0
01
1
1312-1404
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A)
8-97305-662-0
01
1
1312-
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B)
8-97363-225-0
01
1
1312-
317
BUSHING; LEVER
1-09330-119-0
02
1
1312-
333
WASHER; PL,LEVER
ID=10.5
0-91610-710-0
01
1
1312-
346
HOSE; AIR
8-97309-855-0
01
1
1405-
398
SWITCH; REV LAMP
8-98023-050-0
01
1
1312-1312
398
SWITCH; REV LAMP
8-98242-173-1
01
1
1401-
535
SPRING; LEVER
8-97385-713-0
02
1
1312-
548
CLIP; HOSE
8-97031-674-0
01
1
1405-
549
ROD; LINK
8-98022-841-0
01
1
1312-
551
PIN; SPRING
(C) L=25 OD=5
1-09748-032-0
01
1
1312-
551
PIN; SPRING
(A) L=32
8-97011-596-2
05
1
1312-
551
PIN; SPRING
(B) L=20
8-97241-340-0
01
1
1312-
554
STUD; CONT BOX
M8X15,M8X25 L=49
8-97365-378-0
02
1
1312-
559
PIPE; BREATHER
8-97358-318-0
01
1
1405-
624
PLATE; INTER LOCK
8-97241-317-3
01
1
1312-
631
STOPPER; SPRING
8-97305-666-0
01
1
1312-
645
DETENT ASM
8-98019-536-0
01
1
1312-

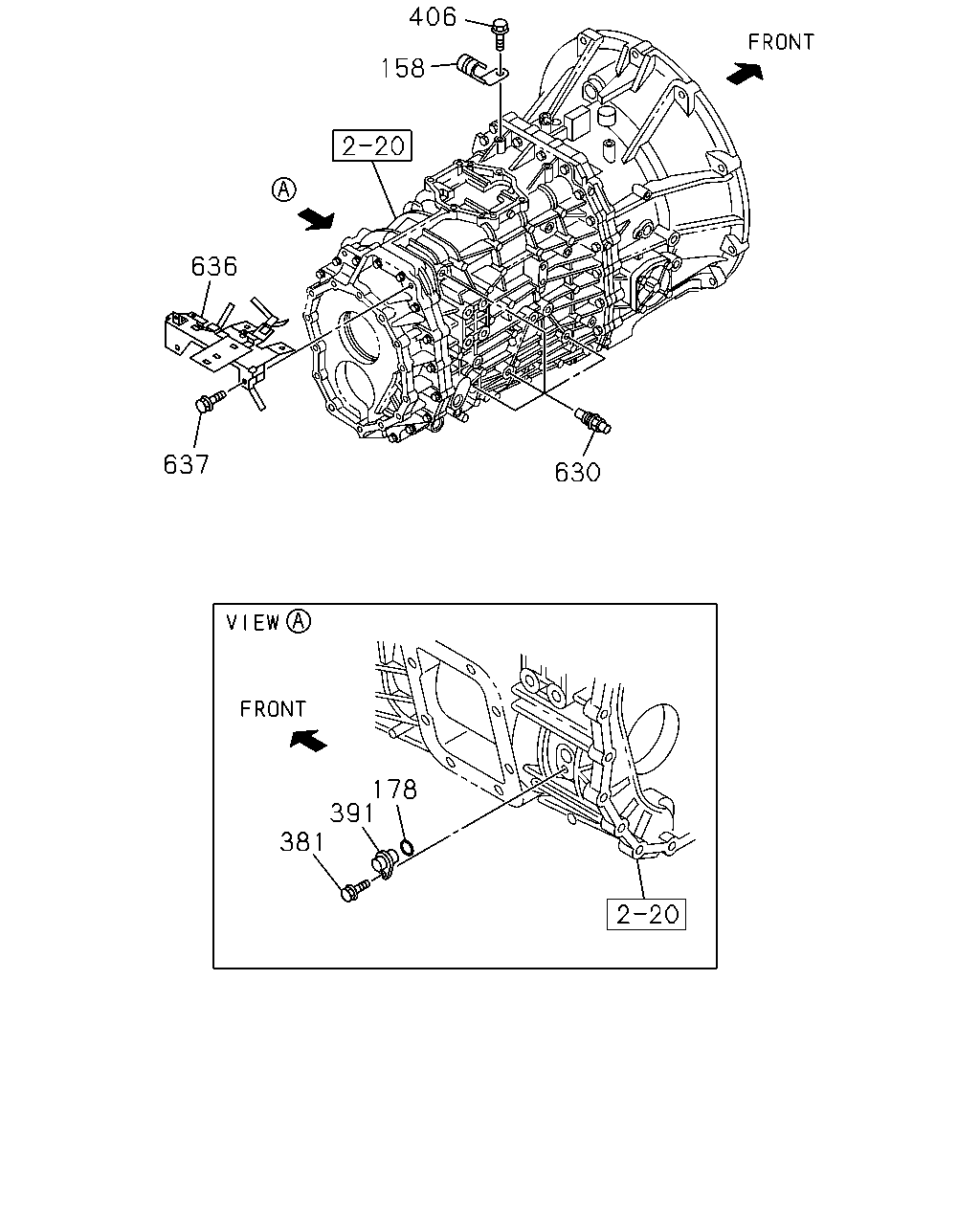

630
391
381
178
637
636
158
406
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
158
CLIP; HARNESS
ID=12 VINYL CHLORIDE IDN
8-97367-984-1
02
1
1312-
178
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T).
9-09567-113-0
01
1
1312-
381
BOLT
M6X16 FLANGE
0-28650-616-0
01
1
1312-
391
PLUG; SW HOLE
8-97300-273-1
01
1
1312-
406
BOLT; HARNESS CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1312-
630
DETENT ASM
8-98019-536-0
04
1
1312-
636
BRACKET; CLIP
8-97610-096-2
01
1
1312-
637
BOLT; BRACKET
M8X16 FLANGE
0-28050-816-0
02
1
1312-
