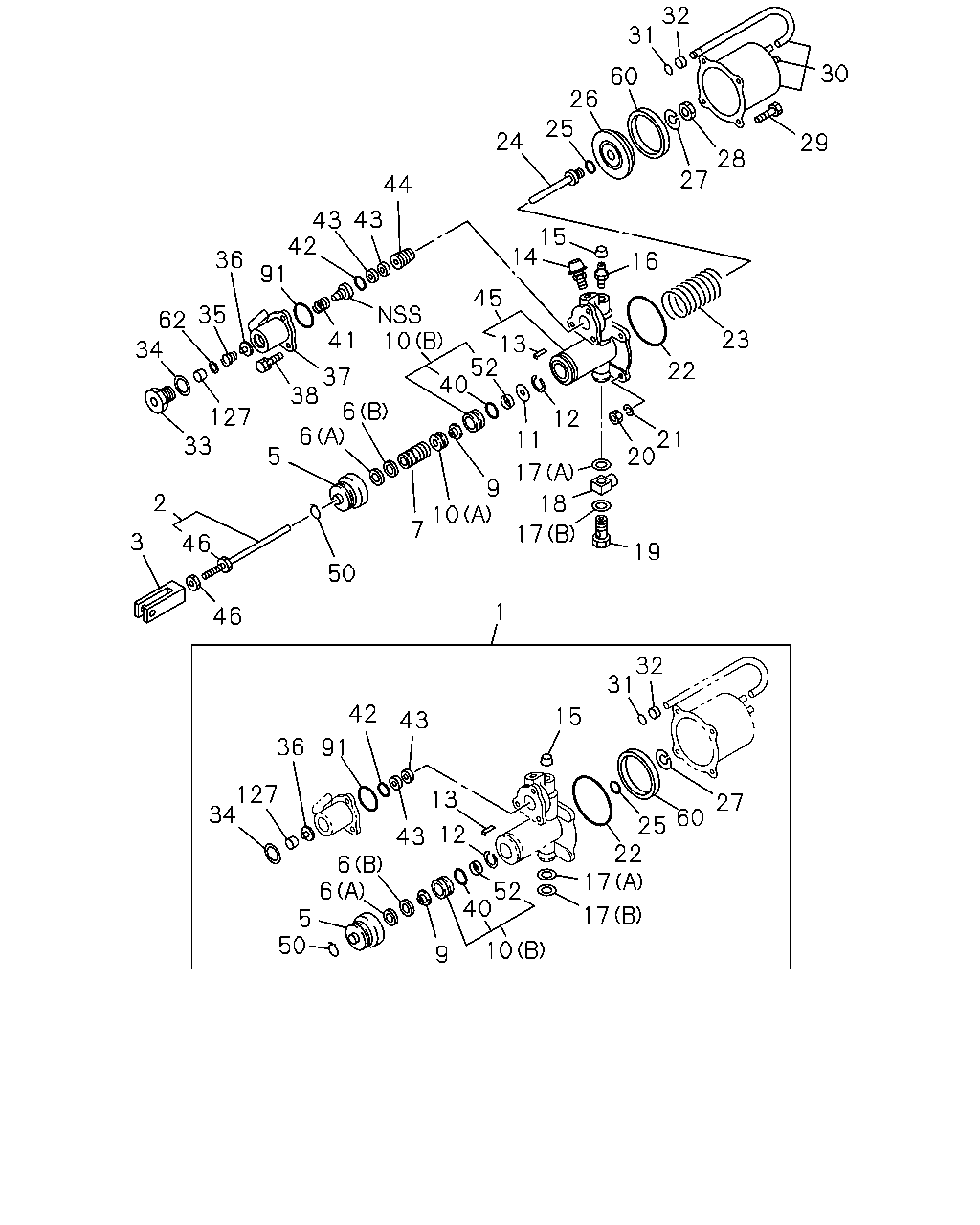

2-07A — CLUTCH BOOSTER; MINIPACK (#131352) — 53 parça

9 50 34 36 127 42 91 5 6 6 43 13 12 43 52 40 10 27 60 25 22 17 17 32 31 15 1 19 17 18 17 11 12 22 21 20 23 9 10 7 50 46 46 2 3 5 6 6 40 52 13 45 10 37 41 38 127 33 34 62 35 36 42 91 43 44 43 14 15 16 27 28 29 30 32 31 60 26 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER	1-31829-603-0	01	1	1312-
2	ROD; PUSH,CLU BOOSTER	1-31824-240-0	01	1	1312-1412
2	ROD; PUSH,CLU BOOSTER	1-31824-240-0	01	1	1501-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-1	01	1	1312-
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	1312-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-498-0	01	1	1312-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-499-0	01	1	1312-
7	PISTON; CLU BOOSTER	1-31821-047-0	01	1	1312-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	1312-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-107-0	01	1	1312-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-108-0	01	1	1312-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1312-
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	1312-
13	PIN; SPR	1-31829-109-0	01	1	1312-
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	1312-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1312-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1312-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1312-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1312-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1312-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1312-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	1312-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1312-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-322-0	01	1	1312-
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	1312-
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	1312-
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	1312-
26	PISTON; SHELL,CLU BOOSTER	1-31821-084-0	01	1	1312-
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	1312-
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	1312-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	1312-
30	SHELL; CYL,CLU BOOSTER	1-31811-124-0	01	1	1312-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1312-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1312-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	1312-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1312-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-537-0	01	1	1312-
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	1312-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-147-0	01	1	1312-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1312-
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	1312-1412
41	SPRING; DIAPH,CLU BOOSTER	1-31829-420-0	01	1	1312-
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	1312-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1312-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	1312-
45	PLATE; END,CLU BOOSTER	1-31811-143-0	01	1	1312-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1312-
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	1312-
52	SEAL; OIL,END PLATE,CLU BOOSTER	9-83315-118-0	01	1	1312-1412
60	GASKET; SHELL,CLU BOOSTER	1-31829-544-0	01	1	1312-
62	RETAINER; POPPET	1-31829-489-0	01	1	1312-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1312-
127	FILTER; POPPET	1-31829-495-0	01	1	1312-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
