2-05 — CLUTCH PIPING (#131351) — 82 parça

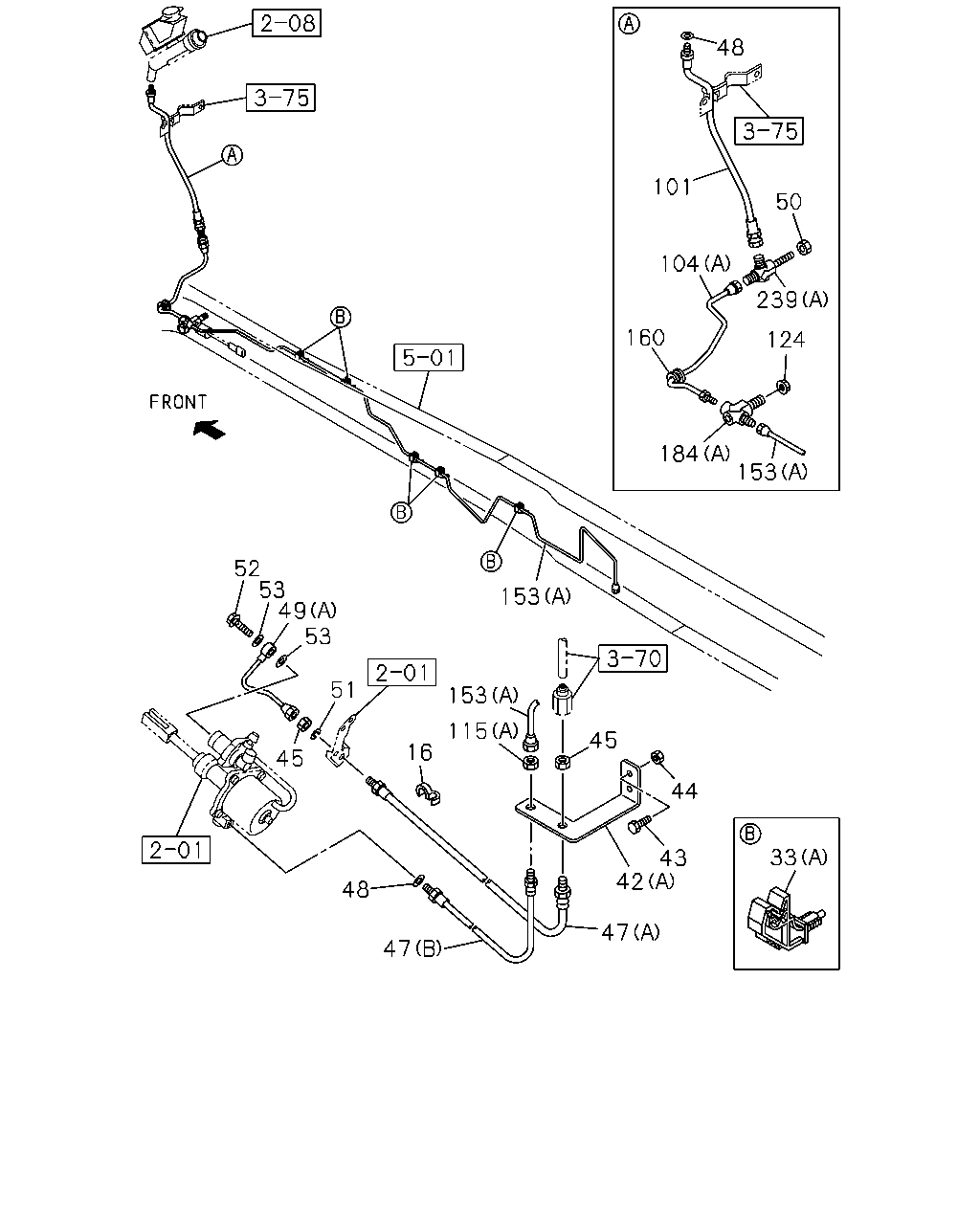

48 101 50 104 239 160 184 124 153 153 52 53 49 53 51 45 16 48 153 115 45 44 43 42 47 47 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1312-
33	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1312-
33	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=6.35	1-09701-247-1	04	1	1312-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (B)	8-98077-571-0	01	1	1312-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCN ENG(82L) (A)	8-98105-654-0	01	1	1312-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1312-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1312-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1312-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (D) L=560	1-09363-689-0	01	1	1312-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (C) L=520	1-09364-583-0	01	1	1312-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (A) L=470	1-09363-716-0	01	1	1312-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=375	1-09364-407-0	01	1	1312-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1312-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (A) L=239 IDN	1-49117-401-0	01	1	1312-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) (B) L=232 IDN	1-49124-795-0	01	1	1312-
50	NUT; UNION M12	0-91111-512-0	01	1	1312-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1312-
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1312-
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1312-1312
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1312-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) (A) L=554 IDN	8-98114-452-0	01	1	1312-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 DD M/T(Y5P) (B) L=544 SERVICED BY L=550	1-47428-753-0	01	1	1312-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1312-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (B) M14	0-91111-514-0	01	1	1312-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1312-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) (A) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1312-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (B) L=1691 SERVICED BY L=1700	1-47428-767-0	01	1	1312-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1312-
184	UNION; FLEX HOSE MZW6P M/T(RSZ) (A)	8-98150-865-0	01	1	1312-
184	UNION; FLEX HOSE ZF9S1110 DD M/T(Y5P) (B) M14 2WAY	1-09654-176-2	01	1	1312-
239	UNION; CLU HOSE MZW6P M/T(RSZ) (A) M12 2WAY	1-09654-059-2	01	1	1312-
239	UNION; CLU HOSE ZF9S1110 DD M/T(Y5P) (B)	8-98107-850-0	01	1	1312-

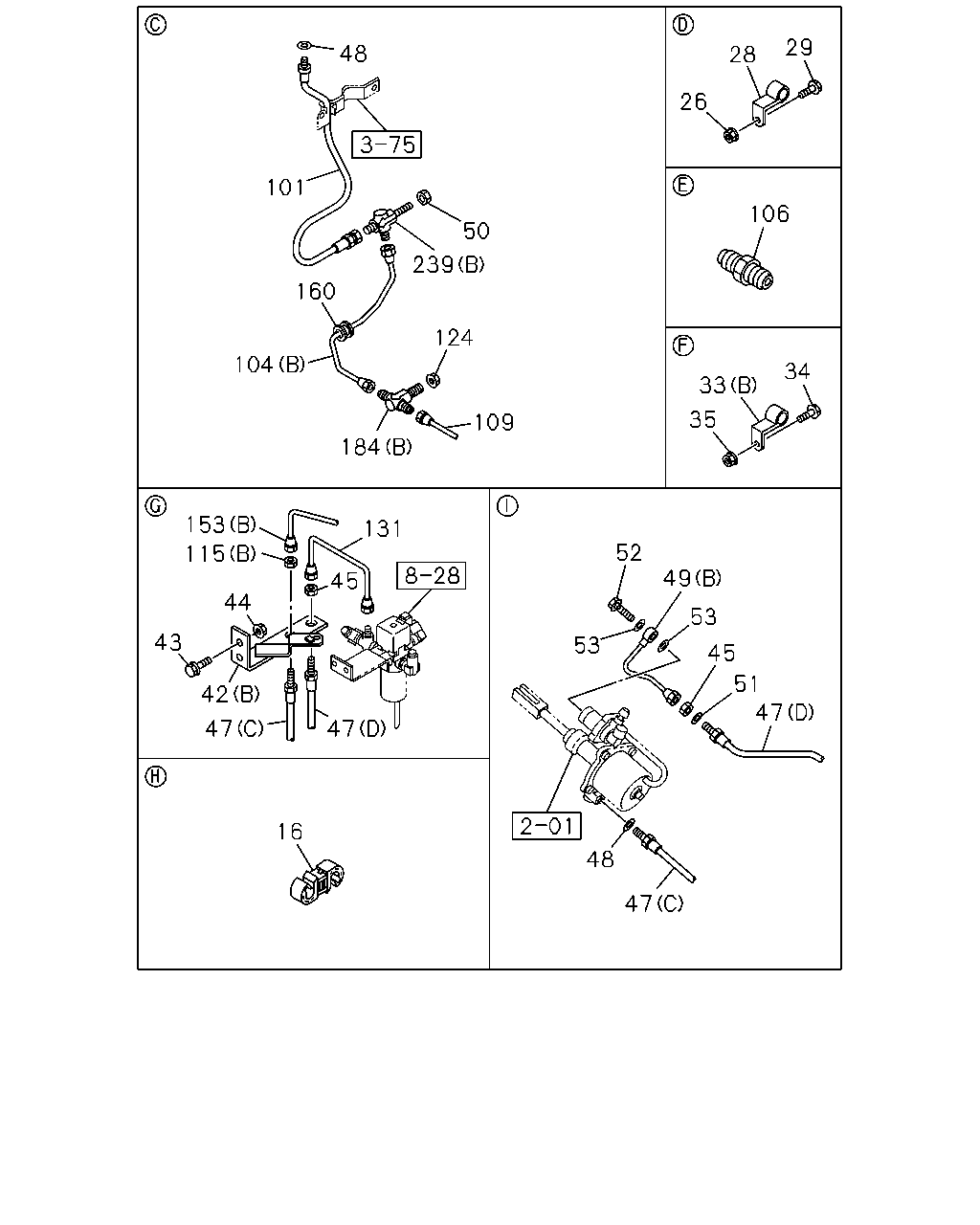

29 28 106 26 34 33 35 49 52 53 45 53 51 47 47 48 131 45 47 16 47 43 42 44 115 153 184 104 160 109 124 239 101 48 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1312-
26	NUT; CLIP,OIL PIPE ZF9S1110 DD M/T(Y5P) M8 FLANGE	0-91180-108-0	07	1	1312-
28	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) ID=8 H=20 L=20	1-09700-604-0	07	1	1312-
29	BOLT; CLIP,OIL PIPE ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	07	1	1312-
33	CLIP; OIL PIPE ZF9S1110 DD M/T(Y5P) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1312-
33	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=6.35	1-09701-247-1	04	1	1312-
34	BOLT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8X30 FLANGE	0-28650-830-0	03	1	1312-
35	NUT; PIPE CLIP ZF9S1110 DD M/T(Y5P) M8 FLANGE	0-91180-108-0	03	1	1312-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (B)	8-98077-571-0	01	1	1312-
42	BRACKET; FLEX HOSE,CLU CONT 6HK1-TCN ENG(82L) (A)	8-98105-654-0	01	1	1312-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1312-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1312-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1312-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (D) L=560	1-09363-689-0	01	1	1312-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (C) L=520	1-09364-583-0	01	1	1312-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (A) L=470	1-09363-716-0	01	1	1312-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=375	1-09364-407-0	01	1	1312-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1312-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) (A) L=239 IDN	1-49117-401-0	01	1	1312-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 DD M/T(Y5P) (B) L=232 IDN	1-49124-795-0	01	1	1312-
50	NUT; UNION M12	0-91111-512-0	01	1	1312-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1312-
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1312-
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1312-1312
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 IDN	8-98072-346-0	01	1	1312-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) (A) L=554 IDN	8-98114-452-0	01	1	1312-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 DD M/T(Y5P) (B) L=544 SERVICED BY L=550	1-47428-753-0	01	1	1312-
106	UNION; OIL PIPE ZF9S1110 DD M/T(Y5P) M14 STRAIGHT	0-92113-008-0	01	1	1312-
109	PIPE; AIR,UNION TO UNION ZF9S1110 DD M/T(Y5P) L=2766 SERVICED BY L=3000	1-47428-773-0	01	1	1312-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1312-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 DD M/T(Y5P) (B) M14	0-91111-514-0	01	1	1312-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1312-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 DD M/T(Y5P) L=218 IDN	8-98108-924-0	01	1	1312-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) (A) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1312-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (B) L=1691 SERVICED BY L=1700	1-47428-767-0	01	1	1312-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1312-
184	UNION; FLEX HOSE MZW6P M/T(RSZ) (A)	8-98150-865-0	01	1	1312-
184	UNION; FLEX HOSE ZF9S1110 DD M/T(Y5P) (B) M14 2WAY	1-09654-176-2	01	1	1312-
239	UNION; CLU HOSE MZW6P M/T(RSZ) (A) M12 2WAY	1-09654-059-2	01	1	1312-
239	UNION; CLU HOSE ZF9S1110 DD M/T(Y5P) (B)	8-98107-850-0	01	1	1312-

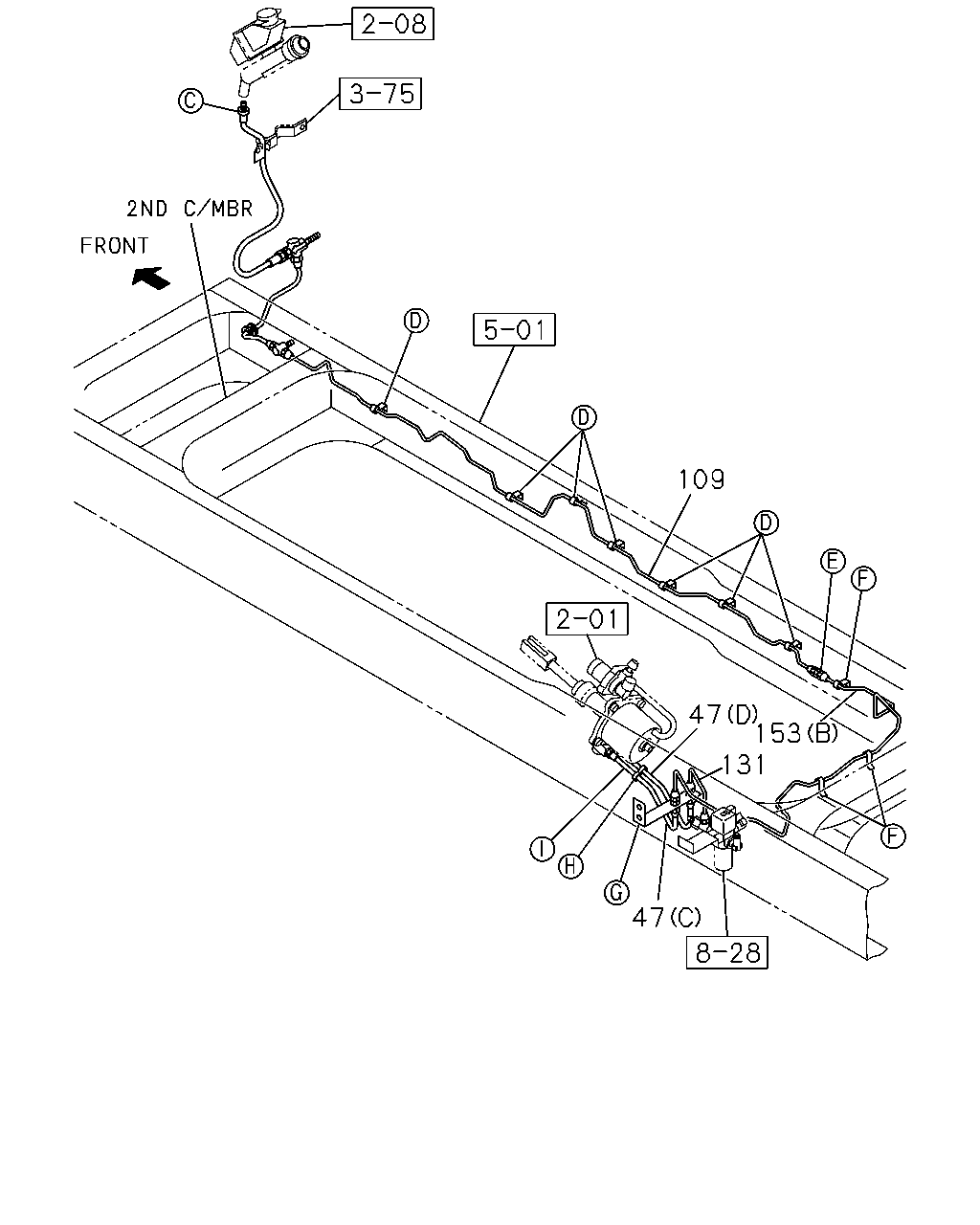

109 47 153 131 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (D) L=560	1-09363-689-0	01	1	1312-
47	HOSE; FLEX,CLU CONT ZF9S1110 DD M/T(Y5P) (C) L=520	1-09364-583-0	01	1	1312-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (A) L=470	1-09363-716-0	01	1	1312-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=375	1-09364-407-0	01	1	1312-
109	PIPE; AIR,UNION TO UNION ZF9S1110 DD M/T(Y5P) L=2766 SERVICED BY L=3000	1-47428-773-0	01	1	1312-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 DD M/T(Y5P) L=218 IDN	8-98108-924-0	01	1	1312-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) (A) L=2790 SERVICED BY L=2900	1-47428-744-0	01	1	1312-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 DD M/T(Y5P) (B) L=1691 SERVICED BY L=1700	1-47428-767-0	01	1	1312-
