1-31 — AIR DUCT (#131341) — 82 parça

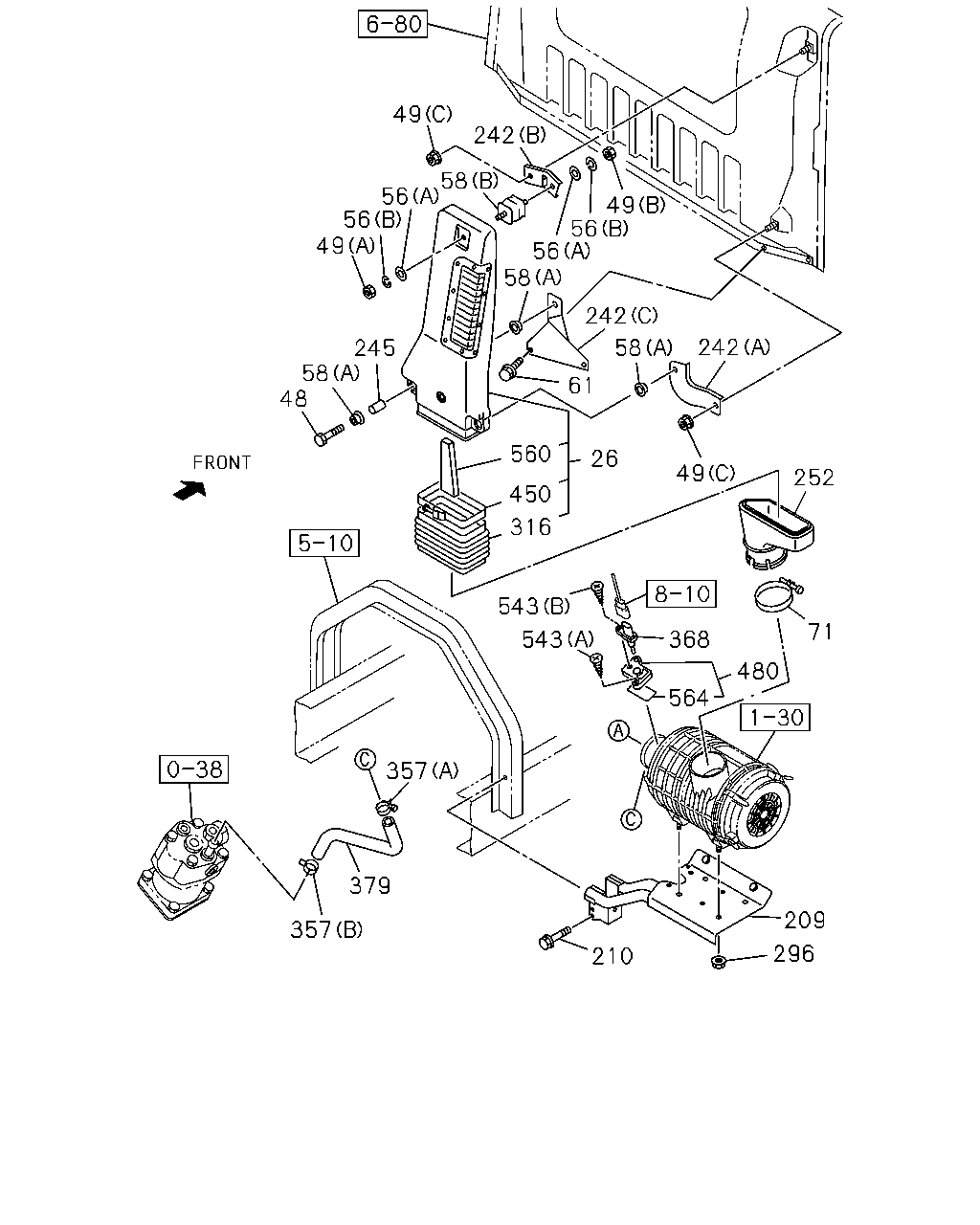

çizim 388246
49 58 242 56 56 49 58 245 48 560 450 316 543 543 368 564 71 252 49 242 58 242 61 26 58 56 56 49 357 379 357 210 209 296 480
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1312- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1312- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1312- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1312- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE IDN 		8-94279-517-0 02 1 1312- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1312- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1312- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1312- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1312- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1312- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1312- ●
71 CLIP; AIR DUCT
ID=140-160 		8-98133-368-0 01 1 1312- ●
209 BRACKET; ACL
IDN 		8-97948-148-0 01 1 1312- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1312- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1312- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1312- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1312- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1312- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1312- ●
252 DUCT; AIR INT 8-98021-989-1 01 1 1312- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1312- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1312- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1312- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1312- ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1312- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1312- ● ●
379 HOSE; RUBBER
IDN 		8-97639-463-0 01 1 1312- ●
379 HOSE; RUBBER 8-97619-194-0 01 1 1312- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1312- ● ●
480 ADAPTER 8-98086-417-0 01 1 1312- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1312- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1312- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1312- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1312- ● ●

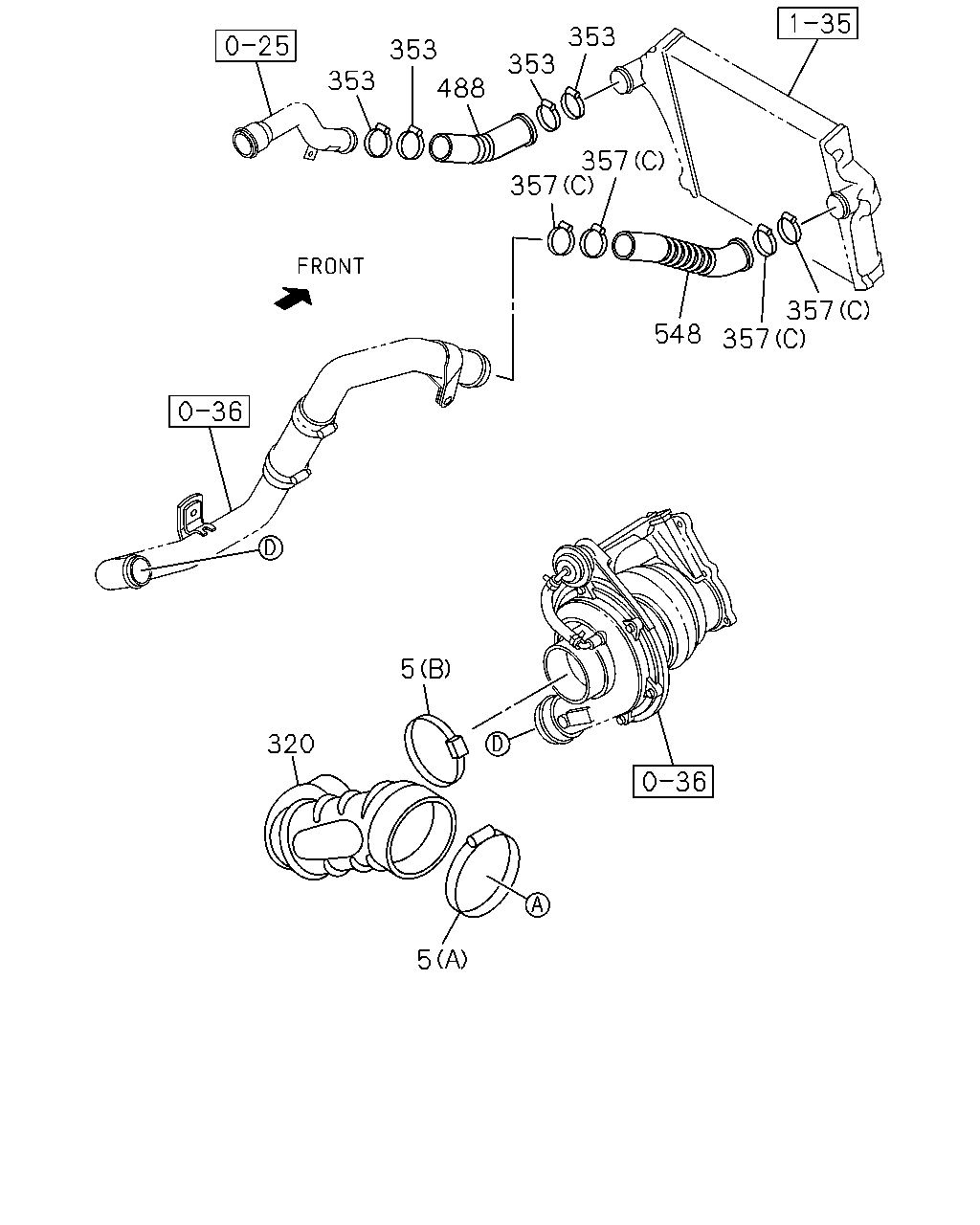

çizim 388255
353 353 353 353 488 357 357 548 357 357 5 320 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1312- ●
5 CLIP; AIR DUCT
(B) ID=90-110 		8-98133-365-0 01 1 1312- ● ●
5 CLIP; AIR DUCT
(A) ID=130-150 		8-98133-360-0 01 1 1312- ●
320 HOSE; CONN,ACL
IDN 		8-98073-259-0 01 1 1312- ●
320 HOSE; CONN,ACL
IDN 		8-98073-257-0 01 1 1312- ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 04 1 1312- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1312- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1312- ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1312- ● ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1312- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
IDN 		8-98181-974-1 01 1 1312- ● ●

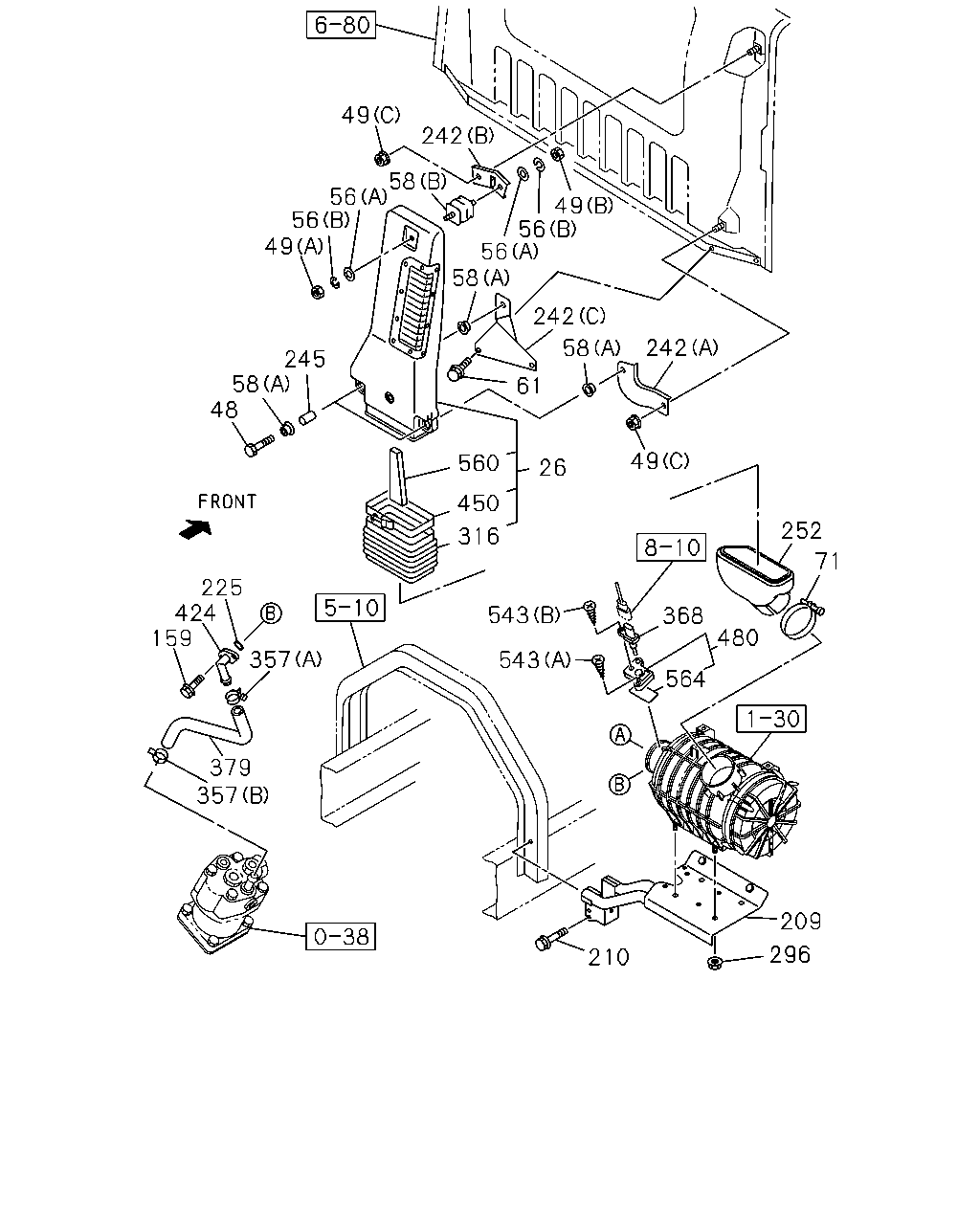

çizim 388726
49 58 242 56 56 49 245 58 48 225 424 159 357 379 357 543 543 368 480 564 252 71 209 296 210 49 26 450 560 316 58 56 56 49 242 242 61 58
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1312- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1312- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1312- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1312- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE IDN 		8-94279-517-0 02 1 1312- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1312- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1312- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1312- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1312- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1312- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1312- ●
71 CLIP; AIR DUCT
ID=140-160 		8-98133-368-0 01 1 1312- ●
159 BOLT; AIR PIPE
M6X16 FLANGE IDN 		0-28050-616-0 02 1 1312- ●
209 BRACKET; ACL
IDN 		8-97948-148-0 01 1 1312- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1312- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1312- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1312- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1312- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1312- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1312- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1312- ●
252 DUCT; AIR INT 8-98021-989-1 01 1 1312- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1312- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1312- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1312- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1312- ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 04 1 1312- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1312- ● ●
379 HOSE; RUBBER
IDN 		8-97639-463-0 01 1 1312- ●
379 HOSE; RUBBER 8-97619-194-0 01 1 1312- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1312- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1312- ● ●
480 ADAPTER 8-98086-417-0 01 1 1312- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1312- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1312- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1312- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1312- ● ●
