◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11565 - FVM(INDONESIA)6HK1 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#131338) — 97 parça

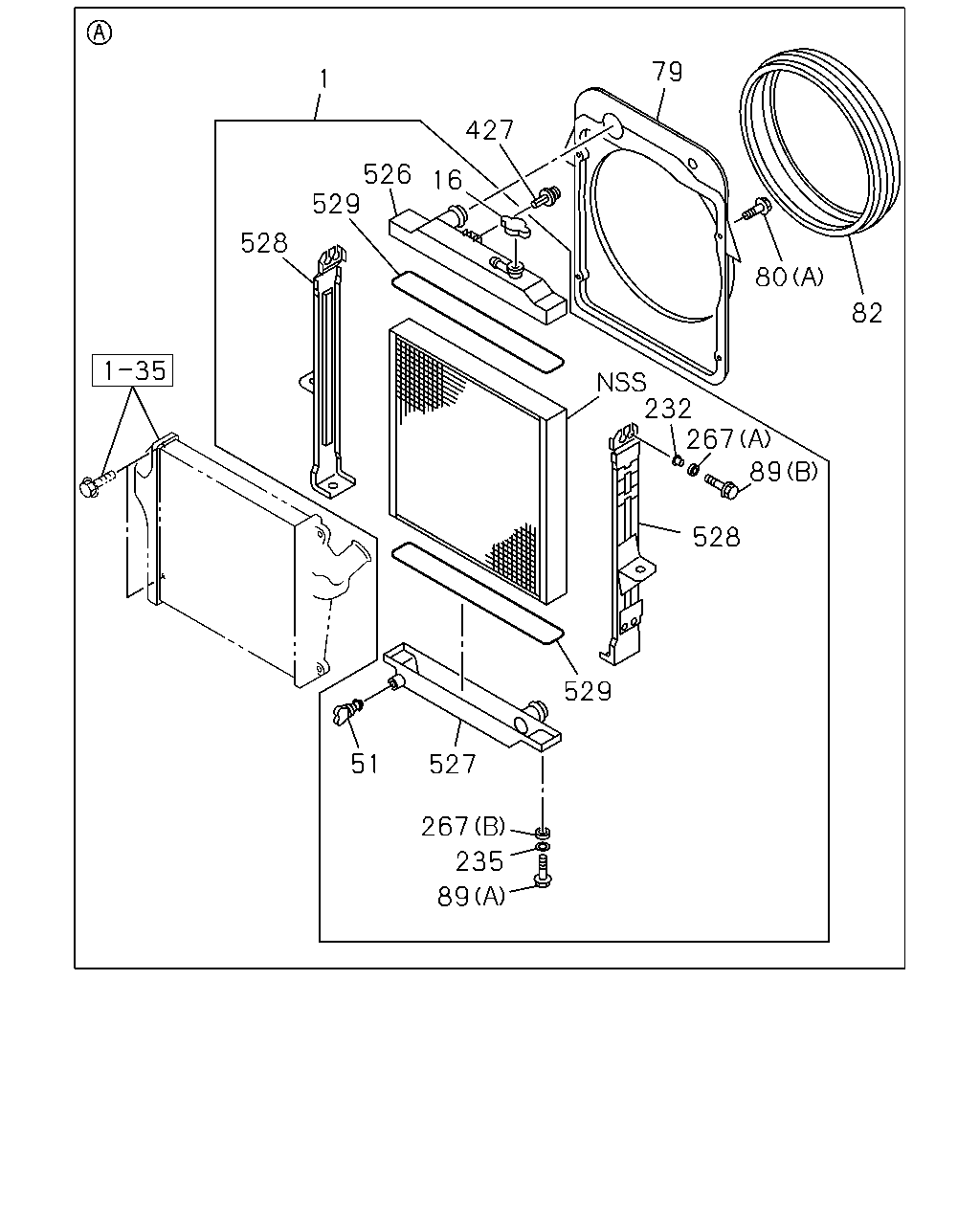

çizim 388233
1 526 529 528 427 79 16 80 82 232 267 528 89 529 527 267 235 89 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
IDN 		8-98248-323-0 01 1 1312- ●
1 RADIATOR ASM
IDN 		8-98248-324-0 01 1 1312- ●
16 CAP; RAD
IDN 		8-97239-187-0 01 1 1312- ●
16 CAP; RAD 8-98096-226-0 01 1 1312- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1312- ● ●
79 GUIDE; FAN,RAD
IDN 		8-98010-384-0 01 1 1312-1410 ●
79 GUIDE; FAN,RAD
IDN 		8-98273-634-0 01 1 1411- ●
79 GUIDE; FAN,RAD
IDN 		8-98004-207-0 01 1 1312-1410 ●
79 GUIDE; FAN,RAD
IDN 		8-98286-937-0 01 1 1411- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1312- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 IDN 		8-98046-222-0 04 1 1312-1410 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1411- ● ●
82 COVER; FAN,RAD
IDN 		8-98004-211-0 01 1 1312-1410 ● ●
82 COVER; FAN,RAD
IDN 		8-98293-253-0 01 1 1411- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1312- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1312- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1312- ● ●
235 WASHER; CUSHION RUBBER
IDN 		1-21469-133-0 02 1 1312- ● ●
267 RUBBER; CUSHION
(A) IDN 		1-21469-130-0 04 1 1312- ● ●
267 RUBBER; CUSHION
(B) IDN 		1-21469-131-0 02 1 1312- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1312-1410 ● ●
526 TANK; UPR,RADIATOR CORE
IDN 		8-98004-202-2 01 1 1312- ● ●
527 TANK; LWR,RADIATOR CORE
IDN 		8-98004-203-0 01 1 1312- ● ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98042-838-3 01 1 1312- ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98042-839-2 01 1 1312- ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98010-372-4 01 1 1312- ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98185-754-0 01 1 1312- ●
529 GASKET; CORE,RADIATOR
IDN 		8-98004-206-0 02 1 1312- ● ●

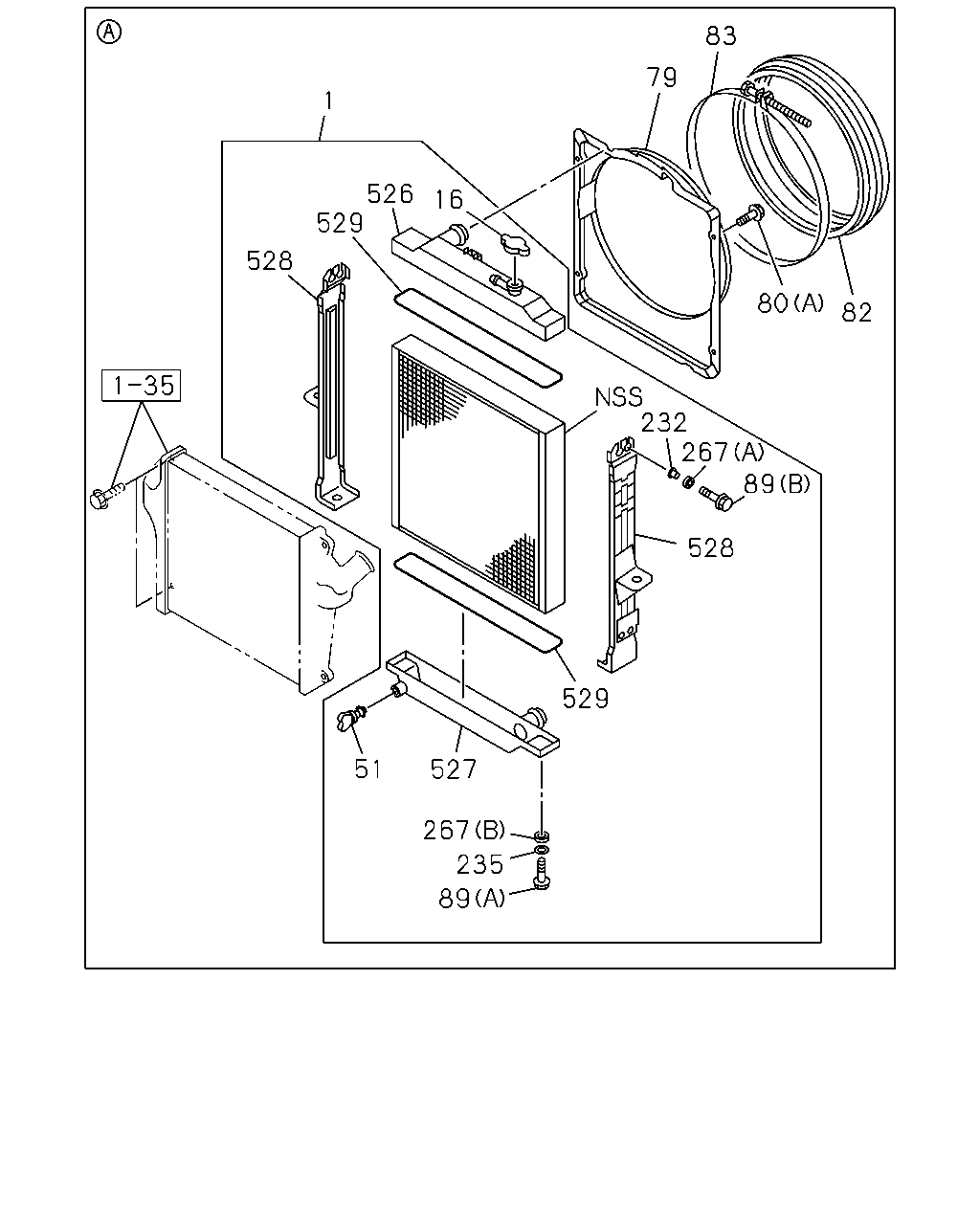

çizim 388239
1 83 79 16 526 529 528 51 527 267 235 89 529 528 89 267 232 80 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
IDN 		8-98248-323-0 01 1 1312- ●
1 RADIATOR ASM
IDN 		8-98248-324-0 01 1 1312- ●
16 CAP; RAD
IDN 		8-97239-187-0 01 1 1312- ●
16 CAP; RAD 8-98096-226-0 01 1 1312- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1312- ● ●
79 GUIDE; FAN,RAD
IDN 		8-98010-384-0 01 1 1312-1410 ●
79 GUIDE; FAN,RAD
IDN 		8-98273-634-0 01 1 1411- ●
79 GUIDE; FAN,RAD
IDN 		8-98004-207-0 01 1 1312-1410 ●
79 GUIDE; FAN,RAD
IDN 		8-98286-937-0 01 1 1411- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1312- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 IDN 		8-98046-222-0 04 1 1312-1410 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1411- ● ●
82 COVER; FAN,RAD
IDN 		8-98004-211-0 01 1 1312-1410 ● ●
82 COVER; FAN,RAD
IDN 		8-98293-253-0 01 1 1411- ● ●
83 CLIP; FAN COVER
IDN 		1-09707-177-2 01 1 1411- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1312- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1312- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1312- ● ●
235 WASHER; CUSHION RUBBER
IDN 		1-21469-133-0 02 1 1312- ● ●
267 RUBBER; CUSHION
(A) IDN 		1-21469-130-0 04 1 1312- ● ●
267 RUBBER; CUSHION
(B) IDN 		1-21469-131-0 02 1 1312- ● ●
526 TANK; UPR,RADIATOR CORE
IDN 		8-98004-202-2 01 1 1312- ● ●
527 TANK; LWR,RADIATOR CORE
IDN 		8-98004-203-0 01 1 1312- ● ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98042-838-3 01 1 1312- ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98042-839-2 01 1 1312- ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98010-372-4 01 1 1312- ●
528 PLATE; SIDE,RADIATOR CORE
IDN 		8-98185-754-0 01 1 1312- ●
529 GASKET; CORE,RADIATOR
IDN 		8-98004-206-0 02 1 1312- ● ●

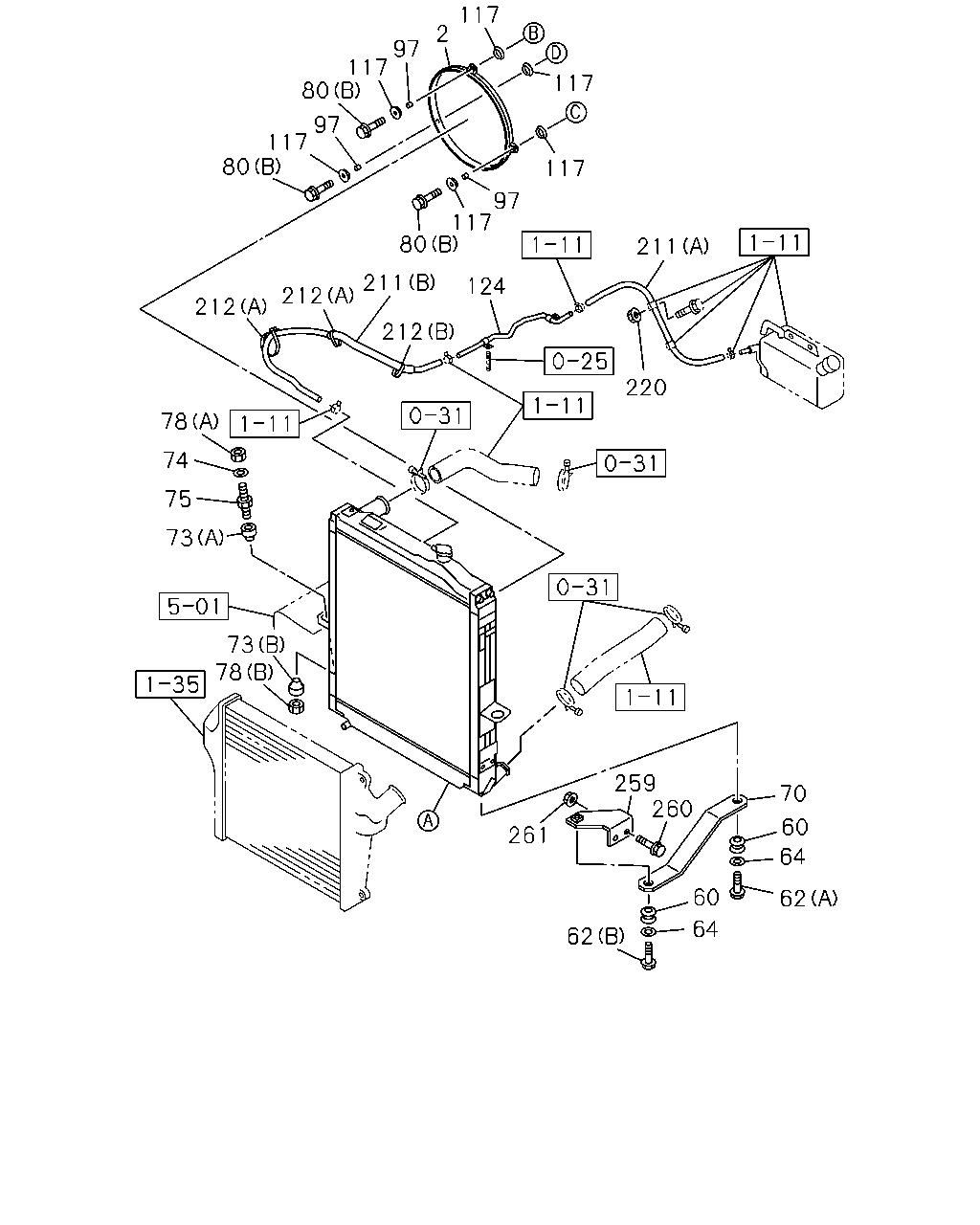

çizim 389054
80 117 97 117 97 2 117 117 117 117 97 80 211 212 212 212 124 211 220 78 74 75 73 73 78 261 259 260 70 60 64 62 60 64 62 80
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-94393-779-1 01 1 1312- ● ●
60 GROMMET 1-09332-117-0 04 1 1312- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1312- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1312- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1312- ● ●
70 STAY; RAD 8-98004-132-2 02 1 1312- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1312- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1312- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1312- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1312- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1312- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1312- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1312- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 IDN 		8-98046-222-0 04 1 1312-1410 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1411- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1312- ● ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1312- ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1312- ● ●
211 HOSE; RAD TO PIPE
(B) L=970 IDN 		8-98073-545-0 01 1 1312- ●
211 HOSE; RAD TO PIPE
(A) L=560 IDN 		8-98119-375-0 01 1 1312- ● ●
211 HOSE; RAD TO PIPE
(B) L=940 IDN 		8-98073-544-0 01 1 1312- ●
212 CLIP; HOSE
(A) L=250 IDN 		5-09707-030-1 02 1 1312- ● ●
212 CLIP; HOSE
(B) L=140 IDN 		5-09707-031-1 01 1 1312- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 1312- ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 1312- ● ●
260 BOLT; BRKT
M8X20 FLANGE IDN 		0-28650-820-0 04 1 1312- ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1312- ● ●

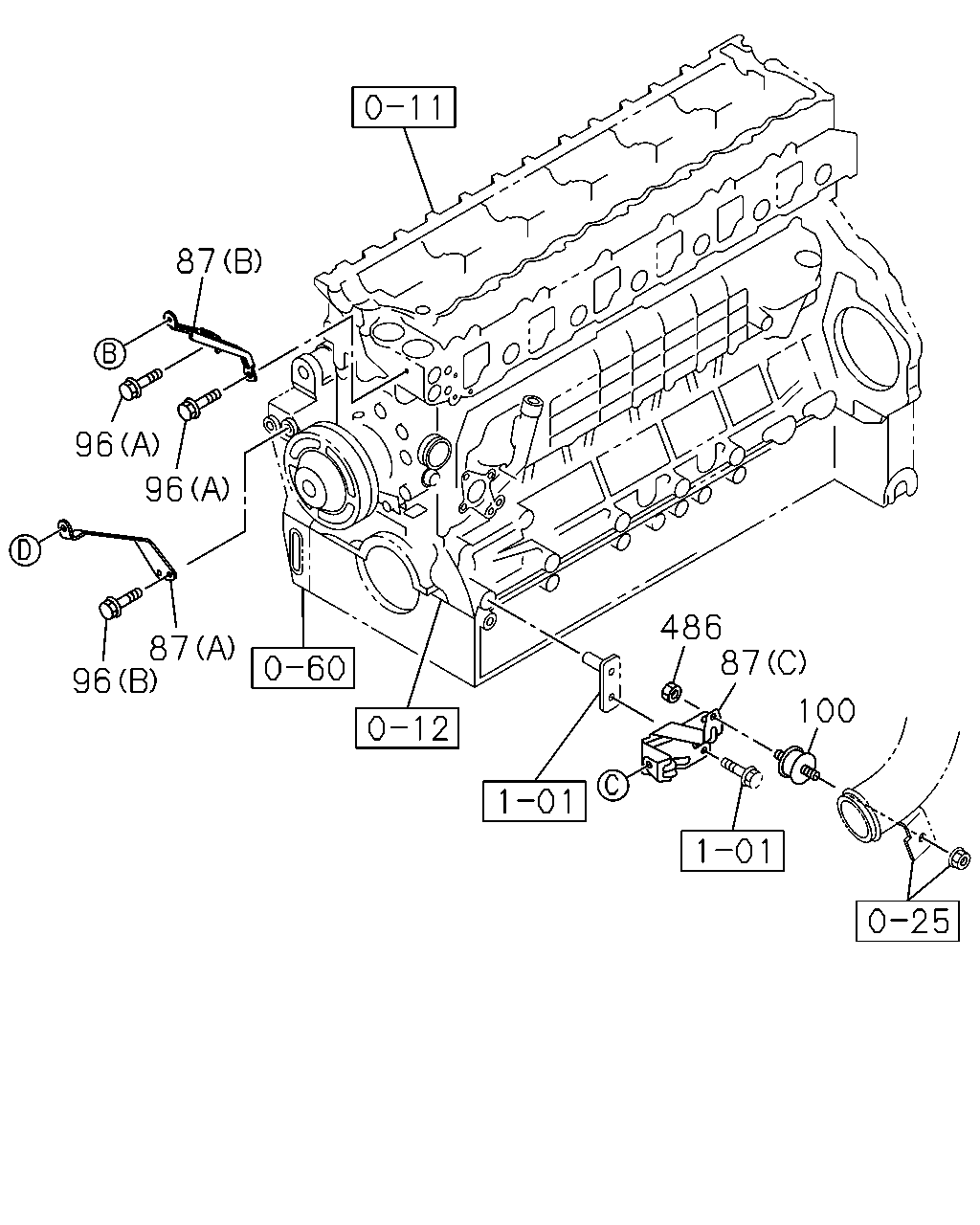

çizim 464009
87 96 87 96 96 100 87 486
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
KD ENGINE<7MB> (B) 		8-97520-825-0 01 1 1411- ● ●
87 STAY; FAN GUIDE
KD ENGINE<7MB> (C) 		8-97520-826-0 01 1 1411- ● ●
87 STAY; FAN GUIDE
KD ENGINE<7MB> (A) 		8-97520-828-0 01 1 1411- ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1312-1410 ● ●
87 STAY; FAN GUIDE
EXC. KD ENGINE<7MB> (B) 		8-94393-776-1 01 1 1411- ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1312-1410 ● ●
87 STAY; FAN GUIDE
EXC. KD ENGINE<7MB> (C) 		8-94393-778-2 01 1 1411- ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1312-1410 ● ●
87 STAY; FAN GUIDE
EXC. KD ENGINE<7MB> (A) 		8-97602-988-0 01 1 1411- ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1312- ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 1312-1410 ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1312-1410 ● ●
