0-51 — OIL PUMP AND OIL STRAINER (#131330) — 12 parça

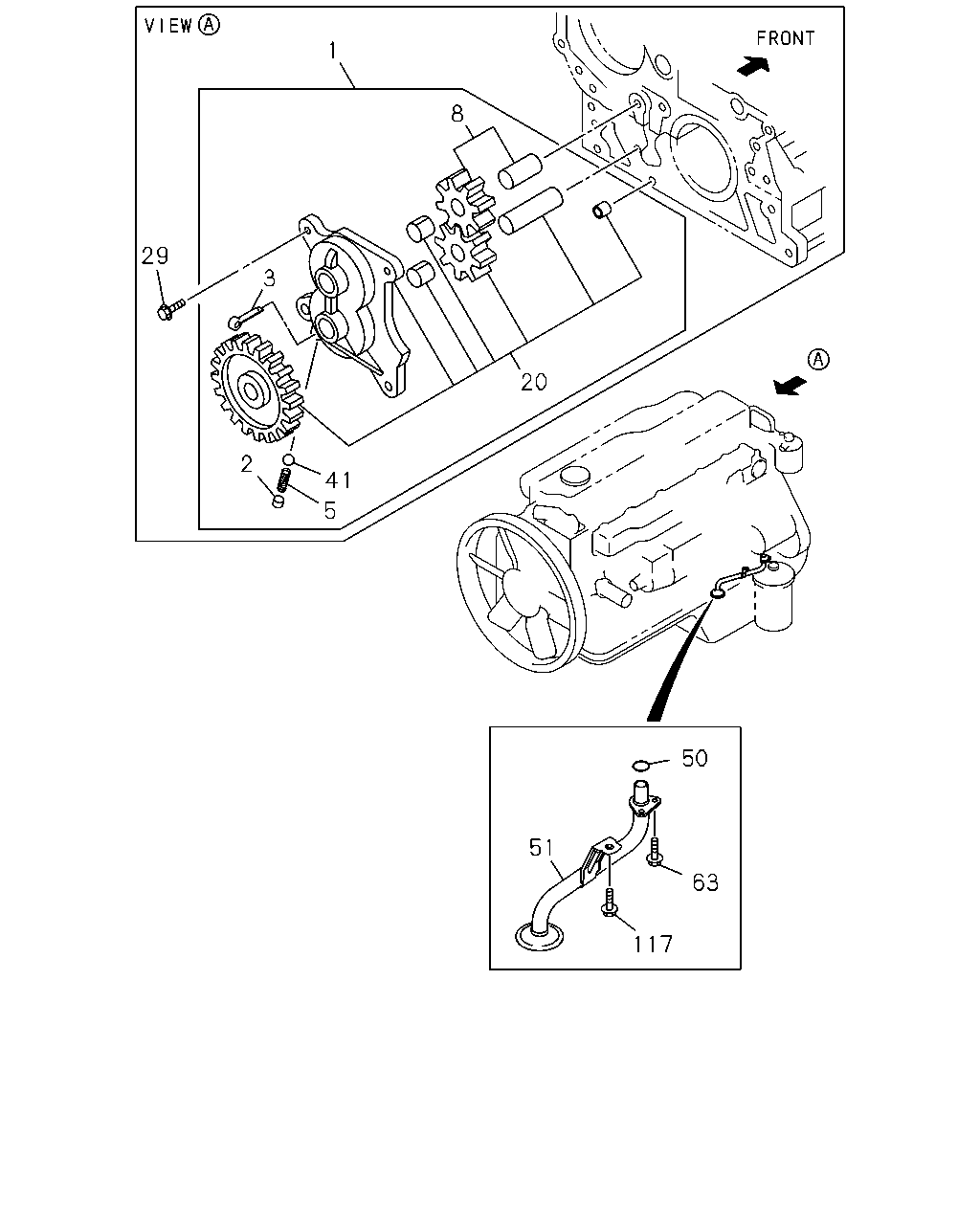

çizim 388170
1 29 3 2 5 41 20 8 50 63 117 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL 8-97641-835-0 01 1 1312- ● ●
2 SEAT; SPR 5-13165-004-0 01 1 1312- ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 1312- ● ●
5 SPRING; COIL 5-09580-098-0 01 1 1312- ● ●
8 GEAR; DRIVEN,OIL PUMP 8-97641-838-0 01 1 1312- ● ●
20 GEAR; DRIVE,OIL PUMP 8-97641-839-0 01 1 1312- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 04 1 1312- ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 1312- ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 1312- ● ●
51 STRAINER & PIPE ASM; OIL 8-98204-158-0 01 1 1312- ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1312- ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 1312- ● ●
