Isuzu WW
▶
TRUCKS
▶
FTR
▶
11042 - FTR(LHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶

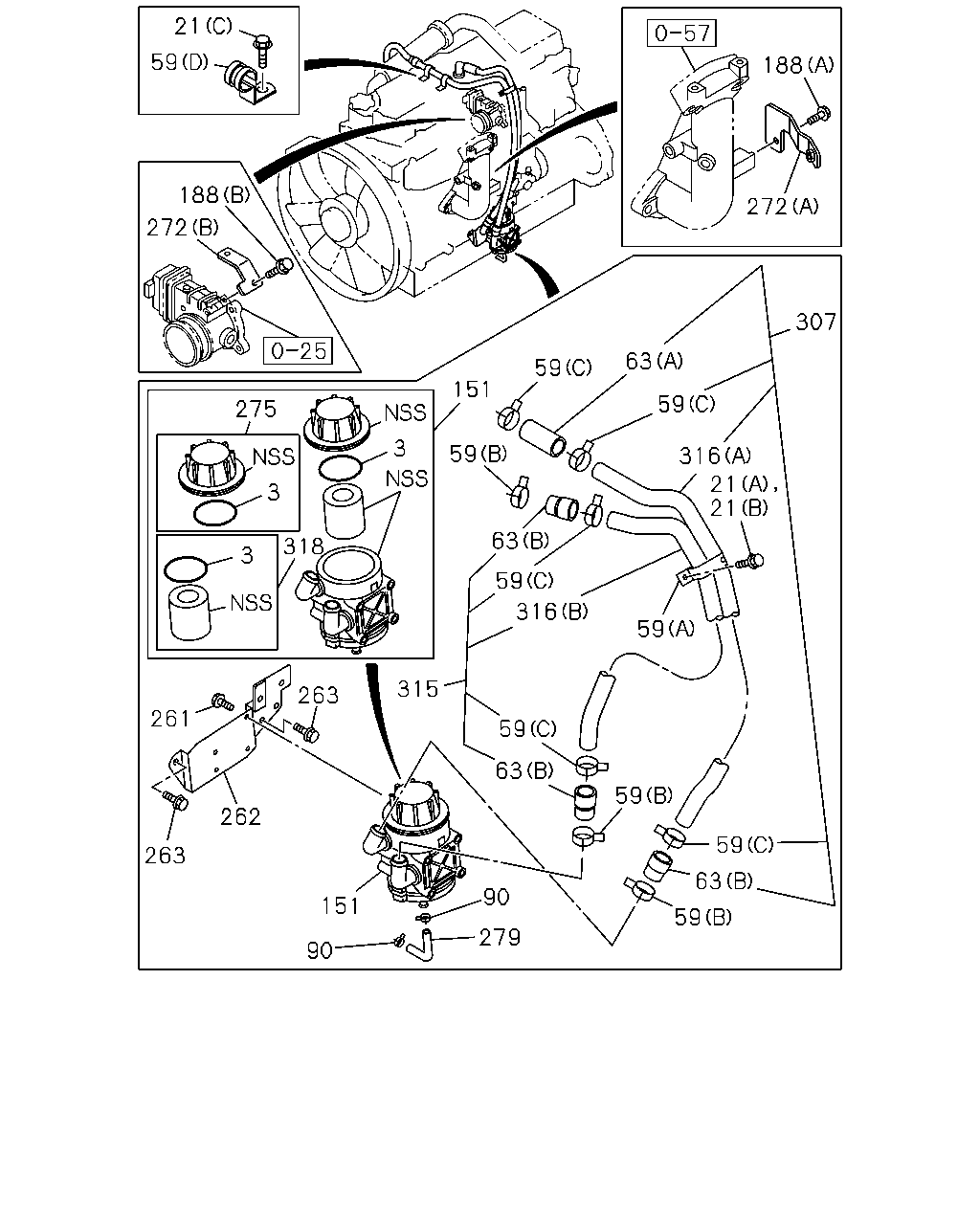

0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#13133) — 26 parça
21
59
188
272
275
3
3
318
3
261
263
262
263
151
90
90
279
315
59
63
59
59
63
59
59
316
59
63
59
151
59
63
59
316
21
21
307
272
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
0612-
21
BOLT; CLIP
(A) M6X12 FLANGE
0-28050-612-0
01
1
0612-
21
BOLT; CLIP
(C) M8X12 FLANGE
0-28050-812-0
02
1
0612-
21
BOLT; CLIP
(B) M8X16 FLANGE
0-28050-816-0
02
1
0612-
59
CLIP; HOSE
(D) ID=31 H=30 L=35
1-09700-994-0
02
1
0612-
59
CLIP; HOSE
(A) ID=30X2 L=28
1-09701-266-0
03
1
0612-
59
CLIP; HOSE
(B) ID=28.5
1-09707-150-0
03
1
0612-
59
CLIP; HOSE
(C) ID=33.6
8-94362-518-0
05
1
0612-
63
HOSE; RUBBER,AIR BREATHER
(A) L=70
0-02828-070-0
01
1
0612-
63
HOSE; RUBBER,AIR BREATHER
(B)
1-09360-925-0
03
1
0612-
90
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
0612-
151
SEPARATOR; OIL,PCV
8-97602-262-2
01
1
0612-
188
BOLT; BRKT
(B) M6X12 FLANGE
0-28050-612-0
01
1
0612-
188
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
01
1
0612-
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
0612-
262
BRACKET; OIL SEPARETOR
8-97604-921-0
01
1
0612-
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE
0-28751-025-0
02
1
0612-
272
BRACKET; PIPE
(B)
8-97607-397-0
01
1
0612-
272
BRACKET; PIPE
(A)
8-98032-178-0
01
1
0612-
275
CAP; PCV
8-97606-319-0
01
1
0612-
279
HOSE; RUBBER,OIL DRAIN
L=190
0-02709-190-0
01
1
0612-
307
HOSE; RUBBER,HEAD COVER TO OIL SEPARAT
8-97604-965-4
01
1
0612-
315
HOSE; RUBBER
8-97614-119-4
01
1
0612-
316
HOSE; BREATHER
(B)
8-97601-378-1
01
1
0612-
316
HOSE; BREATHER
(A) L=900
8-97602-985-0
01
1
0612-
318
ELEMENT KIT; PCV
8-97606-318-0
01
1
0612-
