Isuzu WW
▶
TRUCKS
▶
FVM
▶
11565 - FVM(INDONESIA)6HK1
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

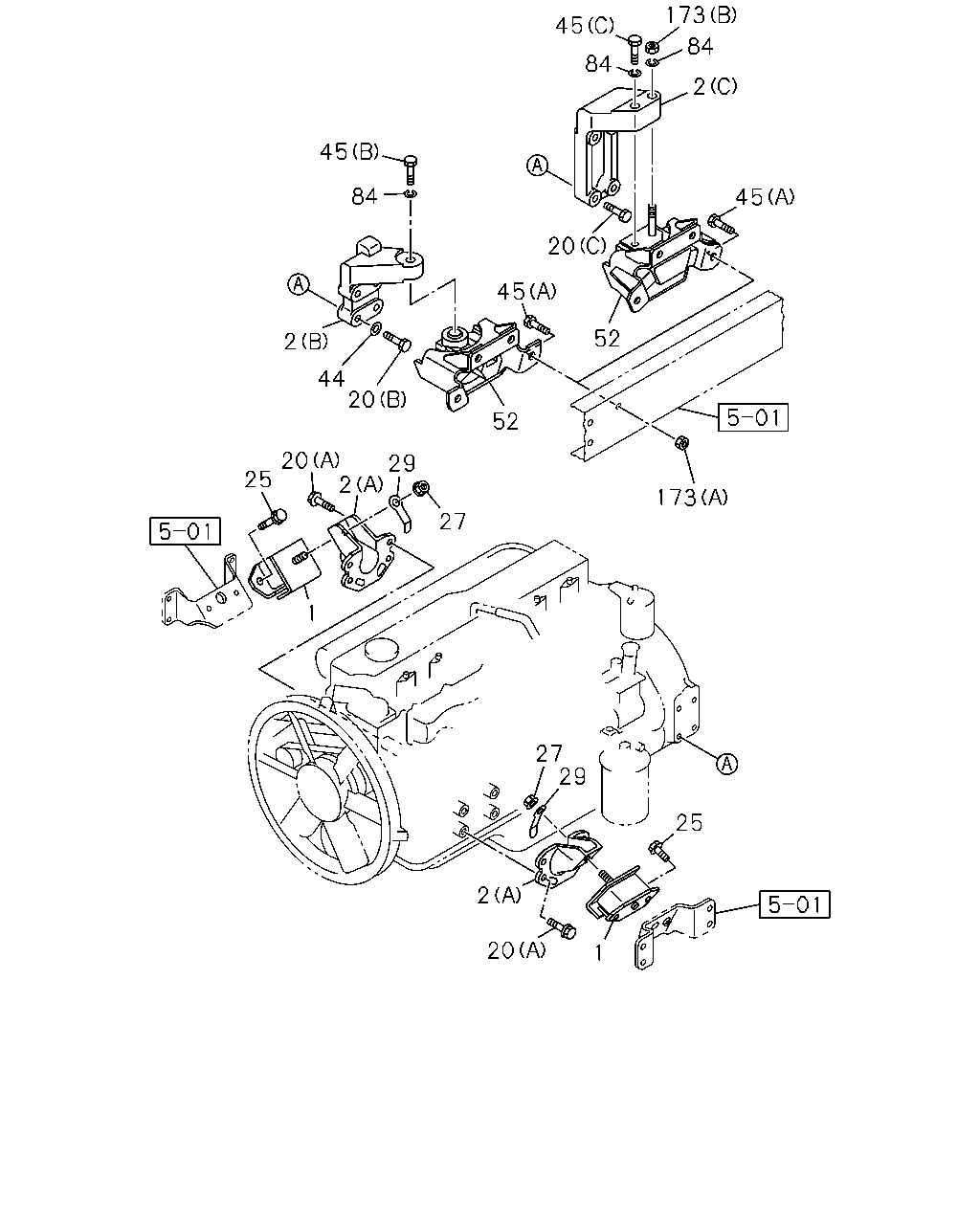

0-22 — ENGINE MOUNTING
(#131315) — 30 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
45
84
20
45
52
173
52
27
29
2
20
25
1
20
44
2
84
45
173
2
84
45
29
27
25
2
1
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
1312-
●
●
2
FOOT; ENG
KD ENGINE<7MB> (C)
8-97520-873-0
01
1
1411-
●
2
FOOT; ENG
KD ENGINE<7MB> (C)
8-97520-874-0
01
1
1411-
●
2
FOOT; ENG
KD ENGINE<7MB> (B)
8-97520-875-0
01
1
1411-
●
2
FOOT; ENG
KD ENGINE<7MB> (B)
8-97520-876-0
01
1
1411-
●
2
FOOT; ENG
(C)
8-97611-990-0
01
1
1312-1410
●
2
FOOT; ENG
EXC. KD ENGINE<7MB> (C)
8-97611-990-0
01
1
1411-
●
2
FOOT; ENG
(C)
8-97611-991-0
01
1
1312-1410
●
2
FOOT; ENG
EXC. KD ENGINE<7MB> (C)
8-97611-991-0
01
1
1411-
●
2
FOOT; ENG
(A)
8-97602-589-1
02
1
1312-
●
●
2
FOOT; ENG
(B)
8-97611-988-0
01
1
1312-1410
●
2
FOOT; ENG
EXC. KD ENGINE<7MB> (B)
8-97611-988-0
01
1
1411-
●
2
FOOT; ENG
(B)
8-97611-989-0
01
1
1312-1410
●
2
FOOT; ENG
EXC. KD ENGINE<7MB> (B)
8-97611-989-0
01
1
1411-
●
20
BOLT; ENG FOOT
(C) M12X55
8-94399-884-1
08
1
1312-
●
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1312-
●
●
20
BOLT; ENG FOOT
(B) M12X50
0-16956-250-0
08
1
1312-
●
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
1312-
●
●
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1312-
●
●
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1312-
●
●
44
WASHER; LK,ENG FOOT
ID=12.5
0-91614-512-0
08
1
1312-
●
45
BOLT; CUSHION RUBBER TO FRAME
(A) M14X50
0-29261-450-0
08
1
1312-
●
●
45
BOLT; CUSHION RUBBER TO FRAME
MZW6P M/T(RSZ) (B) M18X65
8-94393-260-1
02
1
1312-
●
●
45
BOLT; CUSHION RUBBER TO FRAME
ZF9S1110 DD M/T(Y5P) (C) M16X60
0-10956-660-0
02
1
1312-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
MZW6P M/T(RSZ)
8-98013-021-1
02
1
1312-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
ZF9S1110 DD M/T(Y5P)
8-98013-022-1
02
1
1312-
●
●
84
WASHER; PL,ENG MTG RR TO FRAME
MZW6P M/T(RSZ) ID=19 OD=36
0-91614-618-0
02
1
1312-
●
●
84
WASHER; PL,ENG MTG RR TO FRAME
ZF9S1110 DD M/T(Y5P) ID=17
0-91614-516-0
04
1
1312-
●
●
173
NUT; ENG MTG RR TO FRAME
(A) M14 FLANGE
0-91180-214-0
08
1
1312-
●
●
173
NUT; ENG MTG RR TO FRAME
ZF9S1110 DD M/T(Y5P) (B) M16
0-91110-516-0
02
1
1312-
●
●
